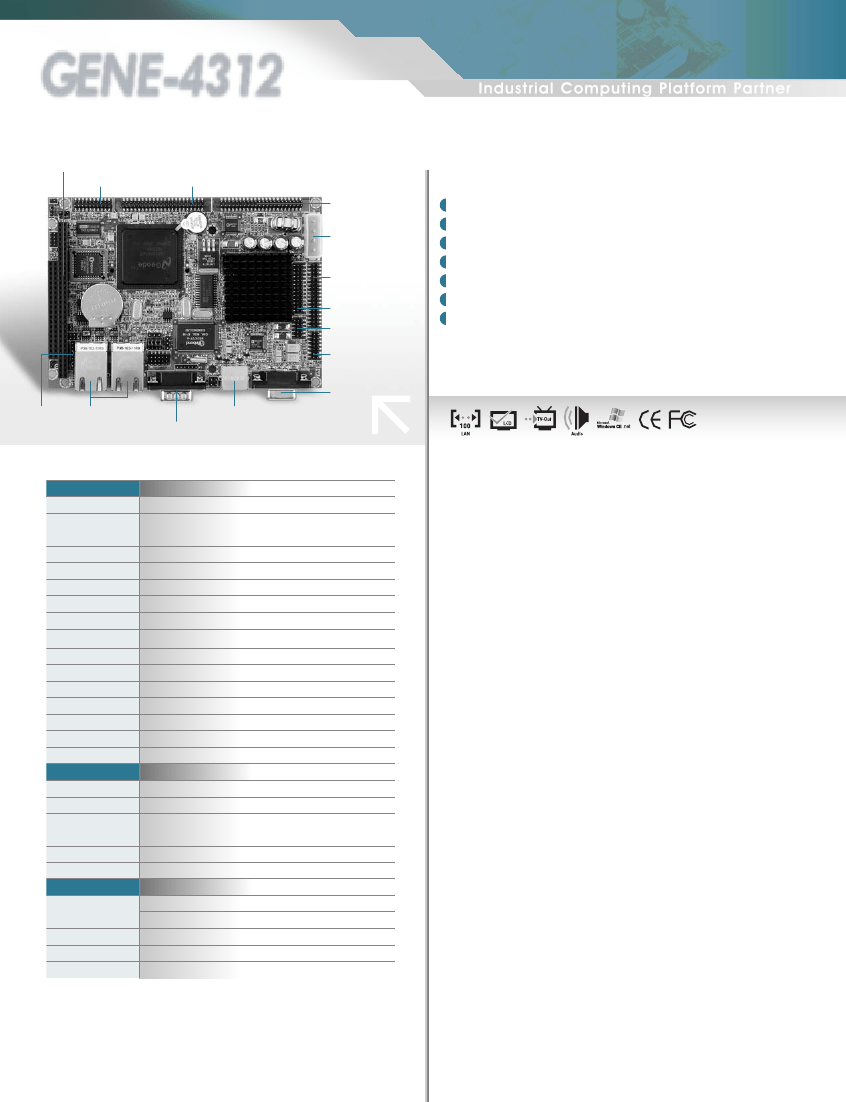

GENE-4312

PC/104 socket

LVDS LCD pin header

TTL LCD pin header

AMD Geode™ GX1 Processor

Features

44 pin IDE connector

Power input connector

Onboard AMD Geode™ GX1 Processor

18-bit TTL TFT LCD

Dual 10/100Mbps Fast Ethernet

AC-97 High-quality Audio

Supports PC/104 Slot

Supports Type II CompactFlash™ Memory

2 COM / 2 USB Ports

Floppy Disk Drive

connector

Printer port pin header

USB pin header

Audio pin header

CRT D-Sub

COM port

pin header

RJ-45 Ethernet

connector

PS/2 Keyboard + Mouse Mini-DIN

COM port D-Sub

Specifications

System

CPU

System

Memory

Chipset

I/O Chipset

Ethernet

BIOS

Watchdog Timer

H/W Status Monitoring

SSD

Expansion Interface

Battery

Power Requirement

Board Size

Gross Weight

Display

Chipset

Memory

Resolutions

LCD Interface

TV-out (optional)

I/O

MIO

IrDA

Audio

USB

EIDE x 1(UDMA33 x 1), Floppy Disk Drive x 1, Keyboard+Mouse x 1,

RS-232 x 1, RS-232/422/485 x 1, Parallel x 1

One IrDA Tx/Rx header

MIC-in, Line-in, Line-out

One 5x2 pin header supports 2 USB1.1 ports

AMD Geode™ GX1 300MHz

144-pin SDRAM SODIMM x 1, Max. 256MB

(PC-66/100)

AMD Geode™ CS5530A

Winbond 83977EF

Realtek RTL8139C, 10/100Base-TX RJ-45 connector x 2

AWARD 256KB FLASH ROM

Generate a time-out system reset

Supports power supply voltages and temperature monitoring

Type II CompactFlash™ slot x 1

PC/104 socket x 1

Lithium battery

+5V. AT

5.75"(L) x 4"(W) (146mm x 101.6mm)

0.88lb(0.4kg)

Supports LCD / CRT simultaneous display

AMD Geode™ CS5530A

Shared system memory up to 4MB

up to 1024x768@16bpp colors for CRT

up to 1024x768@18bpp colors for LCD

up to 18-bit TTL TFT LCD

Supports NTSC and PAL standard

Packing List

•

1701440500

IDE Cable

•

1701340600

Floppy Disk Drive Cable

•

1701010302

Parallel + Serial Port Cable

•

1700080180

TV-out & S-terminal Cable (GENE-4310T only)

•

1700060192

Keyboard/Mouse Cable

•

1700140510

Audio Cable

•

1709100201

USB Cable

•

1701200201

LVDS Cable (GENE-4310S/T only)

•

9657666600

Jumper Cap

•

Quick Installation Guide

•

Utility CD

•

GENE-4312

Ordering Information

Operating Temperature 32°F ~ 140°F (0°C ~ 60°C)

•

GENE-4312-A11

SubCompact Board, GX1-300MHz, with LCD, Dual LAN, Audio, Rev.A1.1

•

GENE-4312S-A11

•

SubCompact Board, GX1-300MHz, with LCD, LVDS, Dual LAN, Audio,

Rev.A1.1

GENE-4312T-A11

SubCompact Board, GX1-300MHz, with LCD, LVDS, Dual LAN, Audio,

TV-out, Rev.A1.1

GENE-4312-A11-Q01

SubCompact Board, GX1-300MHz, with LCD, Dual LAN, Audio, Rev.A1.1,

XpressROM

2-5

Note: All specifications are subject to change without notice.
