TW1320/TW1322 Embedded GPS/GLONASS Antenna
The TW1320/TW1322 is a high performance OEM GNSS
antenna covering the GPS L1, GLONASS L1 and SBAS
(WAAS, EGNOS & MSAS) frequency band (1575 to 1606
MHz). It features a patch element with 40% wider
bandwidth than previously available in this format.
Unlike its competitors, both GPS-L1 and GLONASS
signals are included in the 1dB RHCP received power
bandwidth.
The TW1320/TW1322 has a two stage Low Noise
Amplifier (LNA) with a mid-section SAW. An optional
tight pre-filter is available with part number TW1322 to
protect against saturation by high level sub-harmonics
and L-Band signals.
The built-in 35mm circular ground plane should ideally
be augmented with a local system ground plane or
reflecting surface (DC connection not required).
OEM antennas are easily detuned by the local
environment. Tallysman offers custom tuning services
for optimized integration into OEM end-user modules.

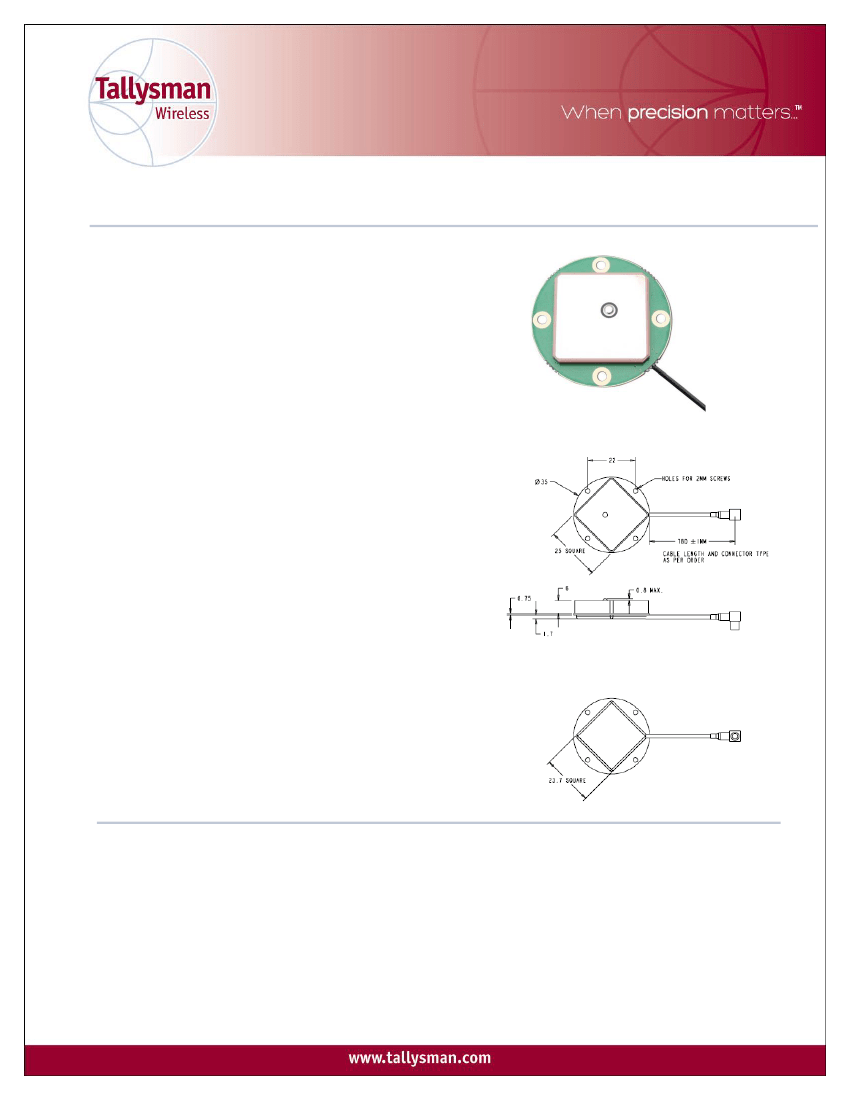

TW1320 Dimensions (mm)
Applications
Embedded OEM applications
Precision Agriculture, Mining & Construction
Military & Security
Avionics
Law Enforcement & Public Safety
Fleet Management & Asset Tracking
Features
1dB bandwidth 1575MHz-1606MHz
Very low noise LNA: 1 dB
4dB Axial Ratio @1590MHz, 8db over B/W
High rejection SAW filter
LNA gain: 28dB TW1320, 26dB TW1322 typ.
Lowest current draw on the market -10mA
typical
ESD circuit protection: 15 KV
Wide Supply voltage: fixed 2.5V to 16V
Benefits
Great multipath rejection
Increase system accuracy
Excellent signal to noise ratio
Great out of band signal rejection
Compact form factor
RoHS compliant
TW1320/TW1322 Embedded GPS/GLONASS Antenna
Specifications
Antenna
At; Vcc = 3V, over full bandwidth, T=25°C
Architecture
Polarization
1 dB Bandwidth
10dB Return Loss Bandwidth
Antenna Gain (with 100mm ground plane)
Axial Ratio
Wideband Single Feed Patch
RHCP
31MHz
45Hz
4.5dBic
<=4dB @ 1590MHz, 8dB typical at band edges
LNA stage 1 -> SAW filter-> LNA stage 2
SAW Prefilter ->LNA stage 1 -> SAW filter-> LNA stage 2
1574MHz to 1606MHz
28dB min., TW1320; 26dB min, TW1322,
+/- 2dB, 1575MHz to 1606MHz
TW1320: <1500MHz
>35dB. TW1322:
>70dB.
TW1320: <1550MHz
>25dB. TW1322:
>45dB.
TW1320: >1650MHz
>35dB. TW1322:
>70dB.
<1.5:1
TW1320:1 dB typ. TW1322: 3.5dB typ.
+2.5VDC to 16VDC nominal (12 VDC recommended max)
10mA max.
15KV air discharge
35mm dia. x 7.25mm
1.38mm OD,
-40°C to +85°C
50g
Adhesive or screw mount
RoHS compliant
Vertical axis: 50G, other axes: 30G
3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3 G
One year – parts and labour
Electrical
Architecture
TW1320
TW1322
Filtered LNA Frequency Bandwidth
Gain (1575.42 to 1606 MHz)
Gain flatness
Out-of-Band Rejection
VSWR (at LNA output)
Noise Figure
Supply Voltage Range (over coaxial cable)
Supply Current
ESD Circuit Protection
Mechanicals & Environmental
Mechanical Size
Cable
Operating Temp. Range
Weight
Attachment Method
Environmental
Shock
Vibration
Warranty
Ordering Information
Legacy Part Numbers:
TW1320 – OEM GPS/GLONASS antenna,
32-1320-xx –yyyy-zz TW1322 – Pre-filtered, 32-1322-xx –yyyy-zz
Connector:
xx = 00 SMA male ,
01 = TNC male
02 = MCX male
03 = MMCX male 04 = SMB male
05 = MCX right angle male 06 = MMCX right angle male
07 = SMA female
08 = H.FL**
09 = U.FL
10 = SMA R/A**
11 = Reverse polarity SMA** ** Premiums apply. Please contact your Distributor
Cable length: yyyy = cable length in mm
Custom Tuning: zz = Assigned by Tallysman
*As a result of a growing product portfolio, Tallysman has rationalized its part number system. No changes have been made to the
mechanical or electrical properties of these products. Where administratively possible, please use the following Part Numbers.
TW1320 – GPS L1 antenna,
33-1320-xx-yyyy-zz
TW13222 – 33-1322-xx-yyyy-zz
Please refer to the Ordering Guide
(http://www.tallysman.com/orderingguide.php)
for the current and complete list of available
connectors.
Tallysman Wireless Inc
106 Schneider Road, Unit 3
Ottawa ON K2K 1Y2 Canada
Tel 613 591 3131
Fax 613 591 3121
sales@tallysman.com
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be regarded as a
guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. © 2011 Tallysman Wireless Inc.
All rights reserved.
Rev 1.5
