PSM-050KPG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> PSM-050KPG

PSM-050KPG: Descriptionpressure sensor module/gauge,differential; CategoryThe sensor; File Size305KB，2 Pages; ManufacturerFUJIKURA; Websitehttp://www.fujikura.co.jp/

Download Datasheet Parametric Compare View All

PSM-050KPG Overview

pressure sensor module/gauge,differential

PSM-050KPG Parametric

Parameter Name	Attribute value
Maker	FUJIKURA
Reach Compliance Code	unknown
Maximum accuracy(%)	1%
body width	17.8 mm
body height	11.7 mm
Body length or diameter	22.9 mm
Installation features	THROUGH HOLE MOUNT
Nominal offset	0.5V
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Output range	0.50-4.50V
Output type	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR
port type	STRAIGHT
Maximum pressure range	7.25 Psi
Minimum pressure range
Pressure sensing mode	GAGE
Response time	2000 µs
Sensor/temperature sensor type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

Pressure sensor module/Gauge,Differential

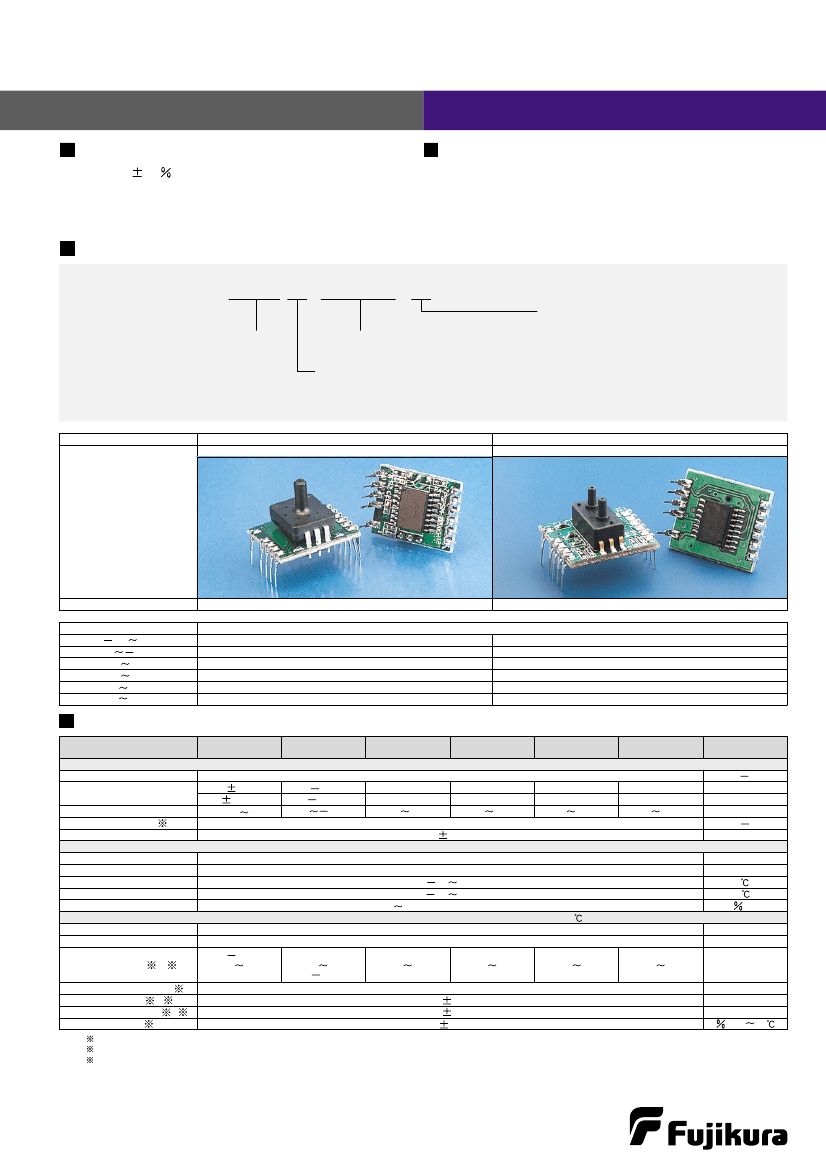

Features

PSM-G,PSM-D Data sheet

Applications

. Industrial instrumentation

Accuracy, 1.0 FS

. Pressure switch, Pneumatic device

Volt level output

Piggy-back style, pre-amplified and pre-compensated module . Medical device

Pre-calibration of offset voltage and span

Part number for ordering

PSM C - 025KP G

Model

PSM

Rated pressure(Pa)

Available pressure media

No mark : Non-corrosive gas only

: Non-corrosive gas and liquid

(Contact us about availability)

Pressure type

Gauge pressure

PSM-G

Pressure type

G : Gauge(Positive pressure)

GV : Gauge(Negative pressure)

GW : Gauge(Bipolar pressure)

D : Differential(Positive pressure)

DV : Differential(Negative pressure)

DW : Differential(Bipolar pressure)

Differential pressure

PSM-D

Model

Package configuration

Measurable pressure range

(

kPa

)

100 100

100

0 25

0 50

0 100

0 200

Piggy-back style module

Part number for ordering

PSM-100KPGW

PSM-100KPGV

PSM-025KPG

PSM-050KPG

PSM-100KPG

PSM-200KPG

Piggy-back style module

PSM-100KPDW

PSM-100KPDV

PSM-025KPD

PSM-050KPD

PSM-100KPD

PSM-200KPD

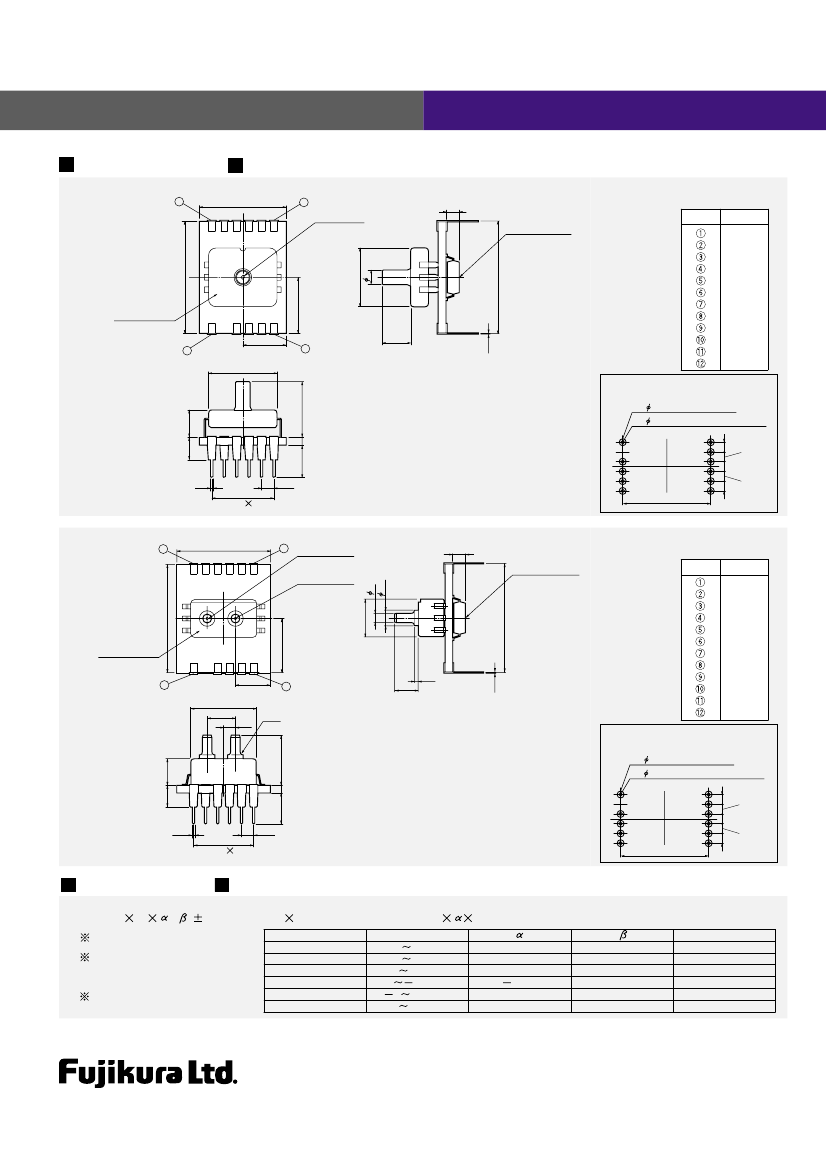

Specifications

Model/Rated pressure

100KPGW

100KPDW

100KPGV

100KPDV

025KPG

025KPD

050KPG

050KPD

100KPG

100KPD

200KPG

200KPD

Unit

Recommended operating conditions

Pressure type

Gauge pressure

100

Rated pressure

1.020

0.255

0.510

1.020

Measurable pressure range

100 100

100

0 25

0 50

0 100

Pressure media 1

PSM : Non-corrosive gas only, PSMC : Non-corrosive gas and liquid

Excitation voltage

5 0.25

Absolute maximum rating

Maximum load pressure

Twice of rated pressure

Maximum excitation voltage

Operating temperature

20 100

Storage temperature

40 120

Operating humidity

30 80 (No dew condensation)

Electric performances/characteristics (Excitation voltage Vcc=5.0V constant, Ambient temperature Ta=25 )

Current consumption

less than 5

Mechanical response time

2 (For the reference)

0.5 ( 100kPa)

0.5 (0kPa)

Output voltage 2, 3

4.5 (100kPa)

4.5 ( 100kPa)

4.5 (25kPa)

4.5 (50kPa)

4.5 (100kPa)

Full scale span voltage 3

4.0

Offset voltage 2, 3

0.5 0.04

Full scale span voltage 2, 3

4.5 0.04

Accuracy 3

1.0

Note ;

1) Please consult us available when you choose the C models.

2) Output refers to pressure at pressure port 2.

3) Excluding input voltage error.

200

2.040

0 200

kPa

kg/cm

kPa

VDC

msec

0.5 (0kPa)

4.5 (200kPa)

FS/0 50

PSM-050KPG Related Products

	PSM-050KPG	PSMC-025KPG	PSM-025KPG	PSM-025KPD
Description	pressure sensor module/gauge,differential	pressure sensor module/gauge,differential	pressure sensor module/gauge,differential	pressure sensor module/gauge,differential
Maker	FUJIKURA	-	FUJIKURA	FUJIKURA
Reach Compliance Code	unknown	-	unknown	unknown
Maximum accuracy(%)	1%	-	1%	1%
body width	17.8 mm	-	17.8 mm	20 mm
body height	11.7 mm	-	11.7 mm	10.8 mm
Body length or diameter	22.9 mm	-	22.9 mm	22.9 mm
Installation features	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal offset	0.5V	-	0.5V	0.5V
Maximum operating temperature	100 °C	-	100 °C	100 °C
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C
Output range	0.50-4.50V	-	0.50-4.50V	0.50-4.50V
Output type	ANALOG VOLTAGE	-	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
port type	STRAIGHT	-	STRAIGHT	STRAIGHT
Maximum pressure range	7.25 Psi	-	3.62 Psi	3.62 Psi
Pressure sensing mode	GAGE	-	GAGE	DIFFERENTIAL
Response time	2000 µs	-	2000 µs	2000 µs
Maximum supply voltage	5.25 V	-	5.25 V	5.25 V
Minimum supply voltage	4.75 V	-	4.75 V	4.75 V
surface mount	NO	-	NO	NO
Termination type	SOLDER	-	SOLDER	SOLDER
