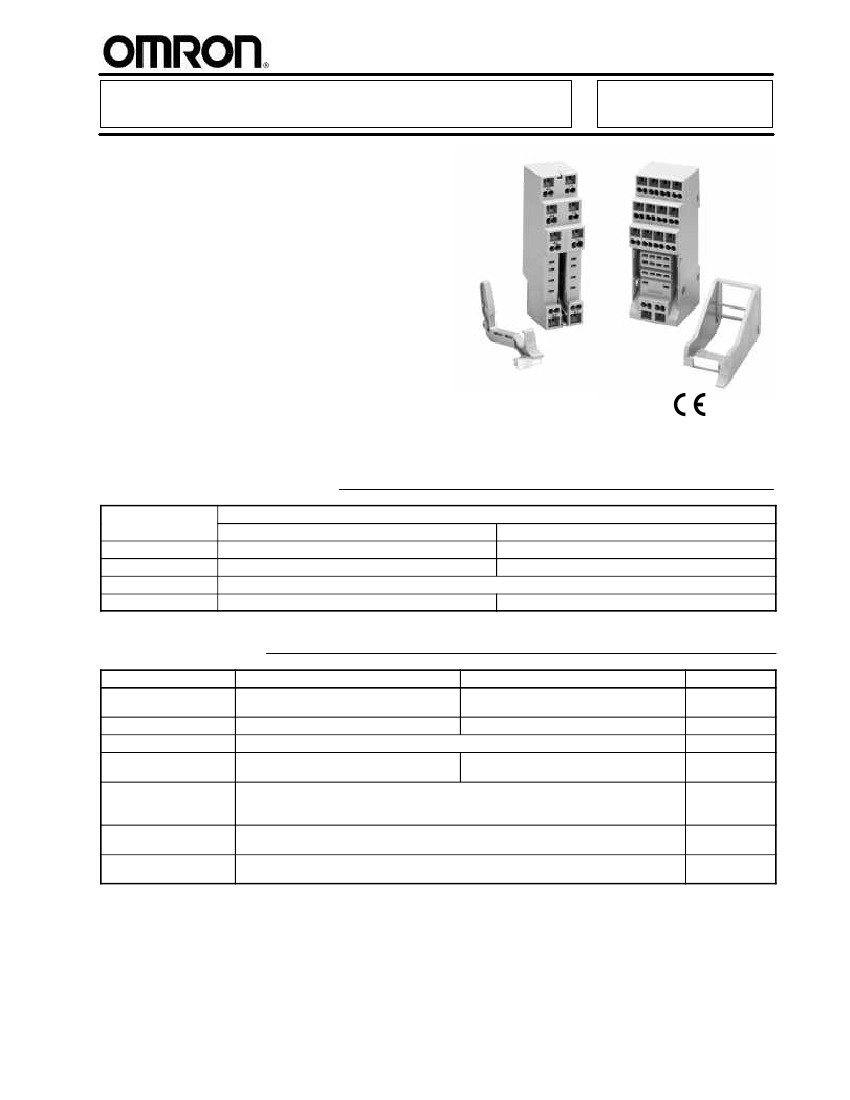

Screwless Clamp Terminal Socket
H
Screwless clamping greatly contributes to
H
H
H
H
H
H
H
reduce wiring time
No over or under tightening of cable
connection so better contact reliability is
achieved
Double wiring possible on all the terminals,
and easy bridge and branch connections
Use either solid or stranded wires from 0.2
to 1.5 mm
2
(AWG24 to AWG16)
Safe terminal arrangement: Coil terminals
separated from contact terminals
Unique ejector enables easy relay
replacement
Two types of nameplate are available: New
MY and Legrand
Finger-protection construction
PYF
jjS
RC
Ordering Information
Item
Socket
Clip & Release lever
Nameplate
Socket Bridge
Part number
4-pole
PYF14S
PYCM-14S
R99-11 nameplate for MY
PYDM-14SR, PYDM-14SB
PYDM-08SR, PYDM-08SB
2-pole
PYF08S
PYCM-08S
Specifications
Item
Relay
Dimensions
Rated voltage
Rated carry current
Applicable wires
PYF14S
MY2 Series
MY4 Series
31
´
85
´
36.5 mm max. (W
´
H
´
D)
250 V AC
10 A at 55°C with MY2 (S) (see note)
5 A at 70°C with MY4 (S)
0.2 to 1.5 mm
2
(AWG24 to AWG16)
Solid wire
Stranded wires
2 wires per terminal (1 wire per hole)
10 N min. (0.2 mm
2
)
40 N min. (1.5 mm
2
)
10 A at 55°C with MY2 (S)
7 A at 70°C with MY2 (S)
PYF08S
MY2 Series
23.2
´
85
´
36.5 mm max. (W
´
H
´
D)
Remarks
---
---
---
VDE0627
---
Number of wire
connections
Clamping force
---
EN60999
Note: MY2 (S) can be used at 70°C but at 7 A.
J
SAFETY STANDARDS (APPROVAL PENDING)
VDE0627 (IEC664, EN60999)
UL508 (UL1059)
CSA C22.2 No. 14 (CSA C22.2 No. 158)
1
PYFjjS
PYFjjS

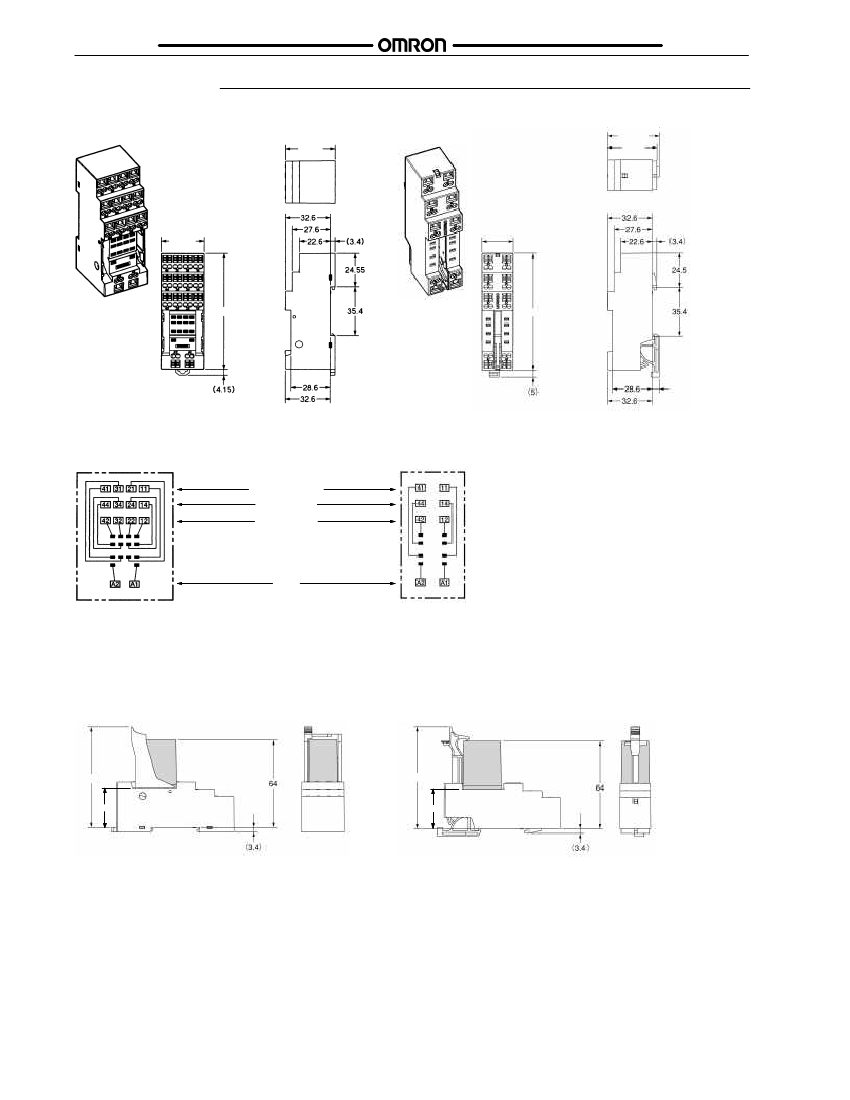

Dimensions
Unit: mm
J
PYF14S
36.5 max.
J
PYF08S
38.2 max.
36.5 max.
31 max.
23.2 max.
85 max.
85 max.
(5.3)
J
TERMINAL ARRANGEMENT
PYF14S
Common contacts
Make contacts
Break contacts
PYF08S
Coils
Note: Pole-2 and pole-3 cannot be used with the MY2 type.
Use pole-1 (terminal numbers: 11, 14, 12) and pole-4
(terminal numbers: 41, 44, 42).
J
MOUNTING HEIGHT (WITH LEVER)
PYF14S
PYF08S
72.6 typ.
28.6
73.6 typ.
28.6
2
PYFjjS
PYFjjS

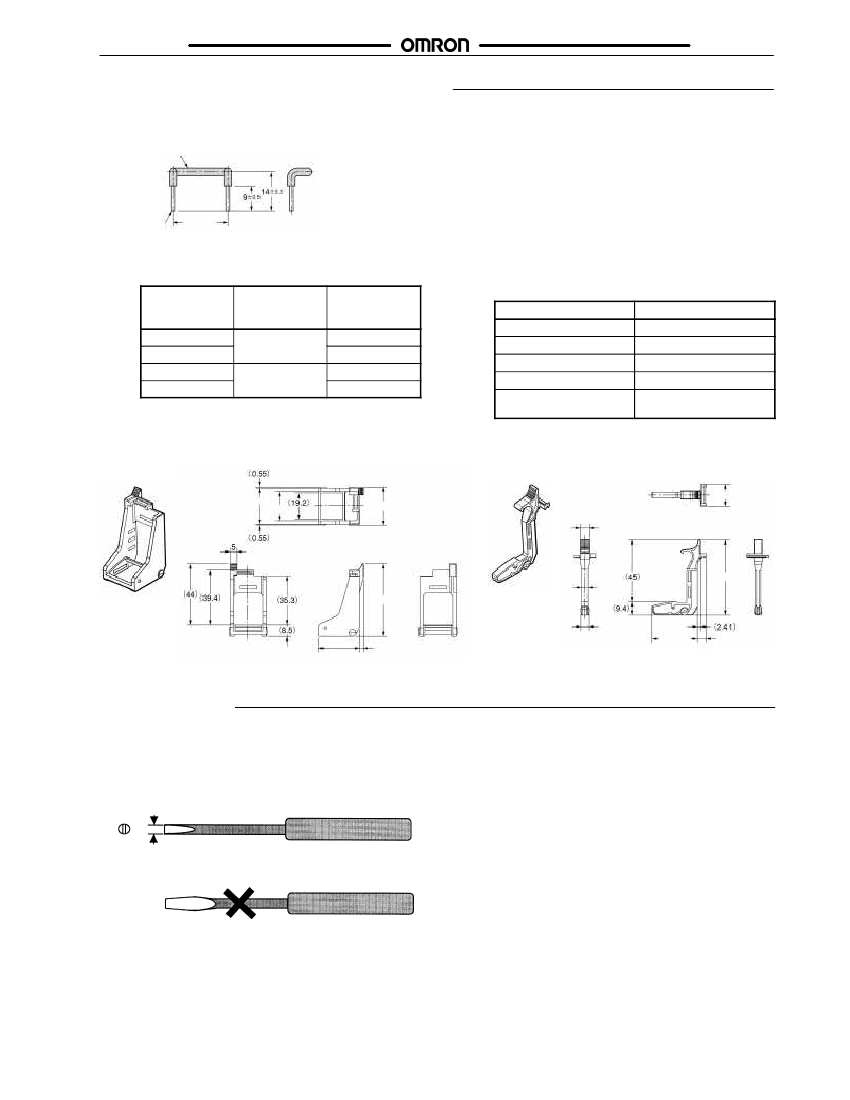

Accessories (Order seperately)
Unit: mm
J
SOCKET BRIDGE
Insulating coating
L
1.4 dia. conductor (See note 1.)
Note: 1. The relationship between the model number, the length
L, and the color of the insulating coating is shown in
the following table.
Model number
Length L (mm)
Color of
insulating
coating
Red
Blue
19.7±0.3
Red
Blue
3. The positions of the ends of the insulating coating must
not vary more than 0.5 mm.
4. The characteristics of the socket bridge are shown in
the following table.
Item
Rated ON current
Rated insulation voltage
Temperature rise
Dielectric strength
Ambient operating
temperature
Characteristic
10 A
250 VAC
35°C max.
1,500 VAC for 1 minute
--55 to 70°C
PYDM-14SR
PYDM-14SB
PYDM-08SR
PYDM-08SB
27.5±0.3
2. The insulating coating must be able to withstand a volt-
age of 1,500 V for 1 minute. Use either PE or PA as
the material of the insulating coating.
J
PYF14S LEVER
26.5 typ.
21.5 typ.
28 typ.
J
PYF08S LEVER
16 typ.
6 typ.
4.1 typ.
52.5 typ.
5.4 typ.
29.6 typ.
3 typ.
32.7 typ.
54.4 typ.
6.41 typ.
Installation
J
TOOLS
A flat-blade screwdriver should be used to mount the cables.
Applicable Screwdriver
Flat-blade, Parallel-tip
Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.)
2.5 dia. (3.0 mm max.)
Flat-blade, Flared-tip
Cannot be used.
Examples:
FACOM AEF.2.5
´
75E
VESSEL No. 9900-(-)2.5
´
75
WAGO 210-119
WIHA 260/2.5
´
40
(AEF. 3
´
75E)
(No. 9900-(-)3
´
100
(260/3
´
50)
Note: Chamfering (beveling) the tip of the driver improves insertion when used as an exclusive tool.
3
PYFjjS
J

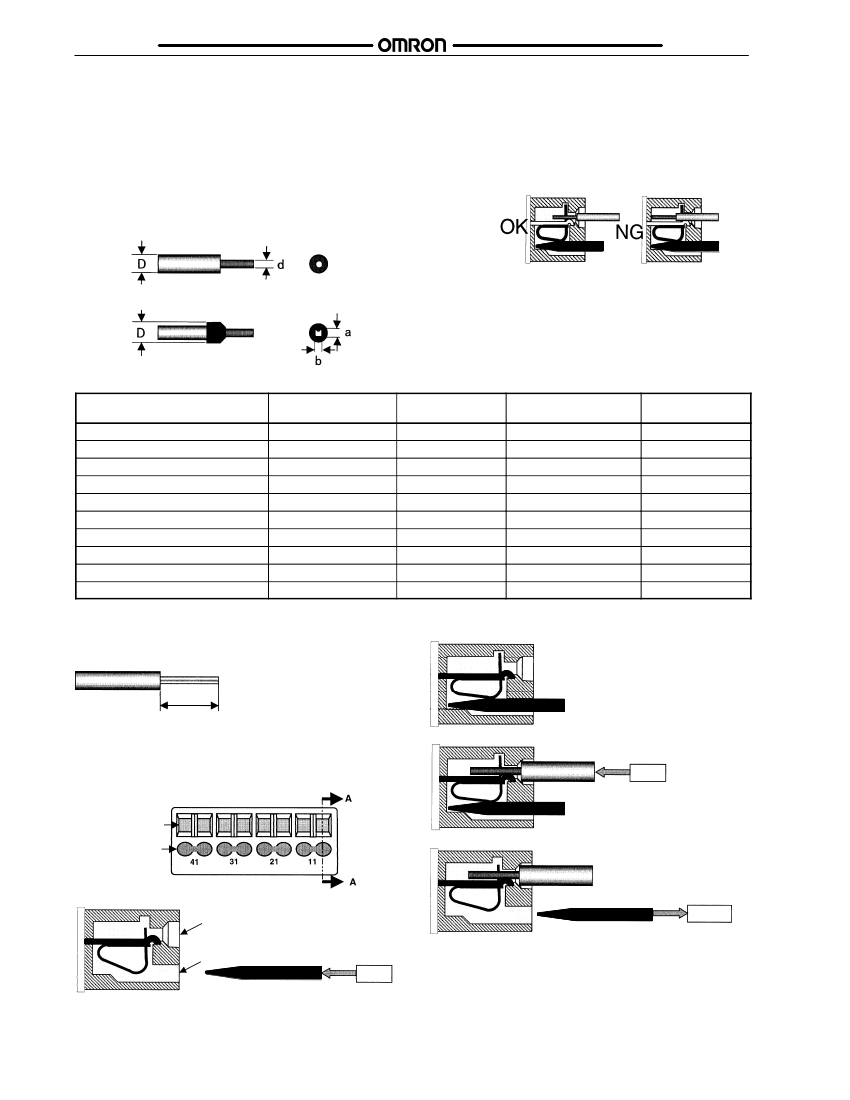

APPLICABLE WIRES
Applicable Wire Sizes
0.2 to 1.5 mm
2
, AWG24 to AWG16
PYFjjS
Applicable Wire Type
Solid wires, stranded wires, flexible wires, or wires with ferules
can be used.
(See note 1) < 2.2
Diameter D (mm)
3.2 (3.5: see note 2))
Note: 1. If the overall diameter of the wire is less than 2.2 mm,
do not insert the wire past the conductor. Refer to the
following diagrams.
Conductor diameter d (mm) or length of sides a and b (mm)
1.9
2. If the overall diameter of the wire is over 3.2 mm, it will be
difficult to use double wiring.
Wires with Ferules
Examples of Applicable Wires (Confirmed Using Catalog Information)
Type of wire
Equipment wire 2491X
BS6004
Switchgear BS6231
Switchgear BS6231
Tri-rated control and switchgear
Conduit
UL1007
UL1015
UL1061
UL1430
Conductor type
Flexible
Solid
Solid
Flexible
Flexible
Stranded
Flexible
Flexible
Flexible
Flexible
18AWG
18AWG
16AWG
18AWG
0.5 mm
2
1.0 mm
2
0.5, 0.75 mm
2
0.5, 0.75, 1.0, 1.5 mm
2
1.5 mm
2
16AWG
18AWG, 16AWG
1.5 mm
2
1.0 mm
2
See note 1, above.
Recommended wire
sizes
0.5, 0.75, 1.0 mm
2
See note 2, above.
1.5 mm
2
J
WIRING
Use wires of the applicable sizes specified above. The length of
the exposed conductor should be 8 to 9 mm.
8 to 9 mm
Fig. 1 Exposed Conductor Length
Use the following wiring procedure.
1. Insert the specified screwdriver into the release hole located
beside the wire connection hole where the wire is to be
inserted.
2. Insert the exposed conductor into the wire connection hole.
Insert
Wire connection holes
Release holes
3. Pull out the screwdriver.
Fig. 2 Wire Connection Holes and Release Holes
Pull out
Wire connection hole
Release hole
Insert
Screwdriver
Fig. 3 Section A-A of Fig. 2
4
PYFjjS
PYFjjS

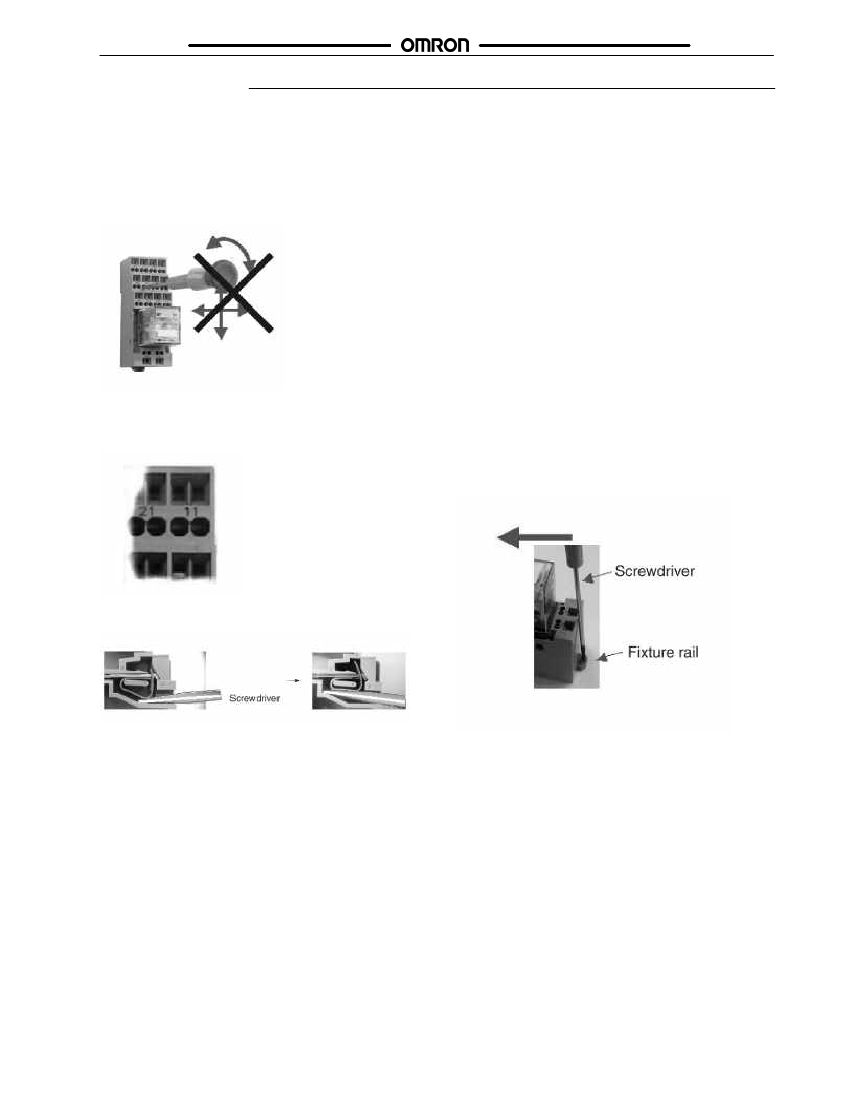

Precautions
J
PRECAUTIONS FOR CONNECTION
Do not move the screwdriver up, down, or from side to side while
it is inserted in the hole. Doing so may cause damage to internal
components (e.g., deformation of the coil spring or cracks in the
housing) or cause deterioration of insulation.
Do not insert the screwdriver at an angle. Doing so may break
the side of the socket and result in a short--circuit.
J
GENERAL PRECAUTIONS
Use the clip to prevent relays from floating or falling out of the
socket.
Do not use the product if it has been dropped on the ground.
Dropping the product may adversely affect performance.
Confirm that the socket is securely attached to the mounting
track before wiring. If the socket is mounted insecurely it may fall
and injure the operator.
Ensure that the socket is not charged during wiring and
maintenance. Not doing so may result in electric shock.
Do not pour water or cleaning agents on the product. Doing so
may result in electric shock.
Do not use the socket in locations subject to solvents or alkaline
chemicals.
Do not use the socket in locations subject to ultraviolet light (e.g.,
direct sunlight). Doing so may result in markings fading, rust,
corrosion or resin deterioration.
Do not insert two or more wires in the hole. Wires may come in
contact with the spring causing a termperature rise or may be
subject to sparks. (There are two wiring holes for each terminal.)
Do not dispose of the product in fire.
J
REMOVING FROM MOUNTING RAIL
To remove the socket from the mounting rail, insert the tip of the
screwdriver in the fixture rail and move it in the direction shown
below.
Insert the screwdriver along the hole wall as shown below.
If lubricating liquid, such as oil, is present on the tip of the
screwdriver, the screwdriver may fall out resulting in injury to the
operator.
Insert the screwdriver into the bottom of the hole. It may not be
possilble to connect cables properly if the screwdriver is inserted
incorrectly.
5
