SPECIFICATION
Part No.
Product Name
:
:
A.40.A.301111
GPS-GLONASS-GALILEO Hercules Heavy Duty
Screw Mount
Feature
:
Height 28.5mm Diameter 47.8mm
Heavy duty screw mount
IP67 & IP69K Waterproof Rating
GPS/GLONASS/GALILEO - 3M RG174 SMA(M)
Customizable
ROHS Compliant
SPE-13-8-053/E/PK
Page 1 of 11
A.40.A.301111
1. Introduction
The
A.40
Hercules
is
a
high
performance
thread
mount
GPS-GLONASS-GALILEO antenna designed for external use on vehicles and
outdoor assets. Designed for heavy duty work with one piece C&C machined
nickel plated steel base and threads, there are also convenient side slots for
running cables laterally. Durable UV resistant PC housing is resistant to
vandalism and direct attack. At only 29mm high it complies with the latest EU
directives for height restrictions, whilst also enabling covert operation with a
diameter of only 49mm. The antenna is completely waterproof with an IP67
rating, plus an additional IP69K rating for waterproof resistance against high
pressure water jets used in cleaning.
Cable lengths, types and connectors are fully customizable.
SPE-13-8-053/E/PK
Page 2 of 11
A.40.A.301111
2. Specification
ELECTRICAL
Frequency(MHz)
Impedance(Ohm)
GPS/GALILEO Patch
Gain@ Zenith
GLONASS Patch Gain@
Zenith
VSWR
Axial ratio
Polarization
Out Band Rejection
Input Voltage(V)
Total Gain @ Zenith
Current consumption(mA)
Noise figure
1574~1606MHz
50Ω
-1.4dB Passive Gain @ Zenith
-1.3dBi Gain @ Zenith
2.0 max
3.0dB max
RHCP
fo = 1575.42MHz
fo ± 30 MHz 5dB Min.
fo ± 50 MHz 20dB Min.
fo ± 100 MHz 25dB Min.
Typ. 2.5~5.5V
27dB typical at 3.0V
10mA typical at 3.0V
1.3dB typical
MECHANICAL
Dimensions
Cable type
Cable length
Casing
Connector
Recommended Mounting
Torque
Maximum Mounting
Torque
Temperature Range
Waterproof
Thermal Shock
Shock (drop test)
Humidity
Φ49mm
, Height 28.5mm
RG174
3000±30mm
UV Resistant PC
SMA Male
24.5N∙m
29.4N∙m
ENVIRONMENTAL
-40°C to 85°C
IP67 and IP69K
100 cycles -40°C to +85°C
1m drop on concrete 6 axes
Non-condensing 65°C 95% RH
SPE-13-8-053/E/PK
Page 3 of 11

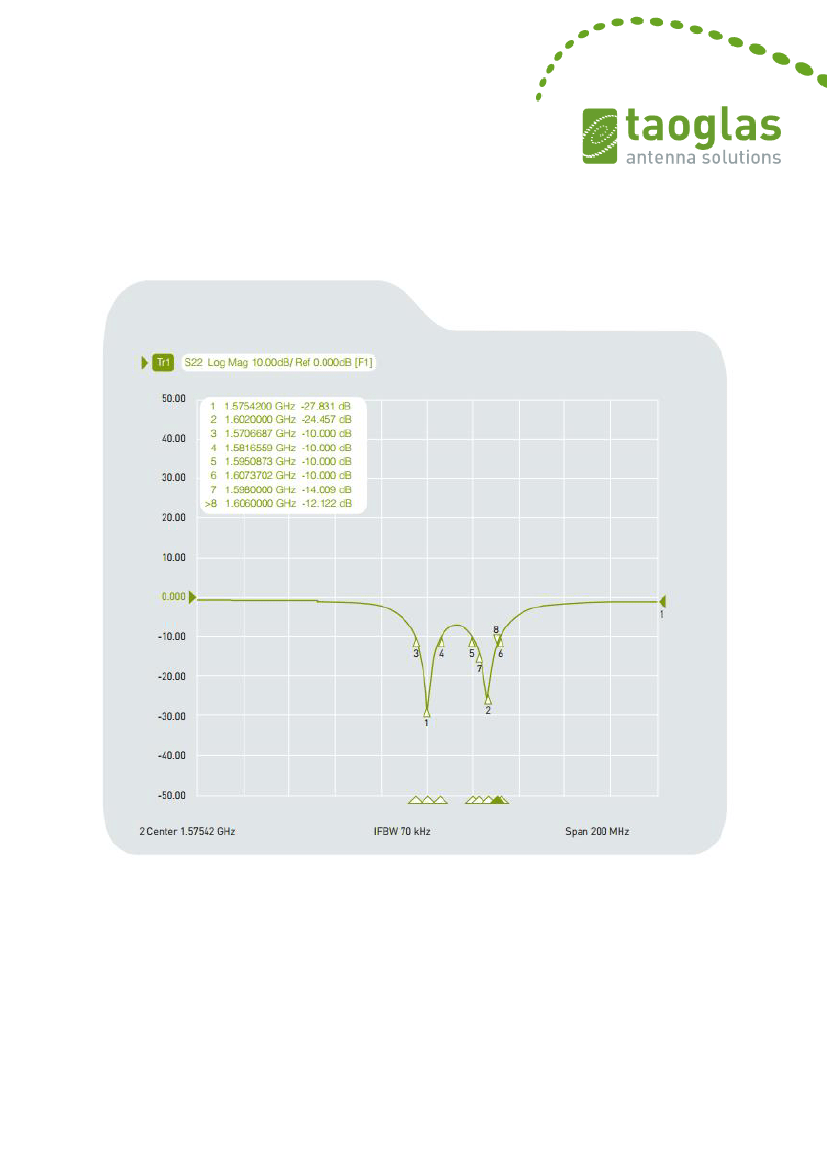

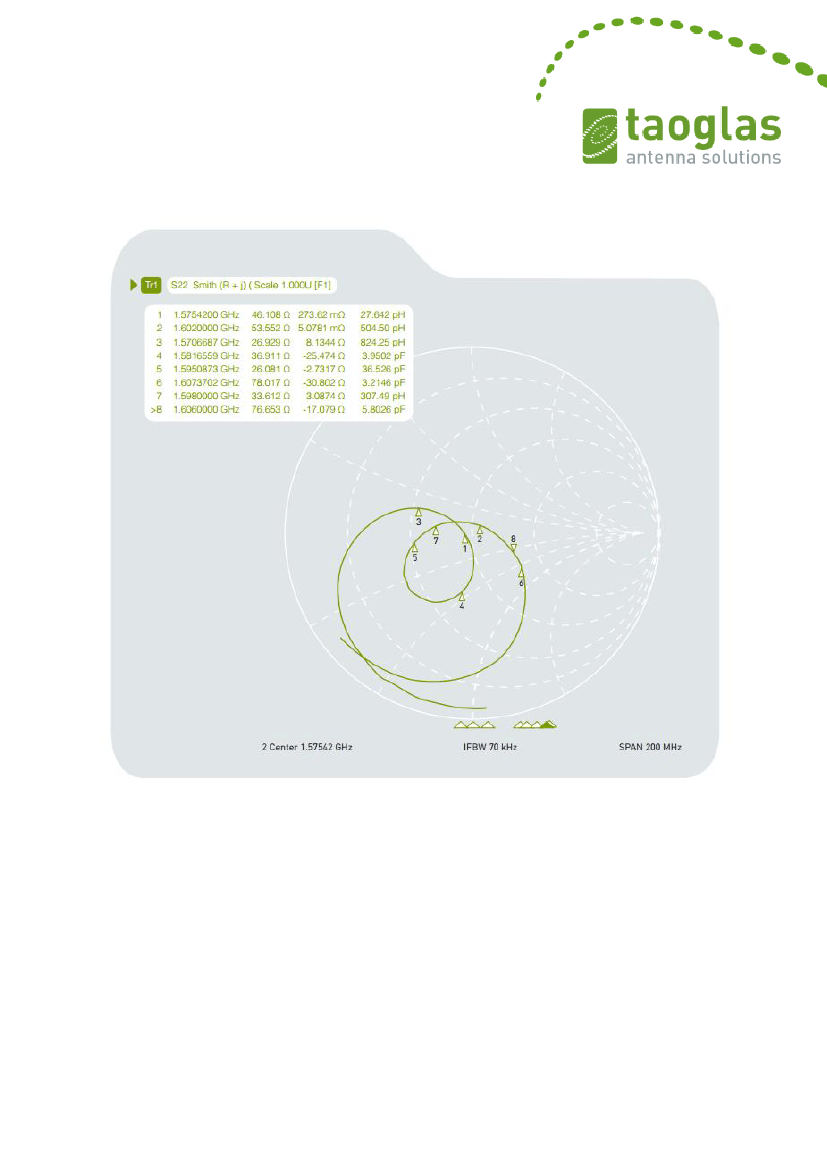

A.40.A.301111
