Part Number

Search

Z1SMA82

Description
surface mount diode zener silicon diodes
CategoryDiscrete semiconductor    diode
File Size177KB,3 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric Compare View All

Z1SMA82 Online Shopping

Suppliers Part Number Price MOQ In stock
Z1SMA82 - - View Buy Now

Z1SMA82 Overview

surface mount diode zener silicon diodes

Z1SMA82 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSEMIKRON
Parts packaging codeDO-214AC
package instructionR-PDSO-C2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance100 Ω
JEDEC-95 codeDO-214AC
JESD-30 codeR-PDSO-C2
JESD-609 codee2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-50 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation1 W
Certification statusNot Qualified
Nominal reference voltage82 V
surface mountYES
technologyZENER
Terminal surfaceTin/Silver (Sn/Ag)
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5%
Working test current10 mA
Base Number Matches1

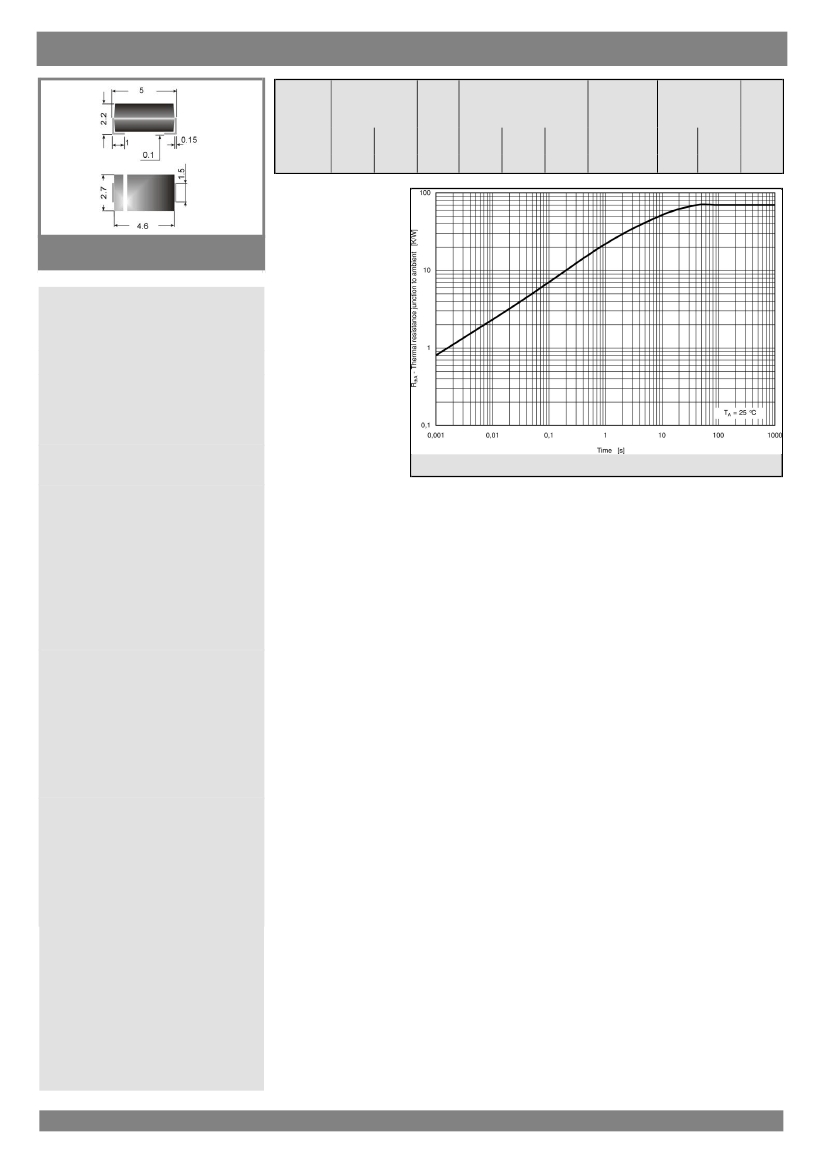

Z1 SMA 1 ... Z1 SMA 100 (1W)
Absolute Maximum Ratings
Symbol Conditions
Values
Units
Surface mount diode
Zener silicon diodes
Z1 SMA 1 ... Z1 SMA 100 (1W)
Maximum Power
Dissipation: 1 W
Nominal Z-voltage: 1 to 100 V
Features
Mechanical Data
1)
1
13-07-2007 MAM
© by SEMIKRON

Z1SMA82 Related Products

Z1SMA82 Z1SMA51 Z1SMA100 Z1SMA39 Z1SMA11 Z1SMA75 Z1SMA13 Z1SMA91 Z1SMA12 Z1SMA1_07
Description surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes surface mount diode zener silicon diodes
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to -
Maker SEMIKRON SEMIKRON SEMIKRON SEMIKRON - SEMIKRON SEMIKRON SEMIKRON - -
Parts packaging code DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC -
package instruction R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 -
Contacts 2 2 2 2 2 2 2 2 2 -
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant -
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 -
Is Samacsys N N N N - N - N - -
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE -
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON -
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE -
Maximum dynamic impedance 100 Ω 70 Ω 200 Ω 50 Ω 6 Ω 95 Ω 9 Ω 130 Ω 7 Ω -
JEDEC-95 code DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC DO-214AC -
JESD-30 code R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 -
JESD-609 code e2 e2 e2 e2 e2 e2 e2 e2 e2 -
Number of components 1 1 1 1 1 1 1 1 1 -
Number of terminals 2 2 2 2 2 2 2 2 2 -
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C -
Minimum operating temperature -50 °C -50 °C -50 °C -50 °C -50 °C -50 °C -50 °C -50 °C -50 °C -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY -
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL -
Maximum power dissipation 1 W 1 W 1 W 1 W 1 W 1 W 1 W 1 W 1 W -
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified -
Nominal reference voltage 82 V 51 V 100 V 39 V 11 V 75 V 13 V 91 V 12 V -
surface mount YES YES YES YES YES YES YES YES YES -
technology ZENER ZENER ZENER ZENER ZENER ZENER ZENER ZENER ZENER -
Terminal surface Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) -
Terminal form C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND -
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Maximum voltage tolerance 5% 5% 5% 5% 5% 5% 5% 5% 5% -
Working test current 10 mA 10 mA 5 mA 10 mA 50 mA 10 mA 50 mA 5 mA 50 mA -
Base Number Matches 1 1 1 1 1 1 - 1 1 -
