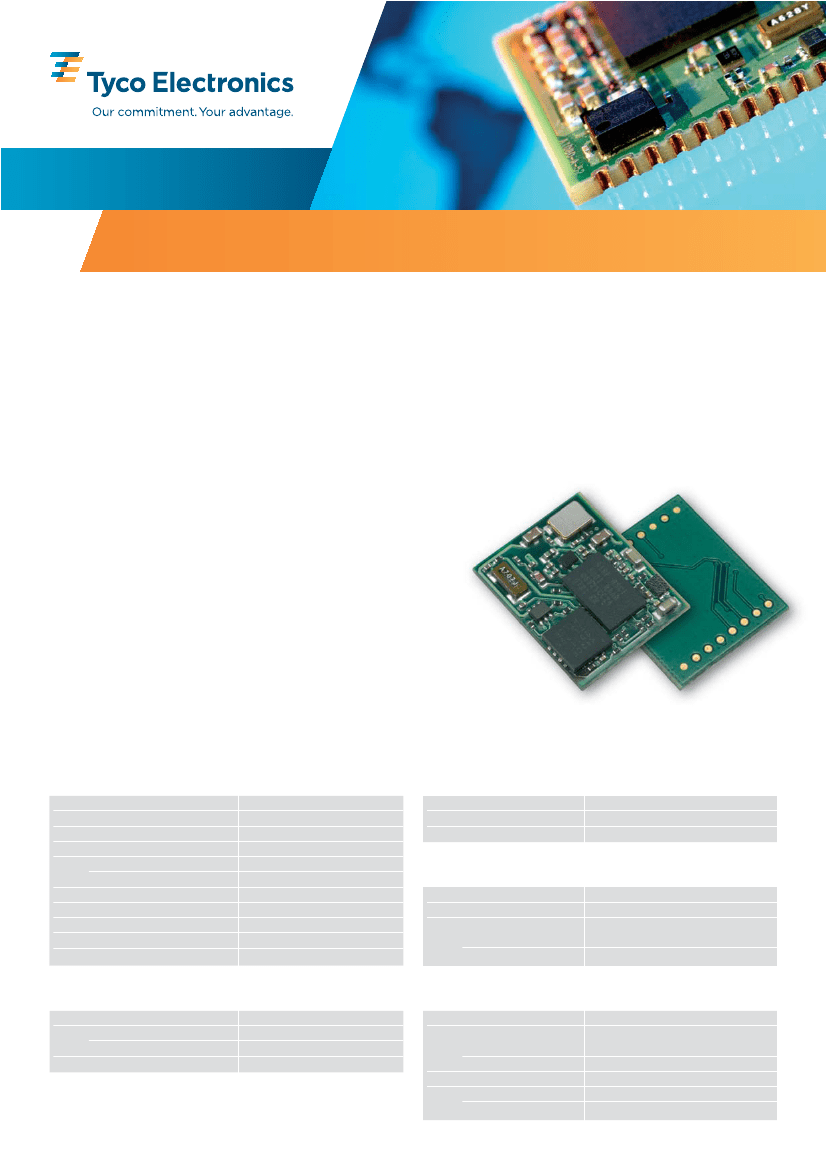

Get your Position!
A1082-A – The cost effective way to
implement GPS into your application
Because size matters!
Miniaturized footprint and minimal power consumption along with high-end
performance characterize Tyco Electronics’ new GPS module A1082-A. Limited
space is a typical constraint of handheld devices. The A1082-A provides
NMEA compliant PVT (Position, Velocity and Time) information by
requiring only 11 x 15 mm real estate. Fastest start-up behavior and
various power save modes, managed by hardware and software, will
extend the lifetime of battery powered devices.
A1082-A – one of Tyco Electronics’ solutions for easy and fast integration
of GPS based functionality into your designated application.
Highly sensitive
Fastest TTFF (Time To First Fix)
Ultra small footprint
A-GPS support
Ultra-low power consumption
W
W
W
W
W
-157 dBm tracking
< 37 s under cold start condition (typical)
14 x 11.4 mm
For fastest start up behavior
65 mW average tracking current
Various power save modes
Performance
Channels
Correlators
Frequency
Sensitivity
Tracking
Acquisition (cold start)
Position accuracy (horizontal)
Time to first fix
Hot start
1)
Warm start
2)
Cold
3)
12 parallel tracking
20,000 plus
L1 – 1,575 MHz
-157 dBm
-142 dBm
< 2.5 m CEP autonomous
<1s
< 35 s
< 37 s
Mechanicals
Dimensions
Weight
13.97 mm x 11.43 mm x 2.4 mm
0.55” x 0.45” x 0.095”
1 g, < 0.05 oz
Power
Input voltage
Current draw
Tracking
(trickle mode)
Standby
1.75 to 1.85 VDC
35 mA (typical)
7
µA
(typical)
Environment
Temperature
Operating
Storage
Humidity
-30°C to +85°C
-40°C to +85°C
Non-condensing
Communications
Standard GPS software
NMEA message
switchable
Baudrate (in baud)
Serial ports
Tx0
Rx0
GGA, GSA, GSV, VTG,
RMC, GLL
4,800 (default) to 34,400
1.8 V CMOS compatible
NMEA output
NMEA input
1) The receiver has estimates of time/date/position and valid almanac and ephemeris
data.
2) The receiver has estimates of time/date/position and almanac.
3) The receiver has no estimate of time/date/position, and no recent almanac.

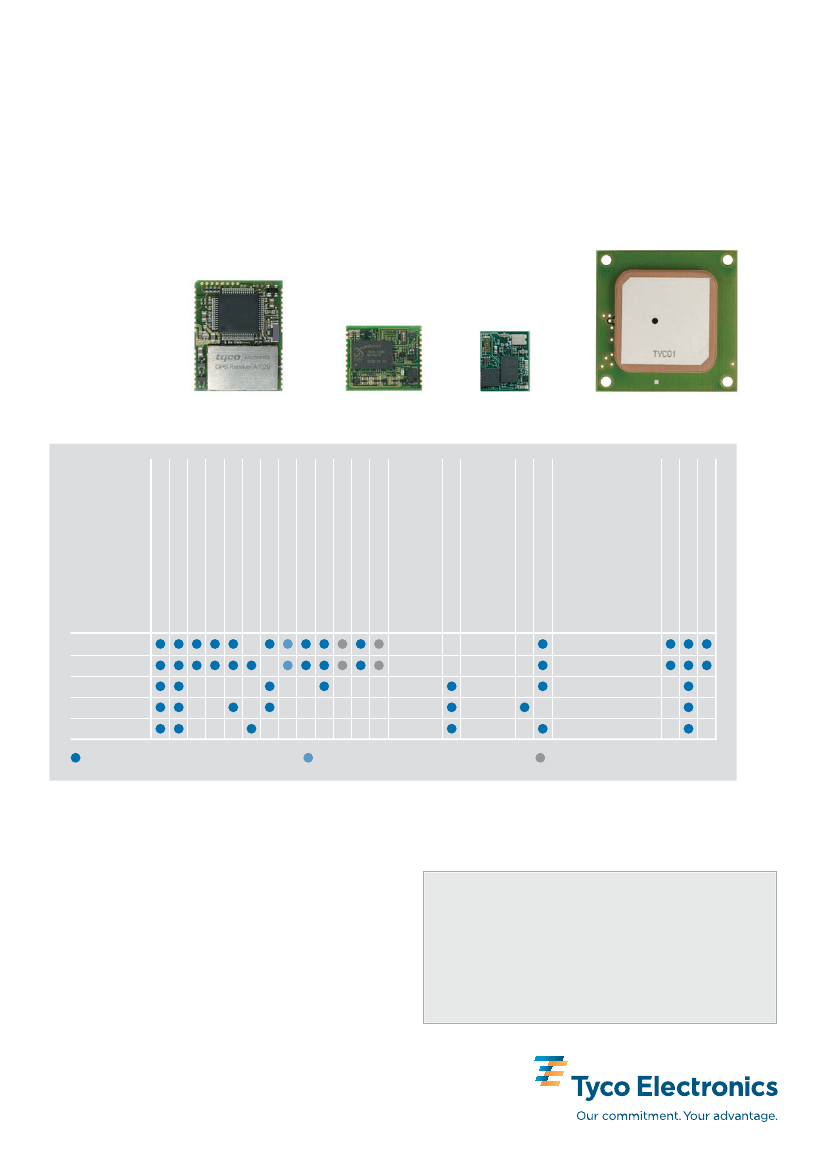

Positioning Receiver Portfolio
With the mission to support our customers to implement GPS functionality
into their systems, Tyco Electronics is offering a large product portfolio to cover
almost all integration possibilities in an easy way. A dedicated R&D team located
in Ottobrunn, Germany develops sensitive positioning solutions based on state
of the art technologies.
All GPS products are manufactured in our ISO9001 and TS16949 certified factory
inside the EU. Beyond that our modules follow RoHS standard and are 100%
electrically and functionally tested prior packaging. This way we constantly
guarantee high quality products.
Products shown
in actual size
Copyright © 2008, Tyco Electronics, Raychem GmbH, Power Systems · Printed in Germany · TEC.PS-001-0208.0-E
A1029-C
A1080-A/B
A1082-A
A1035-D
Differential GPS RTCM input
free SRAM (byte)
Power Management Mode
Memory free flash (byte)
Antenna status detection
Connection solderable
Flash, programmable
Connection plug-in
GPS/UTC raw data
Antenna passive
Dead reckoning
available power
A1029-C
A1029-D
A1080-A/B
A1082-A
A1035-D
Standard firmware: revision 1xx
80k/16k
80k/16k
3 MIPS
3 MIPS
28 x 22 x 3.2
46 x 33 x 4.5
19 x 16 x 2.4
15 x 11 x 2.4
35.6 x 35.6 x 8
Standard firmware: revision 2xx
With custom firmware support
The information provided herein is believed to be reliable at press time. Tyco Electronics Power Systems
assumes no responsibility for inaccuracies or omissions. Tyco Electronics Power Systems assumes no
responsibility for the use of this information, and all such information shall be entirely at the users own
risk. Prices and specifications are subject to change without notice. Tyco Electronics Power Systems
does not authorize or warrant any of its products for use in life-support devices and / or systems.
Your Partner:
Headquarters EMEA:
Tyco Electronics
Power Systems
Finsinger Feld 1
85521 Ottobrunn, Germany
Tel.: +49 (0)89 6089-838
Fax: +49 (0)89 6089-835
gps@tycoelectronics.com
www.tycoelectronics.com/gps
UTM projection
1 PPS
Antenna active
SBAS support
Assisted GPS
UART NMEA
I2C interface
SPI interface
Processor:
Size (mm)
GPIO
ROM
GD32 MCU
