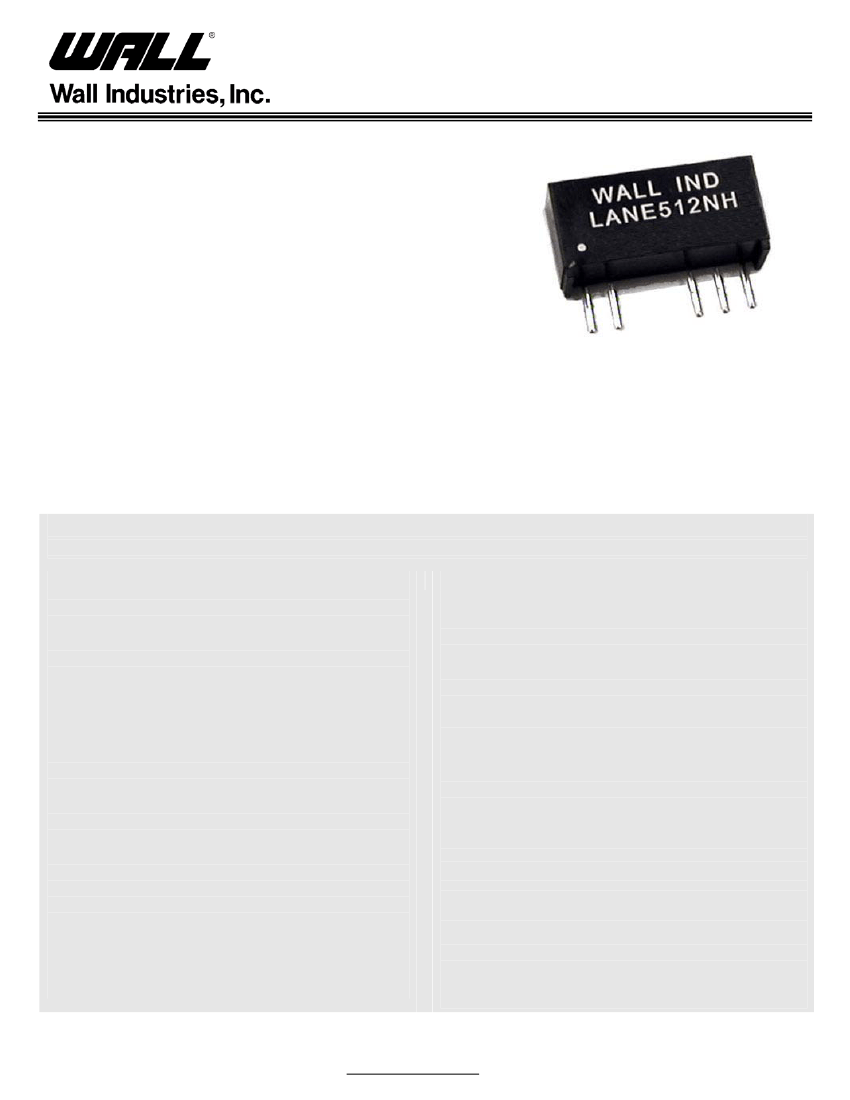

LANEH Series

Single and Dual Output

1 Watt DC/DC Converter

FEATURES

●

MTBF > 1M Hours

●

7 Pin SIP Package

●

1 Watt Output Power

●

3000VDC I/O Isolation

●

Single and Dual Outputs

●

UL 94V-0 Package Material

●

Input 5, 12, 15, 24, and 48VDC

●

Industrial Grade -40°C to +85°C “I” Option

DESCRIPTION

When your application demands low power, minimal board space, and a high level of input/output isolation is

necessary, the LANEH miniature converters offer superior solutions at an economical price. Users have a

multitude of options and operational ratings to choose from in custom-tailoring the converter to application

demands. Populating a scant 0.179 square inches of board space, the LANEH provides one watt of power while

maintaining specifications over the entire commercial operating temperature range

SPECIFICATIONS:

LANEH Series

All specifications apply @ 25°C ambient unless otherwise noted

INPUT SPECIFICATIONS

Input Voltage Range ..................................................... ±5%

Nominal Input Voltage ............... 5, 12, 15, 24, and 48 VDC

Input Voltage Tolerance................................................ ±5%

Input Filtering ......................................Low ESR Capacitors

GENERAL SPECIFICATIONS

Efficiency ................................................................. 70% typ.

Switching Frequency ......................................... 100KHz typ.

Isolation Voltage (Input to Output) .................3000VDC min.

Isolation Resistance ..................... 1000MΩ min. @ 500VDC

OUTPUT SPECIFICATIONS

Output Voltage .......................................................see table

Voltage Tolerance...................±5% (nom. Line, 100% load)

Output Current .......................................................see table

Output Power .................................................... 1 Watt max.

Line Regulation (10% to 100% FL)......... ±1.2% / 1% of Vin

Load Regulation (10% to 100% FL)

5V output .......................................................... 15% max

9, 12, and 15V outputs ..................................... 10% max

Ripple/Noise (20 MHz BW).........................150mVp-p max.

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature.................................... 0°C ~ +70°C

“I” suffix ....................................................-40°C ~ +85°C

Storage Temperature .................................. -25°C ~ +100°C

Cooling ................................................... Free air convection

MTBF........................................................... 1,000,000 hours

PHYSICAL SPECIFICATIONS

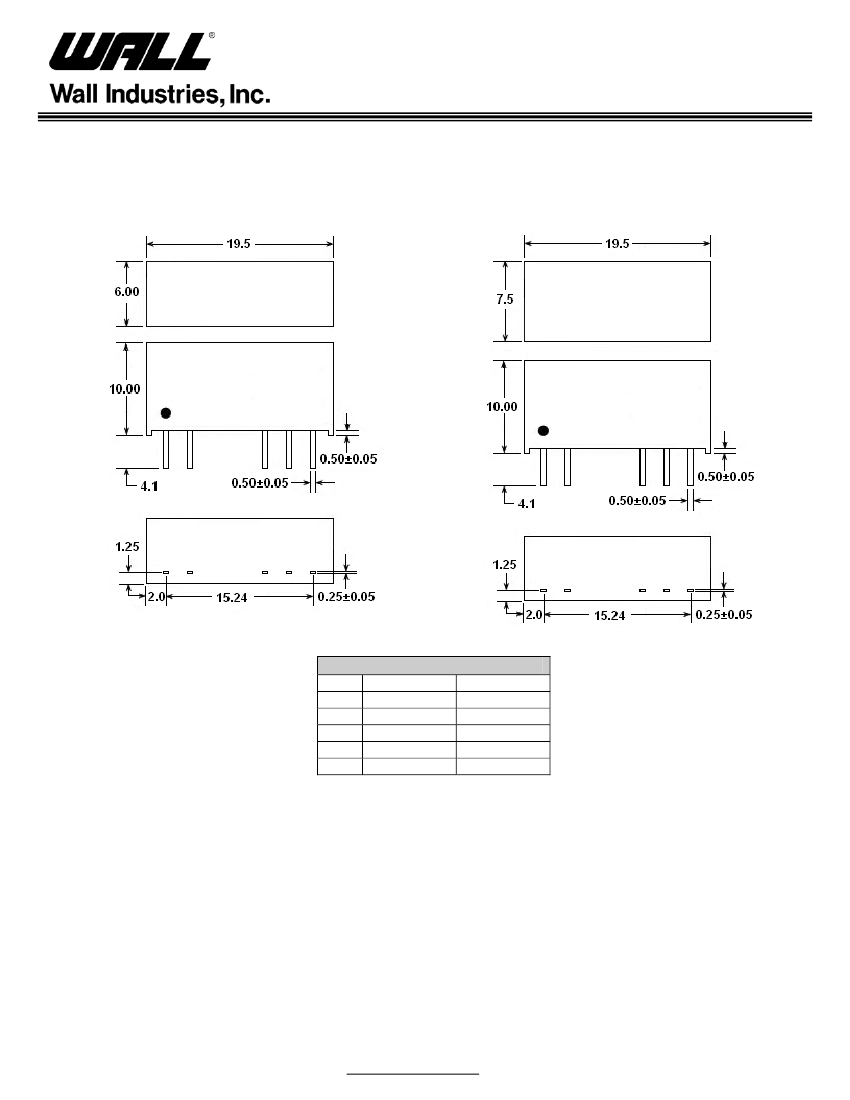

Dimensions

5, 12, 15, and 24V input.................19.5(L) x 6(W) x 10(H) mm

48V input.....................................19.5(L) x 7.5(W) x 10(H) mm

PROTECTION SPECIFICATIONS

Short Circuit Protection....................................... Short term

Case Material ......................... Non-Conductive black plastic

Potting material ......................................... Epoxy (UL94-V0)

Due to advances in technology, specifications subject to change without notice

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833

603-778-2300 www.wallindustries.com Fax 603-778-9797
