3-1775119-1 datasheet, PDF - EEWORLD Datasheet

3-1775119-1: Description4P PWR CONN ASSY RA SQ; CategoryThe connector The connector; File Size245KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

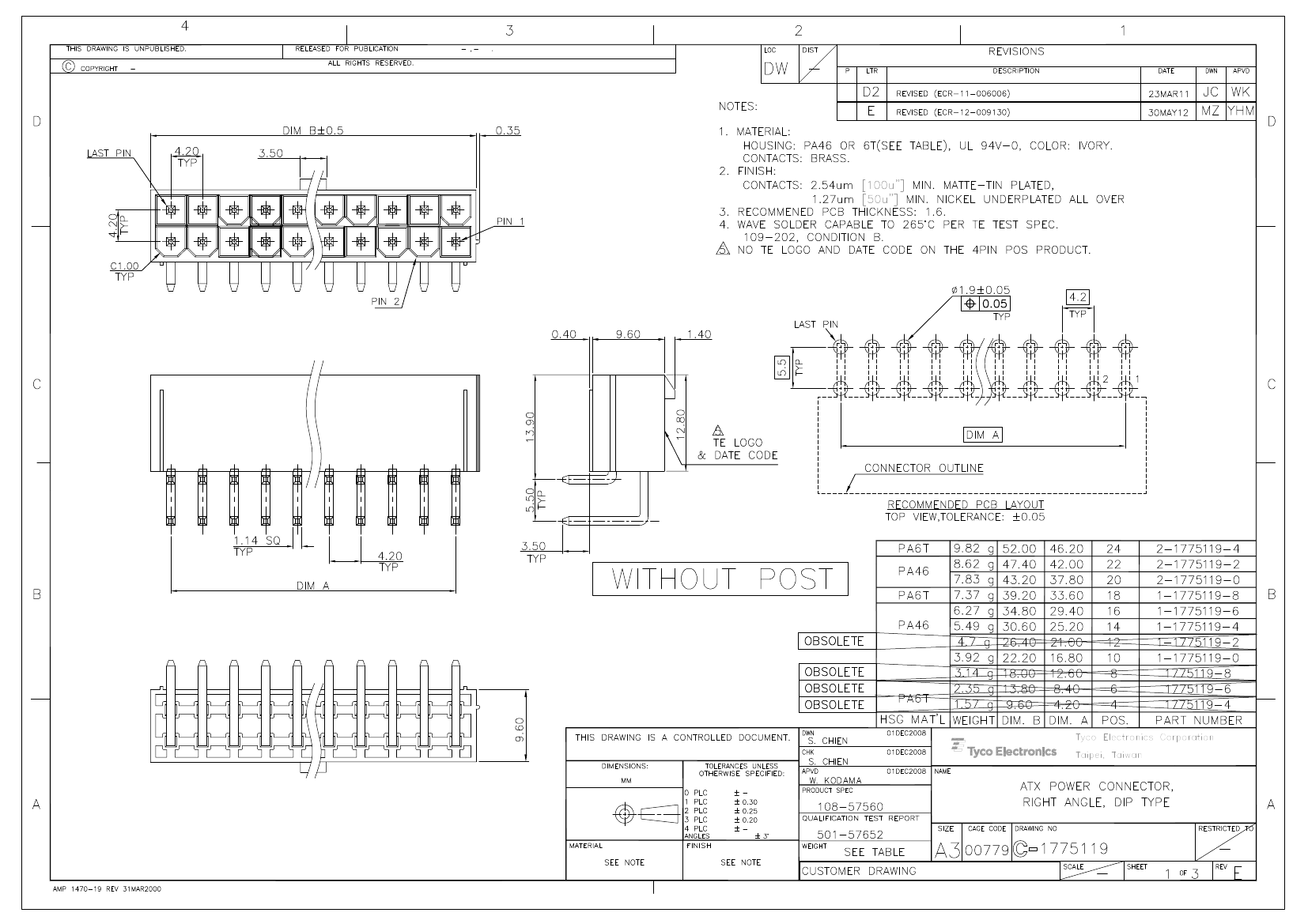

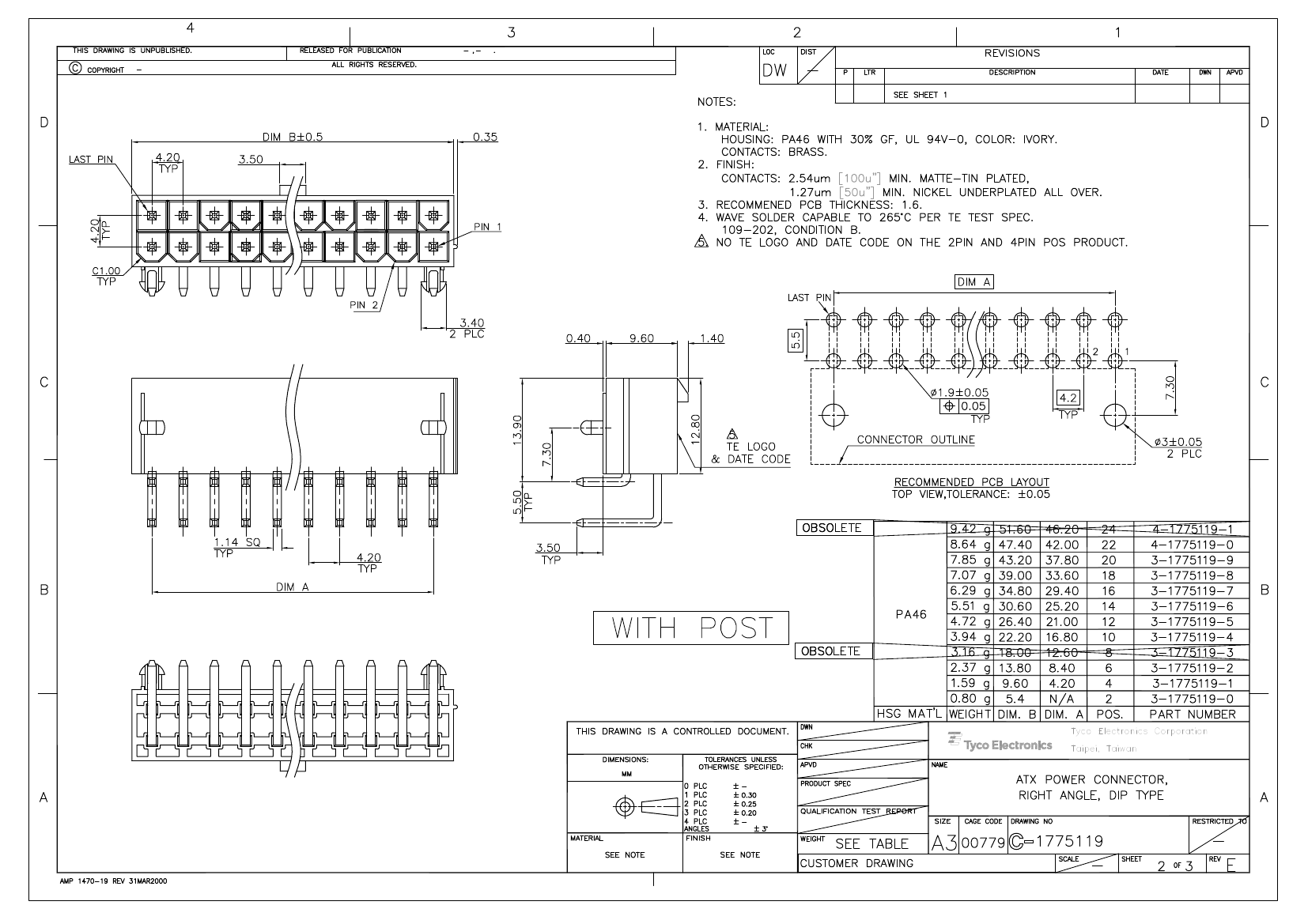

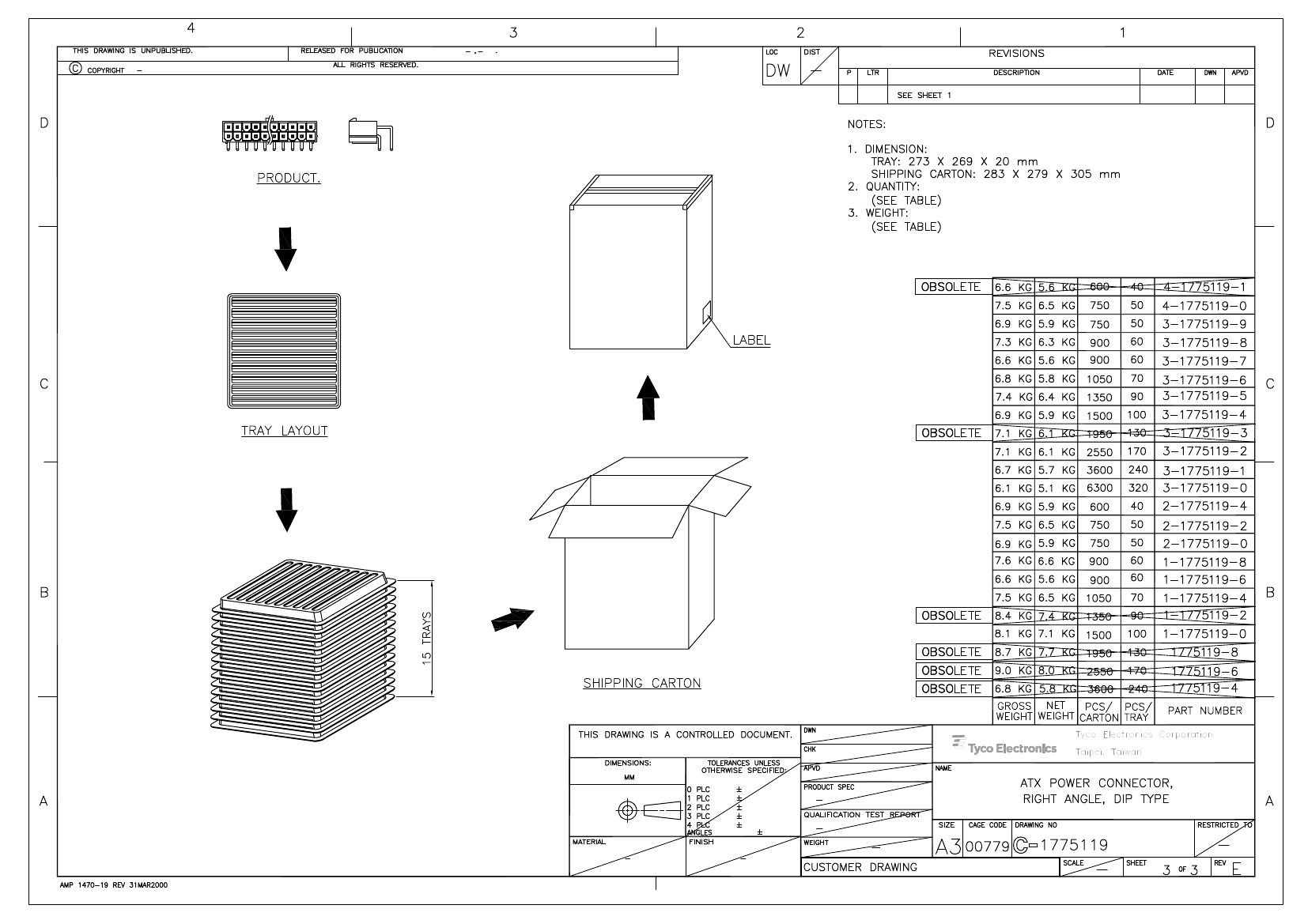

3-1775119-1 Overview

4P PWR CONN ASSY RA SQ

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.449 inch
subject depth	0.764 inch
body length	0.378 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
IEC compliance	NO
maximum insertion force	4.448 N
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	4
Evacuation force-minimum value	1.4734 N
Base Number Matches	1
