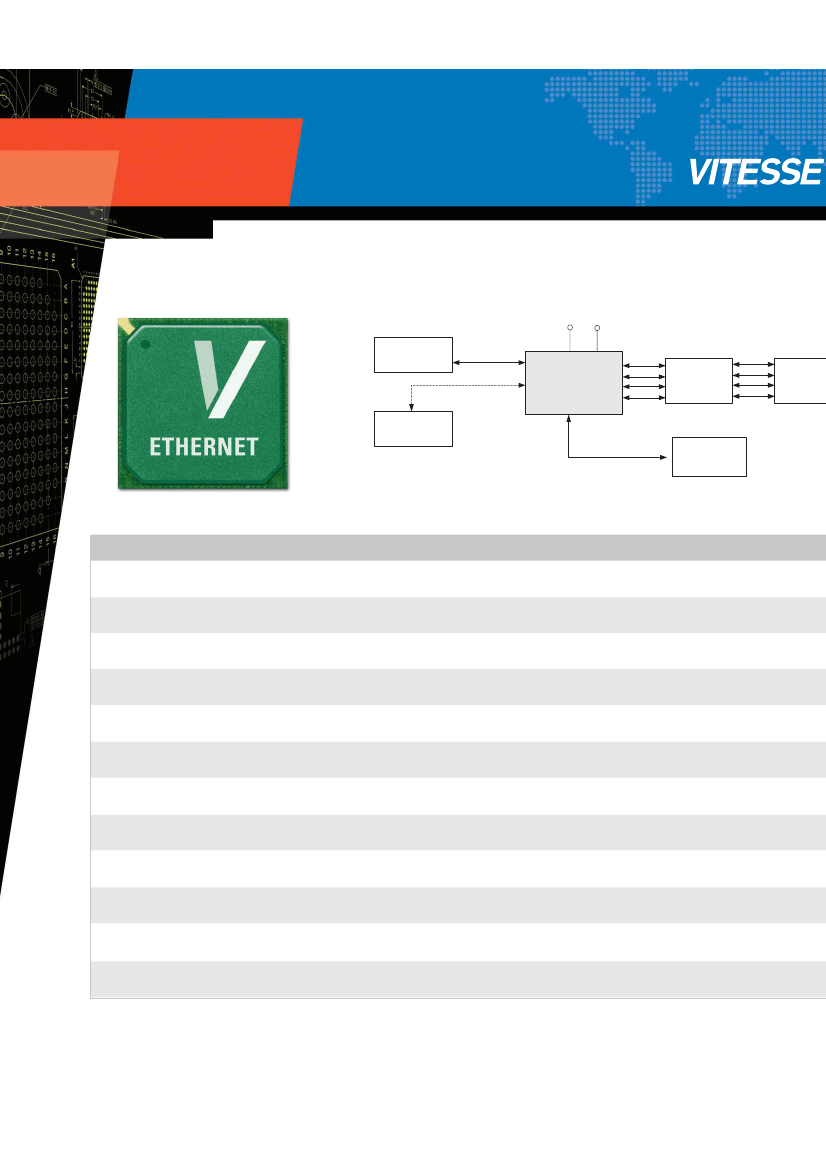

ETHERNET PRODUCTS
VSC8211
Single Port 10/100/1000BASE-T PHY and 1000BASE-X PHY with SGMII, SerDes,
GMII, MII, TBI, RGMII / RTBI MAC Interfaces
3.3v
10/100/1000 Mbps
Ethernet MAC
GMIII / MII, RGMII,
TBI, RTBI
Vitesse VSC8211
10/100/1000BASE-T
Transceiver
Quad
Transformer
Module
1.2v
Cat-5 UTP
10/100/1000BASE
RJ-45
MDC, MDIO
Station Manager
SerDes I/F
1000BASE-LX
1000BASE-SX
Optical Module
Single mode Fibe
Multi-mode Fiber
Backplane
F E AT U R E S :
Very Low Power Consumption at < 700mW
Patented, Low EMI Line Driver with Integrated Line Side Termination
Resistors
Supports PICMG 2.16 and 3.0 Ethernet Backplanes at Approximately
500mW
Supports Cisco SGMII v 1.7 and 1000BASE-X MACs
Supports RGMII and RTBI v 1.3 & v 2.0 (2.5V & 3.3V)
User-programmable RGMII Timing Compensation
High Performance 1.25 Gbps SerDes
Auto-media Sense Feature Detects and Configures to Support Either
Copper or Fiber Media
Compliant with IEEE 802.3 (10BASE-T, 100BASE-TX, 1000BASE-T,
1000BASE-X) and SFP MSA Specifications
Full Suite of BIST, MAC, Far-end, and Connector Loopback Modes
Over 150m of Category-5 Reach with Industry’s Highest Noise Tolerance
VeriPHY™ Cable Diagnostics Software Suite
Automatic Detection and Correction of Cable Pair Swaps, Pair Skew
and Pair Polarity, Along with Auto MDI/MDI-X Crossover Function
BENEFITS:
Reduces Power Supply Costs
Removes 12 Passive Components, Reducing PCB Area and Cost by 50%
Lowest Power Mode Reduces Power Supply Costs
Connects to Virtually any MAC or Optical Module and can be Used to
Design Copper GBIC/SFP Modules and 100BASE-FX Modules
Simplifies PCB Layout, Eliminating the Need for On-board Delay Lines
Supports Category-5 Copper, Fiber Optic, and Backplane Interfaces From a
Single Device
Single Chip Solution for Flexible Media Support
Ensures Seamless Deployment Throughout Copper and Optical Networks with
Industry’s Highest Tolerance to Noise and Substandard Cabling Infrastructures
Simplifies Comprehensive In-system Test to Ensure the Highest Product
Quality
Ensures Trouble-free Deployment in Real World Ethernet Networks
Enables Network Manufacturers to Simplify Deployment and Improve
Network Management Capabilities of Gigabit Ethernet Links
Compatible with 1st Generation 1000BASE-T PHYs, Minimizing Common
Interoperability Problems
A P P L I C AT I O N S :
Media Converters
Dual Media Switch Ports
iSCSI and TOE LOM
Triple Speed Copper GBIC/SFP Modules
100BASE-FX Switch Ports and Modules
Backplanes
PB-VSC8211-002
VSC8211
Single Port 10/100/1000BASE-T PHY and 1000BASE-X PHY with SGMII, SerDes, GMII,
MII, TBI, RGMII / RTBI MAC Interfaces
GENERAL DESCRIPTION:
The VSC8211 is ideal for Media Converter and 100BASE-FX applications. Its low power consumption and patented
line driver technology reduce the cost and complexity of Gigabit Ethernet system designs. The VSC8211’s integrated
1.25 Gbps SerDes and Auto-Media Sense™ feature allow system designers to support Category-5 twisted pair, fiber
optic, and backplane interfaces from a single device. Vitesse’s mixed signal and DSP architecture yields robust
performance, supporting both full and half duplex 10BASE-T, 100BASE-TX, and 1000BASE-T over >140m of Category
5, unshielded twisted pair (UTP) cable, with industry leading tolerance to NEXT, FEXT, Echo, and system noise.
S P E C I F I C AT I O N S :
PARAMETER
P
D
P
DQ
L
1G
, L
100M
L
10M
Serial Data Rate
VDDA
VDDDIG
F
TOL (REFERENCE)
TYP
700
<100
150
230
1.25
3.3
1.2
25
UNIT
mW
mW
m
m
Gbps
V
V
MHz
COMMENTS
Steady state power consumption (1000BASE-T) including SerDes
Power consumption in ActiPHY™ Low Power State
Cable link length supported in 1000BASE-T & 100BASE-TX modes,
over Category 5 cable
Cable link length supported in 10BASE-T mode, over Category 3 cable
SerDes, SGMII interface data rate
DC power supply voltage range
Core supply voltage
Crystal parallel resonant frequency (+/- 100 ppm tolerance)

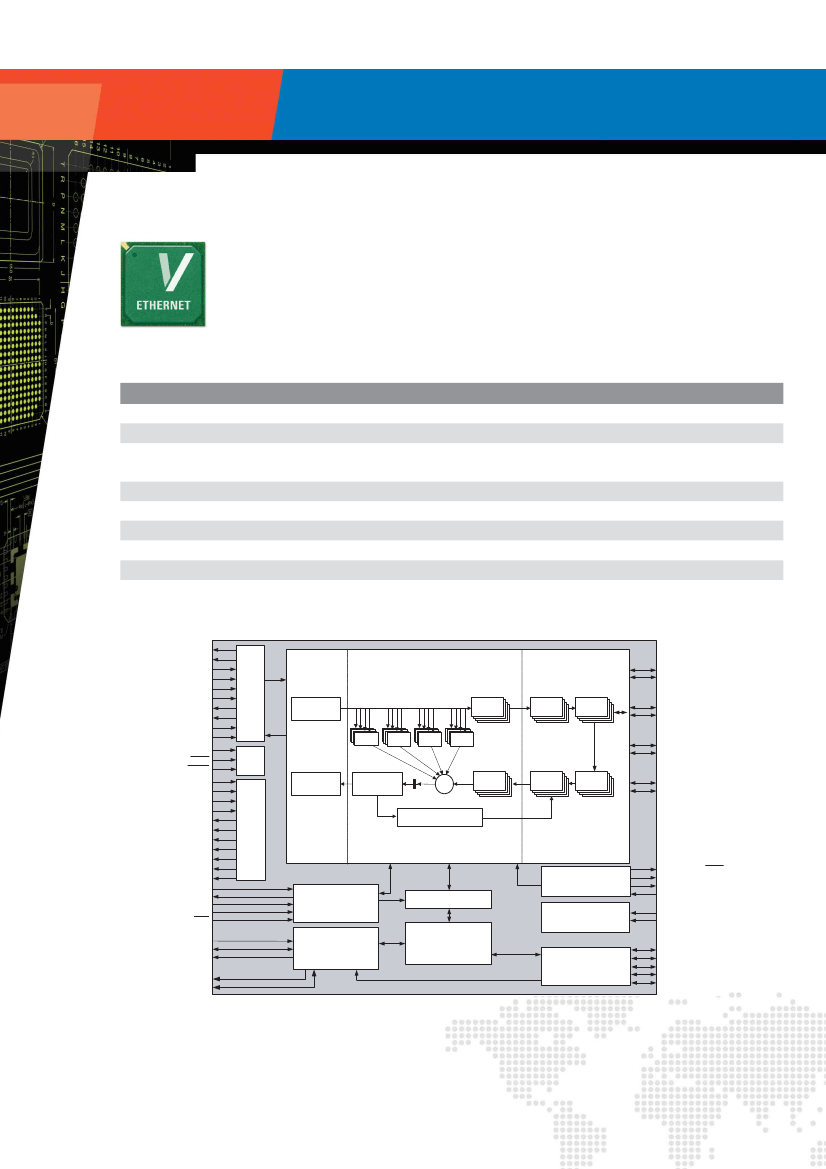

BLOCK DIAGRAM:
SDOP
SDON
SDIP
SDIN
TDP
TDN
RDP
RDN
SCLKP
SCLKN
CMODE[7:0]
RESET
TXDIS/SRESET
TXD[7:0]
TXEN
TXER
GTXCLK
RXD[7:0]
RXDV
RXER
RXCLK
TXCLK
COL
CRS
TDI
TDO
TMS
TCK
TRST
CLKOUTMICRO/OSCDIS
MODDEF0/CLKOUTMAC
XTAL2
XTAL1REFCLK
REFFILT
REFREXT
SerDes
SGMII
or
Serial
I/O
TBI
PCS
PMA (DSP Data Pump)
MDI (Analog Front End)
TXVPA
TXVNA
PCS
ENCODER
TBI
PAM-5 SYMBOL
MAPPER,
SCRAMBLER
TX FIR
DAC
HYBRID
TXVPB
TXVNB
NC1
NC2
NC3
EC
TXVPC
TXVNC
Control
GMII
MII
RGMII
TBI
RTBI
PCS
DECODER
PAM-5 SYMBOL
DE-MAPPER,
DESCRAMBLER
TRELLIS
DECODER
+
X4
FFE
ADC
VGA
TXVPD
TXVND
TIMING RECOVERY
PLL,
OSCILLATOR
TEST
MANAGER
+ JTAG
EEPROM and SERIAL
MANAGEMENT
INTERFACE
AUTO-NEGOTIATION
ANALOG BIAS BLOCK
MII
REGISTERS
LED
INTERFACE
MODDEF1/MDC
MODDEF2/MDIO
RXLOS/SIGDET
LED0
LED1
LED2
LED3
LED4
PLLMODE/EECLK
EEDAT
