2.0A Sintered Glass
Passivated Rectifier
GP20A
–
GP20M
2.0A Sintered Glass Passivated Rectifier
Features
•
•
•
•
Sintered glass passivated (SGP) rectifier chip
Capable of meeting environmental standards of MIL-S-19500
2.0A operation at T
A
=55
° C
with no thermal runaway
High temperature soldering guaranteed:260°C/10 seconds
/.0375" (9.5mm) lead length, 5lbs (2.3kg) tension
•
RoHS Compliance
DO-15
(DO-204AC)
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Weight:
JEDEC DO-204AC(DO-15) molded plastic body
Plastic package has UL flammability classification 94V-0
Plated axial leads, solderable per MIL-STD-750, Method 2026
Color band denotes cathode end
0.015 ounces, 0.4 gram
Maximum Ratings and Electrical Characteristics
(T
A
=25ºC unless noted otherwise)
Symbol
Description
Maximum
Repetitive Peak
Reverse Voltage
Maximum RMS
Voltage
Maximum DC
Blocking Voltage
Maximum Average
Forward Rectified
Current
Peak Forward
Surge Current
GP20A
50
35
50
GP20B
100
70
100
GP20D
200
140
200
GP20G
400
280
400
2.0
GP20J
600
420
600
GP20K
800
560
800
GP20M
1000
700
1000
Unit
V
V
V
A
0.375” (9.5mm)
lead length(Fig.1)
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
Method)
Conditions
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
65
A
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel:
Fax:
(800)-TAITRON
(800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH 2008-01-16
Page 1 of 4
2.0A Sintered Glass Passivated Rectifier
GP20A
–
GP20M
Symbol
Description
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Junction
Capacitance
Typical Thermal
Resistance
Operating Junction
and Storage
Temperature Range
GP20A
GP20B
GP20D
GP20G
1.0
5
30
80
25
35
15
-65 to +175
pF
°C / W
µA
GP20J
GP20K
GP20M
Unit
V
Conditions
I
F
=2.0 A
T
A
=25° C
T
A
=125° C
T
A
=150° C
V
R
=4V, f=1MHz
Note
V
F
I
R
C
J
R
th
JA
R
th
JL
T
J,
T
STG
°C
Note:
Thermal resistance from junction to ambient at 0.375” (9.5mm) lead lengths, P.C.B mounted.

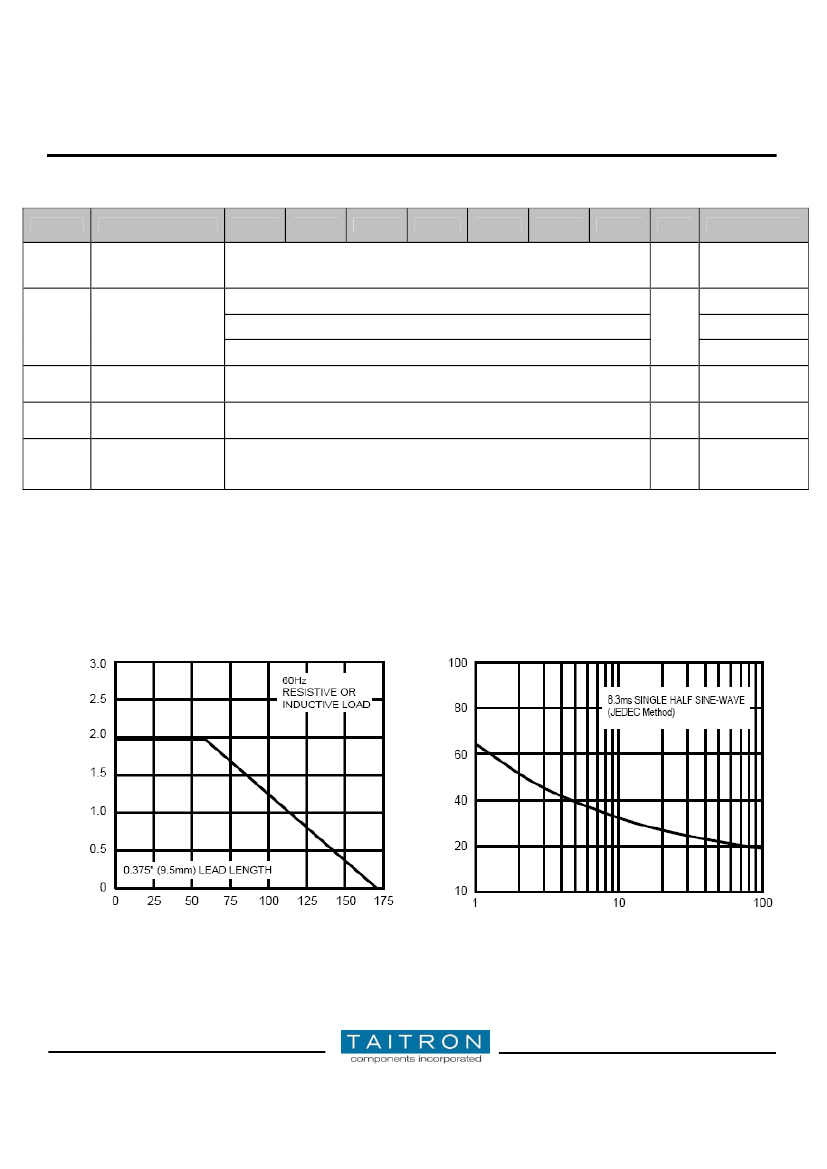

Typical Characteristics Curves
Fig.1-Max. Forward Current Derating Curve
Peak Forward Surge Current (A)
Ambient Temperature T
a
(°C)
Fig.2-Max. Non-Repetitive Forward Surge Current
Average Forward Rectified Current (A)
Number of Cycles at 60Hz
Rev. B/AH 2008-01-16
www.taitroncomponents.com
Page 2 of 4
2.0A Sintered Glass Passivated Rectifier
GP20A
–
GP20M

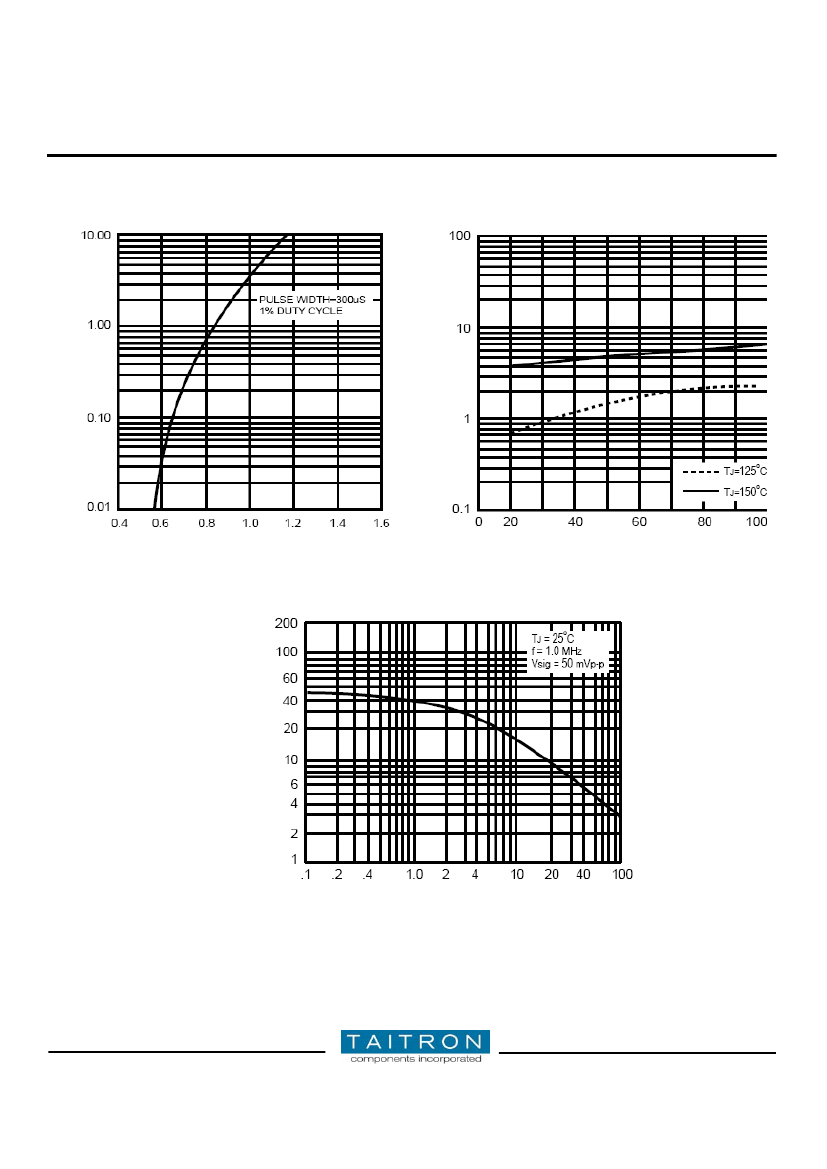

Fig.3- Typical Forward Characteristics
I
R
, Instantaneous Reverse current (µA)
Instantaneous Forward Current (A)
Fig.4-Typical Reverse Characteristics
Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5- Typical Junction Capacitance
Junction Capacitance (pF)
Reverse Voltage (V)
Rev. B/AH 2008-01-16
www.taitroncomponents.com
Page 3 of 4
2.0A Sintered Glass Passivated Rectifier
GP20A
–
GP20M
Dimensions in inches (mm)
