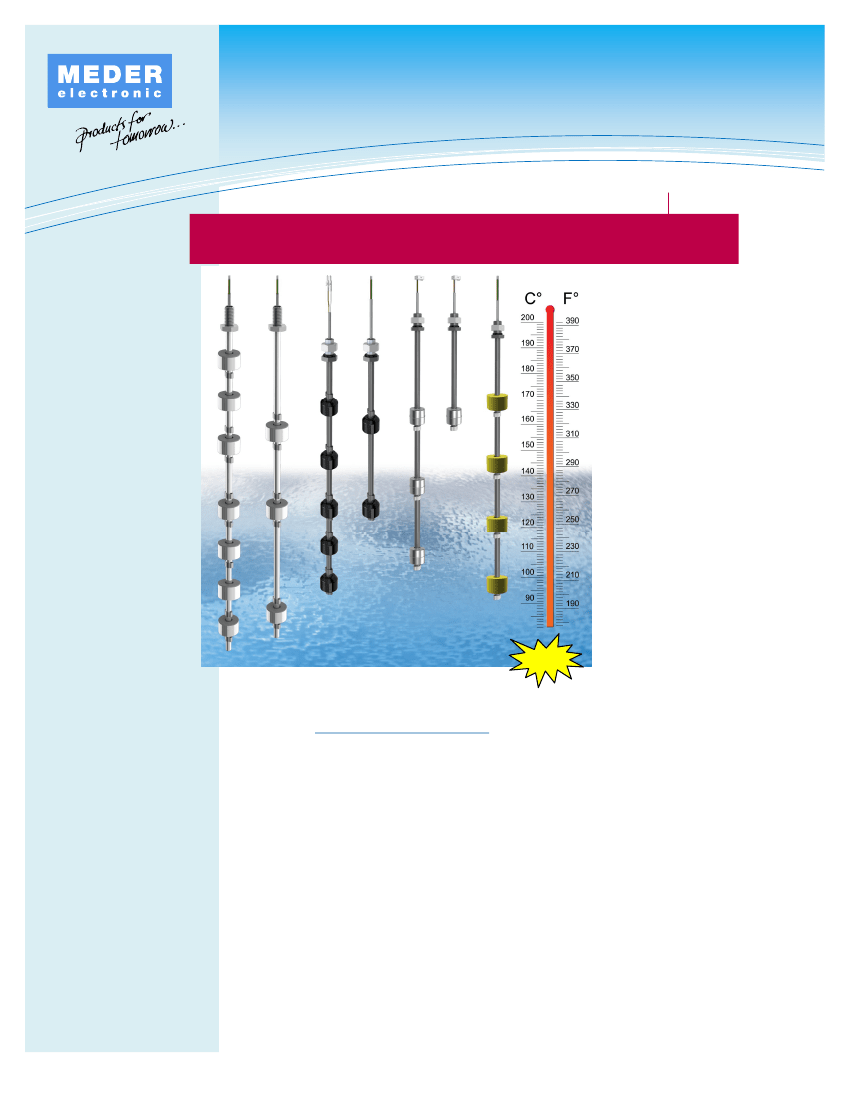

LS05 Series Liquid Level Sensors
DESCRIPTION
The LS05 Liquid Level Sensors
reach new levels! Made of tough
stainless steel tubing, these
sensors can be customized up to
6.5 feet in length, detect multiple
liquid levels and withstand
exposure to many chemical
solutions, high pressure and high
temperatures.
•
Choose from hundreds of preselected
material options to customize a sensor
that will monitor and detect single,
multiple or continuous fluid levels
•
Robust design can withstand high
temperatures up to 200° and high
C
pressure up to 12 bar
•
Reservoir, tank, bottle or other container
FEATURES
High temperature up to 200°
C
High pressure resistance to 12bar
Single, multiple and continuous
levels
Multiple magnetic floats
Customizable components and
configurations
Various mounting options
Hermetically sealed
Dynamically tested contacts
Millions of reliable operations
mounting configurations
•
Select from many Reed Switch
combinations switching low or high
voltages up to 1000 Volts
•
Suitable for sensing single or multiple
fluid types in the same tank.
•
Well suited with drinking water, oil,
NEW!
greases, lubricants, anti-freeze, brake
fluid, diesel fuel, power steering fluid,
petroleum-based solvents, gasoline,
kerosene, water, water-based cleaning
solutions, or other non-aggressive fluids.
APPLICATIONS
Agricultural equipment
Automobiles
Continuous level monitoring
Food & beverage equipment
Humidifiers
Laboratory equipment
Process control equipment
Recreational vehicles
Refrigerated trucks
Watercraft
Reaching New Levels &
New Mediums for
Millions of Operations!
The LS05 Series Liquid Level Sensors is the most diverse
level sensor yet, combining hundreds of standard options
ranging from switching power and connectivity to fluid
types and number of liquid levels. The LS05 housing
stem, constructed of V2A stainless steel can vary in
length up to 6.5 feet long and hold any number of
magnetic floats with a minimum spacing of 1.5” between
them. Its stainless steel housing will withstand high
Mix and match more than one float material to detect
multiple fluid types in the same tank, such as in a
diesel tank that may build up water condensation over
time. The LS05 can be mounted to the top or bottom
of a tank or reservoir using a number of different
mounting options. Using our OKI and KSK Reed
Switches, the LS05 can switch low and high voltages
up to 1000 Volts and produce single, multiple or
continuous output signals. The LS05’s multitude of
standard options simplify the process of designing a
liquid level sensor for such a diverse array of liquid
detection applications.
MARKETS
Automotive, Aviation, Marine,
Logistics, Asset Management,
Food & Beverage, Electronics,
Laboratory, Industrial, Agriculture,
Recreational Vehicles, Appliance
pressure up to 12bar and temperatures up to 200° when
C
coupled with stainless steel floats. Choose from 10
different magnetic floats, available in four different
materials: Polyamide (PA), Polypropylene (PP), Nitrile
Butadiene Rubber (NBR) and Stainless Steel (V2A).
MEDER electronic | www.meder.com | January, 2010
Page 1 of 2
[Type text]
Reed Technology Solutions
Product Spotlight
REED RELAYS
REED SENSORS
REED SWITCHES

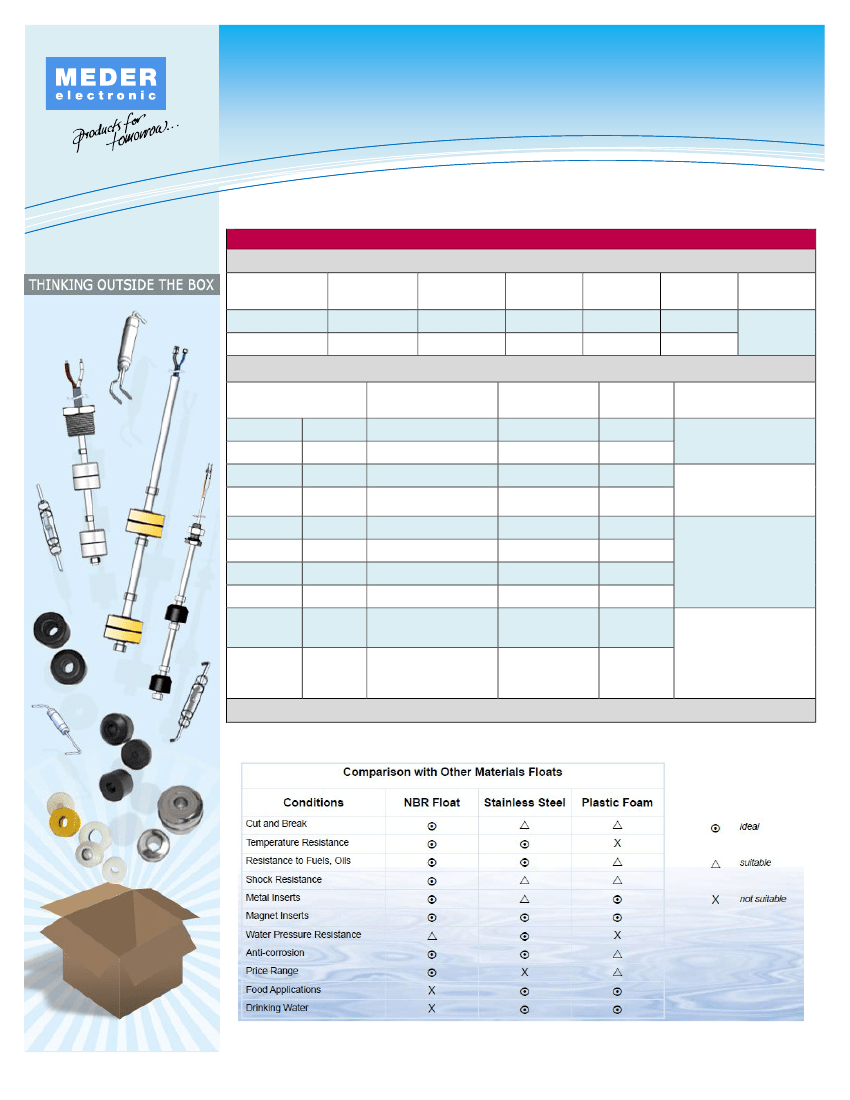

LS05 SERIES STANDARD MATERIAL OPTIONS
Housing / Stem Characteristics
(Contact us for custom housing requirements)
Housing /
Stem Material
Stainless Steel
Stainless Steel
Float Material
PA, PP, or NBR
Stainless Steel
Operating
Temperature
-30ºC to +120ºC
-40ºC to +200ºC
Housing
Length
80mm-2000
80mm-2000
Switch
Rating
1W-100W
1W-100W
Housing /
Stem
Diameter
7-16mm
7-16mm
Mounting
Thread
Metric M10-M30
Standard or NPT
Float Characteristics
(Contact us for custom float requirements)
Float Part Number
2500000011
2500000006
2500000009
2500000017
2500000007
2500000010
2500000023
2500000024
MS02-PA
MS07-PA
MS01-NBR
MS02-NBR
MS01-PP
MS02-PP
MS03-PP
MS04-PP
Material
Polyamide
Polyamide
Nitrile Butadiene Rubber
Nitrile Butadiene Rubber
Polypropylene
Polypropylene
Polypropylene
Polypropylene
I.D. x O.D. x Ht
Nominal (mm)
9.15 x 25.4 x1 6.55
16.15 x 36.0 x 19.0
8.35 x 23.5 x 19.0
9.15 x 25.0 x 16.50
8.1 x 23.5 x 19.0
9.15 x 25.4 x 16.55
11.0 x 27.0 x 11.7
10.2 x 25.0 x 18.5
Weight (g)
4.15-4.36
10.1-11.5
3.5-3.9
3.9-4.5
3.5-3.9
4.15-4.36
3.5-4.0
2.5-3.2
Liquid
Oil, all kinds of fuels
Oil, all kinds of fuels, brake
fluid, In general NBR can be
used for higher temperatures
and has a higher buoyancy.
Water, Water-based liquids,
non-aggressive liquids and
solvents, such as cleaners,
gasoline and alcohols
Drinking water, oil, greases,
lubricants, anti-freeze, brake
fluid, diesel fuel, power steering
fluid, petroleum-based solvents,
gasoline, kerosene, water,
water-based cleaning solutions,
or other non-aggressive fluids.
2500000029
MS09-S
Stainless Steel (V2A)
9.5 x 24.0 x 24.0
5.0-5.5
2500000030
MS10-S
Stainless Steel (V2A)
9.5 x 38.3 x 26.3
5.5-6.5
Cable Characteristics
(Contact us for custom cable requirements, i.e. wire size, termination, connectors, length, UL etc.)
MEDER electronic | www.meder.com | January, 2010
Page 2 of 2
