.100" IDC CARD EDGE
ADAM TECHNOLOGIES
INTRODUCTION:

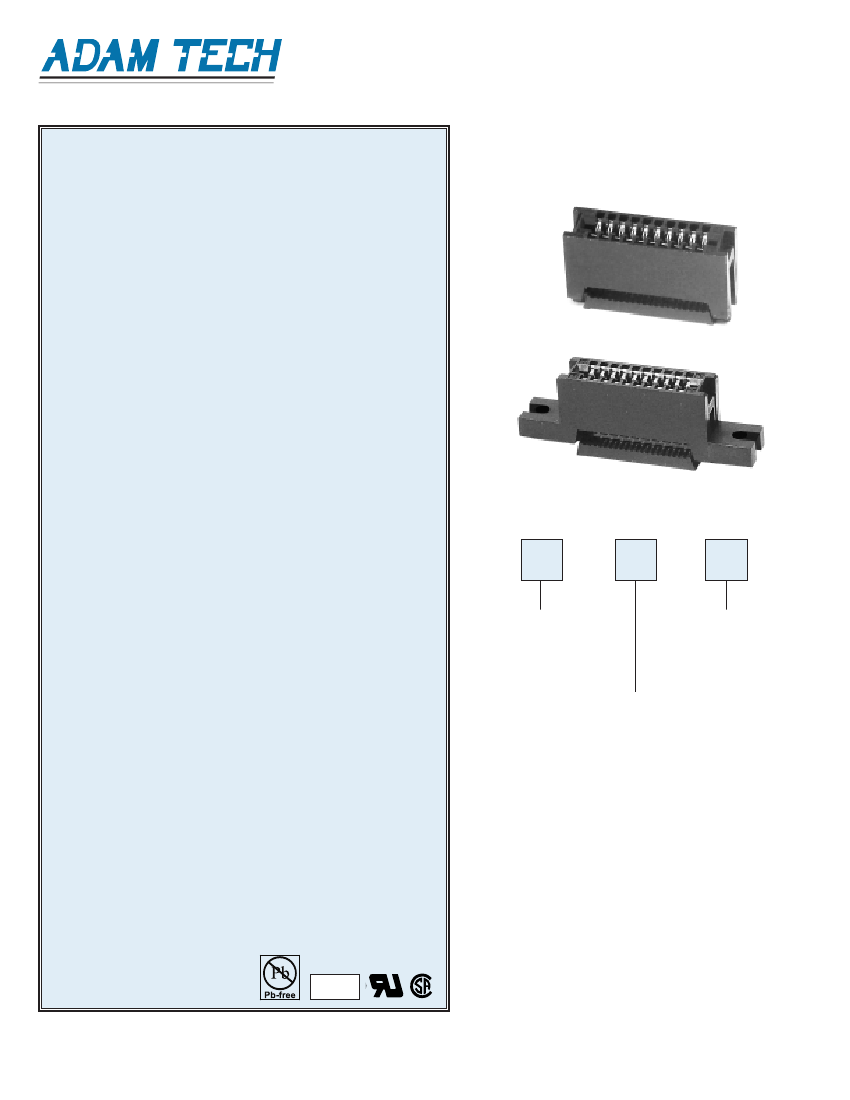

Adam Tech FCE Series IDC Card Edge Connectors are designed to
quickly and easily mass terminate .050” flat cable and mate directly
with the plated fingers of a PCB as a card edge connector. Our
superior designed crimp cap features guides to reduce occurrence of
mis-mating and our specially engineered contacts provide strong
wiping action and high retention to the PCB.
FEATURES:
Available with or without mounting ears
Special “easy fit” cap reduces mis-mating
High Retention to PCB
Selectively Gold plated Bifurcated contacts
MATING OPTIONS:
Printed circuit boards with a thickness of .058” to .070”
SPECIFICATIONS:
Material:
Insulator: PBT, glass reinforced, rated UL94V-0
Insulator Color: Black, (Gray optional)
Contacts: Phosphor Bronze
Contact Plating:
Gold flash (30u” optional) over nickel underplate on contact area,
tin over copper underplate on IDC area
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
PCB Insertion force: 0.406 lbs per contact max.
With .062 thick board
Withdrawal force: 0.312 lbs per contact min.
With .062 thick board
Recommended wire size: 28 Awg stranded
Cable retention: 28 lbs. min axial force per inch.
Mating durability: 500 cycles min.
Temperature Rating:
Operating temperature: -40°C to +125°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
STRAIN RELIEF:
FCR -
(No. of Positions)
KEYING PLUGS:
FCE-K
(Key plugs can also be molded into connector,
consult factory)
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
GY
= Gray color insulator
E
= Mounting ears with slotted mounting holes

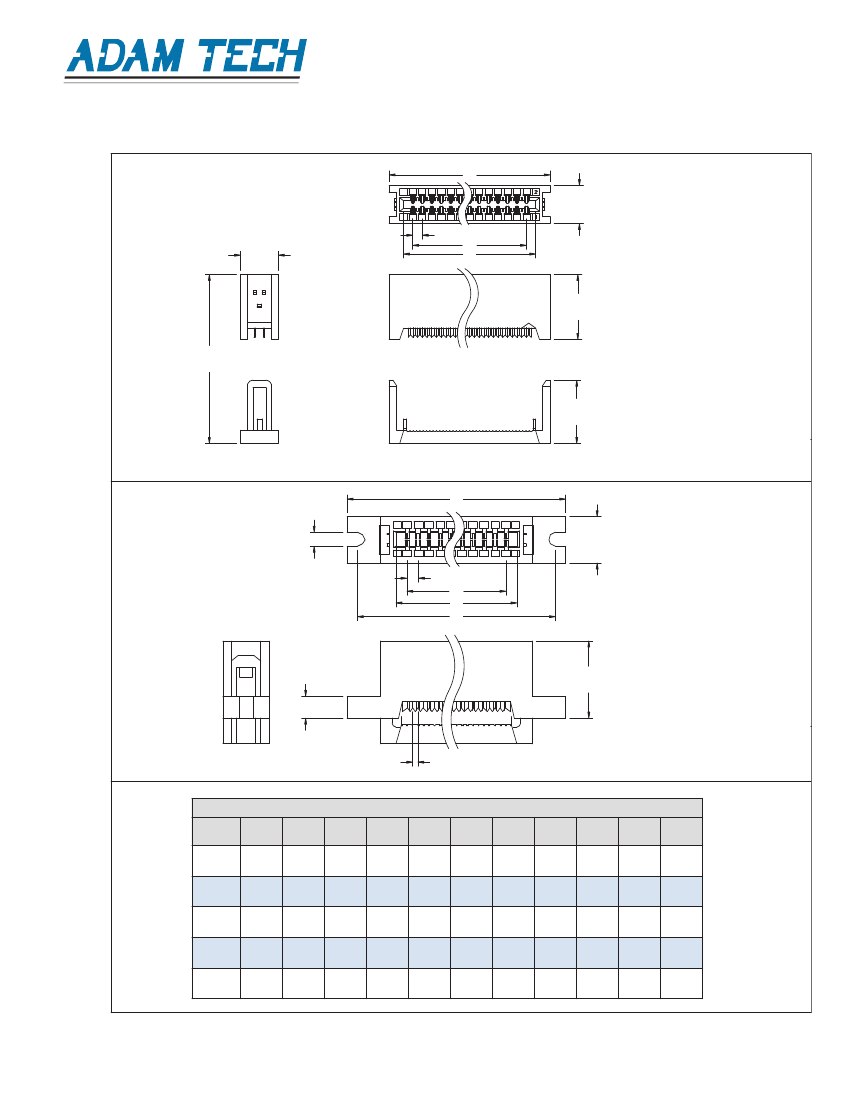

.100" [2.54] CENTERLINE
FCE SERIES
ORDERING INFORMATION
FCE
34
SG
SERIES INDICATOR
FCE
= Card Edge, IDC
PLATING
SG
= Selective
gold plating
POSITIONS
10, 14, 16, 20,
26, 34,40, 50, 60, 62, 64
U
UL
RoHS
L
COMPLIANT
®
®
®
®
®
®
V
D E
D E
V
RoHS
COMPLIANT
OPTION AVAILABLE
270
