H HiTRON

03/26/08

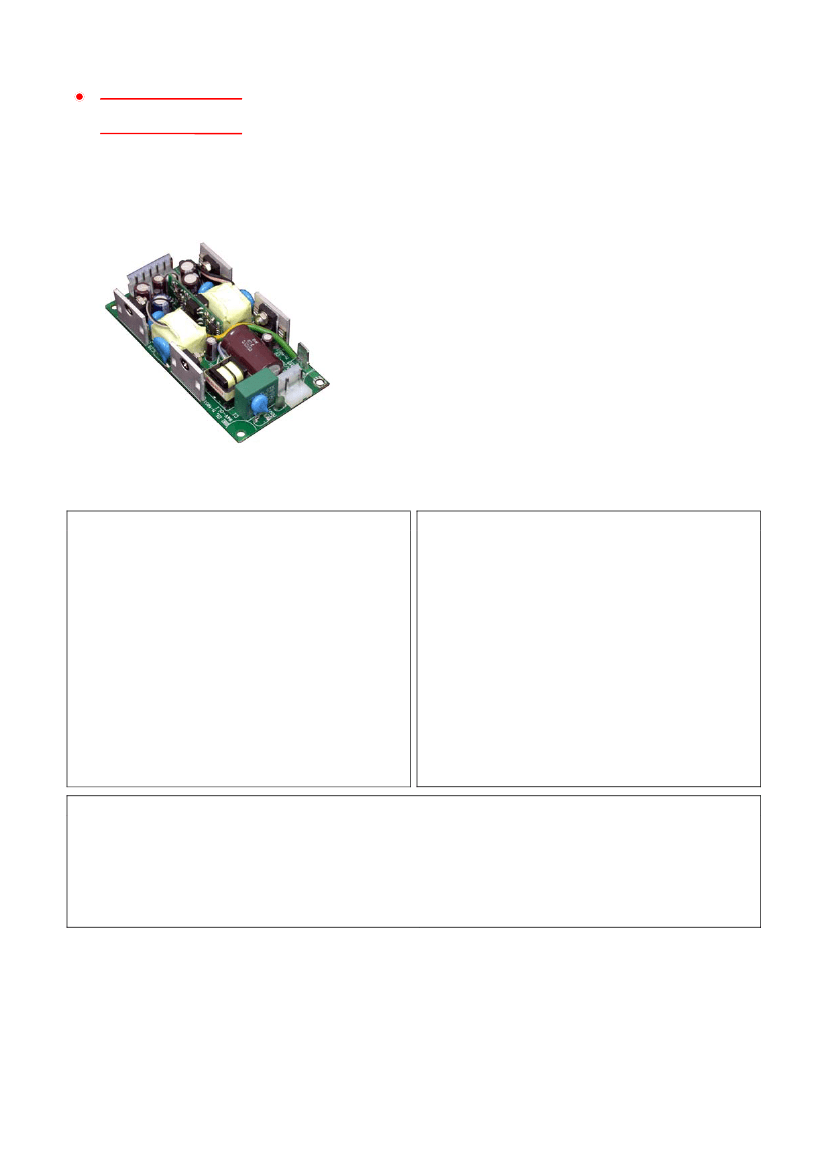

UNIVERSAL INPUT AC-DC OPEN FRAME DUAL OUTPUT 8 WATTS

INTERNAL SWITCHING POWER SUPPLIES HVI08 SERIES

FEATURES:

ACCOMMODATE UNIVERSAL AC SOURCES

COMPACT 4x2x0.92 INCH PCB FORMAT

DUAL CONVETERS ARCHITECTURE

MEET UNIVERSAL SAFETY STANDARDS

EMI MEET CISPR PUB. 22 & FCC CLASS B

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Range typ. 90-264Vac.

Rating 100 to 240Vac.

Input Connector:

V-M connector.

Input Frequency:

47-63Hz.

Inrush Current:

2.9A rms @ 230Vac 50Hz.

Input Current:

Typ. 0.12A@115Vac, 0.066A@230Vac.

Dielectric Withstand:

Meet IEC 60950-1.

EMI:

Meet CISPR PUB. 22 & FCC Class B.

Hold-up Time:

Typ. 30.4mS @115Vac, 154.mS @ 230Vac.

Leakage Current:

0.67mA for IEC60950 Touch Current.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Connector:

V-M connector.

Output Wattage:

Typ. 8 watts.

Line Regulation:

Typ. 0.1%.

Load Regulation:

Main VO1 typ. ±0.6%.

Aux. VO2 typ. ±0.6%.

Total Regulation:

Main VO1 typ. ±0.6%.

Aux. VO2 typ. ±0.6%.

Noise & Ripple:

Typ. 1.0% peak to peak.

OVP:

Built-in at VO1 & VO2(Clamp).

Adjustability:

Available at VO1 and VO2.

Overload Protection (OLP):

Fully protected against outputs overload and short circuit.

Typ. OLP set at 125-150% of rating output power.

Consult the factory for OLP setting.

Operating Temperature:

-40°C to +85 °C under forced

air flow for full load..

Storage Temperature:

-40 to +85°C.

Temperature Coefficient:

Typ. 0.04%/°C.

Cooling:

Free air convection.

Construction:

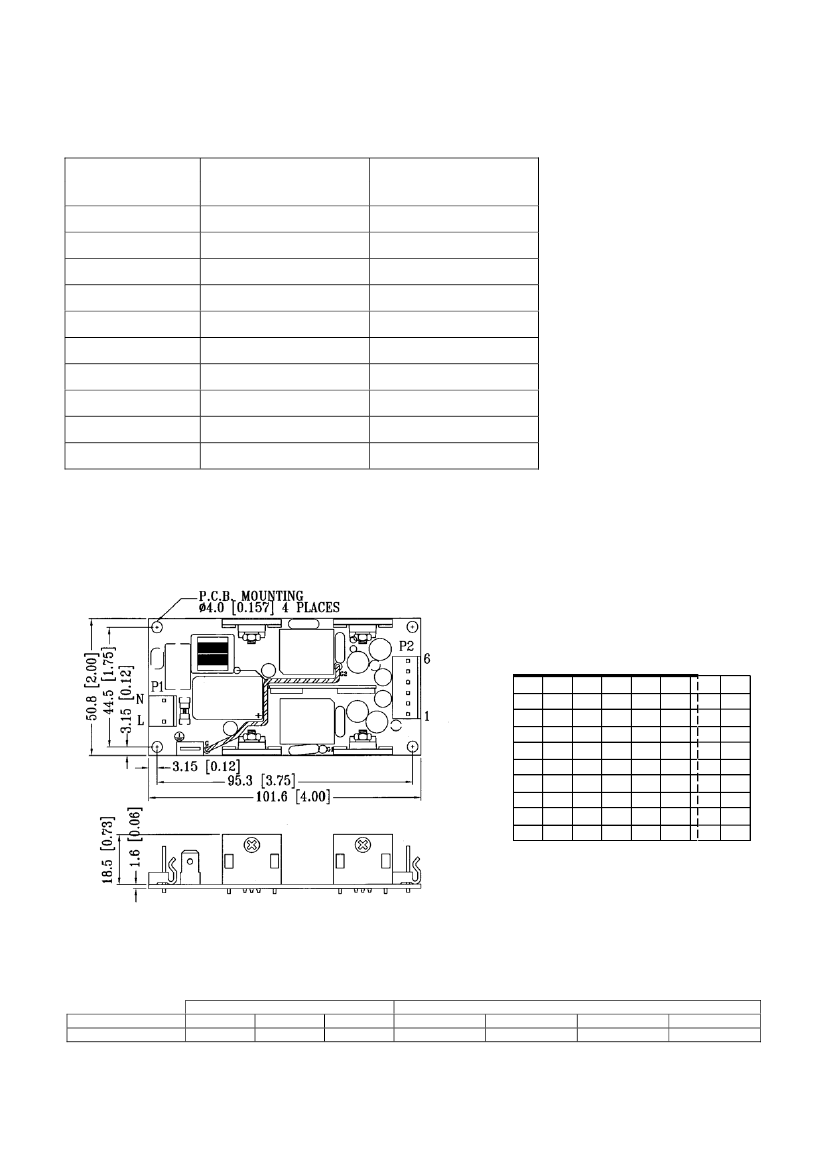

4”x2”x0.92” PCB format.

Power Density:

1.35Watts / Cubic Inch.

GENERAL SPECIFICATION

Efficiency:

Typ. 63.7%. (Various with output voltage).

Switching Frequency:

82KHz.

Circuit Topology:

Fixed frequency flyback circuit.

Dual converters for floating output.

Transient Response:

Output voltage returns in less than

0.1mS following a 25% load change.

Safety Standard:

IEC 60950-1 Class I.

Note: Due to requests in market and advances in technology, specifications subject to change without notification.

In application.
