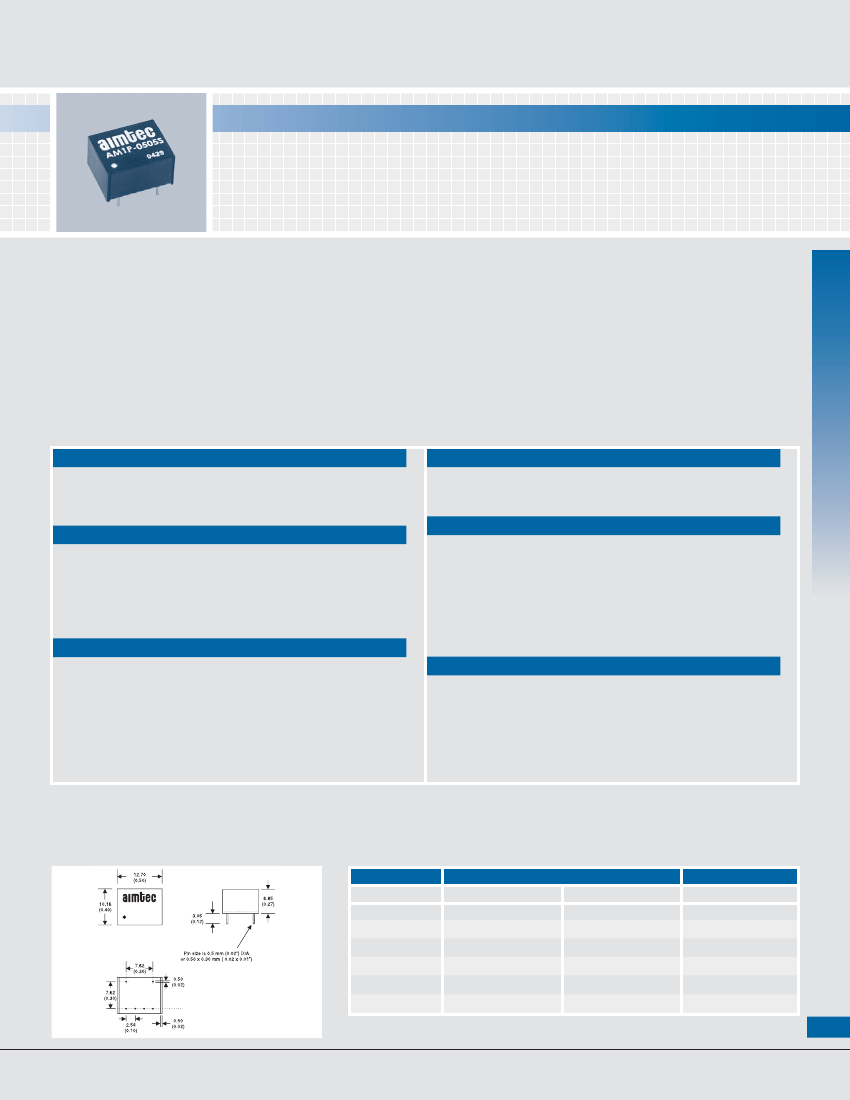

AM1P Series
1 watt dc-dc converters
•
•
•
8PIN DIP PACKAGE
LOW RIPPLE & NOISE
HIGH EFFICIENCY UP TO 80%
•
•
•
INPUT/OUTPUT ISOLATION: 1000 & 3000VDC
OPERATING TEMPERATURE: -40 C ... +85 C
PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS
Our AM1P series is a family of cost effective 1W single,
dual, dual separated output isolated DC/DC converters.
These converters achieve low cost and ultra-miniature
DIP8 pin size without compromising performance and
reliability.
Ninety six models operate from input voltages of 5, 12 &
24 VDC; producing output voltage levels of 3.3, 5, 7.2, 9,
12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24.
Full SMD-design and 100 % production test of parameters
ensures a high reliability in this product.
ELECTRICAL SPECIFICATIONS
Specifications typical at +25•C, nominal input voltage, rated output current unless otherwise specified
Input Specifications:
Voltage range
Filter
Isolation Specifications:
Rated voltage (60 sec)
Resistance
Capacitance
Output Specifications:
Voltage accuracy
Ripple & noise (at 20MHz BW)
Short circuit protection
Line voltage regulation
Load voltage regulation
Temperature coefficient
±10%
Capacitor
General Specifications:
Efficiency
Switching frequency
71% to 80%
80KHz, typ. 100% load
1000VDC (all models)
3000VDC (single output)
> 1000MOhm
60pF, typ.
±5%, max.
100 mVp-p, max.
Momentary
±1.2% / 1.0% of Vin
±8%, load=20~100%
±0.02%/°C, typ.
Environmental Specifications:
Operating temperature (ambient) -40 °C ... +85 °C
Storage temperature
-55 °C ... +125 °C
Case Temperature
+90°C, max.
Derating
None required
Humidity (non-condensing)
Up to 90%
Cooling
Free-air Convection
Physical Specifications:
Dimensions
Weight
Case material
12.7x10.16x6.85mm
0.50x0.4x0.27inches
1.8g
Non-conductive black
plastic
MTBF: > 1,191,000 hrs (MIL-HDBK-217F, Ground Benign, t=+25 °C)
Specifications are subject to change without notification
OUTLINE DIMENSIONS & PIN CONNECTIONS
Pin
1000 & 3000 VDC
Single
Dual
1000VDC
Dual Separated
1
4
5
6
7
8
-V Input
+V Input
+V Output
Omitted
-V Output
Omitted
-V Input
+V Input
+V Output
Omitted
Common
-V Output
-V Input
+V Input
+V1 Output
-V1 Output
+V2 Output
-V2 Output
Continued on next page
9
