P4FMAJ12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P4FMAJ12

P4FMAJ12: DescriptionGPP TRANSIENT VOLTAGE SUPPRESSOR (400 WATT PEAK POWER 1.0 WATT STEADY STATE); CategoryDiscrete semiconductor diode; File Size1MB，5 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

P4FMAJ12 Overview

GPP TRANSIENT VOLTAGE SUPPRESSOR (400 WATT PEAK POWER 1.0 WATT STEADY STATE)

P4FMAJ12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	LOW ZENER IMPEDANCE
Maximum breakdown voltage	13.2 V
Minimum breakdown voltage	10.8 V
Maximum clamping voltage	17.3 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	9.72 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

TVS

P4FMAJ

SERIES

GPP TRANSIENT VOLTAGE SUPPRESSOR

400 WATT PEAK POWER 1.0 WATT STEADY STATE

FEATURES

Plastic package has underwriters laboratory

Glass passivated chip construction

400 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

DO-214AC

Ratings at 25

C ambient temperature unless otherwise specified.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types P4FMAJ6.8 thru P4FMAJ400

Electrical characteristics apply in both direction

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

RATINGS

Peak Power Dissipation at T

= 25 C, T

= 1mS ( Note 1 )

Peak Pulse Current with a 10/1000uS waveform

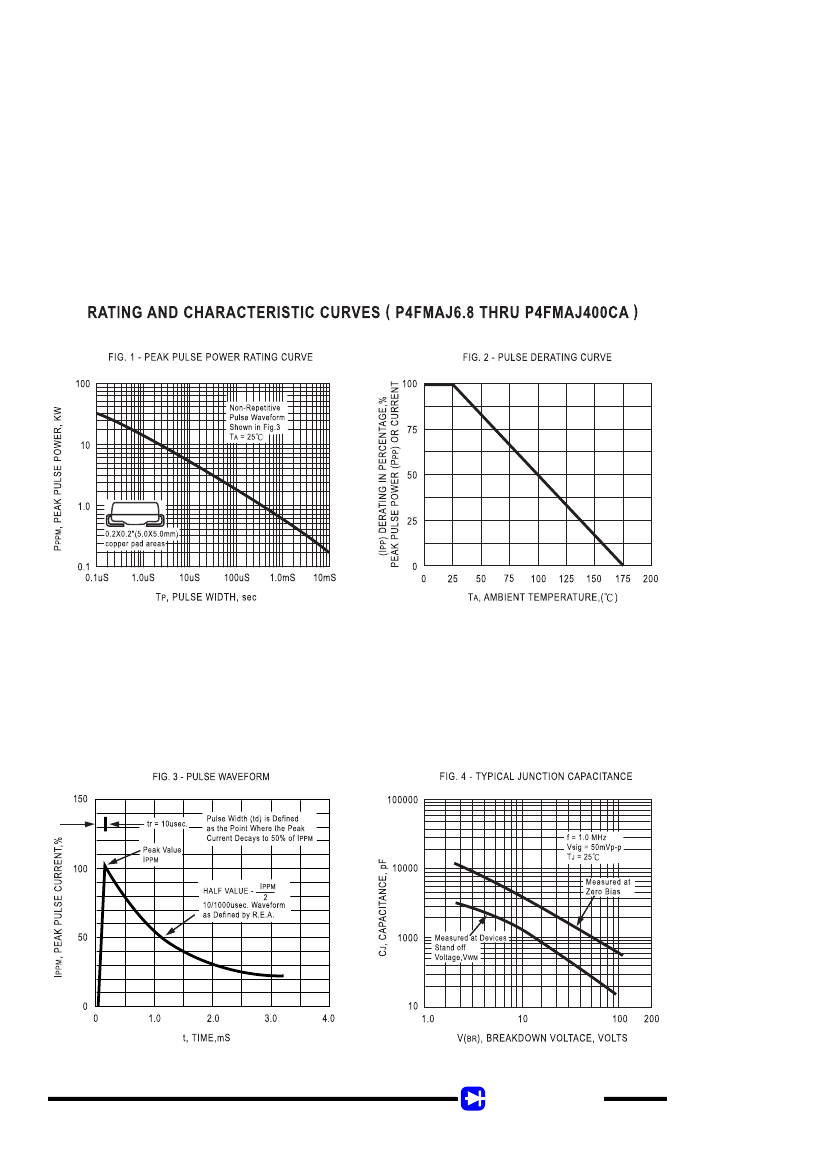

( Note 1, Fig.3 )

Steady State Power Dissipation at T

= 75 C ( Note 2 )

Peak Forward Surge Current, 8.3mS single half sine wave-

superimposed on rated load ( JEDEC METHOD ) ( Note 3 )

Maximum Instantaneous Forward Voltage at 25A for

unidirectional only ( Note 4 )

Operating and Storage Temperature Range

SYMBOL

PPM

(

)

FSM

, T

STG

VALUE

Minimum 400

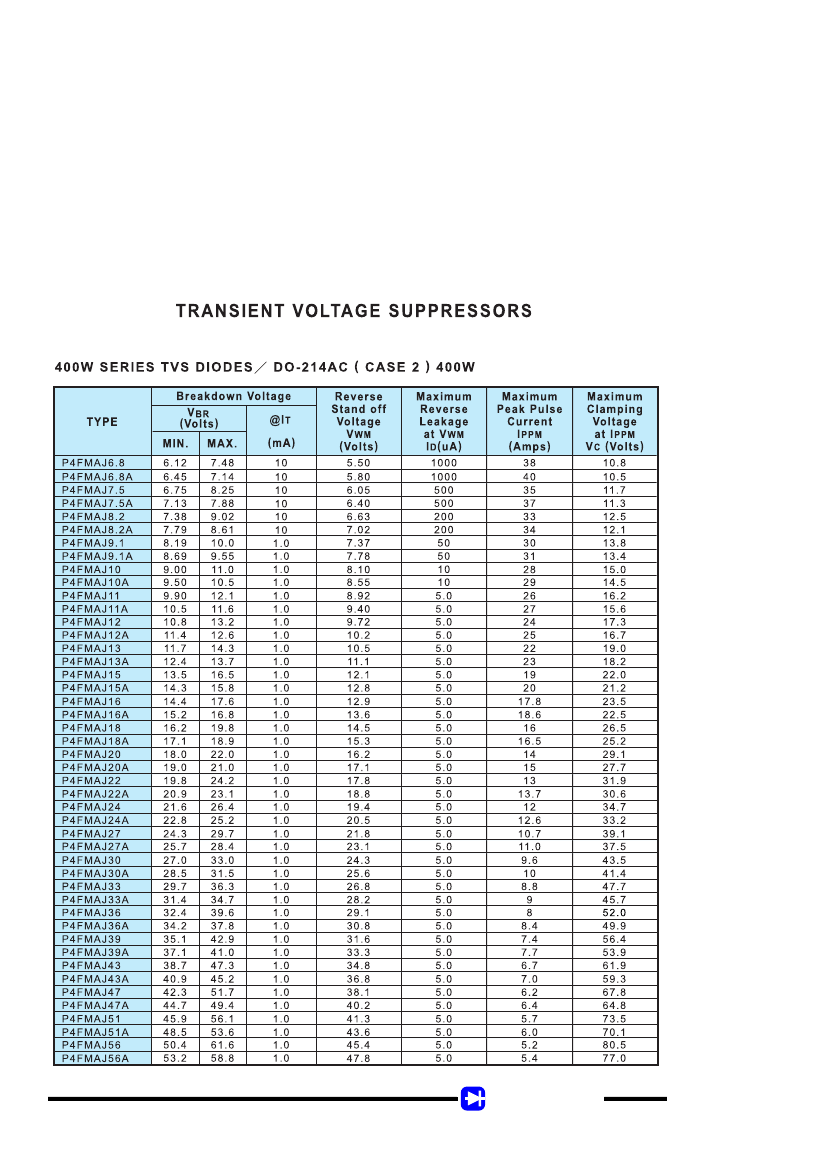

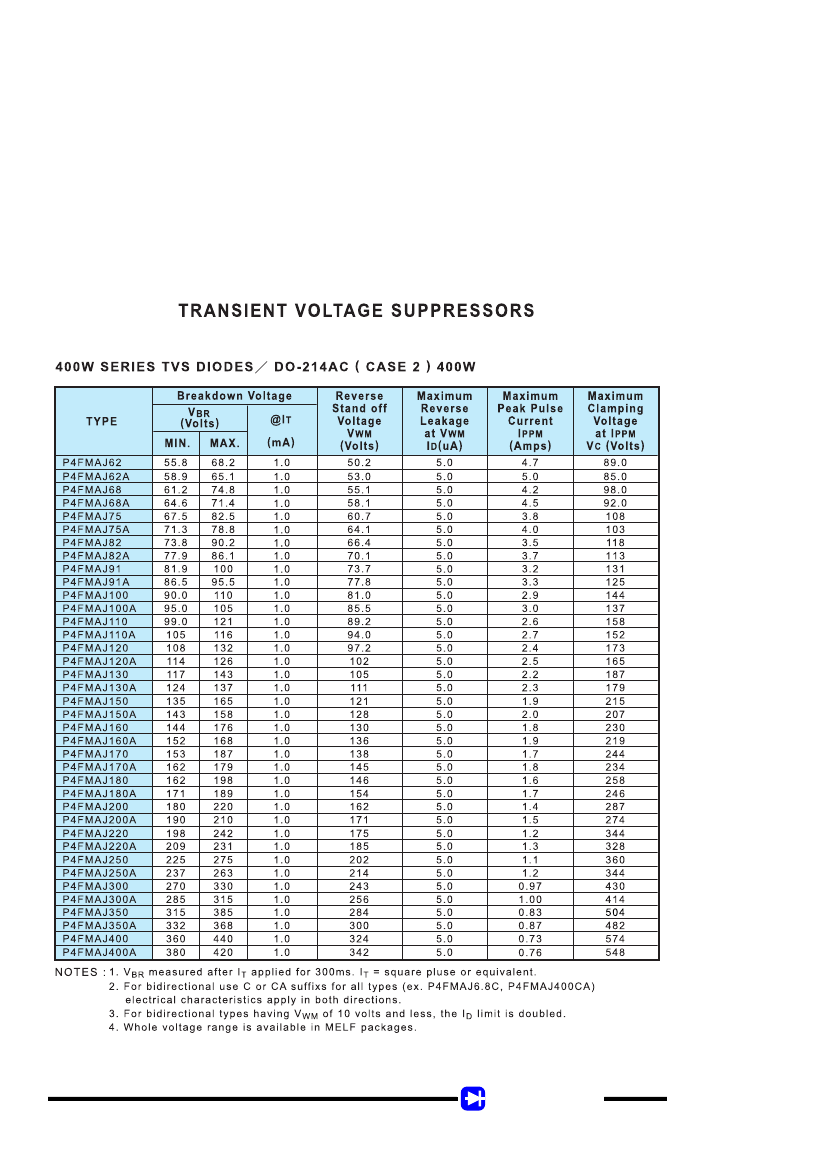

SEE TABLE 1

1.0

3.5/6.5

-65 to + 175

UNITS

Watts

Amps

Watts

Amps

Volts

1998-8

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25

C per Fig.2.

2. Mounted on 0.2 X 0.2” (5.0 X 5.0mm) copper pad to each terminal.

3. Measured on 8.3mS single half Sine-Wave or equivalent wave, duty cycle = 4 pulses per minute maximum.

4. V

= 3.0V max. for devices of V(

) < 200V and V

= 5.0V max. for devices of V(

) > 200V.
