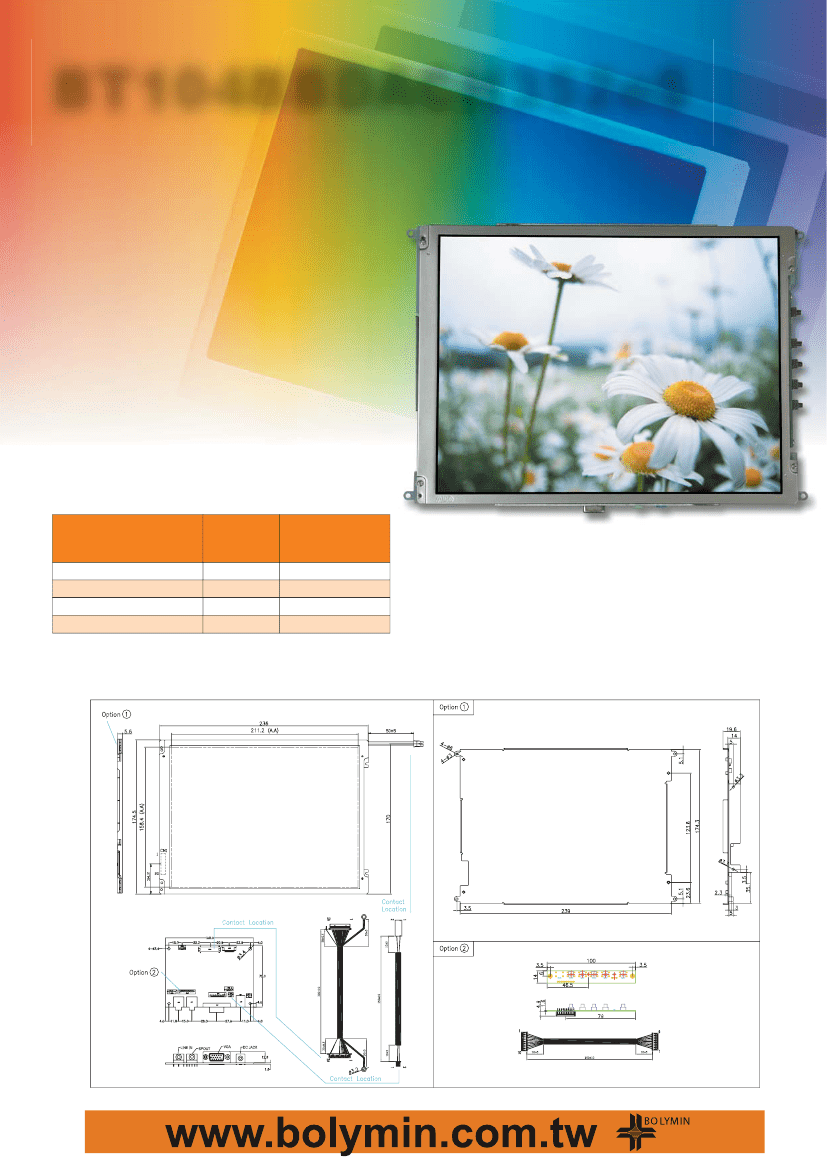

Datasheet> All Categories > BT104BBDACH352e

Preview

BT104BBDACH352e: Description10.4 color tft-lcd video module; File Size299KB，1 Pages; ManufacturerBOLYMIN; Websitehttp://www.bolymin.com.tw/

Download Datasheet Compare View All

BT104BBDACH352e Overview

10.4 color tft-lcd video module

Preview

Download Datasheet

View All

BT104BBDACH352e$

10.4" Color TFT-LCD video module.

TFT LCD:

1. 10.4 inch TFT LCD panel

BT104BBNNCH$.

2. View angle (U/D/L/R):

55/65/70/70

3. Resolution:

800*(RGB)*600 (pixels),

0.264 (h) x 0.264 (v)

mm dot pitch.

4. Brightness (cd/m

230cd/m

Typical.

5. Contrast Ratio:

500:1.

6. Active area:

211.2*158.4

mm.

7. Dimension (W x H x T):

236.0*174.3*5.6

mm.

Video Board:

1. Power Requirements:

12.0V DC±10%.

2. Operating Temperature Range:

-20~ +70

3. Storage Temperature Range:

-30~ +80

4. Dimension (W x H x T):

100.0*70.0*15

mm.

5. Keyboard: 6 Keys with OSD menu for image

quality tuning supported.

6. Signal input: VGA input.

7. Input impedance:

Ordering Information:

Part NO.

BT104BBDACH$

BT104BBDACH352d$

BT104BBDACH352e$

BT104BBDACH352f$

Option(1)

Bracket

Option(2)

Keyboard(with

keyboard cable)

Dimension:
