046206007000800 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 046206007000800

046206007000800: DescriptionCard Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Natural Insulator; CategoryThe connector The connector; File Size73KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

046206007000800 Overview

Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Natural Insulator

046206007000800 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LIF
Board mount options	BRACKET, METAL
body width	0.079 inch
subject depth	0.209 inch
body length	0.441 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N
Base Number Matches	1

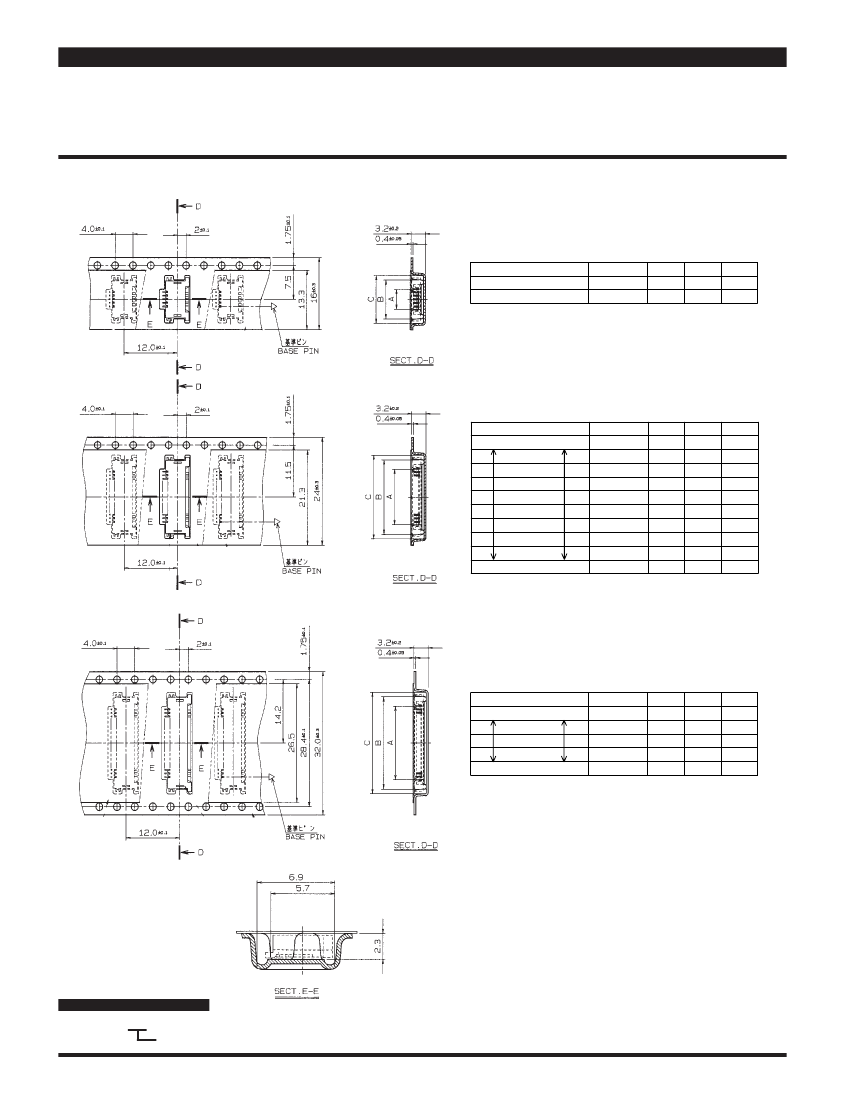

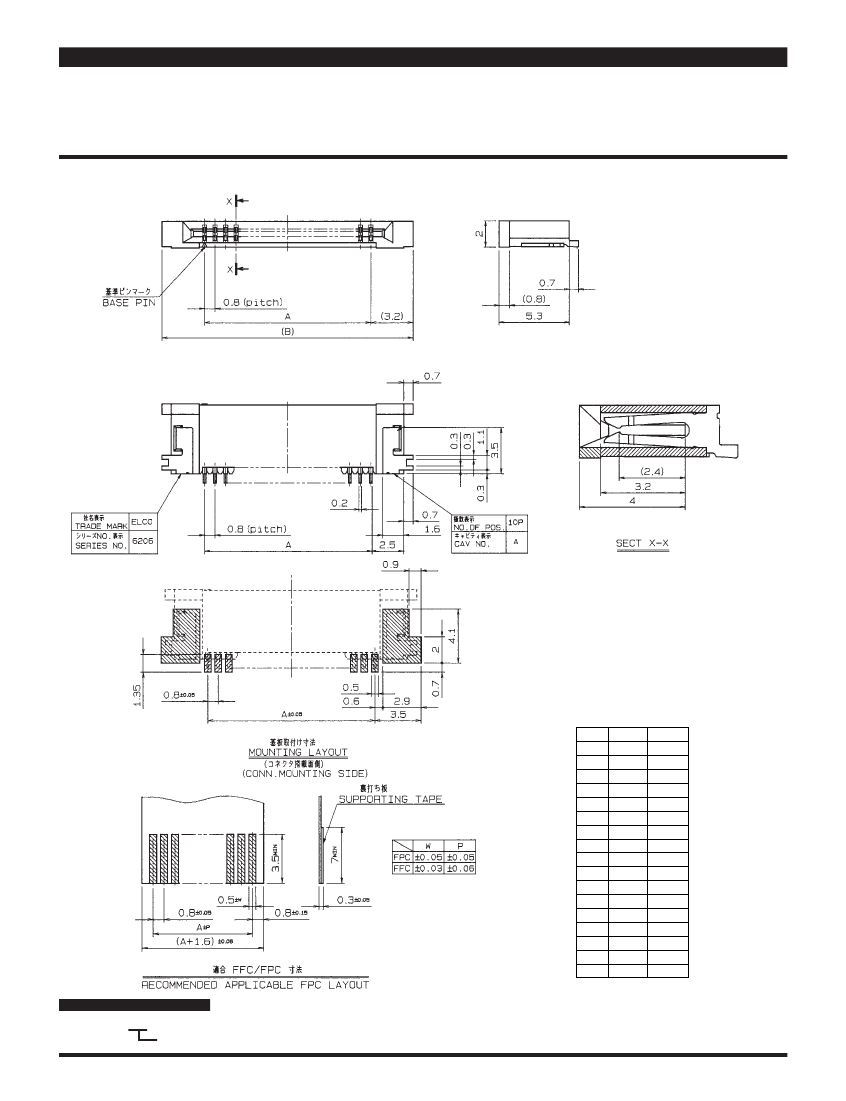

Preview

Download Datasheet

View All

0.8mm Spacing

SERIES

6206

NON-ZIF

ライトアングル

SMT

両面接点

LIF Right Angle SMT (Dual Sided Contact Type)

極数

2.40

3.20

4.00

4.80

5.60

6.40

7.20

8.00

8.80

9.60

10.40

11.20

12.00

12.80

13.60

14.40

15.20

8.80

9.60

10.40

11.20

12.00

12.80

13.60

14.40

15.20

16.00

16.80

17.60

18.40

19.20

20.00

20.80

21.60

注文コード

ORDERING CODE

04 6206 0XX 000 800

極数

NUMBER OF CONTACTS
