SPECIFICATION
PRODUCT: SAW FILTER
MODEL:
HF43801N
(K3957D)
SIP5D
HOPE MICROELECTRONICS CO.,LIMITED
Tel:+86-755-82973806
Fax:+86-755-82973550
E-mail:
sales@hoperf.com
http://www.hoperf.com
Page
1
of
1
1.Construction

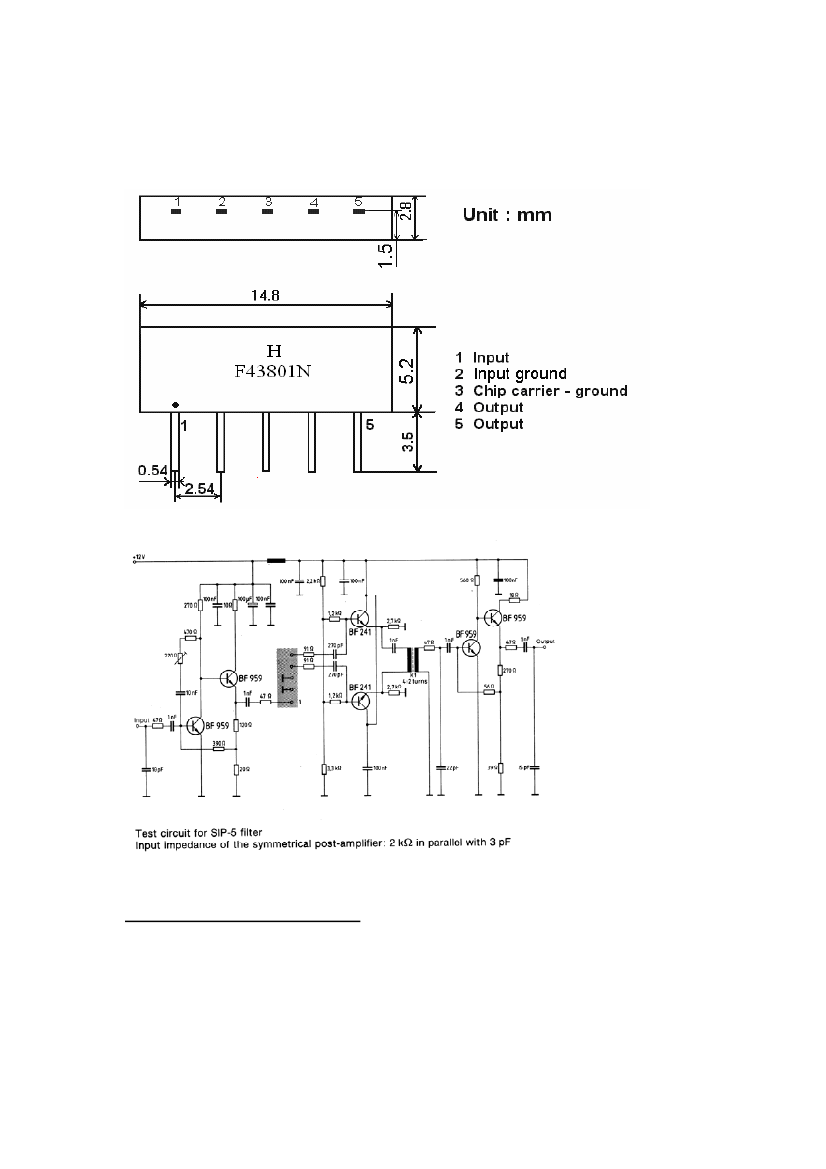

1.1 Dimension and materials
Type : F43801N
1.2. Circuit construction, measurement circuit
2.Characteristics
Standard atmospheric conditions
Unless otherwise specified , the standard rang of atmospheric conditions for making
measurements and tests is as follows;
Ambient temperature : 15℃ to 35℃
Relative humidity
: 25% to 85%
Air pressure
: 86kPa to 106kPa
1
Operating temperature rang
Operating temperature rang is the rang of ambient temperatures in which the filter
can be operated continuously. -10℃ ~ +60℃
Storage temperature rang
Storage temperature rang is the rang of ambient temperatures at which the filter can
be stored without damage.
Conditions are as specified elsewhere in these specifications. -40℃ ~ +70℃
Reference temperature
2.1 Maximum Rating
DC voltage
AC voltage
VDC
Vpp
12
10
V
V
Between any terminals
Between any terminals
+25℃
2.2 Electrical Characteristics
Source impedance
Zs=50Ω
Load impedance
Z
L
=2kΩ//3pF
Item
Freq
min
36.50MHz
12.5
Insertion attenuation
33.57MHz
0.0
31.50MHz
42.0
32.50MHz
30.0
Relative attenuation
30.00MHz
42.0
Reference level
31.00MHz
42.0
(at 36.50MHz)
39.50MHz
42.0
40.00MHz
42.0
40.00MHz
42.0
25.00~30.00MHz
37.0
Sidelobe
39.50~45.00MHz
35.0
Temperature coefficient of frequency
T
A
=25℃
typ
14.5
1.0
52.0
50.0
51.0
51.0
51.0
55.0
53.0
45.0
41.0
-72
max
16.5
2.0
-
-
-
-
-
-
-
-
-
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Ppm/k
2.3 Environmental Performance Characteristics
Item Test condition
Allowable change of absolute
Level at center frequency(dB)
High temperature test
< 1.0
70℃ 1000H
Low temperature test
< 1.0
-40℃ 1000H
Humidity test
< 1.0
40℃ 90-95% 1000H
Thermal shock
< 1.0
2
-20℃==25℃==80℃ 20 cycle
30M
10M
30M
Solder temperature test
Sold temp.260℃ for 10 sec.
Soldering
Immerse the pins melt solder
at 260℃+5/-0℃ for 5 sec.
2.4 Mechanical Test
Item
Test condition
Vibration test
600-3300rpm amplitude 1.5mm
3 directions 2 H each
Drop test
On maple plate from 1 m high 3 times
Lead pull test
Pull with 1 kg force for 30 seconds
Lead bend test
90
o
bending with 500g weigh 2 times
2.5 Voltage Discharge Test
Item
Test condition
Surge test
Between any two electrode
< 1.0
More then 95% of total
area of the pins should
be covered with solder
Allowable change of absolute
Level at center frequency(dB)
<1.0
<1.0
<1.0
<1.0
Allowable change of absolute
Level at center frequency(dB)
<1.0
3

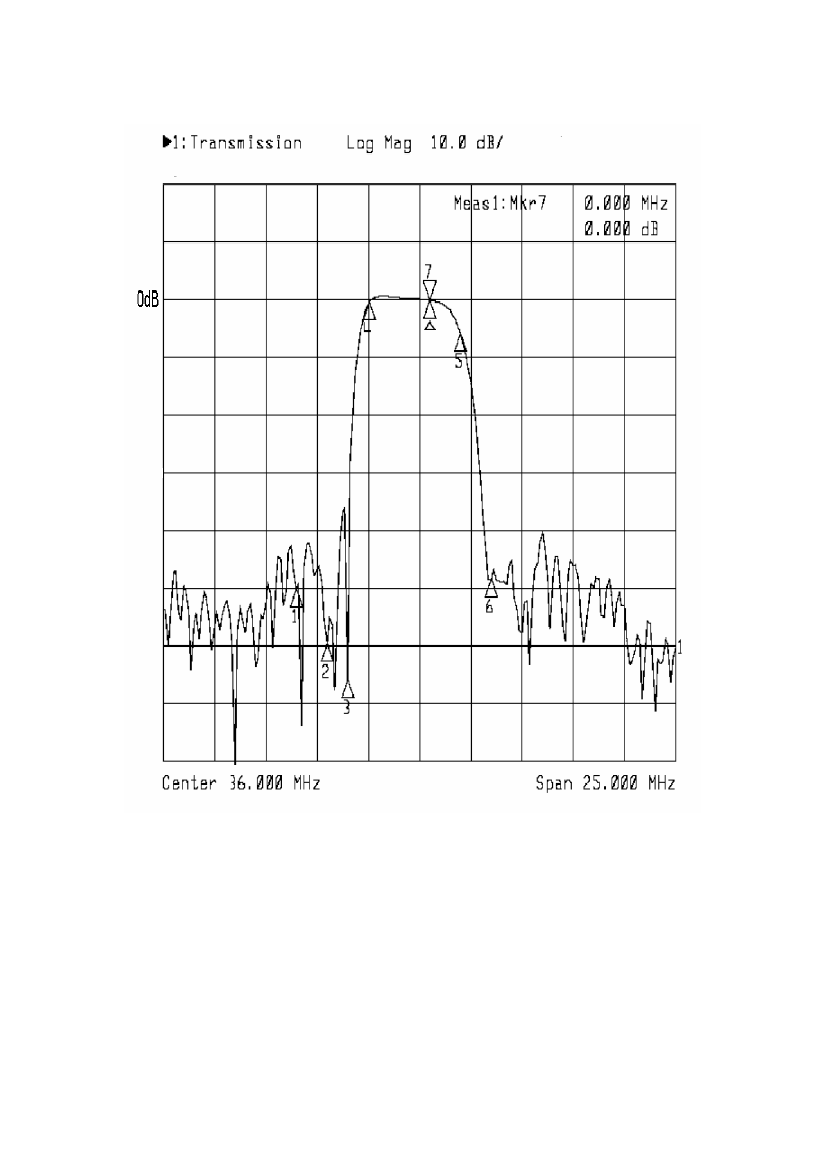

3.6 Frequency response:
4
