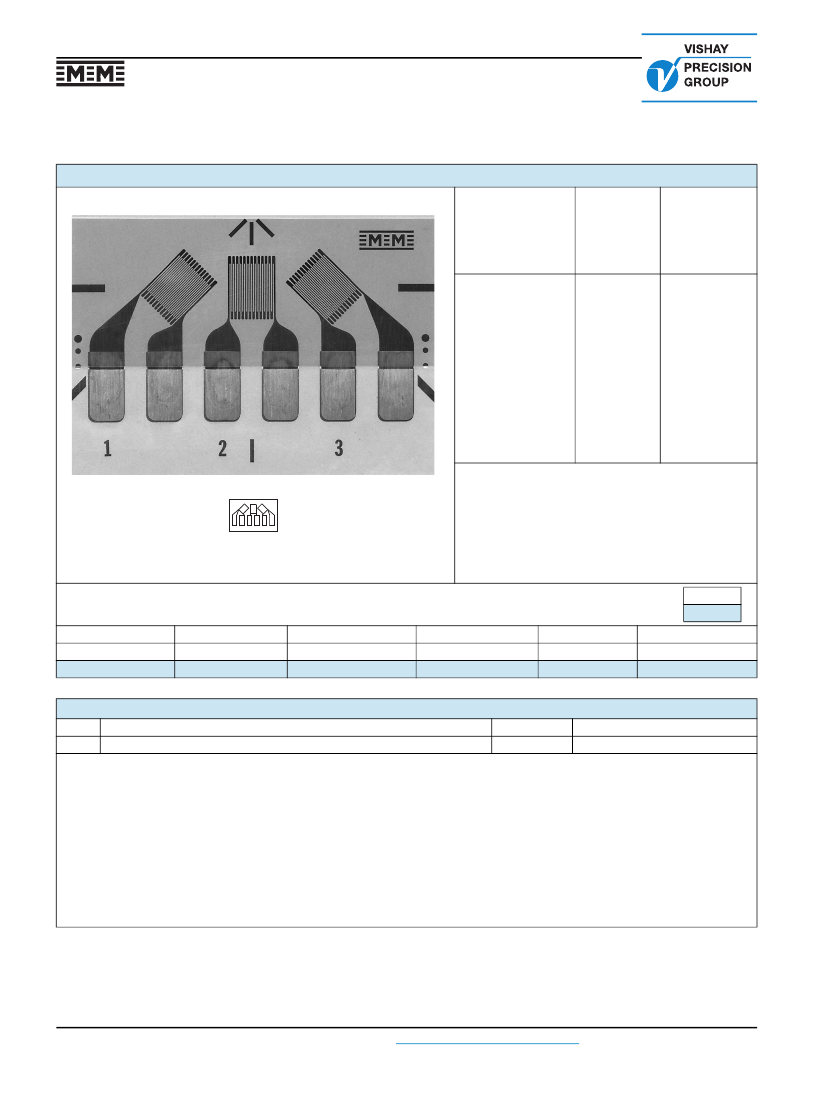

062UR
Micro-Measurements
General Purpose Strain Gages - Rectangular Rosette
GAGE PATTERN DATA
GAGE
DESIGNATION
See Note 1
CEA-XX-062UR-120
CEA-XX-062UR-350
120 ± 0.4%
350 ± 0.4%
RESISTANCE
(OHMS)
OPTIONS
AVAILABLE
See Note 2
P2
P2
actual size
DESCRIPTION
Small 45° rectangular single-plane rosette in a compact
geometry. Exposed solder tab area 0.07 x 0.04 in [1.8 x
1.0 mm]
GAGE DIMENSIONS
Gage Length
0.062 ES
1.57 ES
Overall Length
0.222 CP
5.64 CP
Legend:
ES = Each Section
S = Section (S1 = Sec 1)
Overall Width
0.420 CP
10.67 CP
CP = Complete Pattern
M = Matrix
Matrix Length
0.32
8.1
inch
millimeter
Matrix Width
0.48
12.2
Grid Width
0.062 ES
1.57 ES
GAGE SERIES DATA
Series
CEA
See Gage Series data sheet for complete specifications.
Description
Strain Range
±3%
Temperature Range
–100° to +350°F [–75° to +175°C]
Universal general-purpose strain gages.
Note 1:
Insert desired S-T-C number in spaces marked XX.
Note 2:
Products with designations and options shown in bold are not RoHS compliant.
www.micro-measurements.com
86
For technical questions, contact:
micro-measurements@vishaypg.com
Document Number: 11124
Revision: 02-Feb-10
