SE2593A20
Dual Band 802.11n Wireless LAN Front End
Preliminary Information
Applications
802.11n, MIMO solutions
IEEE802.11b DSSS WLAN
IEEE802.11g OFDM WLAN
IEEE802.11a OFDM WLAN
Access Points, PCMCIA, PC cards
Product Description
The SE2593A20 is a complete 802.11n WLAN RF
front-end module providing all the functionality of the
power amplifiers, LNA, power detector, T/R switch,
diplexers and associated matching. The SE2593A20
provides a complete 2.4 GHz and 5 GHz WLAN
Multiple Input, Multiple Output (MIMO) RF solution
from the output of the transceiver to the antennas in a
compact form factor.
The receive path is designed to maximize
performance by providing both a low noise amplifier
as well as a bypass state, for use when high power
signals are being received.
Designed for ease of use, all RF ports are matched to
50
Ω
to simplify PCB layout and the interface to the
transceiver RFIC. The SE2593A20 also includes a
transmitter power detector for each band with 20 dB
of dynamic range. The power ramp rise/fall time is
less than 0.5
μs.
The device also provides band pass filters for both the
a and b/g bands prior to the input of each 2.4 GHz
and 5 GHz power amplifiers, respectively.
The SE2593A20 packaged in 5mm x 6mm x 1.0mm,
Halogen free, Lead free, ROHS compliant, MSL 3
LGA package.
Features
1 Transmit and 1 receive path architecture for
use as MIMO building block.
All RF ports matched to 50
Ω
Integrated 2.4/5 GHz PA, 2.4/5 GHz LNA, TX
Filter, T/R switches and diplexers
Integrated Power Detector
19 dBm O/P Power, 802.11b, 11 Mbits, ACPR =
32 dBc
18 dBm @ 3.0 % EVM, 802.11g, 54 Mbits
16 dBm @ 3.0 % EVM, 802.11a, 54 Mbits
Single supply voltage: 3.3 V ± 10 %
Lead free, halogen free, RoHS compliant, MSL3
plated LGA package, 5 mm x 6 mm x 1.0 mm
Ordering Information
Part No.
SE2593A20
SE2593A20-T *
*
Through Dec
*
From
2008
Package
30 pin LGA
30 pin LGA
30 pin LGA
N/A
Remark
Samples
Tray
Tape and Reel
Evaluation kit
SE2593A20-R *
Jan 2009
SE2593A20-EK1

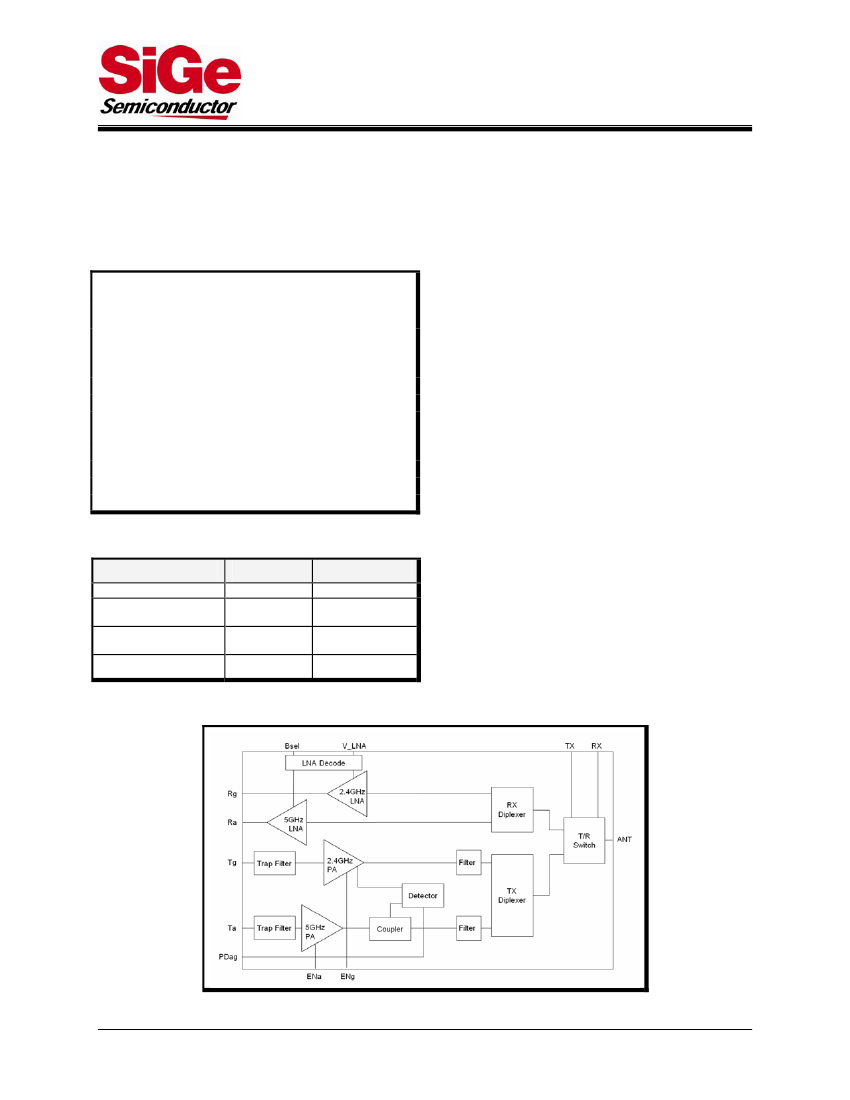

Functional Block Diagram
Figure 1: Functional Block Diagram
DST-00093
Rev 2.1
May-26-2009
1 of 2
SE2593A20
Dual Band 802.11n Wireless LAN Front End
Preliminary Information
http://www.sige.com
Email: sales@sige.com
Customer Service Locations:
North America:
1050 Morrison Drive, Suite 100
Ottawa ON K2H 8K7 Canada
Phone: +1 613 820 9244
Fax: +1 613 820 4933
Hong Kong
Phone: +852 3428 7222
Fax: +852 3579 5450
San Diego
Phone: +1 858 668 3541 (ext. 226)
Fax: +1 858 668 3546
United Kingdom
Phone: +44 1279 464217
Fax: +44 1279 464201
Product Preview
The datasheet contains information from the product concept specification. SiGe Semiconductor, Inc. reserves the right to change
information at any time without notification.
Preliminary Information
The datasheet contains information from the design target specification. SiGe Semiconductor, Inc. reserves the right to change
information at any time without notification.
Production testing may not include testing of all parameters.
Information furnished is believed to be accurate and reliable and is provided on an “as is” basis. SiGe Semiconductor, Inc. assumes
no responsibility or liability for the direct or indirect consequences of use of such information nor for any infringement of patents or
other rights of third parties, which may result from its use. No license or indemnity is granted by implication or otherwise under any
patent or other intellectual property rights of SiGe Semiconductor, Inc. or third parties. Specifications mentioned in this publication
are subject to change without notice. This publication supersedes and replaces all information previously supplied. SiGe
Semiconductor, Inc. products are NOT authorized for use in implantation or life support applications or systems without express
written approval from SiGe Semiconductor, Inc.
Copyright 2009 SiGe Semiconductor, Inc.
All Rights Reserved
DST-00093
Rev 2.1
May-26-2009
2 of 2
