P300A THRU P300M
GENERAL PURPOSE PLASTIC RECTIFIER
Reverse Voltage -
50 to 1000 Volts
DO-201AD
Forward Current -
3.0 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
High surge current capability
♦
Typical I
R
less than 0.1µA
♦
Construction utilizes void-free molded plastic technique
♦
3.0 Ampere operation at T
A
=90°C
with no thermal runaway
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
1.0 (25.4)
MIN.
0.210 (5.3)
0.190 (4.8)
DIA.
0.375 (9.5)
0.285 (7.2)
MECHANICAL DATA
0.052 (1.32)
0.048 (1.22)
DIA.
1.0 (25.4)
MIN.
Dimensions in inches and (millimeters)
Case:
JEDEC DO-201AD molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.4 ounce, 1.1 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS P300A
P300B
P300D
P300G
P300J
P300K
P300M
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
=55°C
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage
at 3.0A
Maximum DC reverse current
at rated DC blocking voltage
Typical junction capacitance
(NOTE 1)
Typical reverse recovery time
(NOTE 2)
Typical thermal resistance
(NOTE 3)
Operating junction and storage temperature range
T
A
=25°C
T
A
=100°C
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
400
280
400
3.0
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
I
FSM
200.0
Amps
V
F
I
R
C
J
t
rr
R
ΘJA
R
ΘJL
T
J
, T
STG
1.2
5.0
25.0
30.0
2.0
20.0
5.0
-50 to +150
Volts
µA
pF
µs
°C/W
°C
NOTES:
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(3) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length, P.C.B. mounted
with 0.8” x 0.8” (20 x 20mm) copper heatsinks
4/98

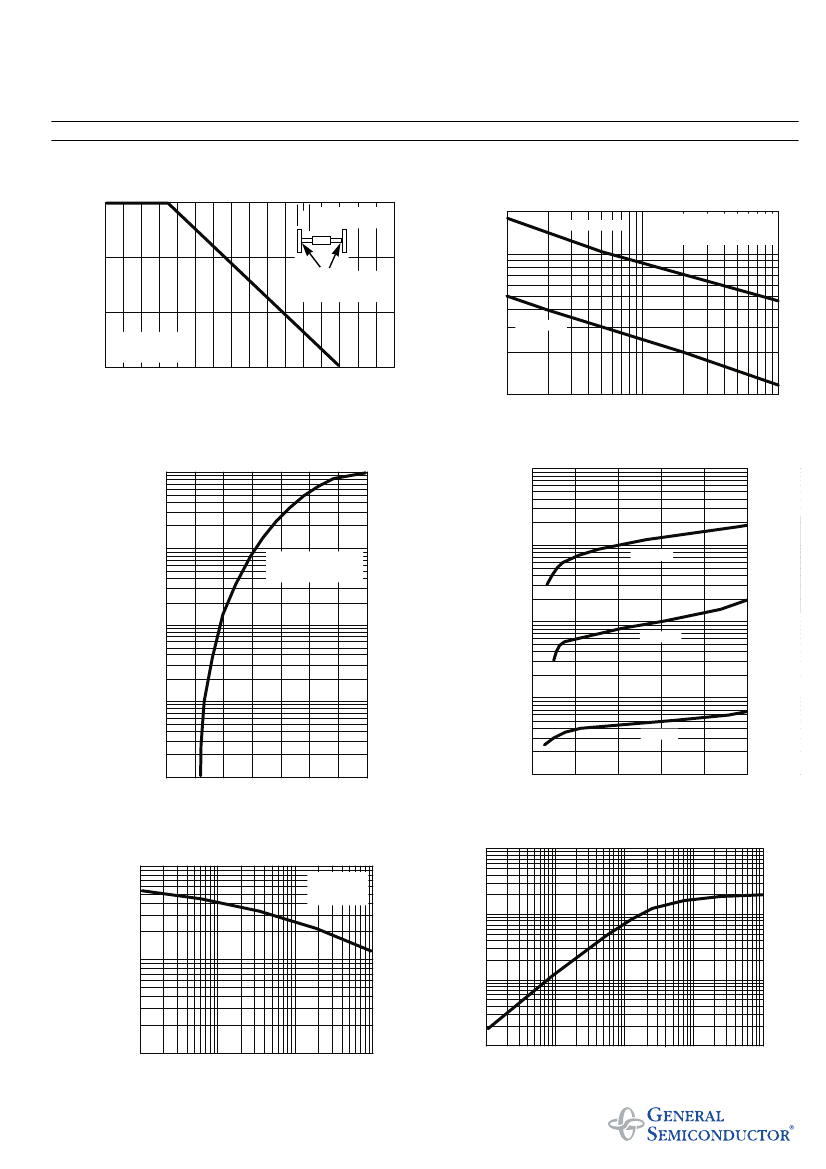

RATINGS AND CHARACTERISTIC CURVES P300A THRU P300M
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
FIG. 1 - FORWARD CURRENT DERATING CURVE
FIG. 2 - MAXIMUM PEAK FORWARD SURGE CURRENT
3.0
L=0.375 (9.5mm)
LEAD LENGTH
200
NON-REPETITIVE
PEAK FORWARD CURRENT,
AMPERES
T
J
=T
J
max.
8.3ms SINGLE HALF
SINE-WAVE (JEDEC Method)
2.0
0.8 x 0.8 x 0.40”
(20 x 20 x 1mm)
COPPER HEAT SINKS
100
1.0
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
REPETITIVE
0
20
50
100
AMBIENT TEMPERATURE, °C
150
180
10
1
10
NUMBER OF CYCLES AT 60 H
Z
100
FIG. 3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
100
100
INSTANTANEOUS FORWARD CURRENT,
AMPERES
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
10
10
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
T
J
=150°C
1
1
T
J
=100°C
0.1
0.1
T
J
=25°C
0.01
0.4
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
TRANSIENT THERMAL IMPEDANCE,
°C/W
100
10
10
1
1
0.1
1
10
100
0.1
0.01
0.1
1
t, PULSE DURATION, sec.
10
100
REVERSE VOLTAGE, VOLTS
