DTN8G datasheet, PDF - EEWORLD Datasheet

DTN8G: Description8A Bidirectional Thyristor　　; CategoryAnalog mixed-signal IC Trigger device; File Size97KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

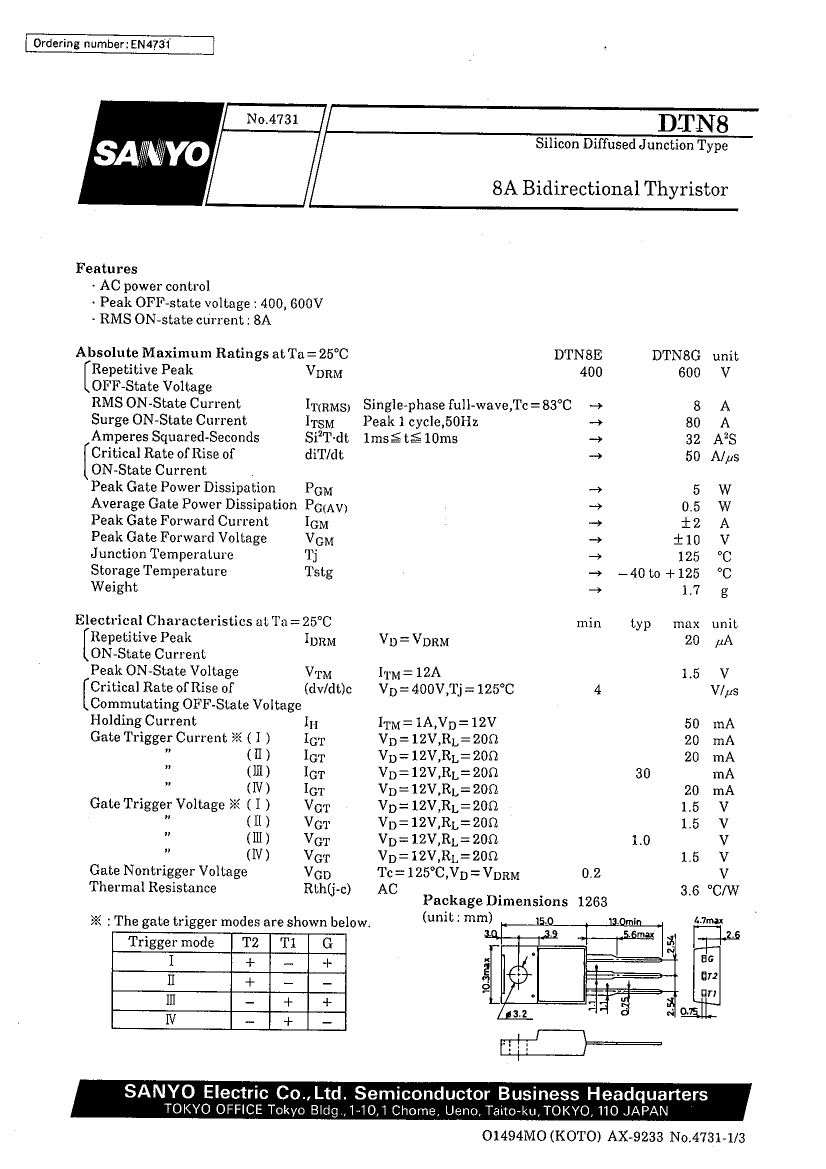

DTN8G Overview

8A Bidirectional Thyristor　　

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Configuration	SINGLE
Maximum DC gate trigger current	20 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum leakage current	1 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Trigger device type	TRIAC

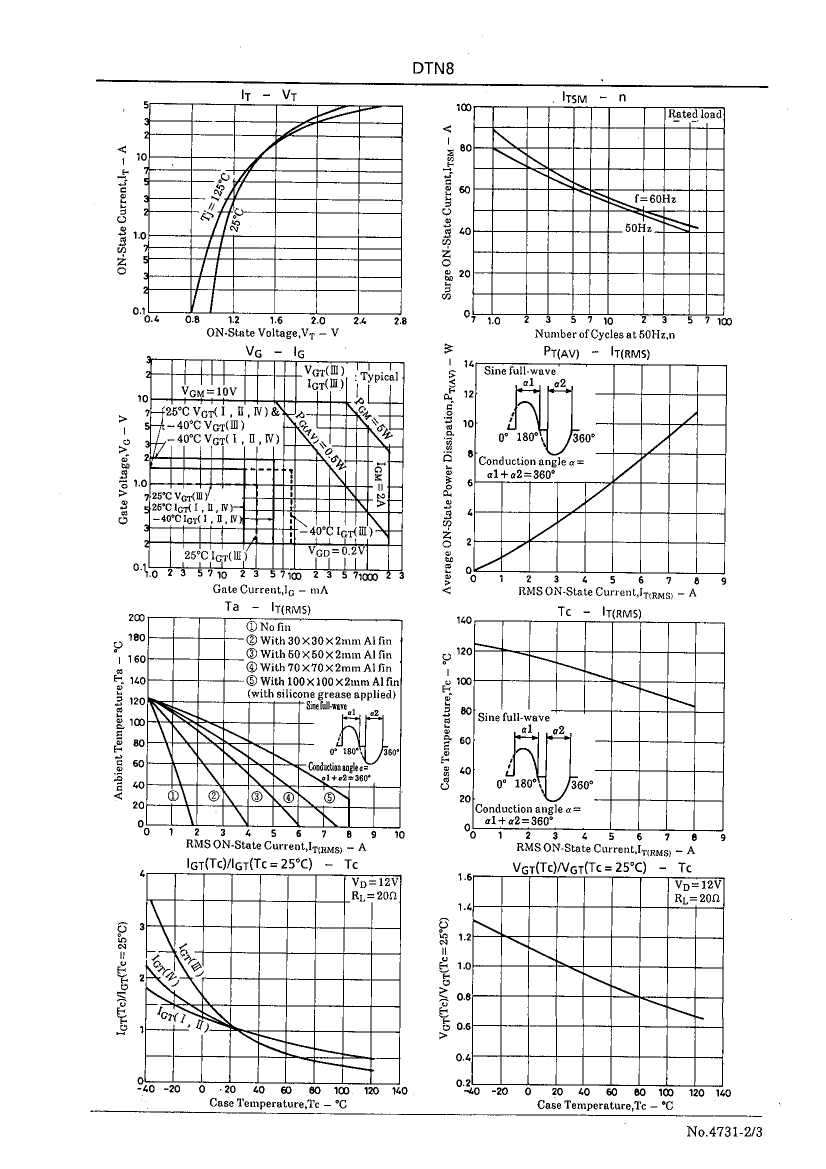

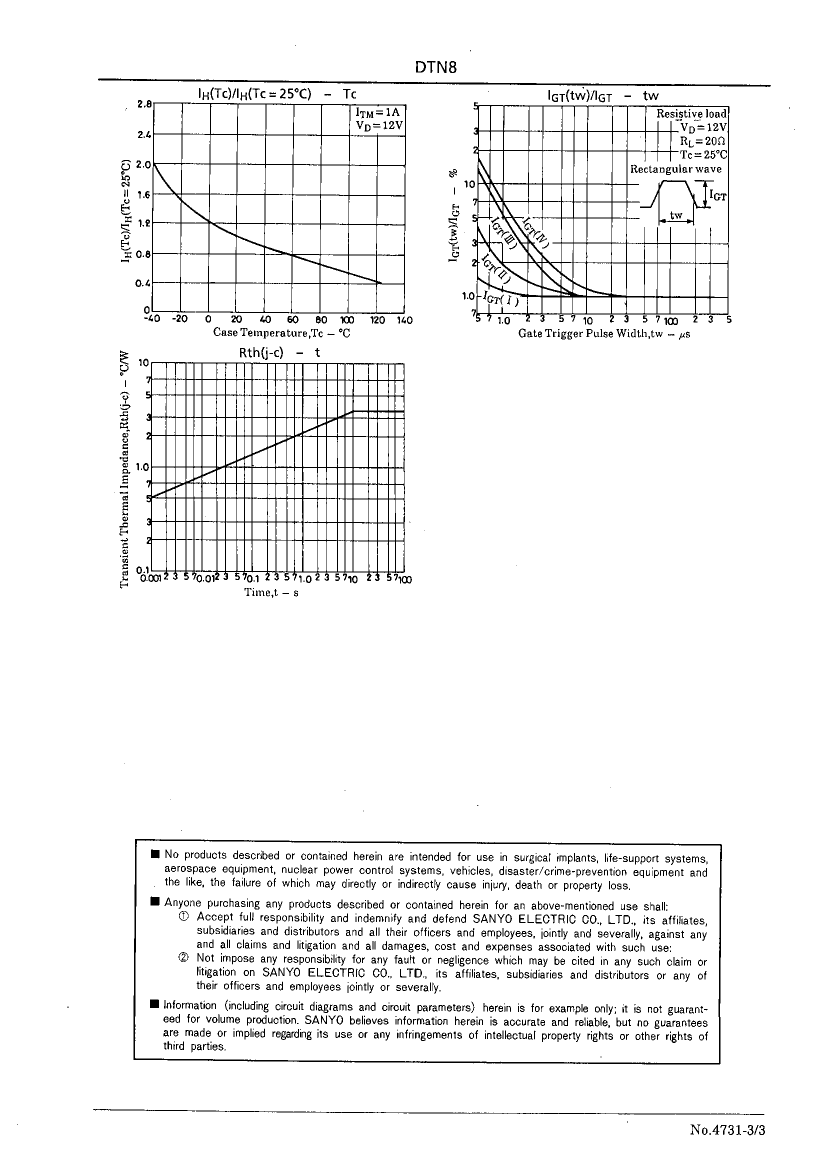

	DTN8G	DTN8	DTN8E
Description	8A Bidirectional Thyristor	8A Bidirectional Thyristor	8A Bidirectional Thyristor
Parts packaging code	SFM	-	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	-	FLANGE MOUNT, R-PSFM-T3
Contacts	3	-	3
Reach Compliance Code	unknow	-	unknow
Configuration	SINGLE	-	SINGLE
Maximum DC gate trigger current	20 mA	-	20 mA
Maximum DC gate trigger voltage	1.5 V	-	1.5 V
Maximum holding current	50 mA	-	50 mA
JEDEC-95 code	TO-220AB	-	TO-220AB
JESD-30 code	R-PSFM-T3	-	R-PSFM-T3
Maximum leakage current	1 mA	-	1 mA
Number of components	1	-	1
Number of terminals	3	-	3
Maximum operating temperature	110 °C	-	110 °C
Minimum operating temperature	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT
Certification status	Not Qualified	-	Not Qualified
Maximum rms on-state current	8 A	-	8 A
Off-state repetitive peak voltage	600 V	-	400 V
surface mount	NO	-	NO
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE
Terminal location	SINGLE	-	SINGLE
Trigger device type	TRIAC	-	TRIAC
