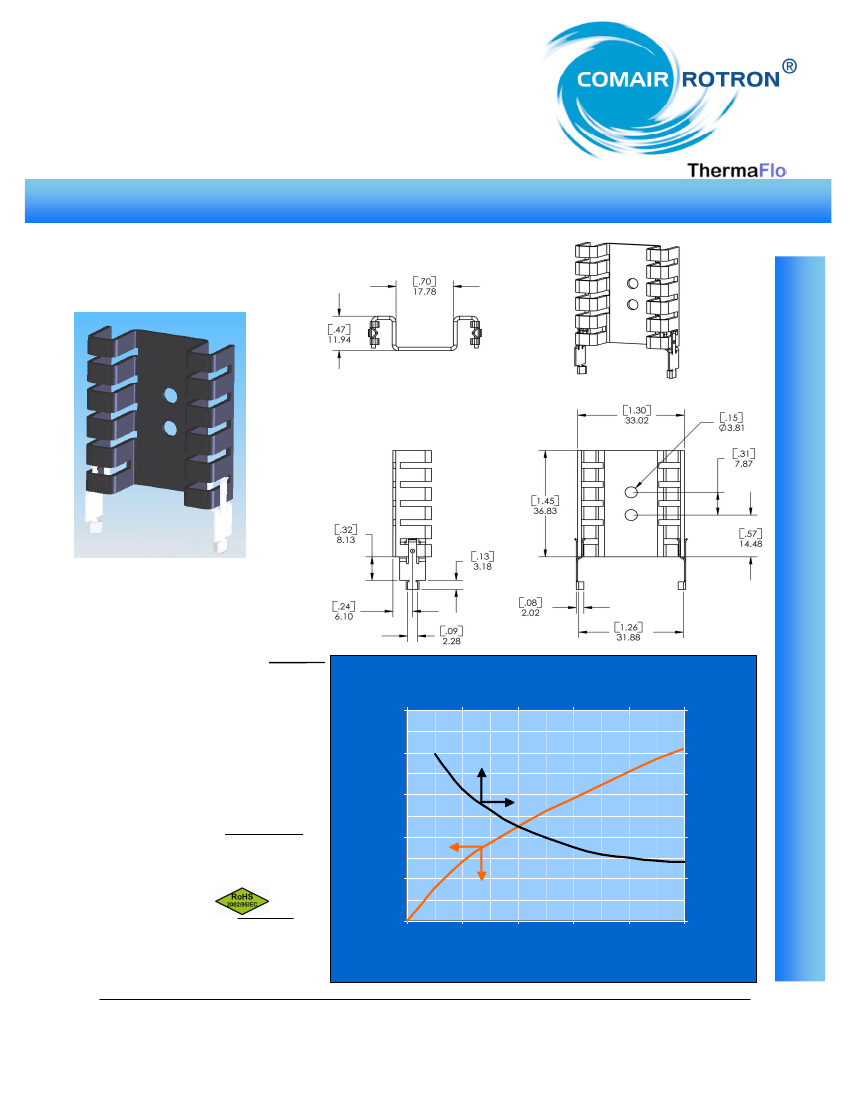

Board Level
Heat Sinks
P/N: 825702B05400
TO-220
PRODUCT SPECIFICATIONS
• Devices: TO-220
• Size: 11.9 x 33.0 x 36.8 mm
• Material: Aluminum, 1.2 mm thick
• Type: Stamped
• Finish: Black Anodized
• PCB Mounting: Solderable Tabs
• Package: Bulk
• Accessories: Hardware & Thermal Interface
Material
0
100
C
o
Air Velocity - LFM
200
400
600
800
1000
10
Thermal Resistance -
o
C / Watt
(Mounting Surface to Ambient)
Temp Rise Above Ambient -
(Mounting Surface)
80
8
60
6
FEATURES & BENEFITS
• Multiple Holes for Device Attachment
• Vertical Mounting via Solderable Tabs
• RoHS Compliant
40
4
20
2
CUSTOMIZED HEATSINKS
•
Specialized Tabs, Plating
•
Specialized Body Configurations
• Contact Applications Engineering
0
0
2
4
6
8
10
Heat Dissipated - Watts
0
