Preliminary PRODUCT Data Sheet: GPS & Bluetooth
Part No. M232110
Savvi
TM
Embedded Ceramic
GPS & Bluetooth
®
Antenna
1.575 and 2.4—2.5 GHz
KEY BENEFITS
DESIGN ADVANTAGES
Best in Class Performance—Smallest Occupied Volume
•
High efficiency
•
Minimal ground clearance and component “keep out”
areas. Very low component height.
•
High selectivity eliminates the need for additional
filters and frees board space.
High Tolerance to Frequency Shifts
•
IMD’s high RF isolation resists antenna de-tuning that
can otherwise impair reception.
•
Single part works for various PCB sizes and layouts.
Quicker Time-to-Market
•
Fewer design changes
•
Simpler implementation—no
matching networks.
RoHS Compliant
•
Ethertronics’ antennas comply with the European RoHS
Directive 2002/95/EC.
These highly innovative antennas provide
competitive advantages for designers of cell phones,
laptops and other mobile equipment by combining
GPS & Bluetooth antennas in a single, highly compact
form factor suitable for the thinnest/smallest
devices. Ethertronics Isolated Magnetic Dipole (IMD)
technology utilizes superior RF isolation to deliver
the utmost in high performance.
TECHNOLOGY ADVANTAGES
Real-World Performance and Implementation
Ceramic antennas may look alike on the outside, but
the important difference is inside. Other antennas
may contain simple PiFA or monopole designs that
interact with their surroundings, complicating
layout or changing performance with use position.
Ethertronics’ antennas utilize patented IMD technolo-
gy to deliver a unique size and performance combi-
nation.
Stays in Tune
High RF isolation means
IMD antennas resist
detuning regardless of
usage position. And one
standardized part can
typically be placed in a
variety of locations.
Smallest Effective Size
IMD antennas require a
smaller keep-out area for surrounding components,
leading to a smaller effective size.
High Performance
IMD’s high efficiency and simple design rules lower
development risk and speed time-to-market without
sacrificing performance. Plus, high RF selectivity
eliminates the cost and space for band-pass circuitry.
More information is available on our Website at
www.ethertronics.com/resources/.
END USER ADVANTAGES
Superior Range
•
Greater antenna efficiency means longer range.
Exceptional Coverage
•
Better GPS coverage delivers improved performance
in buildings, cars or other areas where signal
reflection occurs.
•
Better Bluetooth coverage means more reliable
wireless connections.
Faster Acquisition Times
•
Users experience faster signal acquisition for GPS
readings and Bluetooth connections.
SERVICE AND SUPPORT
Extensive RF Experience
•
Our Savvi ceramic antennas are supported by exten-
sive application notes, and when needed, by the
expertise of RF engineers who have integrated
hundreds of antenna designs into wireless devices.
Global Operations & Design Support
•
Ethertronics’ global operations encompass an
integrated network of design centers that provide
local customer support.
ETHERTRONICS
9605 Scranton Road, Suite 300 | San Diego, CA 92121 - USA | www.ethertronics.com
tel +(1) 858.550.3820 | fax +(1) 858.550.3821 | contact: info@ethertronics.com
PRODUCT: GPS & Bluetooth
®
Dual Band Antenna
Ethertronics produces a wide variety of standard and custom antennas to meet user needs.
Below are the typical specs for a combination GPS & Bluetooth application.
Ethertronics’ GPS & Bluetooth Embedded Antenna Specifications.
Electrical Specifications
Typical Characteristics
(inside an enclosure)
GPS/BT
BT/GPS Antenna
Peak Gain
Average Gain
Average Efficiency
Average Efficiency
VSWR Match
VSWR Match
Feed Point Impedance
Front to Back Ratio
Power Handling
Feed Point Impedance
Polarization
Power Handling
Isolation
1.575 GHz
1.575 GHz
1.98 dBi
-2.5 dBi
62%
75%
2.0:1 max
2.0:1 max
50 ohms-6 dB
unbalanced
.5 Watt cw
50 ohms unbalanced
.5Linear cw
Watt
<-25 dB
2.4—2.5 GHz
2.4 GHz
1.88 dBi
-2.4 dBi
67%
65%
2.6:1 max
2.6:1 max
50 ohms-6 dB
unbalanced
.5 Watt cw
50 ohms unbalanced
.5Linear cw
Watt
<-20dB
12.0x3.0x1.3mm
Surface mount
.2 grams
Mechanical Specifications
Size
Mounting
Weight
Tape & Reel
Packaging M232110: Minimum Order Quantity of 99,000 pcs. Order multiples of 4,500 pcs.
M232110-1K: Minimum Order Quantity of 1,000 pcs. Order multiples of 1,000 pcs.

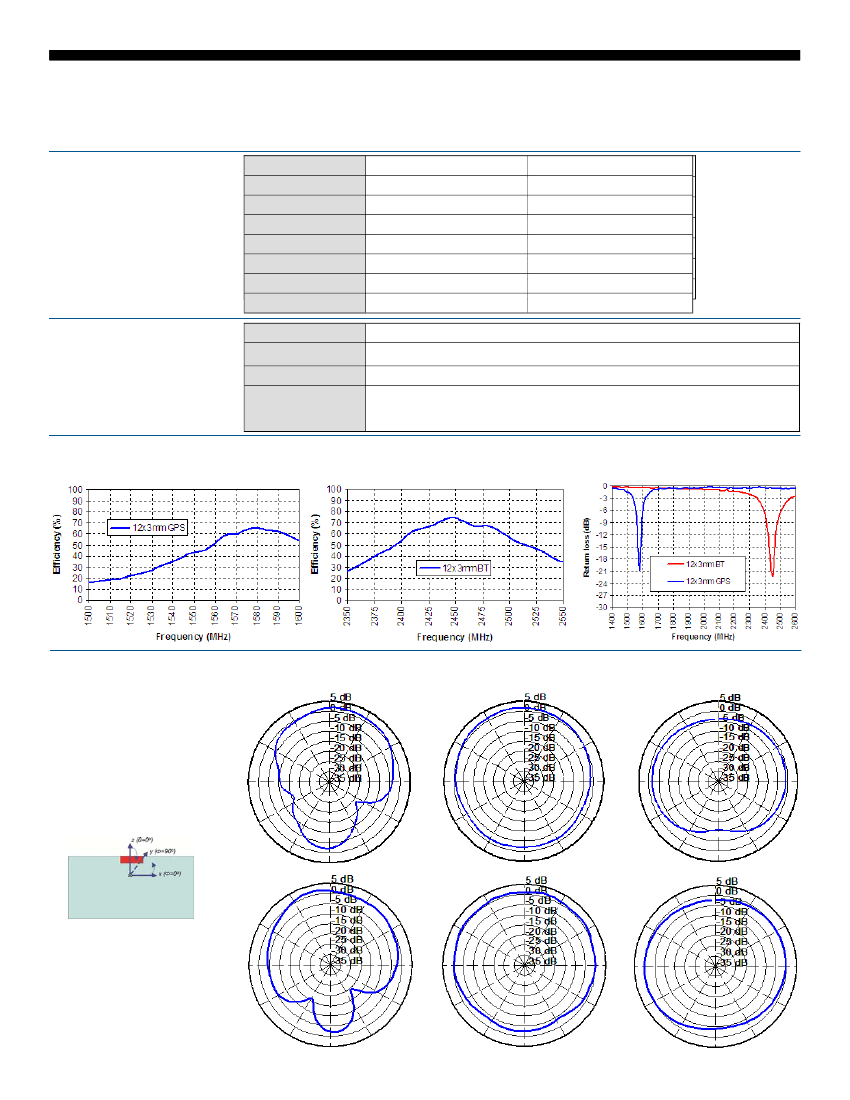

Typical Efficiency,
Isolation & Return Loss
Antenna Radiation
Patterns
Phi = 0
o
Plane
Phi = 90
o
Plane
Theta = 90
o
Plane
1.575 GHz Band
Typical Performance
Ethertronics’ Test Board
PCB: 40x80mm
2.4 GHz Band
Please contact Ethertronics for
product sampling information.
© 2011 Ethertronics. All rights reserved. Ethertronics, the Ethertronics logo, shaping antenna technology, Savvi, Isolated Magnetic Dipole and the iMD logo are trademarks of Ethertronics.
All other trademarks are the property of their respective owners. Specifications subject to change and are dependent upon actual implementation.
GPS/BT 8/05/11
