China Electronics Technology Group Corporation
No.26 Research Institute
350MHz SAW Filter
14MHz Bandwidth
Part Number: LBT35005
www. sipatsaw.com
SIPAT Co., Ltd.
Features
For IF SAW filter
Single-ended operation
Ceramic Surface Mount Package
Small size
RoHS compliant (2002/95/EC), Pb-free
Specifications
Parameter
Center Frequency
Insertion Loss
1 dB Bandwidth
3 dB Bandwidth
Passband Variation
Absolute Delay
Ultimate Rejection
@f0±14MHz
@f0±28MHz
Unit
MHz
dB
MHz
MHz
dB
usec
dB
dB
KHz/°C
-
°C
°C
°C
V
dBm
-
Minimum
-
-
14
-
-
-
12
40
Typical
350
13.5
16.1
18.74
0.5
0.36
27
41
-6.3
112LT
25
Maximum
-
15
-
-
1
-
-
-
Material Temperature coefficient
Substrate Material
Ambient Temperature
Operating Temperature Range
Storage Temperature Range
DC Voltage
Input Power
ESD Class
Package Size
Notes:
1.
2.
-40
-45
-
-
0
+85
+105
-
-
1
10
SMD7.0*5.0
All specifications are based on the test circuit shown;
In production, all specifications are measured by Agilent Network analyzer and full 2 port calibration at room
temperature;
3.
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances;
4.
This is the optimum impedance in order to achieve the performance show.
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBT35005
2007-11-23
1.0
Page
1/3
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
350MHz SAW Filter
14MHz Bandwidth
Part Number: LBT35005
www. sipatsaw.com
SIPAT Co., Ltd.

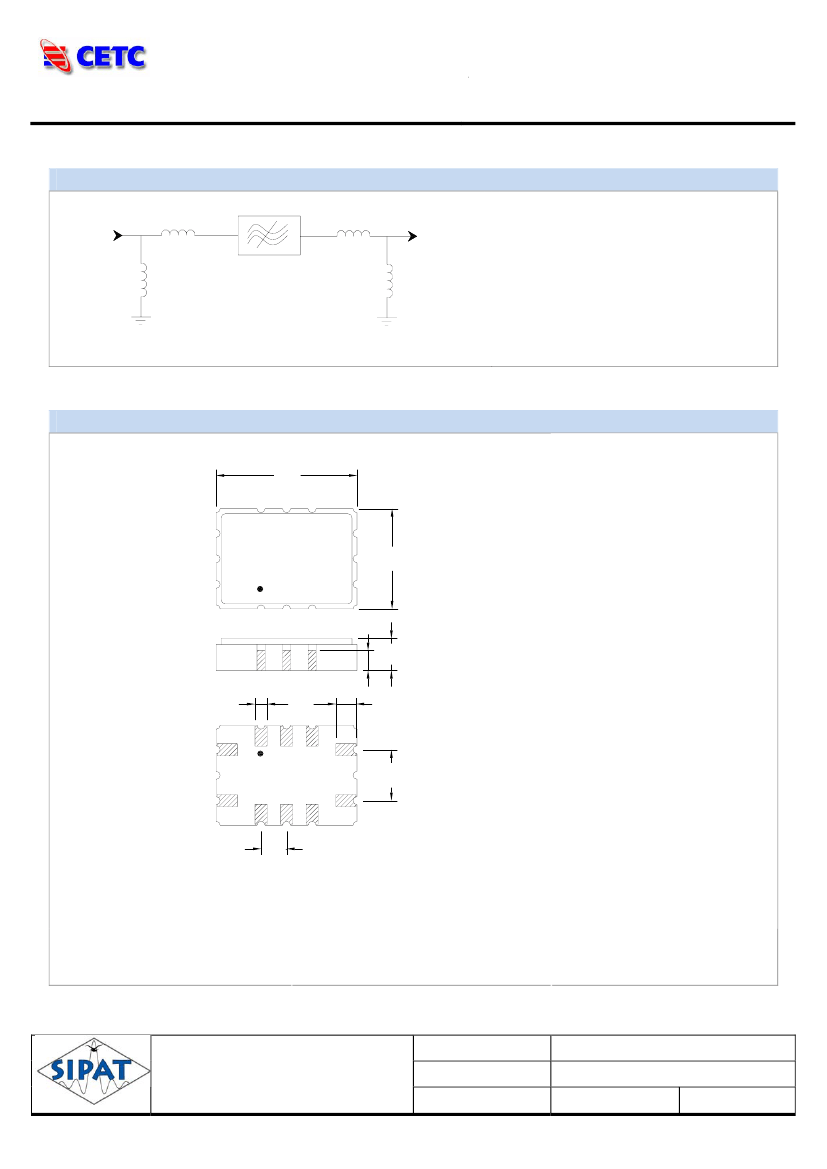

Matching Configuration
INPUT
50
Ω
L1
L2
L3
OUTPUT
50
Ω
L4
L1=(5+12)nH
L2=12nH
L3=L4=10nH
Source/Load Impedance=50 ohm
Notes - Component values may change depending
on board layout.
Package Dimension
7.00
Pad Configuration:
9
10
11
12
8
7
6
5
4
5.00
Input
Output
10
4
SIPAT
LBT35005
07XX
1
2
3
Ground All Others
Marking Configuration:
1.00
1.60
1) •: Pad Number 1 Index
2) SIPAT: Manufacturer Name
3) LBT35005: Part Number
4) 07XX: Date Code
0.60
1
12
11
10
9
8
7
2
3
1.00
4
5
6
2.54
1.27
Package: SMD7.0*5.0
Unit: mm
SIPAT Co., Ltd.
( CETC No.26 Research Institute )
#14 Nanping Huayuan Road,
Chongqing, China, 400060
Tel: +86-23-62808818
Part Number
Rev. Date
Ver.
LBT35005
2007-11-23
1.0
Page
2/3
Fax: +86-23-62805284
www.sipatsaw.com / sawmkt@sipat.com
China Electronics Technology Group Corporation
No.26 Research Institute
350MHz SAW Filter
14MHz Bandwidth
Part Number: LBT35005
www. sipatsaw.com
SIPAT Co., Ltd.

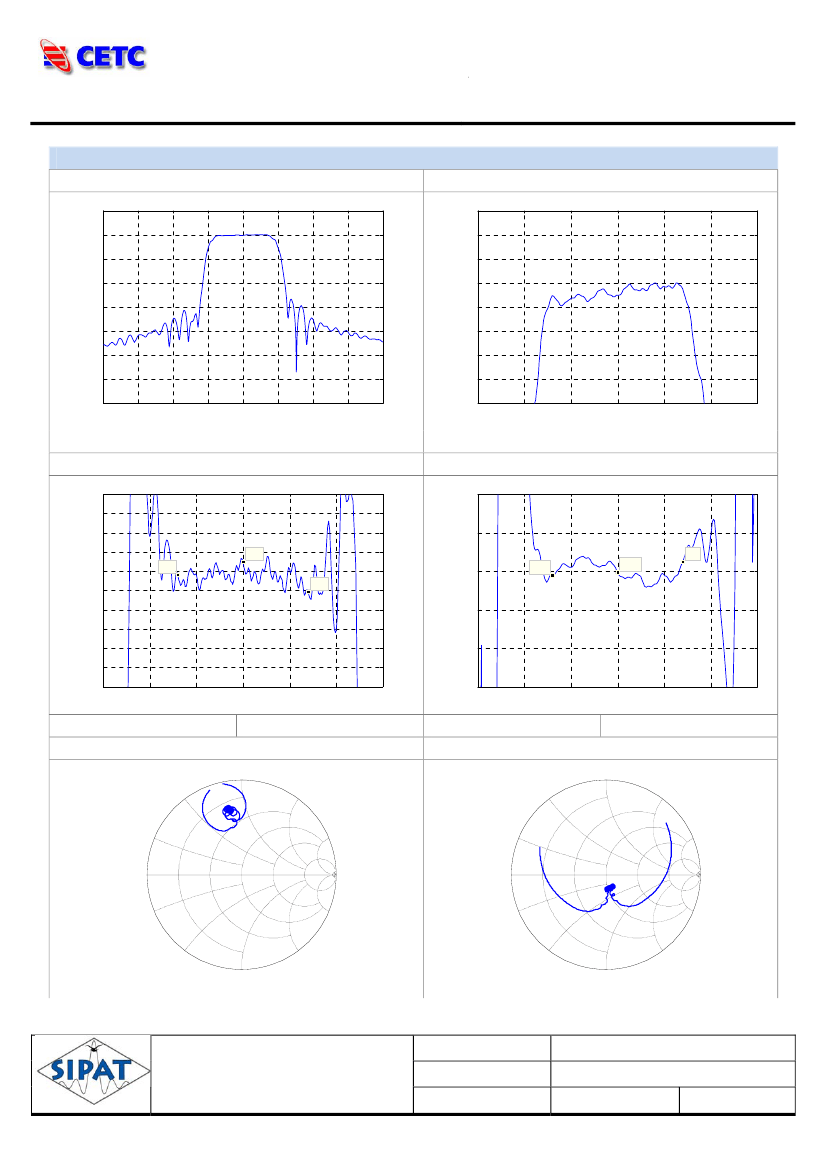

Typical Performance
Frequency Respond
Type Performance
-3.4796
-11.9796
Passband Respond
-13.4796
-12.4796
-23.4796
-12.9796
-33.4796
Magnitude(dB)
-13.4796
-43.4796
-13.9796
-53.4796
-14.4796
-63.4796
-14.9796
-73.4796
-15.4796
310
320
330
340
350
Frequency(MHz)
360
370
380
390
335
340
345
350
355
360
365
Horizontal: 10MHz/Div
Vertical: 10dB/Div
Horizontal: 5MHz/Div
Vertical: 0.5dB/Div
Group Delay Variation(f0±7MHz)
Type Performance
400
10
Phase Linearity(f0±7MHz)
Type Performance
390
380
5
370
X: 343
Y: 358.1
X: 350
Y: 364.9
X: 343
Y: -0.5857
X: 350
Y: -0.1908
X: 357
Y: 1.22
Group Delay Time(ns)
360
0
X: 357
Y: 349.3
350
340
Degree(deg)
-5
-10
360
365
-15
335
330
320
310
300
335
340
345
350
Frequency(MHz)
355
340
345
350
Frequency(MHz)
355
360
365
Horizontal: 5MHz/Div
Vertical: 10ns/Div
Horizontal: 5MHz/Div
Vertical: 5deg/Div
Smith Chart S11
+j1.0
+j0.5
+j2.0
Smith Chart S22
+j1.0
+j0.5
+j2.0
+j0.2
+j5.0
+j0.2
+j5.0
0.2
0.5
1.0
2.0
5.0
0.2
0.5
1.0
2.0
0.0
∞
5.0
0.0
∞
-j0.2
-j5.0
-j0.2
-j5.0
-j0.5
-j1.0
-j2.0
-j0.5
-j1.0
-j2.0
