ZigBee Development Tools
ZigBee Developers Kit (ZDK)
ZigBee Network Evaluation Demo (zNED)
ZDK Description
Oki’s ZigBee Developers Kit (ZDK) allows you to quickly
evaluate and then seamlessly develop ZigBee wireless
communications solutions. The key hardware element of the
ZDK is the ZigBee Network Evaluation Demo (zNED) which
features Oki’s ML7065 radio chip, the ML67Q4061 ARM7-
based MCU, and the MEMS-based 3D accelerometer ML8953.
Two USB radio dongles are also included for a quick ZigBee
network emulation by Windows based PCs. In addition to
the run time libraries of the Oki’s ZigBee Stack for ARM, a
number of Oki’s partners have provided evaluation versions
of supporting software to make this a complete and power-
ful ZigBee development tool.

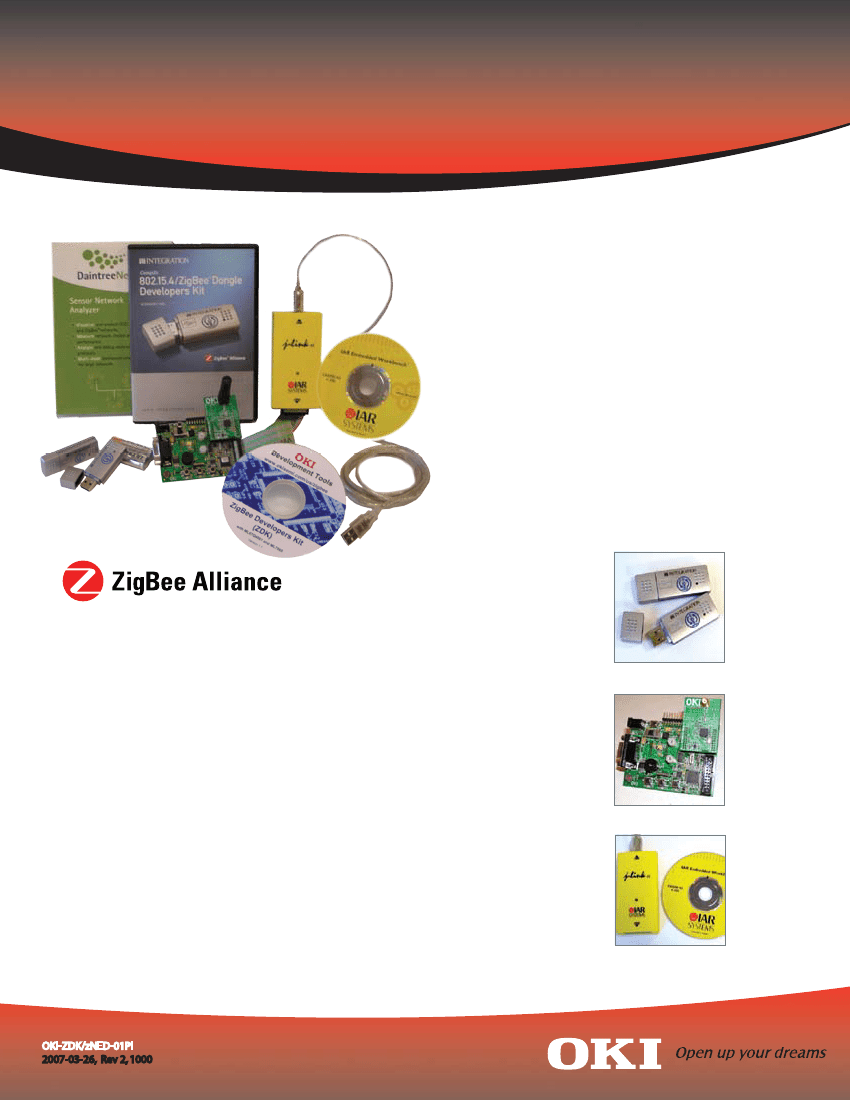

Kit Features
HARDWARE
•
1 Oki ZigBee Network Evaluation Demo board (zNED)
•
2 IEEE 802.15.4 USB radio dongles
(Integration Associates: IA DAUB-DK1 2400)
•
1 IAR JLINK JTAG debugger
SOFTWARE
•
Daintree’s Basic Sensor Network Analyzer
•
Evaluation versions of:
- Integration’s CompXs ZigBee stack for Oki’s ARM7 based
4050/4060 series MCUs
- Daintree’s Professional Sensor Network Analyzer
- IAR Embedded Workbench for ARM
- Segger’s embOS RTOS
OKI-ZDK/zNED-01PI
2007-03-26, Rev 2, 1000
ZigBee Development Tools
ZigBee Developers Kit (ZDK)
ZigBee Network Evaluation Demo (zNED)

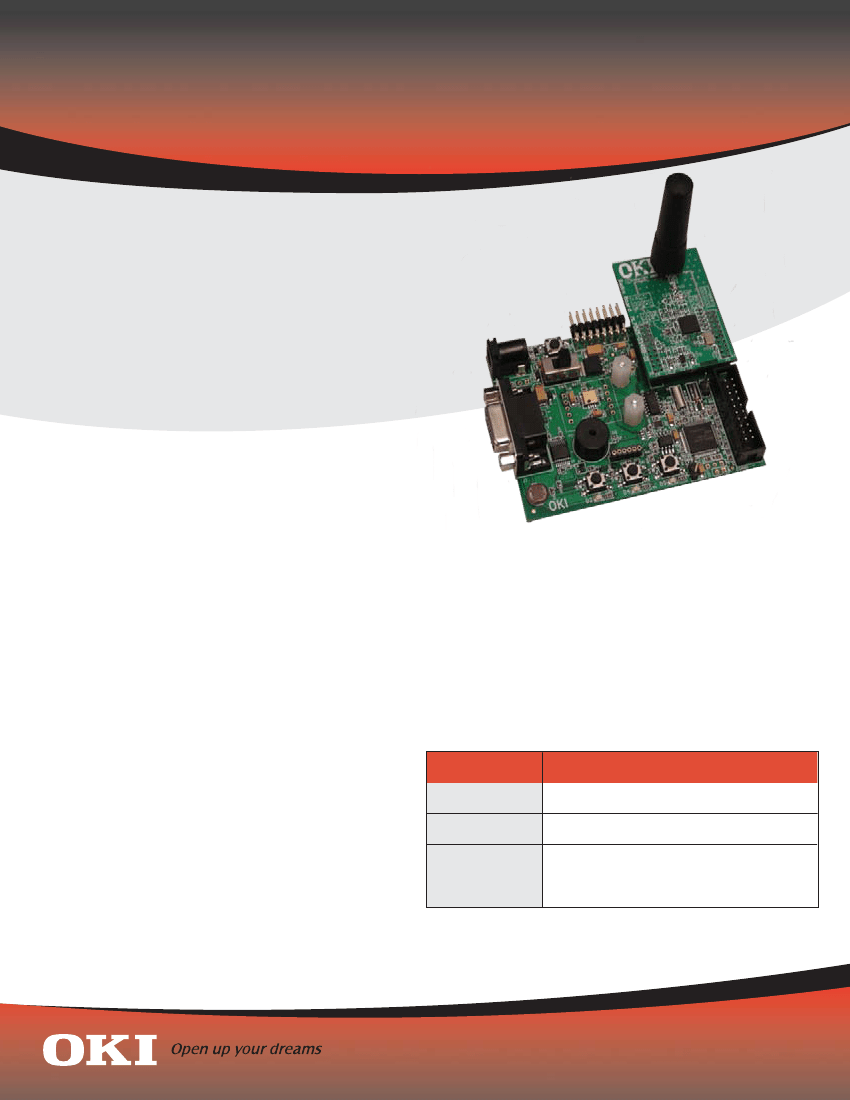

zNED Description
Oki’s zNED is a ZigBee Certified Platform designed to be a part of
the ZDK and is also offered stand-alone to allow you to add
more nodes to your development network so you can
adequately evaluate ZigBee for your application. In addition to a
rich feature set, zNED’s modular concept enhances your design
flexibility by offering you the ability to plug in various radio
boards and antenna choices as well as reuse the radio board in
your proof of concept prototype.
Board Features
• Small size 3 3/8 x 2 1/2 inches
• Flexible power supply:
- Batteries, USB (via JLINK) or user supplied power
adapter
• Multiple sensor/user inputs
- 3 momentary switches
- Tri-axis MEMS accelerometer
- Photo sensor
• Multiple user output options
- 3 LEDs
- Magnetic Buzzer
- RS-232 support
- 2 line x 16 character display (user supplied)
• System Power management mode support
• Designed for reuse
- Radio board is removable with standard 2mm headers
to allow easy reuse in customer prototype projects
• 32-bit ARM7-TDMI based processor with 128 KB Flash
and 16 KB RAM
zNED board
Applications
• Industrial sensor and control networks
• Commercial security and access control systems
• Equipment diagnostics and asset tracking
• Medical patient monitoring and diagnostic equipment
Ordering Information
Part #
OKI-ZDK-01
OKI-zNED-01
ML7065-
034GDA3A
Product Name
ZigBee Developers Kit (ZDK)
ZigBee Network Evaluation Demo (zNED)
ZigBee IEEE 802.15.4 Single Chip
2.4 GHz PHY and MAC
Asia/Pacific
Oki Electric Industry Co., Ltd.
www.okisemi.com/jp
Europe
Oki Electric Europe GmbH
www.okisemi.com/eu
North America
Oki Semiconductor
www.okisemi.com/us/zigbee
