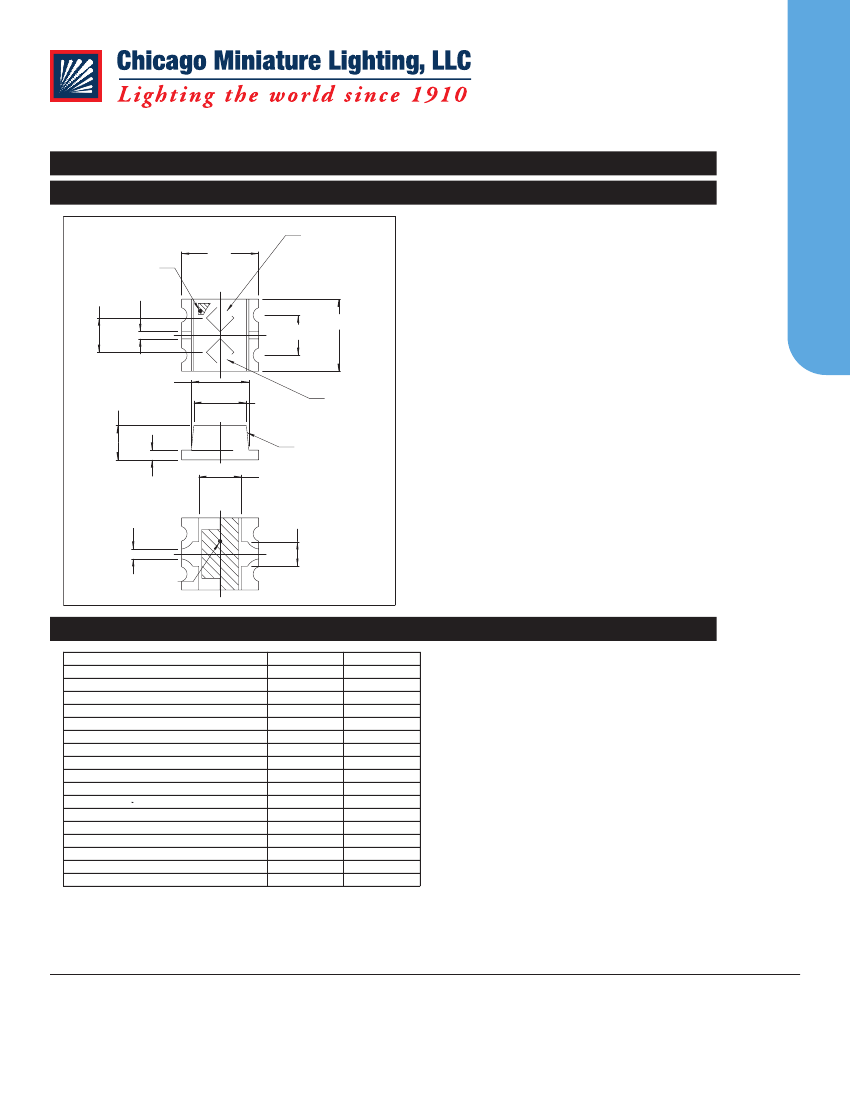

7018X Series Bicolor SMT LEDs
DESCRIPTION AND FEATURES
AMB E R
LE D C HIP
1.60
C AT HODE MAR K
0.15
0.70
2
1
1.50
0.85
Color Combinations:
• Red/Green
• Green/Yellow
Surface Mount Technology
• Tape and reel packaged for high-speed
autoinsertion.
• Convection and vapor-phase reflow compatible.
• Compact form enables high density placement.
• Packaged 4000 pieces per reel.
Leading Edge LED Optoelectronic Performance
• Consistent high brightness.
4
1.20
0.70
3
1.10
GR E E N
LE D C HIP
DIF F US E D
E P OXY
0.20
0.90
Exceptional Reliability
• Stringent process controls assure quality.
• Extensive qualification testing to meet
strictest requirements.
• Designed to permit easy post-reflow solder
joint inspection.
• Solder pad geometry on page 1-X1.
0.20 MIN.
4
3
0.50
P OLAR IT Y MAR K
2
1
All dimensions in mm.
ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS
P AR T NUMB E R
Output C olor
Diffusion
P ackage C olor
T est C urrent (mA)
F orward Voltage Typ. (V)
F orward V oltage Max. (V )
Luminous Intensity Min. (mcd)
Luminous Intensity T yp. (mcd)
Luminous Intensity Max. (mcd)
P eak Wavelength (nm)
Viewing Angle (degrees)
P ower Dissipation (mW)
S torage Temperature (°C )
Operating T emperature (°C )
P eak Forward C urrent Max. (1µs @1 0% cy cle) (mA)
duty
R everse V oltage (IR =100µA) (V )
Lead S older T ime @260°C
7018X1/5
R ed/G reen
Diffused
C lear
20
2.1
2.8
4.5
6.4
-
560
120
70
-40 to +100
-30 to +85
60
4
5
7018X5/7
G reen/Y ellow
Diffused
C lear
20
18
28
9
16
-
580
110
70
-40 to +100
-30 to +85
60
4
5
