FOD8160 — High Noise Immunity, 3.3 V / 5 V, 10 Mbit/sec, Logic Gate Optocoupler in Wide-Body SOP 5-Pin
July 2014

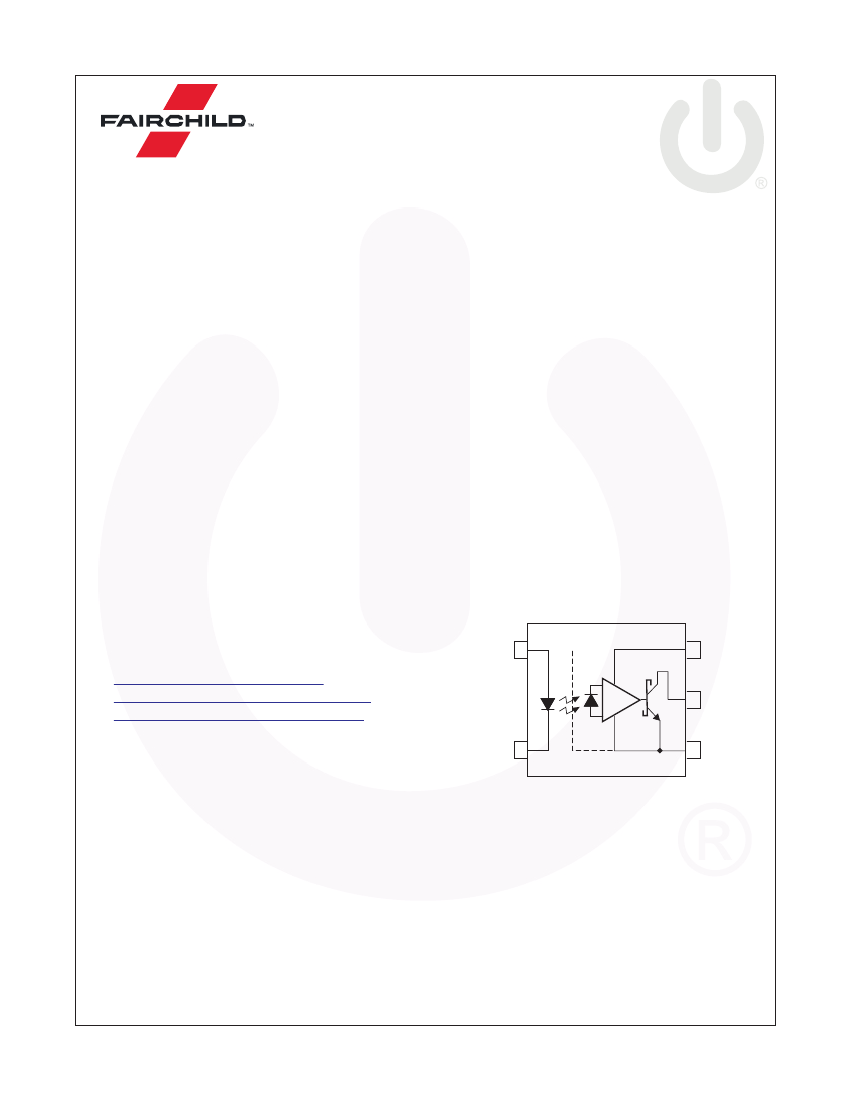

FOD8160
High Noise Immunity, 3.3 V / 5 V, 10 Mbit/sec, Logic Gate
Optocoupler in Wide-Body SOP 5-Pin
Features
■
Optoplanar
®
Packaging Technology Allows More
Description
The FOD8160 is a 3.3 V / 5 V high-speed logic gate
optocoupler with open-collector output, which supports
isolated communications to allow digital signals to
communicate between systems without conducting
ground loops or hazardous voltages. The device utilizes
Fairchild’s prioprietary Optoplanar
®
coplanar packaging
technology and optimized IC design to achieve high-
noise immunity, characterized by high common-mode
rejection specifications.

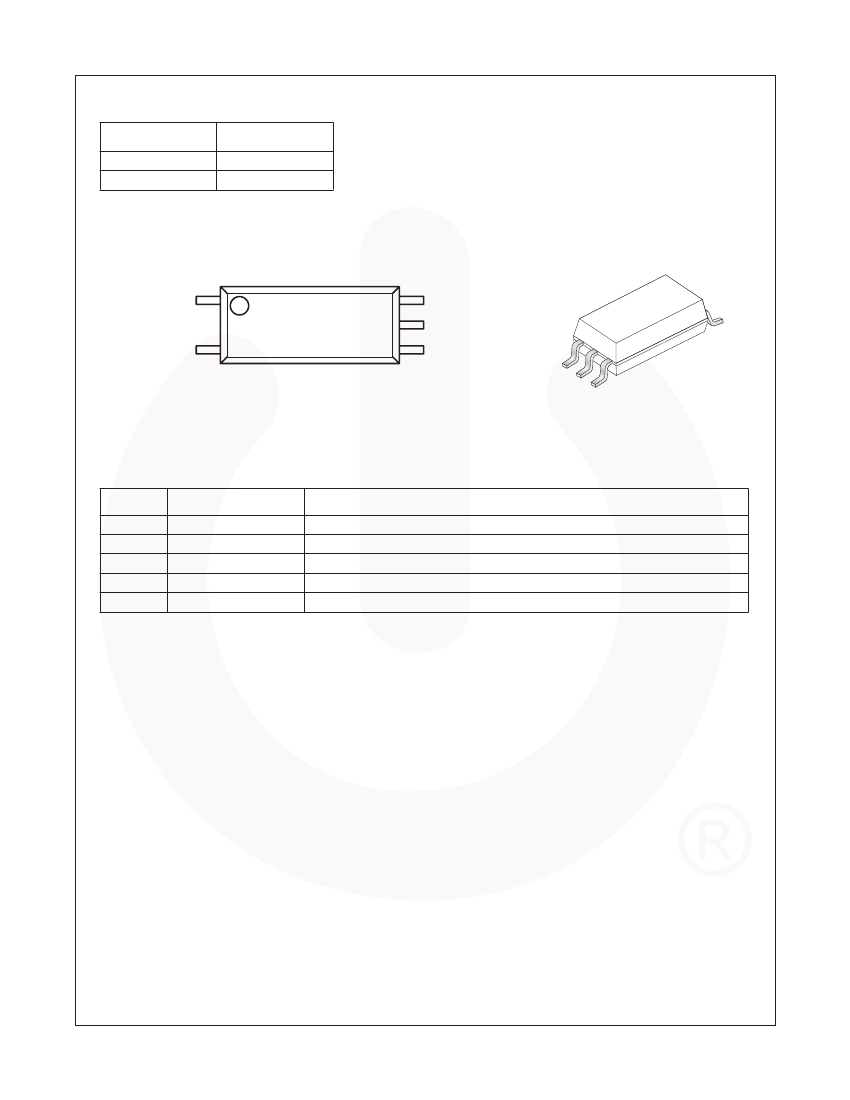

The FOD8160, packaged in a wide-body SOP 5-Pin
package, consists of an aluminium gallium arsenide
(AlGaAs) LED and an integrated high-speed
photodetector. The output of the detector IC is an open
collector Schottky-clamped transistor. The electrical and
switching characteristics are guaranteed over the
extended industrial temperature range of -40°C to 100°C
and a V
CC
range of 3 V to 5.5 V.
■
■
■
■
Than 10 mm Creepage and Clearance Distance, and
0.5 mm Insulation Distance to Achieve Reliable and
High Voltage Insulation
High Noise Immunity Characterized by Common
Mode Transient Immunity (CMTI)
– 20 kV/µs Minimum CMTI
Specifications Guaranteed Over 3 V to 5.5 V Supply
