Bel Power Solutions MAP140 Series provides a full range of options
and up to 30 watts more power than comparable products in this
industry-standard footprint. With a universal input from 85 to 264 VAC
and power densities up to 2.6 watts/inch3, the MAP140 meets the
most rigorous requirements of commercial, industrial, and datacom
systems.
Rated for use in convection and forced-air cooled (200 LFM)
applications, the MAP140 delivers dependable power with a Mean
Time Between Failures (MTBF) in excess of 180,000 hours.
In addition to UL, CSA, and NEMKO regulatory compliance, the
MAP140 displays the CE Mark.
RoHS Lead-Solder-Exemption Compliant
Universal Input 85-264 VAC
Input Transient & ESD Compliance to
EN61000-4-2/-3/-4
CE marked to Low Voltage Directive
Industry-Standard Footprint: 7.0 x 4.3 x 1.8 inch (177.8 x 109.2 x 45.7
mm)
Remote Sense and Overvoltage Protection
Power Fail Signal Standard on MAP140-3000P, Optional on MAP140-
1012 and MAP140-1024
Optional Overtemperature Protection, L-bracket and Cover
2
MAP140 Series
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
CONVECTIO
N COOLED
CURRENT
FORCED AIR
CURRENT
1
LINE
REGULATION
LOAD
REGULATION
RIPPLE
&
NOISE
2
INITIAL SETTING
ACCURACY
MAP140-1012
MAP140-1024
MAP140-1048*
12V/15V
24V/28V
48V
11.0V to 16.0V
22.8V to 29.2V
45.6V to 54.0V
9.2/7.3A
3
4.6/4A
3
2.3A
12.5A/10A
3
6.3A/5.4A
3
3.1A
0.1%
0.1%
0.1%
0.5%
0.5%
0.5%
1%
1%
1%
11.97V to 12.03V
23.95V to 24.05V
47.9V to 48.1V
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
OUTPUT
CURRENT
4
PEAK OUTPUT
CURRENT
4
LINE
REGULATION
LOAD
REGULATION
RIPPLE &
NOISE
2
INITIAL SETTING
ACCURACY
+5V
MAP140-3000P*
+12V
-12V
4.75V to 5.25V
Fixed
Fixed
16A/25A PK
4A/9A PK
1A/1.5A PK
20A/25A PK
4A/9A PK
1A/1.5A PK
0.2%
0.1%
0.1%
1%
2%
2%
1%
1%
1%
5.09V to
5.11V
11.97V to
12.03V
-11.4V to -
12.6V
1
2
With minimum 200 LFM forced air cooling.
Maximum peak to peak noise expressed as a percentage of output voltage, 20MHz bandwidth.
3
MAP140-1012 output currents are expressed as 12V/15V operation. MAP140-1024 output currents are expressed as 24V/28V operation.
4
Peak loads up to 140 Watts for 60 seconds or less are acceptable, (10% duty cycle max.). Peak power must not exceed 140 watts.
Oooooo
Model numbers highlighted in yellow are not recommended for new designs.
* Obsolete
tech.support@psbel.com
MAP140 Series
PARAMETER
Input Voltage - AC
Input Frequency
Brown Out Protection
Hold-up Time
Input Current
Input Protection
Inrush Surge Current
Operating Frequency
3
CONDITIONS / DESCRIPTION
Continuous input range
AC input
Lowest AC input voltage that regulation is maintained with full rated
loads.
110 watt load:
Nominal AC input voltage (110VAC), full rated load.
140 watt load:
85 VAC (140 W load)
110 VAC (140 W load)
Non-user serviceable internally located AC input line fuse.
Internally limited by thermistor, Vin = 264 VAC (one cycle), 25° C
Switching frequency of main transformer
MIN
85
47
85
20
NOM
MAX
264
63
UNITS
VAC
Hz
VAC
ms
16
2.5
2.0
ARMS
41
22
APK
kHz
PARAMETER
Efficiency
Minimum Loads
Ripple and Noise
CONDITIONS / DESCRIPTION
Full load @110 VAC. Varies with distribution of loads among outputs
Single output models
MAP140-3000P, total output current of V1 + V2
5
Full load, 20 MHz bandwidth.
Single output models
MIN
NOM
70% typical
MAX
UNITS
0
2
See Model Selection Chart
See Model Selection Chart
80
140
1
See Model Selection Chart
Amps
Output Power
MAP140-3000P with convection cooling
MAP140-3000P with 200 LFM forced air cooling
Watts
Watts
%
Overshoot / Undershoot
Regulation
Output voltage overshoot/undershoot at turn-on / turn-off.
Varies by output, regulation includes: line changes from 90-132 VAC
or 175-264, changes in load starting at 20% load and changing to
100% load.
Recovery time, to within 1% of initial set point due to a 50-100%
load change, 4% max. deviation. (Main output only on multiple
output units).
Time required for initial output voltage
stabilization.
MAP140-3000P
Single output models
Transient Response
500
1
μs
Turn-on Delay
Turn-on Rise Time
Sec
2
20
ms
Time required for output voltage to rise from 10% to 90%.
5
Minimum load is required only to meet the regulation limits of V3.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00574_AB
© 2016 Bel Power Solutions & Protection
4
MAP140 Series
CONDITIONS/DESCRIPTION
MAP140-3000P, V1
PARAMETER
MIN
6.1
17.3
32.2
55.2
NOM
MAX
7.2
20.2
UNITS
Overvoltage Protection
Provided on single output models and MAP140-1012
V1 of MAP140-3000P.
MAP140-1024
MAP140-1048
V
37.8
64.8
Overload Protection
Remote Sense
Power Fail Warning
Overtemperature Protection
Fully protected against output overload and short circuit. Automatic
recovery upon removal of overload condition.
Voltage drop compensated for at the load.
TTL compatible logic signal. Time before regulation dropout due to
loss of input power at 140 watts, 110 VAC. Standard on MAP140-
3000P and optional on MAP140-1012.
Optional signal provides system shutdown due to excessive internal
temperature. See options.
2.3
250
mV
ms
PARAMETER
Agency Approvals
Dielectric Withstand Voltage
Electromagnetic Interference
Conducted
ESD Susceptibility
Radiated Susceptibility
EFT/Burst
Input Transient Protection
Insulation Resistance
Leakage Current
CONDITIONS / DESCRIPTION
Approved to the latest edition of the following standards;
UL/CSA60950-1 2nd, IEC60950-1 2nd and EN60950-1 2nd.
Input to Chassis
Input to Output (tested by manufacturer only)
FCC CFR title 47 Part 15 Sub-Part B - conducted & radiated
EN55022 / CISPR 22 conducted
Per EN61000-4-2, level 4
Per EN61000-4-3, level 3
Per EN61000-4-4, level 3
EN61000-4-5 Class 3
Input to output
Per EN60950, 264 VAC
110 VAC
264 VAC
Line to Line
Line to Ground
MIN
NOM
MAX
UNITS
2121
4242
B
B
8
10
±2
1
2
10
0.5
1.5
VDC
Class
Class
kV
V/M
kV
kV
MΩ
mA
PARAMETER
Altitude
Operating Temperature
9
Storage Temperature
Temperature Coefficient
Relative Humidity
Shock
Vibration
CONDITIONS / DESCRIPTION
Operating
Non-operating
Derate linearly above 50°C by 2.5% per
°C
At 100% load:
At 50% load:
MIN
NOM
MAX
10k
40k
50
70
85
UNITS
ASL Feet
°C
°C
%/°C
%RH
G
G
RMS
0
0
-40
0°C to 70°C (after 15 minute warm-up)
Non-condensing
Operating, peak acceleration
Random vibration, 10Hz to 2kHz, 3 axis
±0.02
±0.05
95
20
6
tech.support@psbel.com
MAP140 Series
PARAMETER
Dimensions
Weight
Cover (Option)
5
CONDITIONS / DESCRIPTION
177.8 x 109.2 x 50.0 mm (7.00 x 4.30 x 1.97 inch)
0.59 kg (1.3 lbs)
Add ‘C’ suffix to model number (Please check with factory for availability).
For convection cooled applications, derate output power to 75 watts, maximum.
Dimensions: 182.9 x 106.7 x 50.0 mm (7.20 x 4.20 x 1.97 inch)
Add ‘P’ suffix to model number. Provides 2.3mS warning time before main output drops 5%.
Warning time increases at reduced load levels. Option available only on MAP140-1012 and MAP140-1024.
Power fail is standard on MAP140-3000P.
Add ‘T’ suffix to model number. Initiates shut-down in the event of an overtemperature condition.
Automatic recovery. Where available, Power Fail signal is initiated prior to shutdown.
Power Fail Signal
Thermal Shutdown

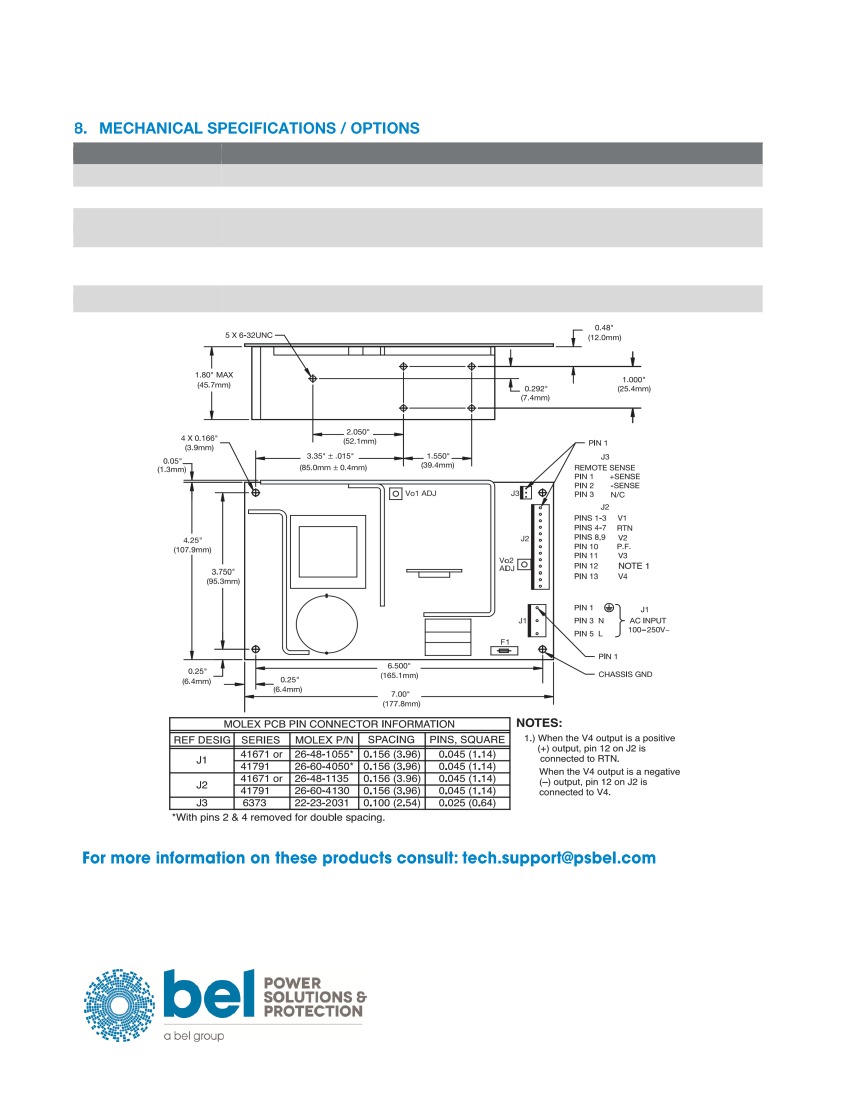

Figure 1. Mechanical Drawing
NUCLEAR AND MEDICAL APPLICATIONS - Products are not designed or intended for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
Asia-Pacific
+86 755 298 85888
Europe, Middle East
+353 61 225 977
North America
+1 408 785 5200
BCD.00574_AB
© 2016 Bel Power Solutions & Protection
