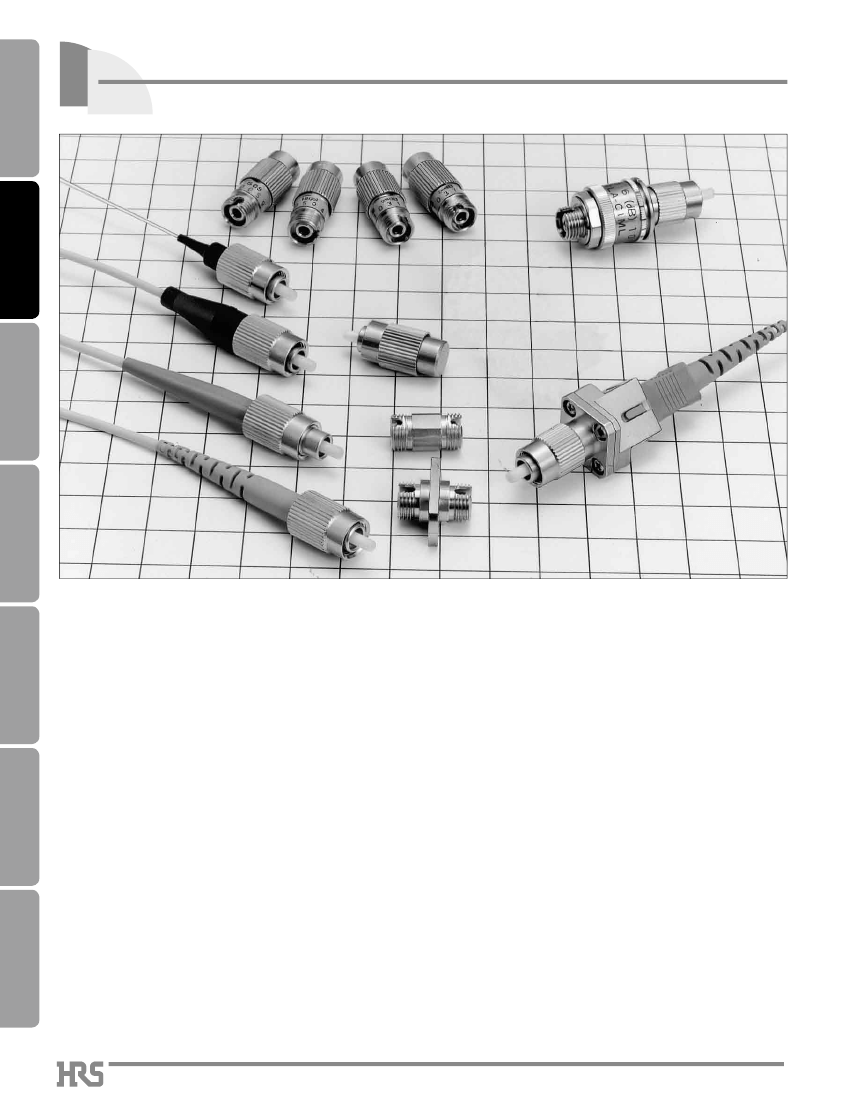

FC Type Fiber Optic Connectors
SC
HRFC Series
Attenuators
MU
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
FC
Environment
Harsh
■
Features
1. JIS, IEC standard compliant and intermateability test certified.
Comply with IEC 61754-13 and JIS C 5970(type F01).
FC intermate test by NTT certified connector.
2.Polishing
Available with PC polishing, advanced PC(AdPC) polishiing and Angled PC(APC) polishing.
3.Flame resistant
Satisfies flammability rating UL94V-0.
Terminators
■Applications
Public communications lines, CATV, Test equipment, etc.
POF / PCF
30
HRFC Series
●
FC Type Fiber Optic Connectors
■Product
Specifications
Ratings
Operating temperature range
-25°C to +70°C
Storage temperature range
-25°C to +70°C
SC
Item
Optical
Characteristics
Insertion Loss
Return Loss
Ferrule withdrawal
(SM)
(GI)
(SM)
(GI)
Test Method (IEC 61300)
Wavelength 1310nm (LD)
Wavelength 1310nm (LED)
Wavelength 1310nm (LD)
Extract zirconia gauge 2.499 ±0.0005mm
dia from split sleeve.
98N tensile load for 1 minute.
1000 times
Frequency: 10 to 55 Hz, single amplitude of 0.75mm,
2 hours in each of the 3 axis.
0.3dB max. (PC)
Specifications
0.5dB max. (PC, AdPC, APC)
22dB min. (PC), 40dB min. (AdPC), 60dB min. (APC)
22dB min. (PC)
Phosphor bronze split sleeve
Zirconia split sleeve
2N to 5.9N
2N to 3.9N
FC
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Mechanical Characteristics
Cable retention
(Straight pull)
Durability
(cycles, mating/un-mating)
Vibration
Shock
Humidity
(Temperature/ humidity- cycles)
Change of temperature
Dry heat
Cold
Salt mist
1) Insertion loss fluctuation after test: 0.2dB max.
2) No visible damage, dislocation of clamp or cable.
MU
Acceleration of 981 m/s
2
, 6 ms duration,
half sine shock pulse, 10 cycles in each of the 3 axis.
-10°C to 65°C, humidity: 90% to 96% 10 cycles
-40°C to +75°C 42 cycles
(Complies with Telcordia standard GR-326-CORE)
1) Insertion loss fluctuation after test: 0.2dB max.
2) No visible damage, cracks or part dislocation.
Environmental
Characteristics
Harsh
Environment
240 hours at 85°C
240 hours at -25°C
48 hours in a 5% concentration of salt mist
No significant corrosion.
■Materials
Part
Plug housing
Spring
Ferrule
Adapter
Split sleeve
Receptacle
Material
Brass, Zinc alloy
Stainless steel
Zirconia
Brass
Zirconia or Phosphor bronze
Brass
Attenuators
Terminators
POF / PCF
31
HRFC Series
●
FC Type Fiber Optic Connectors

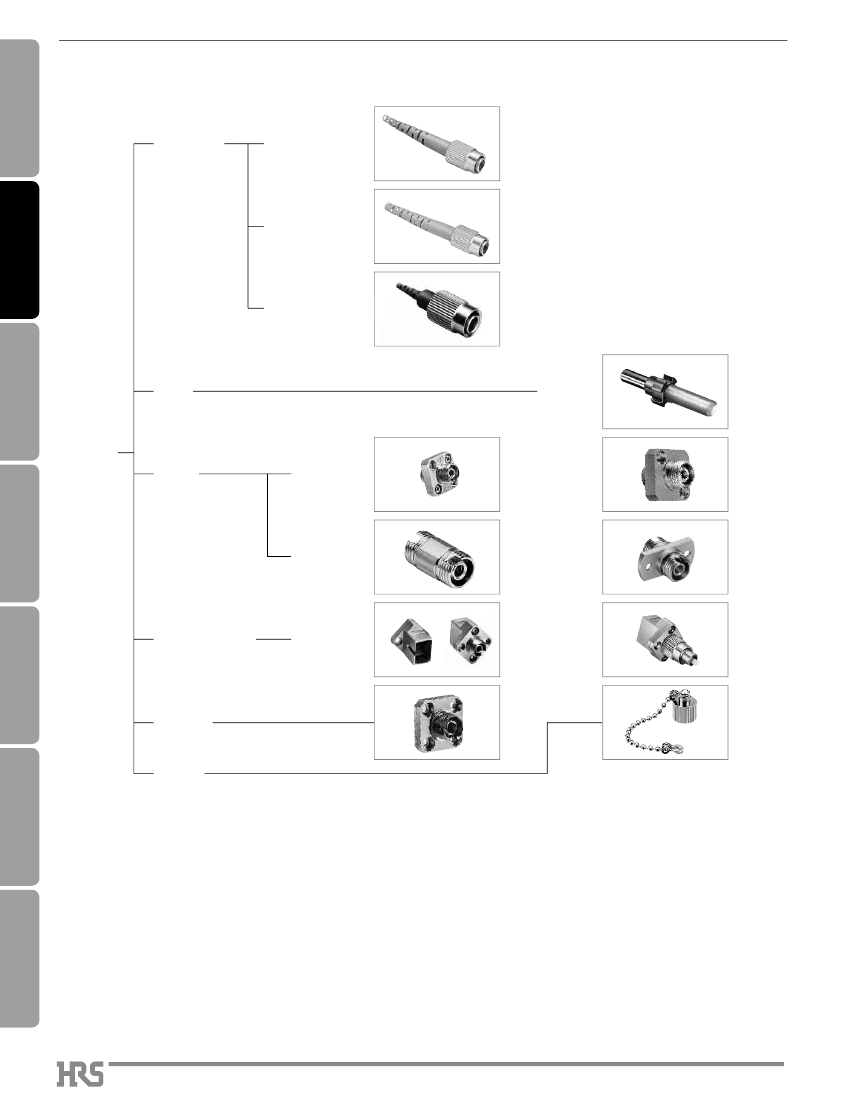

■FC
products
SC
Plug Housing
For 2mm cord,
Molded keying ring type
For 3mm cord,
Molded keying ring type
Attenuators
MU
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
FC
Environment
For 0.9mm fiber,
Molded keying ring type
Ferrule
Single mode
Multi mode
HRFC-type
Connector
Adapter
Standard type
Solid Body type
Harsh
Round type
Flange type
Conversion adapter
FC to SC
FC to SC
Receptacle
Dust cap
POF / PCF
Terminators
32
HRFC Series
●
FC Type Fiber Optic Connectors

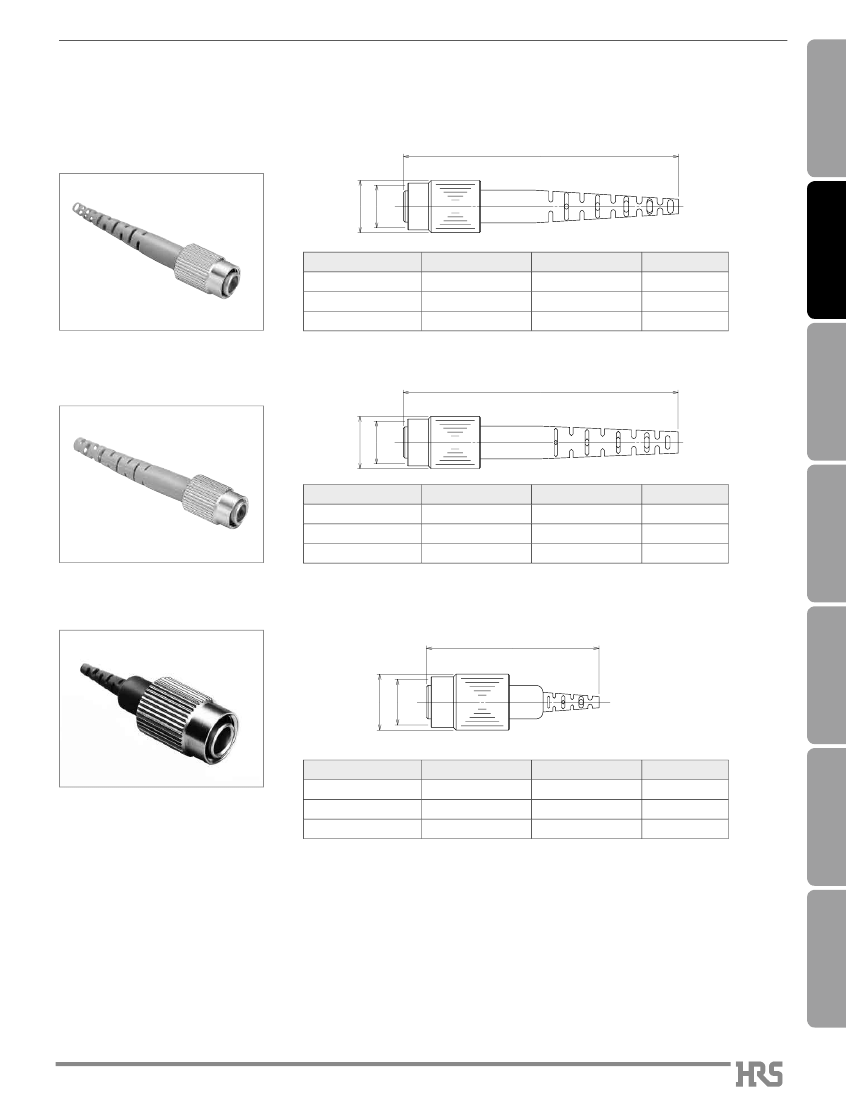

■Plug
Housing
Please use it with the SC ferrules.
SC
●
For 2mm cable
M8×0.75
Ø10
52.8
FC
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part Number
HRFC-P8-H2(63)
HRFC-P8-L2(61)
HRFC-P8-G2(62)
CL No.
701-0075-3-63
701-0077-9-61
701-2001-8-62
Boot color
Blue
Light purple
Green
Polishing type
PC
AdPC
APC
Note: Guide key width is 2.1mm
●
For 3mm cable
M8×0.75
Ø10
52.8
MU
Part Number
HRFC-P8-H3(62)
HRFC-P8-L3(61)
HRFC-P8-G3(61)
CL No.
701-0074-0-62
701-0078-1-61
701-2002-0-61
Boot color
Blue
Light purple
Green
Polishing type
PC
AdPC
APC
Harsh
Environment
Note: Guide key width is 2.1mm
●
For 0.9mm fiber
30.8
Attenuators
Part Number
HRFC-P15-H(62)
HRFC-P15-L(62)
HRFC-P15-G(61)
M8×0.75
Ø10
CL No.
701-0114-3-62
701-0115-6-62
701-2004-6-61
Boot color
Blue
Light purple
Green
Polishing type
PC
AdPC
APC
Terminators
Note: Guide key width is 2.1mm
POF / PCF
33
HRFC Series
●
FC Type Fiber Optic Connectors

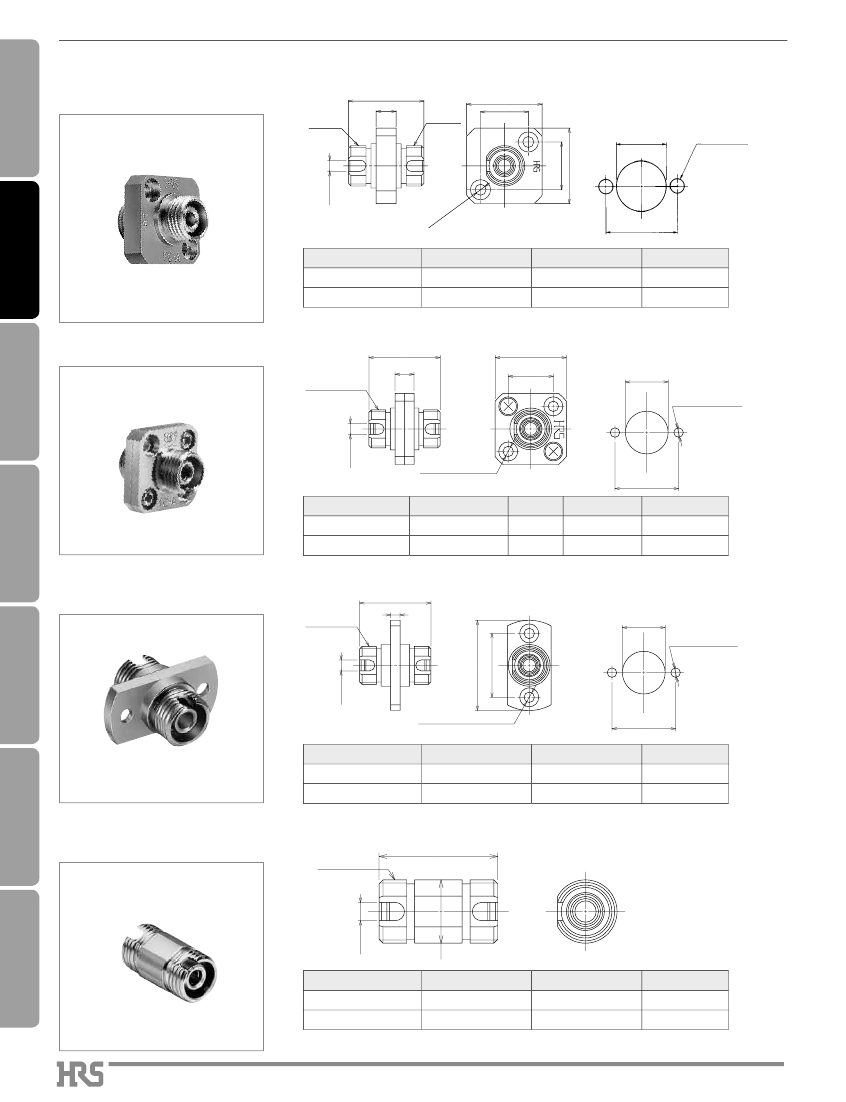

■Adapters
SC
●
Solid Body type
M8∞0.75
15
4
M8∞0.75
15
9.5
■
Panel Cutout
Ø9
+0.5
0
2∞2.2
sin
ter
.2
Ø2
oun 1.5
C
Ø4 epth
d
k
9.5
15
2∞M2∞0.4
or 2∞Ø2.4
+0.2
0
FC-A
13.4±0.1
Attenuators
MU
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
FC
Environment
Part Number
HRFC-PA11-G1(40)
HRFC-PA11-D1(40)
CL No.
701-0071-2-40
701-0106-5-40
Split sleeve
Phosphor bronze
Zirconia
Remarks
--------
(Note)
Note: Please take utmost care when inserting FC plug into a FC adapter. When applying excessive force to
the FC plug or inserting in an odd angle, the zirconia sleeve within the adapter might be dameged
●
Standard Body type
2−M8×0.75
2−M8×0.75
15
15
4
4
15
15
9.5
9.5
■
Panel Cutout
+0.5
+0.5
Ø9
Ø9
0
0
2×M2×0.4
2×M2×0.4
+0.2
or
or 2×Ø2.4
0
0
2×Ø2.4
+0.2
FC-A
FC-A
2∞2.2
2∞2.2
Ø2.2
Ø2.2
Ø4 Countersink depth 1.5
Ø4 Countersink depth 1.5
13.4±0.1
13.4±0.1
Part Number
HRFC-PA1-G1(41)
HRFC-PA1-D1(40)
CL No.
701-0014-9-41
701-0089-8-40
Mark
FC-AP
FC-A
Split sleeve
Phosphor bronze
Zirconia
Remarks
--------
(Note)
Harsh
Note: Please take utmost care when inserting FC plug into a FC adapter. When applying excessive force to
the FC plug or inserting in an odd angle, the zirconia slleve within the adapter might be dameged
●
Flange type
2−M8×0.75
2−M8×0.75
15
15
2
2
■
Panel Cutout
Ø9
Ø9
+0.5
0
+0.5
0
2∞2.2
2∞2.2
Ø19
Ø19
13.45
13.45
2×M2×0.4
2×M2×0.4
+0.2
or 2×Ø2.4
+0.2
0
or 2×Ø2.4
0
2×Ø2.2
2×Ø2.2
2×Ø4 Countersink depth 1.5
2×Ø4 Countersink depth 1.5
13.4±0.1
13.4±0.1
Part Number
HRFC-PA4-G1(40)
HRFC-PA4-D1(40)
CL No.
701-0068-8-40
701-0112-8-40
Split sleeve
Phosphor bronze
Zirconia
Remarks
--------
(Note)
Terminators
Note: Please take utmost care when inserting FC plug into a FC adapter. When applying excessive force to
the FC plug or inserting in an odd angle, the zirconia sleeve within the adapter might be dameged
●
Round type
2×M8×0.75
15
POF / PCF
2∞2.2
Part Number
HRFC-A2-SF(41)
HRFC-A2-SF-D1(40)
Ø8
CL No.
701-0039-0-41
701-0140-3-40
Split sleeve
Phosphor bronze
Zirconia
Remarks
--------
(Note)
Note: Please take utmost care when inserting FC plug into a FC adapter. When applying excessive force to
the FC plug or inserting in an odd angle, the zirconia sleeve within the adapter might be dameged
