T series connectors have been specifically designed for outdoor applications. They include an inner sleeve and seals to pre-
vent penetration of solids or liquids.This series is watertight when mated to give a protection index of IP68 as per IEC 60529
standard and have the following main features:
- IP68 mated
- Compatible with existing B sockets
- Push-Pull self-latching system
- Same mounting hole as B sockets
- Mechanical key (FGG) with multiple keys
- Black-chrome plated brass and plastic outershell available
to avoid cross-mating
- Multipole types 2 to 32 contacts
- High packing density for space savings
- For cables 1.0 up to 10.5 mm
- 360° shielding for full EMC shielding
- Solder, crimp or print contacts
Technical Characteristics
Mechanical and Climatical
Endurance
Humidity
Temperature range
Resistance to vibration
Shock resistance
Salt spray corrosion test
Protection index (mated)
2)
Latching retention force (average value)
Climatical category
Electrical
Shielding efficiency
Material and Treatments
Outershell and collet nut
Material
Surface treatment
Brass
Brass
POM
Contacts
Material
Brass (UNS C 34500)
Bronze (UNS C 54400)
Contact type
Male contact
Female contact
Chrome
Black chrome
3)
–
> 3000 cycles
up to 95% at 60°C
-55°C, +200°C / (-20°C, +80°C)
1)
10-2000 Hz, 15 g
100 g, 6 ms
> 1000 h
IP68/IP66
From 85 N up to 300 N (depending of the size)
50/175/21
Value
> 75 dB at 10 MHz / > 40 dB at 1 GHz
Value
Standard
IEC 60512-5 test 9a
–
–
IEC 60512-4 test 6d
IEC 60512-4 test 6c
IEC 60512-6 test 11f
IEC 60529
–
IEC 60068-1
Standard
IEC 60169-1-3
Latch sleeve/earthing crown
Material
Surface treatment
Brass/Bronze
Brass/Bronze
Brass/Bronze
Nickel
Nickel
Nickel
Insulators
Material
PEEK
Other metallic components
Material
Surface treatment
Brass
Brass
Brass
Nickel
Nickel
Nickel
Note:
1)
operating temperature is -20°C, +80°C for watertight or vacuumtight models fitted with an FPM (Viton
®
) o-ring and Epoxy.
2)
IP68 achieved providing
that the cable is perfectly circular and that assembly process ensures a high integrity seal.
3)
Surface not conductive use socket with earthing tag (HMG).

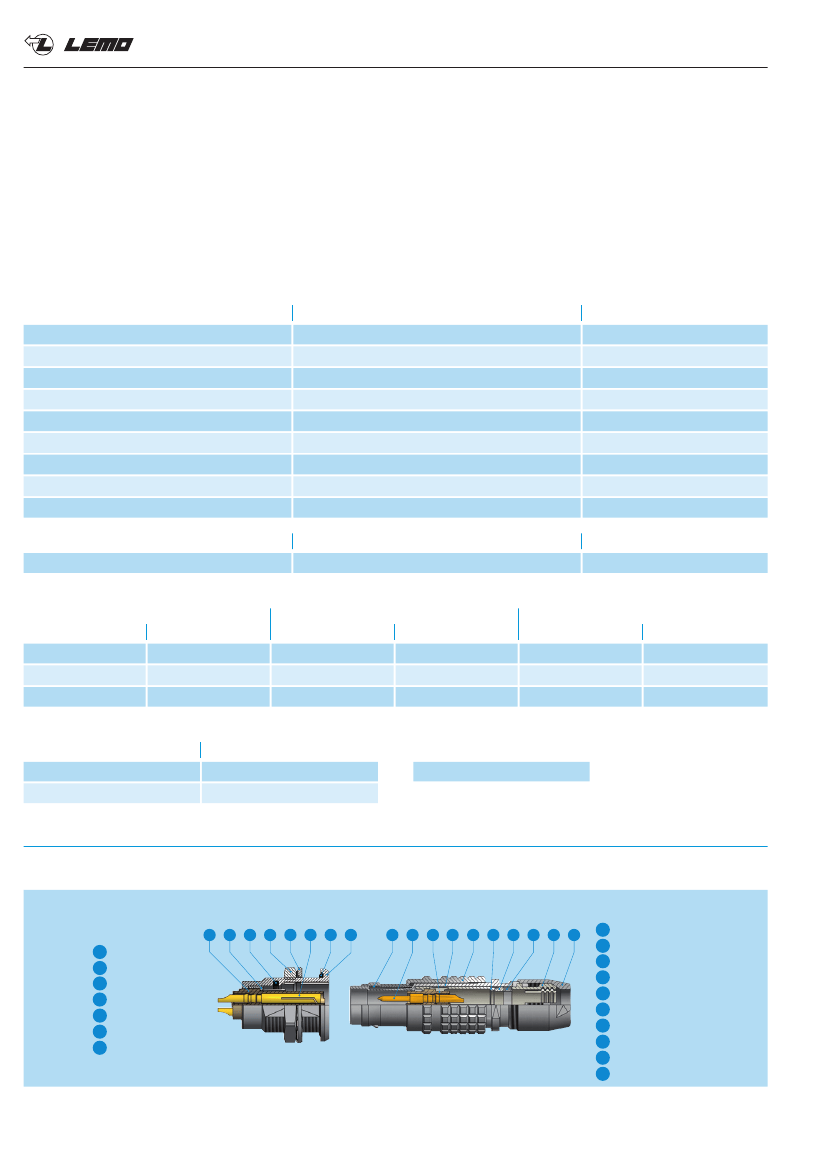

Part Section Showing Internal Components
Straight plug
Fixed socket
4
1
outer shell
2
earthing crown
3
hexagonal nut
4
insulator
5
female contact
6
o-ring
7
locking washer
2
6
3
7
5
6
1
2
5
4
3
1
6
7
8
9
10
1
outer shell
2
latch sleeve
3
inner shell
4
insulator
5
male contact
6
split insert carrier
7
earthing cone
8
gasket
9
collet
10
collet nut
www.lemo.com
®
®
Interconnections
Chrome-plated housing models
(page 2)
Straight plugs
Fixed sockets
Free sockets
FGG
FFG
FGG
EGG
PHG
EEG
PHG
Plastic housing models
(page 5)
Straight plug
Fixed socket
Watertight or vacuumtight models
(page 4)
Fixed sockets
FGG
EGG
HGG
HEG
HMG

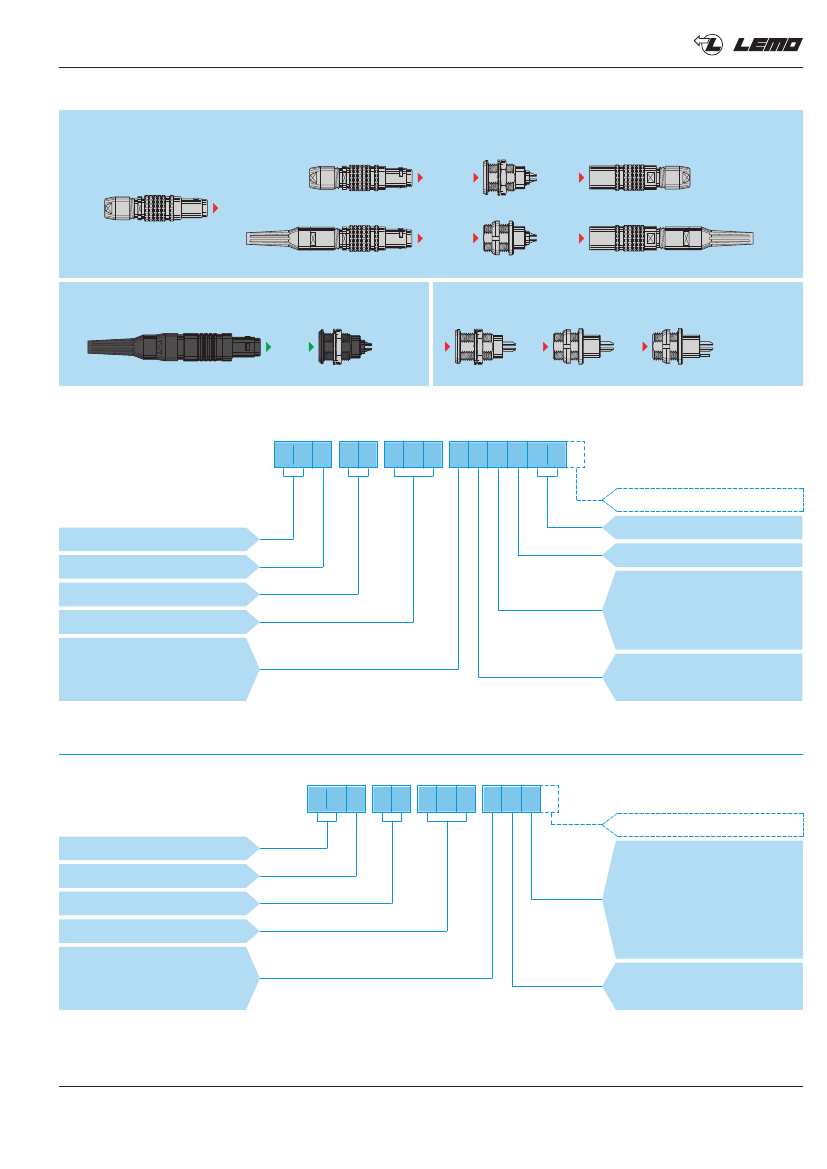

Part Numbering System
Plug and free socket
F G G
.
1 T
.
3 0 6
.
C L A C 4 0 Z
Variant
Model (page 2)
Alignment key (page 5)
Series
Insert configuration (page 6)
Housing:
C = Chrome plated brass
K = Black Chrome plated brass
B = POM (black)
Cable ø (page 9)
Collet type (page 9)
Contact:
A = male solder
L = female solder
C = male crimp
M = female crimp
Insulator: PEEK
L = for solder contact
Y = for crimp contact
FGG.1T.306.CLAC40Z
= Straight plug with key (G) and cable collet for bend relief, 1T series, multipole type with 6 contacts, outer shell
in chrome-plated brass, PEEK insulator, male solder contacts, C type collet for 4.0 mm diameter cable and nut for fitting a bend relief.
Fixed socket
E G G
.
1 T
.
3 0 6
.
C L L
Variant
Model (page 3)
Alignment key (page 5)
Series
Insert configuration (page 6)
Housing:
C = Chrome plated brass
K = Black Chrome plated brass
B = POM
Contact:
L = female solder
A = male solder
M = female crimp
C = male crimp
N = female print
D = male print
V = female elbow print
Insulator: PEEK
L = for solder or print contact
Y = for crimp contact
EGG.1T.306.CLL
= fixed socket, nut fixing, with key (G), 1T series, multipole type with 6 contacts, outer shell in chrome-plated brass,
PEEK insulator, female solder contacts.
DISCLAIMER
The information contained within this catalog and the functions offered are intended to provide information about products. All reasonable efforts have been made to ensure the accuracy of the
information. However, LEMO cannot be held responsible for any errors. LEMO does not warrant the accuracy and reserves the right to make changes to the catalog and its functions at any time without notice.
www.lemo.com
1
®
®

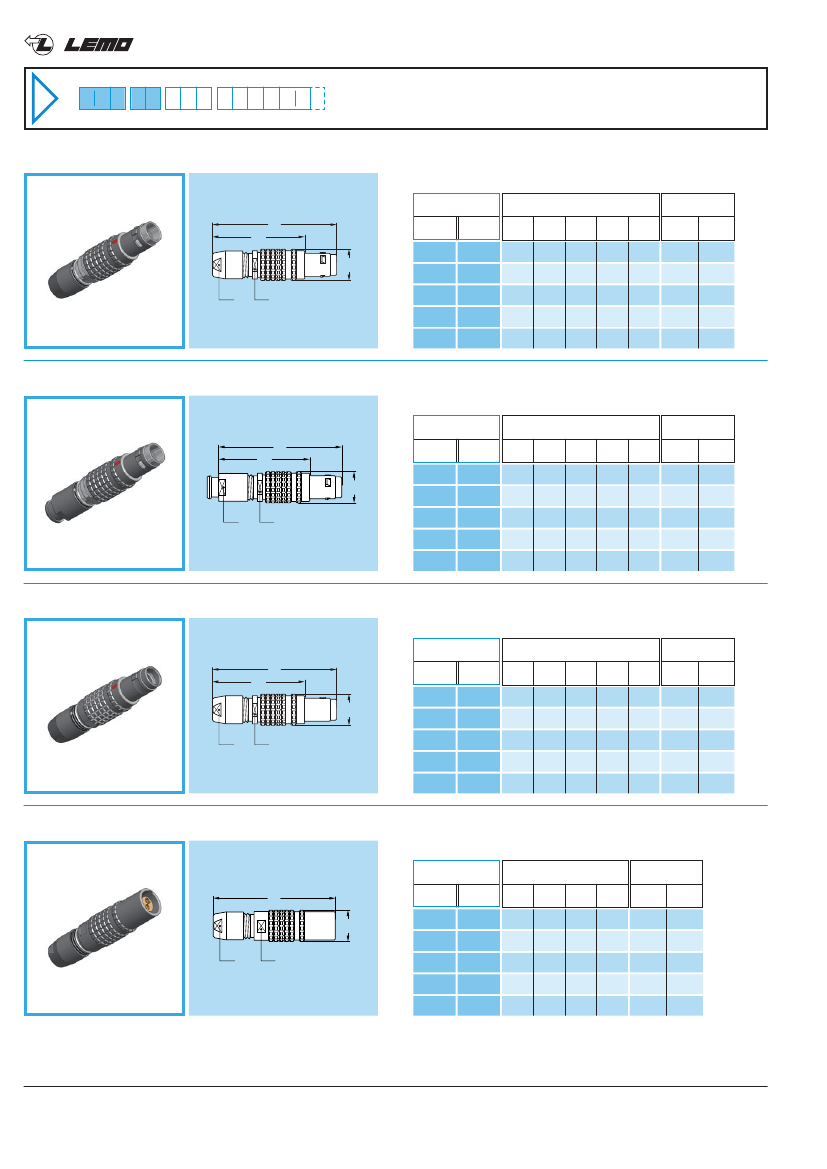

Chrome-plated housing models
FGG
Straight plug, cable collet
Reference
~L
~M
øA
Dimensions (mm)
A
L
M
S1
5.5
7.5
S2
5
7
9
12
14
Cable ø
min.
2.4
1.0
1.3
1.3
2.6
max.
3.0
5.0
6.5
8.5
10.5
Model
FGG
FGG
FGG
FGG
FGG
Series
TT
0T
1T
2T
3T
7.0 33.2 25.2
9.5 39.0 29.0
S2
S1
12.0 46.0 35.0 11.0
15.0 55.0 43.0 14.0
18.8 64.0 49.0 16.0
FGG
Straight plug, cable collet and nut for fitting a bend relief
Reference
~L
~M
øA
Dimensions (mm)
A
L
M
S1
5.5
7.5
S2
6
7
9
12
15
Cable ø
min.
2.4
1.0
1.3
1.3
2.6
max.
3.0
5.0
6.5
8.5
10.5
Model
FGG
FGG
FGG
FGG
FGG
Series
TT
0T
1T
2T
3T
7.0 32.7 24.7
9.5 38.0 28.0
S2
S1
12.0 45.0 34.0 11.0
15.0 54.0 42.0 14.0
18.8 62.0 47.0 16.0
FFG
Straight plug, non latching, cable collet
Reference
~L
~M
øA
Dimensions (mm)
A
L
M
S1
5.5
7.5
S2
5
7
9
12
14
Cable ø
min.
2.4
1.0
1.3
1.3
2.6
max.
3.0
5.0
6.5
8.5
10.5
Model
FFG
FFG
FFG
FFG
FFG
Series
TT
0T
1T
2T
3T
7.0 33.2 25.2
9.5 39.0 29.0
S2
S1
12.0 46.0 35.0 11.0
15.0 55.0 43.0 14.0
18.8 64.0 49.0 16.0
PHG
Free socket, cable collet
Reference
~L
øA
Dimensions (mm)
A
L
S1
5.5
7.5
S2
5
7
9
12
14
Cable ø
min.
2.4
1.0
1.3
1.3
2.6
max.
3.0
5.0
6.5
8.5
10.5
Model
PHG
PHG
Series
TT
0T
1T
2T
3T
7.0 32.0
9.5 38.0
S2
S1
PHG
PHG
PHG
12.0 43.5 11.0
15.0 52.0 14.0
18.8 61.5 16.0
DISCLAIMER
The information contained within this catalog and the functions offered are intended to provide information about products. All reasonable efforts have been made to ensure the accuracy of the
information. However, LEMO cannot be held responsible for any errors. LEMO does not warrant the accuracy and reserves the right to make changes to the catalog and its functions at any time without notice.
2
www.lemo.com
®
®
PHG
Free socket, cable collet and nut for fitting a bend relief
Reference
~L
øA
Dimensions (mm)
A
L
S1
5.5
7.5
S2
6
7
9
12
15
Cable ø
min.
2.4
1.0
1.3
1.3
2.6
max.
3.0
5.0
6.5
8.5
10.5
Model
PHG
PHG
Series
TT
0T
1T
2T
3T
7.0 31.5
9.5 37.0
S2
S1
PHG
PHG
PHG
12.0 42.5 11.0
15.0 51.0 14.0
18.8 60.0 16.0

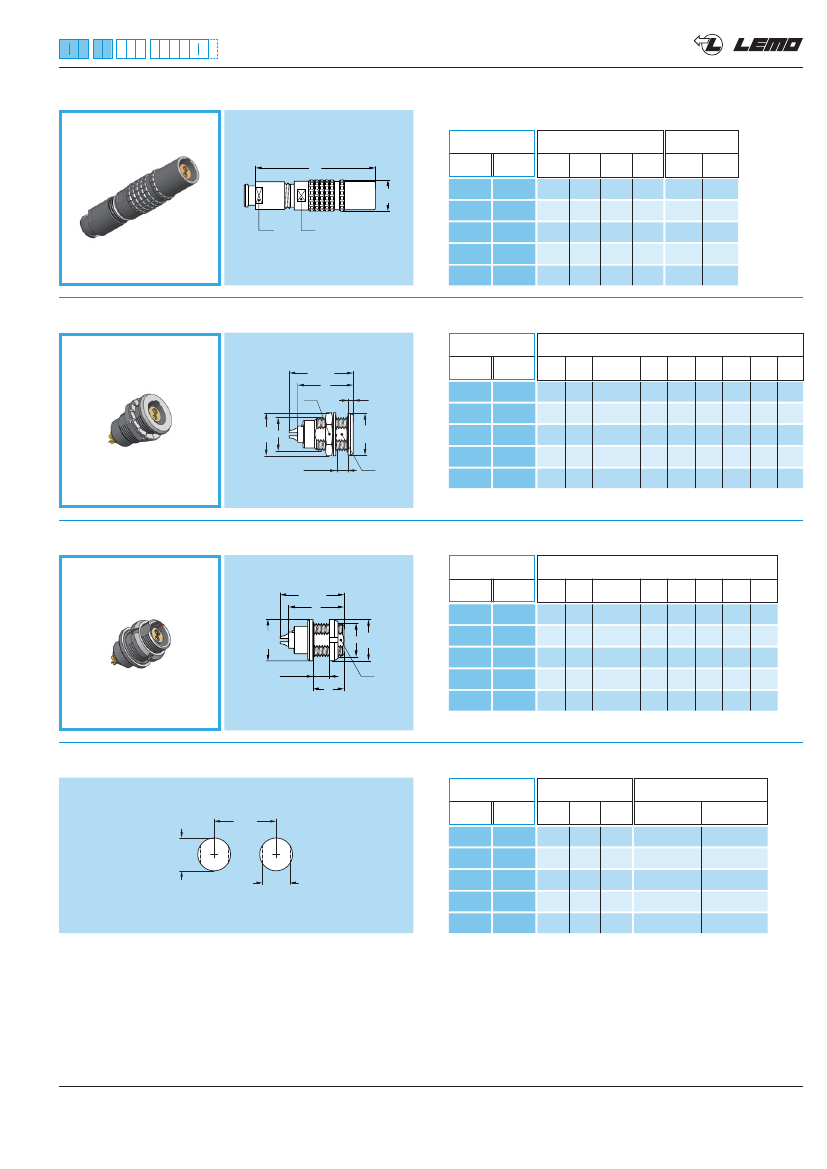

EGG
Fixed socket, nut fixing
Reference
L maxi
S2
N
M
Dimensions (mm)
A
B
e
E
L
M
N
1)
S1
6.3
8.2
S2
9
11
14
17
22
Model
EGG
EGG
Series
TT
0T
1T
2T
3T
10.0 10.2
12.0 12.5
M7x0.5 5.5 16.0 1.2 13.5
M9x0.6 6.0 21.0 1.5 19.1
øB
e
øA
EGG
EGG
EGG
15.5 16.0 M12x1.0 6.0 23.0 1.8 21.5 10.5
18.5 19.6 M15x1.0 7.5 26.5 1.8 24.6 13.5
23.5 25.1 M18x1.0 9.6 30.1 2.5 25.0 16.5
E maxi
S1
Note:
1)
maximum length with crimp contacts.
EEG
Fixed socket, nut fixing, back panel mounting
Reference
L maxi
N
Dimensions (mm)
A
B
e
E
L
N
1)
P
7
9
S1
6.3
8.2
Model
EEG
øB
Series
TT
0T
1T
2T
3T
10.0 10.0
12.0 12.0
M7x0.5 4.5 16.0 13.5
M9x0.6 6.5 21.0 19.1
øA
EEG
EEG
e
15.5 16.0 M12x1.0 6.5 23.0 21.5 10 10.5
18.5 20.0 M15x1.0 7.5 26.5 24.6 11 13.5
23.5 24.0 M18x1.0 7.5 30.1 25.0 12 16.5
E maxi
P
S1
EEG
EEG
Note:
1)
maximum length with crimp contacts.
Panel cut-out
Reference
L mini
ø C + 0.1
0
Panel cut-out
B
6.4
8.3
C
L
Mounting nut torque
Metal shell Plastic shell
1.0
2.5
4.5
6.0
9.0
0.4
0.4
0.7
0.8
1.0
Model
E
ll
E
ll
B + 0.1
0
Series
TT
0T
1T
2T
3T
7.1 12.5
9.1 14.5
E
ll
E
ll
E
ll
10.6 12.1 18.5
13.6 15.1 22.5
16.6 18.1 27.0
DISCLAIMER
The information contained within this catalog and the functions offered are intended to provide information about products. All reasonable efforts have been made to ensure the accuracy of the
information. However, LEMO cannot be held responsible for any errors. LEMO does not warrant the accuracy and reserves the right to make changes to the catalog and its functions at any time without notice.
