ERJ-12ZYJ103U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> ERJ-12ZYJ103U

ERJ-12ZYJ103U: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 0603 0.1uF 50volts X7R 10%; CategoryPassive components; File Size91KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

ERJ-12ZYJ103U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ERJ-12ZYJ103U	-	-	View	Buy Now

ERJ-12ZYJ103U Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 0.1uF 50volts X7R 10%

ERJ-12ZYJ103U Parametric

Parameter Name	Attribute value
Product Category	Thick Film Resistors - SMD
Manufacturer	Panasonic
RoHS	Details
Resistance	10 kOhms
Power Rating	750 mW (3/4 W)
Tolerance	5 %
Temperature Coefficient	200 PPM / C
Voltage Rating	200 V
Operating Temperature Range	- 55 C to + 155 C
Case Code - in	2010
Case Code - mm	5025
Type	Thick Film Resistors SMD
Qualification	AEC-Q200
Packaging	Reel
Height	0.6 mm
Length	4.5 mm
Package / Case	2010 (5025 metric)
Product	Thick Film Resistors SMD
Factory Pack Quantity	5000
Termination Style	SMD/SMT
Width	3.2 mm
Unit Weight	0.001199 oz

Preview

Download Datasheet

View All

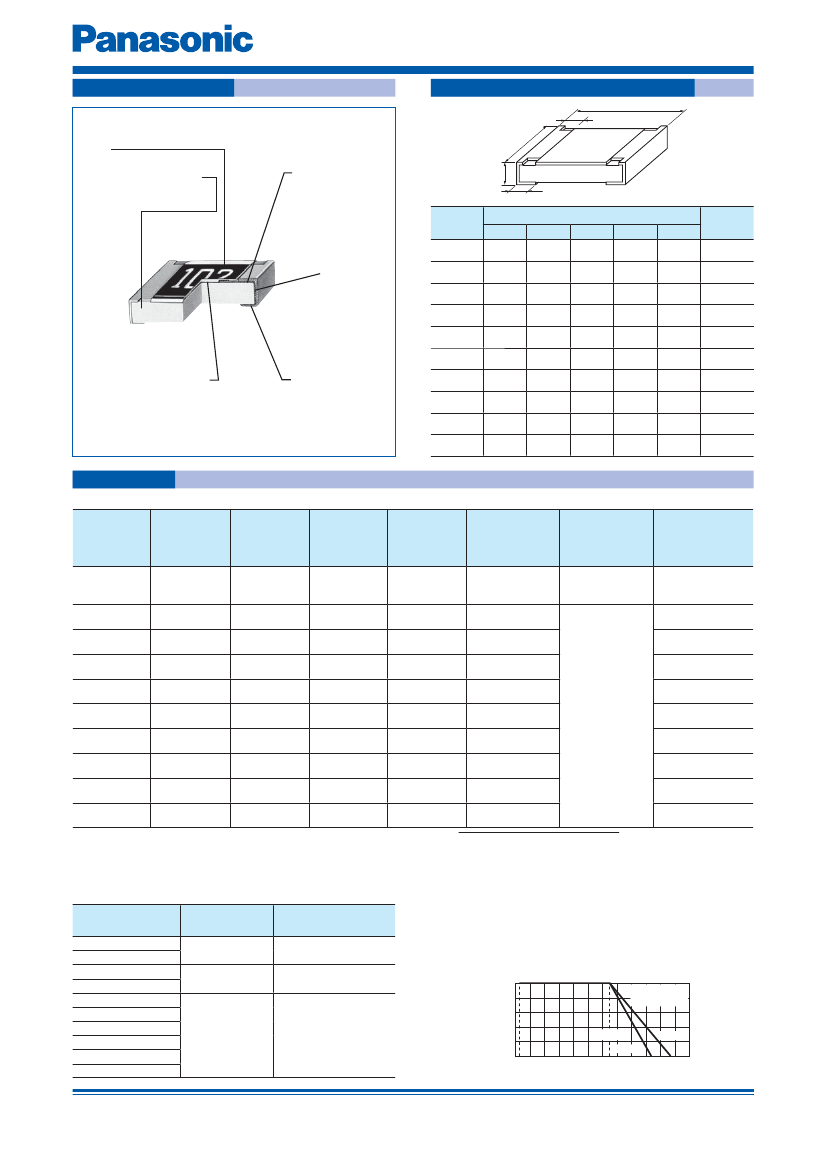

Thick Film Chip Resistors

Type:

ERJ XG, 1G, 2G, 3G, 6G,

8G, 14, 12, 12Z, 1T

Features

●

Small

size and lightweight

●

High reliability

Metal glaze thick ﬁlm resistive element and three layers of electrodes

●

Compatible with placement machines

Taping packaging available

●

Suitable for both reﬂow and ﬂow soldering

●

Reference Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B

●

AEC-Q200 qualiﬁed (Exemption ERJXG)

●

RoHS compliant

■

As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,

Please see Data Files

Explanation of Part Numbers

●

ERJXGN,

1GN, 2GE, 3GE, 6GE, 8GE, 14, 12, 12Z, 1T Type, ±5 %

Product Code

Thick Film

Chip Resistors

Size, Power Rating

Code Inch Power R.

XGN 01005 0.031 W

0.05 W

1GN 0201

0.1 W

2GE 0402

0.1 W

3GE 0603

6GE 0805 0.125 W

0.25 W

8GE 1206

0.5 W

14 1210

0.75 W

12 1812

0.75 W

12Z 2010

1T 2512

Code

Nil

Marking

Value Marking on

black side

No marking

Resistance Tolerance

Code

Tolerance

±5 %

Jumper

Code

Packaging Methods

Packaging

Pressed Carrier Taping

W8P2, 20,000 pcs.

Embossed Carrier Taping

W4P1, 40,000 pcs.

Part No.

ERJXGN

Resistance Value

The ﬁrst two digits are signiﬁcant ﬁgures of resistance and

the third one denotes number of zeros following.

Decimal Point is expressed by R as 4.7 = 4R7.

Jumper is expressed by R00.

Pressed Carrier Taping

2 mm pitch, 15,000 pcs. ERJ1GN

Punched Carrier Taping

2 mm pitch, 10,000 pcs.

Punched Carrier Taping

2 mm pitch, 20,000 pcs.

Punched Carrier Taping

4 mm pitch, 5,000 pcs.

ERJ2GE

When omitted, the rest of the P/N factors shall be moved up respectively.

(Only XGN, 1GN, 2GE type)

ERJ3GE

ERJ6GE

ERJ8GE

ERJ14

Embossed Carrier Taping

ERJ12

4 mm pitch, 5,000 pcs.

ERJ12Z

Embossed Carrier Taping

ERJ1T

4 mm pitch, 4,000 pcs.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Mar. 2015
