Astec Industry Standard
50-150 Watts

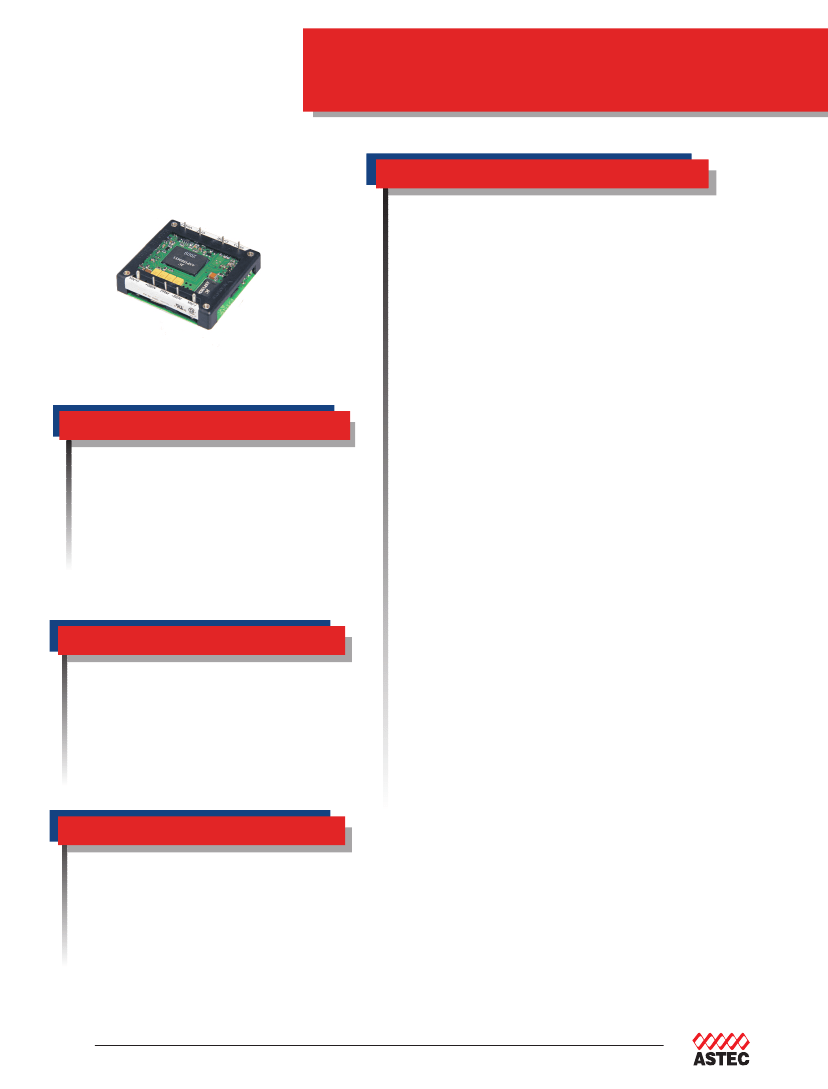

AV60C
Total Power:
Input Voltages:
No. of Outputs:
50-150 Watts
48V
Single
Electrical Specs
Input
Input range
Input Surge
Efficiency
36-75 VDC
100V / 100ms
83%@5V
Output
Load regulation
Line regulation
Ripple and noise
Output voltage
adjust range
Transient Response
• Industry standard pin-out &
performance 100°C baseplate
temperature (no derating)
• Positive and negative enable function
• Low output ripple and noise
• Remote sense compensation
• Fixed frequency switching (300 kHz)
0.2% max
0.5% max
150mV max (5V)
250mV max (15V)
±10% of nominal output
(15V)1% max deviation with
50% to 75% full load
200 µS (max) recovery
(5V)5% max deviation with
50% to 75% full load
250 µS (max) recovery
Special Features
Control
Voltage Adjust
Enable
90 to 110%
TTL compatible
(positive & negative enable options)
Environmental
Operating case temperature range:
-40°C to +100°C
Storage temperature: -55°C to +125°C
MTBF: >2 million hours
Safety
UL
CSA
TUV
UL1950
CSA22.2-950
EN60950
34
America’s (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
AV60C
Ordering Information
Input
Voltage
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
36-72V
Output
Voltage
3.3V @ 10A
5.0V @ 10A
12V @ 4.0A
15V @ 3.33A
3.3V @ 15A
5.0V @ 15A
12V @ 6.0A
15V @ 5.0A
3.3V @ 20A
5.0V @ 20A
12V @ 8.0A
15V @ 6.7A
3.3V @ 30A
5.0V @ 30A
12V @ 12.5A
15V @ 10.0A
Efficiency
81%
84%
85%
86%
81%
85%
86%
87%
81%
85%
87%
87%
81%
85%
87%
87%
Model Number
AV60C-048L-033F10
AV60C-048L-050F10
AV60C-048L-120F04
AV60C-048L-150F03
AV60C-048L-033F15
AV60C-048L-050F15
AV60C-048L-120F06
AV60C-048L-150F05
AV60C-048L-033F20
AV60C-048L-050F20
AV60C-048L-120F08
AV60C-048L-150F06
AV60C-048L-033F30
AV60C-048L-050F30
AV60C-048L-120F12
AV60C-048L-150F10
NOTES:
Enable Function
"N" = negative logic enable (without "N" = positive enable)
.50
[12.7 ]
Pin Assignments
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
9.
-Vin
Case
Enable (on/off)
+Vin
-5V Rtn
- Sense
Trim
+ Sense
+5V Out
.20 MIN.
[5.0]
NOTE
1
2.30
[58.4]
1.900
[48.26]
1
5
2
2.40
[61.0]
2.000
[50.80]
1.400
[35.56]
.600
[15.24]
3
6
7
8
Notes:
1. All specifications are typical at nominal line, full load,
and 25°C unless otherwise noted.
2. All specifications subject to change without notice.
Mechanical drawings are for reference only.
3. Please refer to the Technical Reference Notes for more
information.
4. Warranty: 1 yr
4
9
Mounting Inserts
M3 X .5 (4 places)
BOTTOM VIEW
www.astec.com
35
