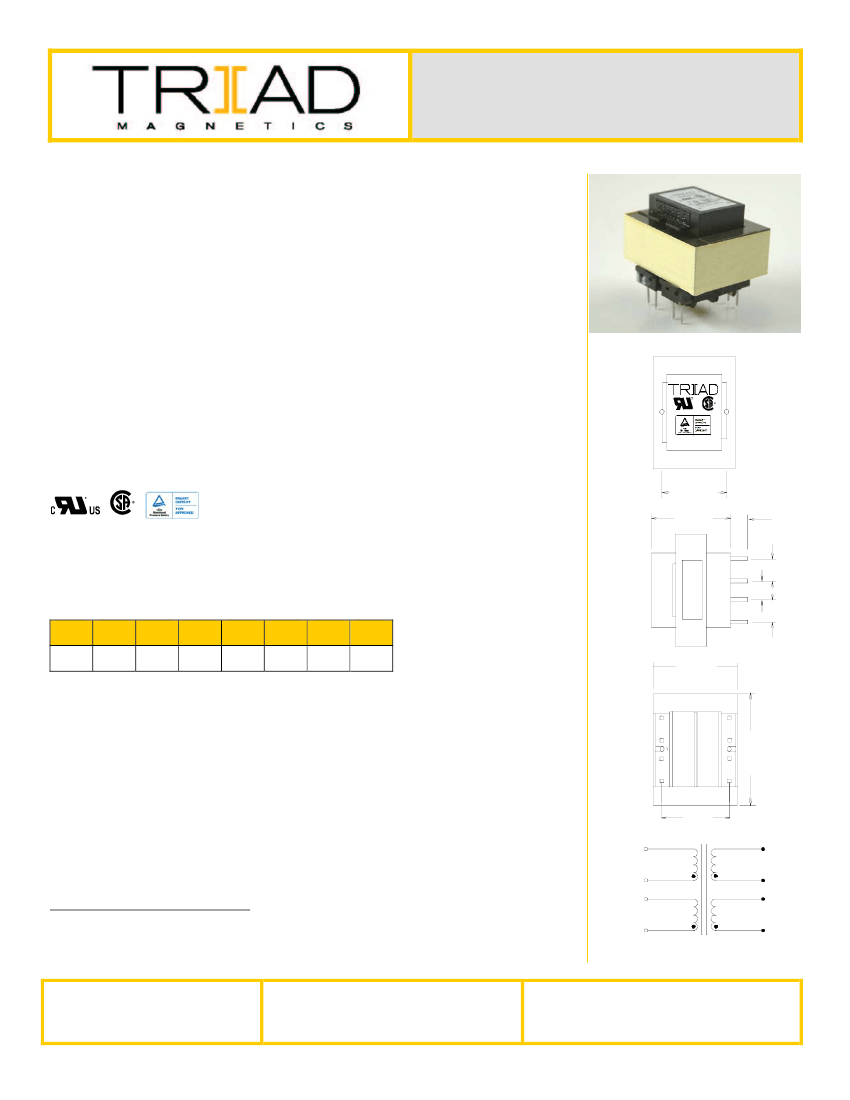

P
OWER
T
RANSFORMER
P C M
OUNT:
W
ORLD
S
ERIES
VPP20–250
Electrical Specifications (@25C)
1. Maximum Power: 5.0VA
2. Input:
Series:
230VAC, 50/60Hz;
Parallel:
115VAC, 50/60Hz
1
2
3. Output:
Series :
20.0V CT@ 0.25A;
Parallel :
10.0V @ 0.5A
4. Voltage Regulation: 25% TYP @ full load to no load
5. Temperature Rise: 30C TYP (45C MAX allowed)
6. Insulation Resistance: 100MΩ
7. Hipot: 4000VAC between primary to secondary and windings to core.
1
7
9
Construction:
Dual bobbin construction with an insulated shroud, both made of a high temperature material that exceeds
UL flammability requirements.
3
4
6
R
c
US
R
10
12
Safety:
Since the dual bobbin construction effectively reduces capacitance, electrostatic shielding is not required.
World Series Transformers are designed and manufactured to meet the following agency approvals:
A
B
C
Agency File:
UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.
UL: File E65390, UL 5085-1 and 3 (formerly UL1585), Class 2/3.
CSA: File LR 221330. C22.2 NO. 66, General Purpose.
TUV: File R72103639, EN 60950, (IEC950) information Technology Equipment.
A. Dimensions:
A
1.062
B
1.375
C
0.187
D
0.200
E
0.400
F
1.312
Units: In inches
G
1.625
H
1.000
F
EIA-17-YYWW
D
B3
E
D
B. PIN DIM. : 0.025 SQ
C. WT Lbs. : 0.37
D. Mounting Holes: 0.112 dia. x 2.0
Connections
3
:
Input:
Series – Pin 1 to Pin 6, Jumper Pin 4 to Pin 3
Parallel – Pin 1 to Pin 6, Jumper Pin 1 to Pin 4 and Pin 3 to Pin 6
Output:
Series – Pin 7 to Pin 12, Jumper Pin 9 to Pin 10
Parallel – Pin 7 to Pin 12, Jumper Pin 7 to Pin 10 and Pin 9 to Pin 12
H
XXX
G
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet the
requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for
the most current version.
1
2
6
4
3
12
10
9
7
Inherently limited. No fusing required. Class 2 not wet, Class 3 wet.
Inherently limited. No fusing required. Class 2.
3
Primary and secondary windings are designed to be connected in series or parallel. Winding are not
intended to be used independently.
1
SCHEMATIC
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
