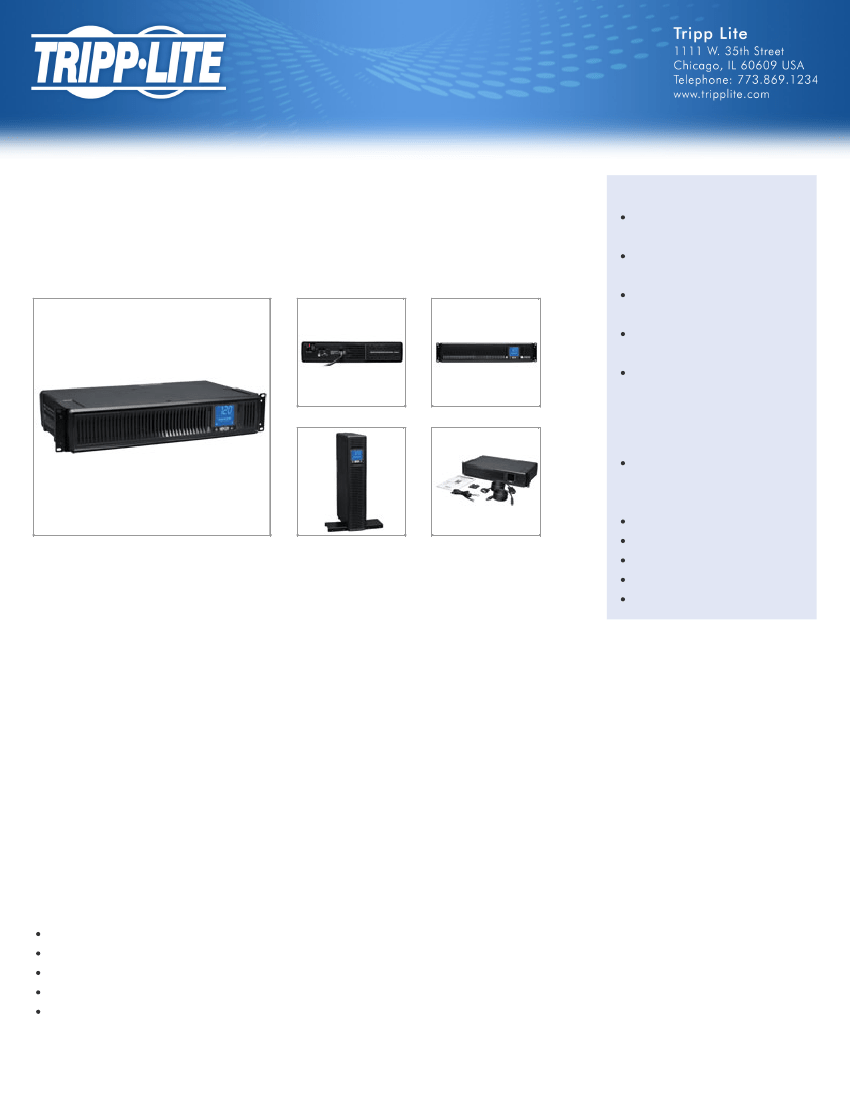

The SMART1500LCDXL SmartPro LCD 120V, 1500VA/900W Line-Interactive Uninterruptible Power Supply
provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise
Telephone cable
Mounting hardware
Owner’s Manual
that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to
battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Eight NEMA 5-15R outlets protect against surges, as well as provide up to 12 minutes of UPS battery support at half-load (450W) and 4 minutes of support at
full load (900W). You can get even more runtime by connecting an optional
BP24V15RT2U
external battery pack.
Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI
noise filtering improves your equipment’s performance and prevents damage. A 1038-joule surge suppression rating protects your equipment from harmful
power surges.
Space-saving NEMA 5-15P right-angle plug with 6-foot cord connects to any NEMA 5-15R socket. Large rotatable LCD screen with dimmer shows real-time
input voltage, load, AVR, remaining battery runtime and battery statuses at a glance. With Tripp Lite’s PowerAlert software (available via free download), the
SMART1500LCDXL enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Features
Reliable Battery Backup
Provides 1500VA/900W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
Supports 50% load (450W) up to 12 minutes and full load (900W) up to 4 minutes
97% full-load efficiency rating saves money in energy costs
Audible alarm indicates loss of utility power or low battery
Optional
BP24V15RT2U
external battery pack easily connects for expanded runtime
1/6
Optimized Outlets
8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data
Automatic Voltage Regulation (AVR)
Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power
Rotatable LCD Status Screen
Large LCD screen shows real-time input voltage, load, AVR and battery statuses
Automatically displays remaining battery runtime in minutes during power outage
Rotates for easy viewing in both horizontal and vertical installations
Dimmer switch controls brightness level
AC Line, Tel/DSL and Ethernet Surge Suppression
Surge suppression rating of 1038 joules protects connected equipment and data from harmful power surges
Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment’s performance
USB and DB9 Communication Ports and Free PowerAlert Software
HID-compliant USB port integrates with built-in power management and auto-shutdown of Windows and Mac OS X
USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
www.tripplite.com/poweralert
Flexible Installation Options
Space-saving NEMA 5-15P right-angle plug with 6-foot cord connects to any NEMA 5-15R socket
Adapts to vertical or horizontal installation without special hardware
Includes 2U brackets for rack-mount installation
Specifications
OUTPUT
Output Volt Amp Capacity (VA)
Output kVA Capacity (kVA)
Output Watt Capacity (Watts)
Nominal Output Voltage(s)
Supported
Nominal Voltage Details
Frequency Compatibility
Output Voltage Regulation (Line
Mode)
1500
1.5
900
110V; 115V; 120V
115v nominal output in battery mode
60 Hz
-18%, +8%
2/6
Output Voltage Regulation (Battery
Mode)
Output Receptacles
Output AC Waveform (AC Mode)
Output AC Waveform (Battery Mode)
+/- 5%
(8) 5-15R
Sine wave
PWM sine wave
INPUT
Rated input current (Maximum Load)
Nominal Input Voltage(s) Supported
UPS Input Connection Type
Input Circuit Breakers
UPS Input Cord Length (ft.)
UPS Input Cord Length (m)
Recommended Electrical Service
Input Phase
8.5A
120V AC
5-15P; Right-Angled
10A
6
1.8
15A 120V
Single-Phase
BATTERY
Full Load Runtime (min.)
Half Load Runtime (min.)
External Battery Pack Compatibility
DC System Voltage (VDC)
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Expandable Runtime
4 min. (900w)
12 min. (450w)
BP24V15RT2U
(limit 1)
24
Less than 4.5 hours from 10% to 90%
See RBC Selector for replacement battery information
Yes
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction
Undervoltage Correction
Severe Undervoltage Correction
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
Input voltages between 128 and 147 are reduced by 12%
Input voltages between 93 and 107 are boosted by 14%
Input voltages between 75 and 92 are boosted by 30%
