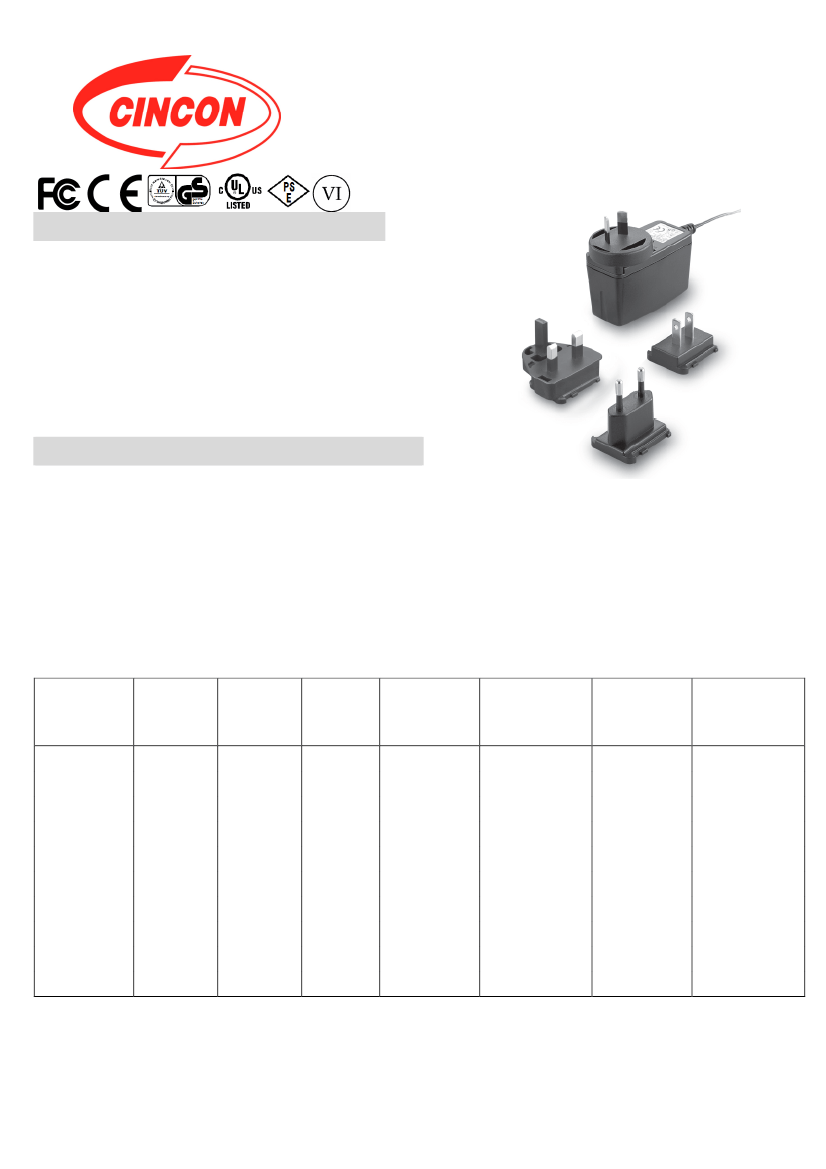

V19
TRG10R SERIES
10W SWITCHING
ADAPTER
Features
* Universal Input: 90~264Vac
* Interchangeable AC Plugs
* Meets EN55022 Class “B” and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
*
Meet CoC Tier 2 & DoE Level VI
(Output cable length
≦
1800mm)
* No Load Power Consumption<75mW
Ordering information
TRG10RXXX - XX
Model No.
DC Plug Type
E
OVP
XX
DC Cable Length and Type
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1220mm with Ferrite Core
13: 1800mm with Ferrite Core
* 18AWG / UL1185
OUTPUT
MODEL
TRG10R050
TRG10R059
TRG10R060
TRG10R075
TRG10R090
TRG10R120
TRG10R136
TRG10R150
TRG10R180
TRG10R240
VOLTAGE
5V
5.9V
6V
7.5V
9V
12V
13.6V
15V
18V
24V
OUTPUT
CURRENT
1.6A
1.5A
1.5A
1.2A
1.1A
0.85A
0.75A
0.7A
0.55A
0.4A
RIPPLE &
NOISE
NOTE 1
VOLTAGE
ACCURACY
NOTE 2
LINE
REGULATION
NOTE 3
LOAD
REGULATION
NOTE 4
AVERAGE
EFFICENCY min.
NOTE 5
50mVp-p
1%
1%
1%
1%
1%
1%
1%
1%
1%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±4%
±3%
±3%
±3%
±2%
±2%
±2%
±2%
±2%
±2%
77.37%
78.12%
81.57%
81.57%
82.14%
82.32%
82.32%
82.49%
82.14%
81.96%
Specifications are subject to change without notice.
1
V19
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Input Current ………………….……………...................................0.4A max.
Inrush Current ……….......................Cold Start @25
℃
40A max. @ 240Vac
Leakage Current …………………………………………….…… 0.25mA max

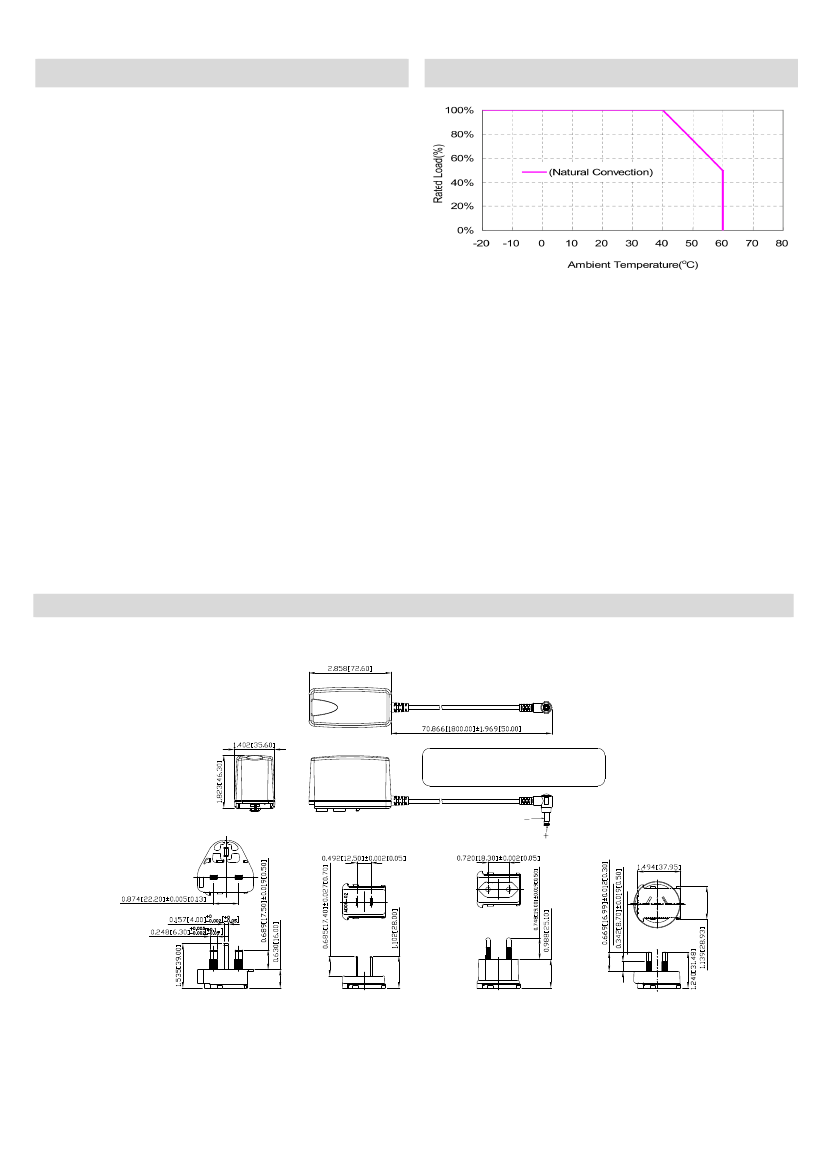

TRG10R Series Derating Curve
OUTPUT SPECIFICATIONS:
Holdup Time ……………………………………………… 10mS typ. @115Vac
Short Circuit Protection …………….…………… Continuous(Auto Recovery)
Over Voltage Protection ………………................. TVS Component to Clamp
Temperature Coefficient ……………………..............................… ±0.05%/℃
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation measured from 100Vac to 240Vac full load.
4. Load regulation measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. Average Efficiency measured at 25%,50%,75%,100% load and input
voltage is 115Vac / 230Vac.
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output = 4,242VDC
Operating Temperature ............................. -20 ~ 60
℃
(see Derating Curve)
Storage Temperature ………………………………..........……........ -20~85
℃
Humidity …………………...….......……….... 93% RH max. Non condensing
Cooling …………………………………………………….. Natural Convection
Switching Frequency ………………………………………….. 67KHz typ.
MTBF ……….… MIL-HDBK-217F, GB, 25
℃
/115VAC ……. 200K hrs min.
Altitude …………………………………………………………………… 2000m
Dimensions ………..…….. 2.858x1.823x1.402lnches (72.6x46.3x35.6mm)
Weight ……………………………………………………… 130g(0.29 Pounds)
SAFETY AND EMC:
Emission and lmmunity ……….… EN55022 Class B, FCC Part 15 Class B
EN61000-6-3, EN61000-3-2, EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety …………………………Class II, IEC60950-1, EN60950-1, UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
UNIT: inches(mm)
DC Plug type: V+ ─●)─ V-
DC Plug:Right Angle(ψ5.5/ψ2.1)L12mm
18AWG / 1800mm
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
