ELG-75-C500A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> ELG-75-C500A

ELG-75-C500A: DescriptionLED Power Supplies 500mA 75-150V 75W CC IP65 Io Adj w/pot; CategoryPower/power management; File Size315KB，11 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com

Download Datasheet Parametric View All

ELG-75-C500A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ELG-75-C500A	-	-	View	Buy Now

ELG-75-C500A Overview

LED Power Supplies 500mA 75-150V 75W CC IP65 Io Adj w/pot

ELG-75-C500A Parametric

Parameter Name	Attribute value
Product Category	LED Power Supplies
Manufacturer	MEAN WELL
RoHS	Details
Operation Mode	Constant Current (CC)
Output Current-Channel 1	500 mA
Output Voltage-Channel 1	75 V to 150 V
Output Power	75 W
Input Voltage	100 VAC to 305 VAC, 142 VDC to 431 VDC
Dimming	With Dimming
Number of Outputs	1 Output
Mounting Style	Chassis
Length	156 mm
Width	63 mm
Height	35.5 mm
Commercial/Medical	Commercial
Dimensions	156 mm x 63 mm x 35.5 mm
IP Rating	IP65, IP67
Open Frame/Enclosed	Enclosed
Product	LED Power Supplies
Factory Pack Quantity	16
Unit Weight	1.764 lbs

Preview

Download Datasheet

View All

60~75W Constant Current Mode LED Driver

ELG-75-C

series

IS 15885(Part 2/Sec13)

110

(for DA-Type only)

IP65 IP67

THOMAS SAMUEL

Type HL

R-41027766

(for 700A/1050A only)

■

Features

Constant Current mode output

Metal housing design with functional Ground

Built-in active PFC function

■

Applications

LED street lighting

LED harbor lighting

LED bay lighting

LED greenhouse lighting

LED flood lighting

Type HL for use in Class I, Division 2

hazardous

(Classified) location.

No load / Standby power consumption

<0.5W

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer;

3 in 1 dimming (dim-to-off); Smart timer dimming; DAL

Typical lifetime>50000 hours

5 years warranty

■

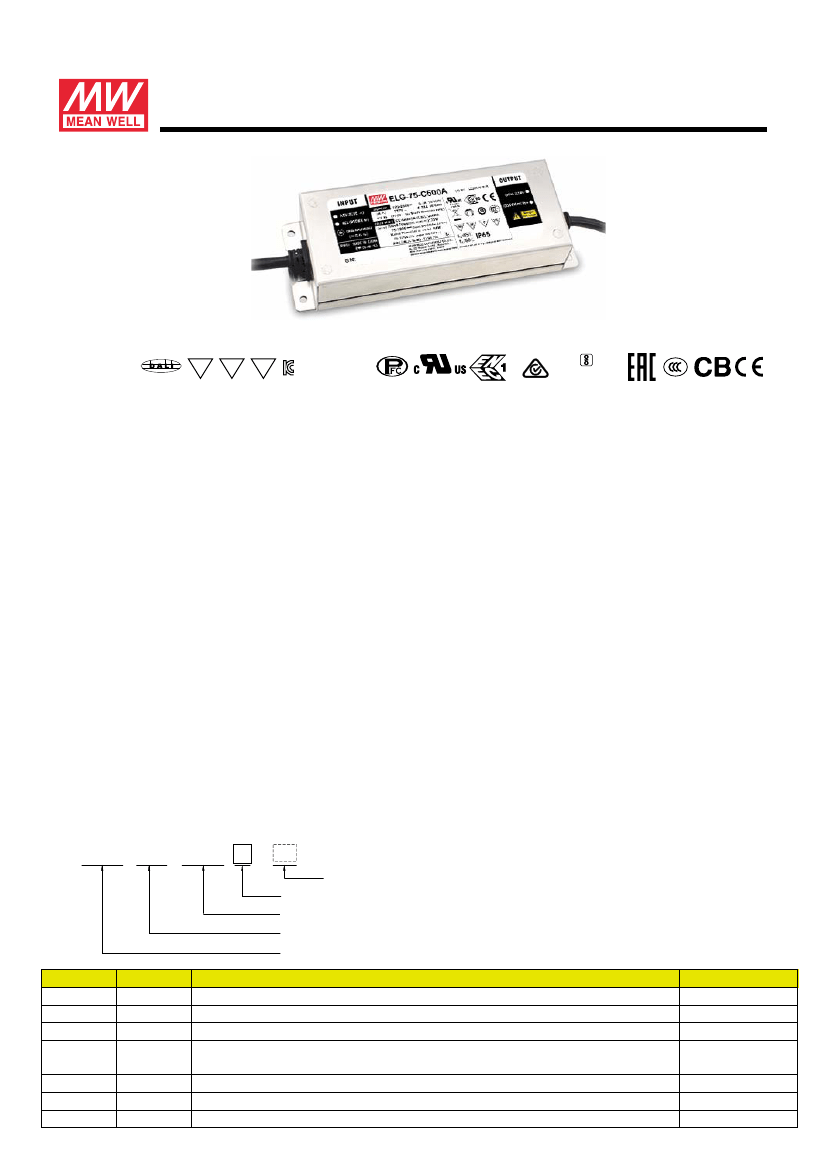

Description

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and

high voltage output. ELG-75-C operates from 100~305VAC and offers models with different

rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%,

with the fanless design, the entire series is able to operate for -40

℃

~+85

℃

case temperature under

free air convection. The design of metal housing and IP67/IP65 ingress protection level allows

this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function

options, such as dimming methodologies, so as to provide the optimal design flexibility for LED

lighting system.

■

Model Encoding

ELG - 75 - C500 A -

Blank:2-wire input for standard model

Input wiring type

3Y:3-wire input for standard model

Function options

Rated output current (350/500/700/1050/1400mA)

Output wattage

Series name

Function

Note

In Stock

By request

In Stock

{

Type

Blank

IP Level

IP67

IP65

IP67

IP65

IP67

Io fixed.

Io adjustable through built-in potentiometer.

3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)

Io adjustable through built-in potentiometer &

3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)

DALI control technology.

Built-in Smart timer dimming function by user request.

Built-in Smart timer dimming and programmable function.

File Name:ELG-75-C-SPEC 2018-09-30

60~75W Constant Current Mode LED Driver

※

DAL

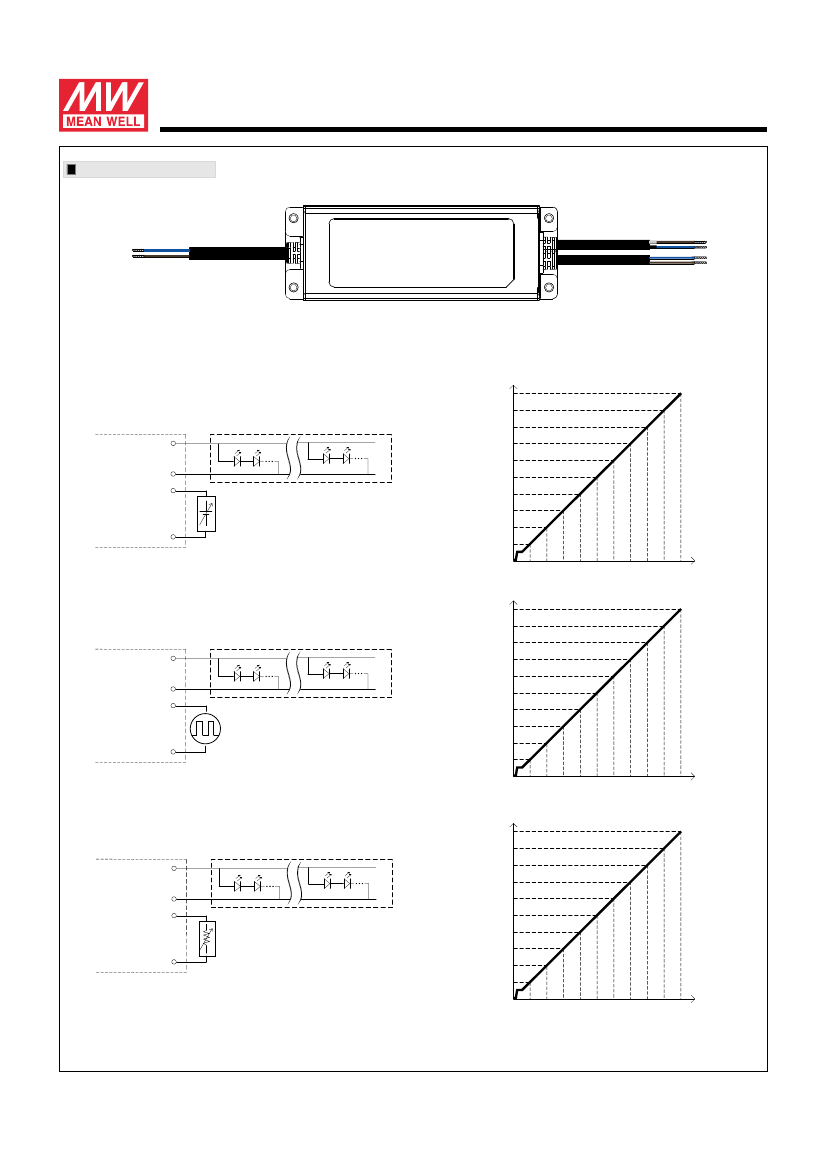

Interface (primary side; for DA-Type)

Apply DALI signal between DA+ and DA-.

DAL

protocol comprises 16 groups and 64 addresses.

First step is fixed at 8% of output.

ELG-75-C

series

※

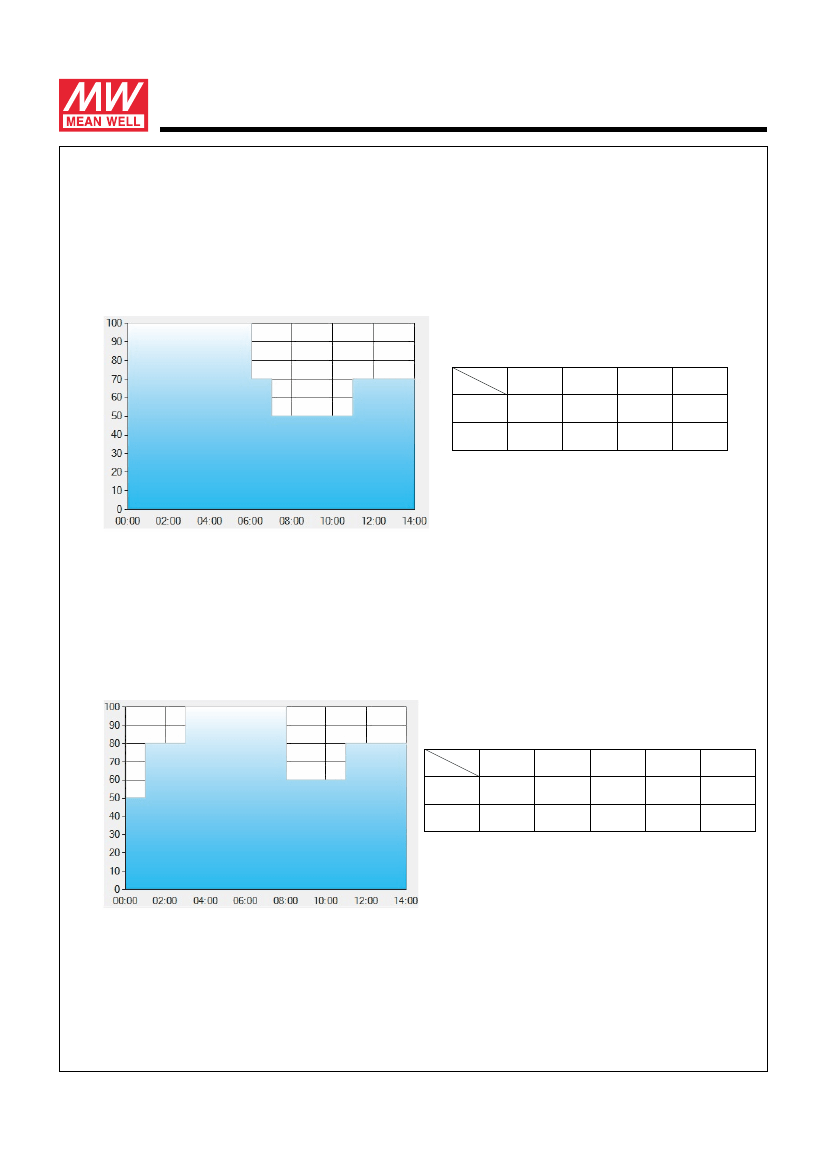

Smart timer dimming function (for Dxx-Type by User definition)

MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current level to perform up to 14

consecutive hours. 3 dimming profiles hereunder are defined accounting for the most frequently seen applications. If other options may be needed,

please contact MEAN WELL for details.

Ex :

◎

D01-Type: the profile recommended for residential lighting

Set up for D01-Type in Smart timer dimming software program:

Dimming Level(%)

TIME**

LEVEL**

06:00

100%

07:00

70%

11:00

50%

---

70%

Operating Time(HH:MM)

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.

Example: If a residential lighting application adopts D01-Type, when turning on the power supply at 6:00pm, for instance:

[1] The power supply will switch to the constant current level at 100% starting from 6:00pm.

[2] The power supply will switch to the constant current level at 70% in turn, starting from 0:00am, which is 06:00 after the power supply turns on.

[3] The power supply will switch to the constant current level at 50% in turn, starting from 1:00am, which is 07:00 after the power supply turns on.

[4] The power supply will switch to the constant current level at 70% in turn, starting from 5:00am, which is 11:00 after the power supply turns on.

The constant current level remains till 8:00am, which is 14:00 after the power supply turns on.

Ex:

◎

D02-Type: the profile recommended for street lighting

Set up for D02-Type in Smart timer dimming software program:

Dimming Level(%)

TIME**

LEVEL**

01:00

50%

03:00

80%

8:00

100%

11:00

60%

---

80%

Operating Time(HH:MM)

**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.

Example: If a street lighting application adopts D02-Type, when turning on the power supply at 5:00pm, for instance:

[1] The power supply will switch to the constant current level at 50% starting from 5:00pm.

[2] The power supply will switch to the constant current level at 80% in turn, starting from 6:00pm, which is 01:00 after the power supply turns on.

[3] The power supply will switch to the constant current level at 100% in turn, starting from 8:00pm, which is 03:00 after the power supply turns on.

[4] The power supply will switch to the constant current level at 60% in turn, starting from 1:00am, which is 08:00 after the power supply turns on.

[5] The power supply will switch to the constant current level at 80% in turn, starting from 4:00am, which is 11:00 after the power supply turns on. The

constant current level remains till 6:30am, which is 14:00 after the power supply turns on.

File Name:ELG-75-C-SPEC 2018-09-30
