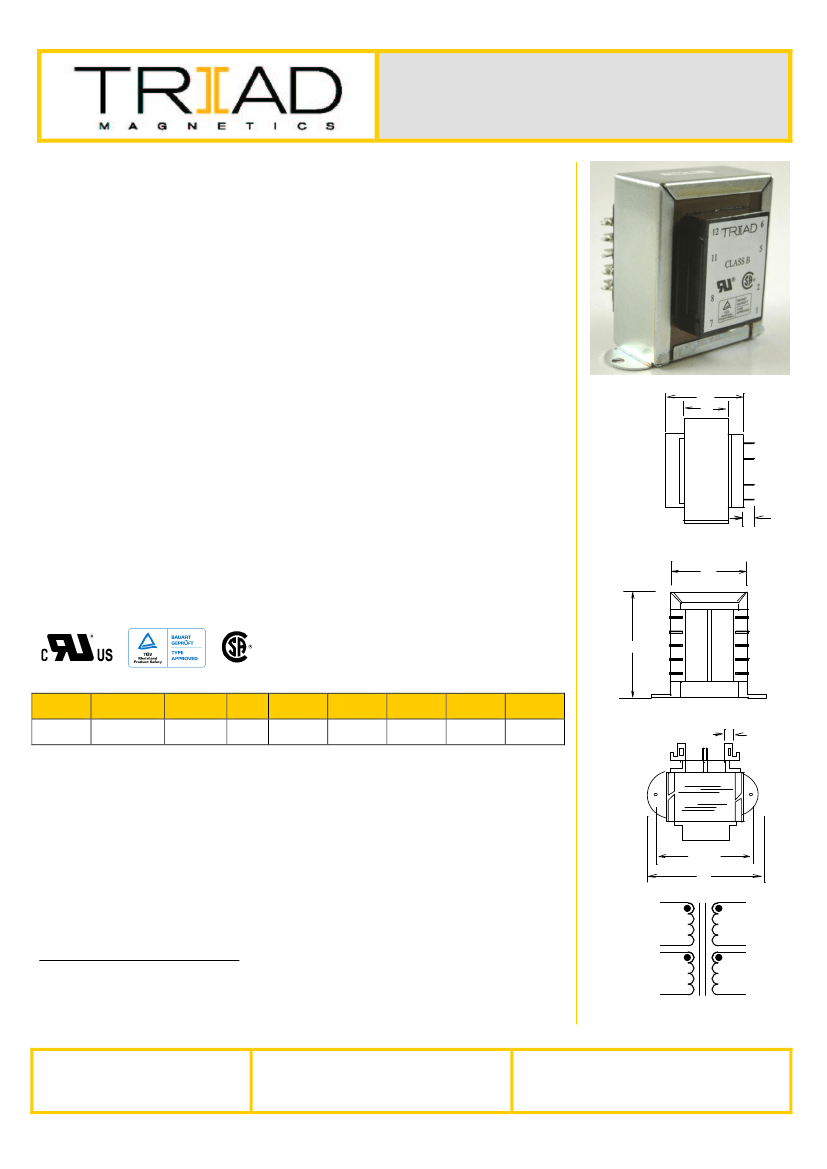

POWE R TRANS FORME R
CHASSIS MOUNT :
QUICK-CONNECT WORLD SERIES
™
VPS24-1000
Electrical Specifications (@25C)
1. Maximum Power: 25VA
2. Primary -
Series:
230VAC@50/60Hz;
Parallel:
115VAC@50/60Hz
3. Secondary -
Series
1
:
24V CT@ 1.0A;
Parallel
2
:
12.0V @ 2.0A
4. Voltage Regulation: 25% TYP @ full load to no load
5. Temperature Rise: 30C TYP (45C MAX allowed)
6. Insulation Resistance: 100MΩ
7. Recommended Fuse
3
:
Series: Littelfuse p/n 313 1.25HXP, 1.25A 250V, slow blow, ¼ x 1 ¼
or,
Cooper Bussmann p/n BKMDL-1 ¼, 1.25A 250V, ¼ x 1 ¼
Parallel: Littelfuse p/n 313 2.5HXP, 2.5A 250V, slow blow, ¼ x 1 ¼
or,
Cooper Bussmann p/n BKMDL-2 ½, 2.5A 250V, ¼ x 1 ¼
D
B
Construction:
Dual bobbin construction with an insulated shroud, both made of a high temperature
material that exceeds UL flammability requirements.
Safety:
These units are designed with 4000VAC isolation between the primary and
secondary, and also, between each winding and the core.
C
Agency File:
UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.
File E65390, UL 5085-1 and 3 (formerly UL1585), Class 2/3
CSA: File LR 221330. C22.2 NO. 66, General Purpose.
TUV Certificate No.: R72103639, EN60950, Information Technology
H
A
6
5
2
12
11
8
7
A. Dimensions:
H
2-5/16
W
2-13/16
D
1-15/16
A
2
B
1-1/8
C
5/16
T
3/16
Unit: In inches
MW
2-3/8
ML
-
1
T
B. Mounting Hole Size: 3/16”
C. WT Lbs. : 1.25
D. Terminal Size: 0.187”x 0.020”
Connections
4
:
Series – 6 and 1, Jumper 5 to 2
Parallel – 6 and 1, Jumper 6 to 2 and 5 to 1
Output:
Series – 12 and 7, Jumper 11 to 8
Parallel – 12 and 7, Jumper 12 to 8 and 11 to 7
Input:
RoHS Compliance:
As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’
website for the most current version.
1
2
MW
W
6
6
5
2
1
SCHEMATIC
12
11
8
7
Non-Inherently limited. Class 3.
Non-Inherently limited. Class 2 not wet, Class 3 wet.
3
Fuse must be used on
secondary
as conditions of acceptability for UL Class2/3 operation.
4
Primary and secondary windings are designed to be connected in series or parallel. Winding are not
intended to be used independently.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: October 13, 2016
