Specification
Cells Per Unit
Voltage Per Unit
Capacity
Weight
Maximum Discharge Current
Internal Resistance
Operating Temperature Range
UPS 12580 is specially designed for high efficient discharge
application. Its characteristics are high energy density, small
footprint and high discharge efficiency. It can be used for more
than 260 cycles at 100% discharge in cycle service, up to 5 years
in standby service.
6
12
580W @ 5min-rate to Watt(1.60V)/pcs @25
Approx. 2.83 kg(6.24 lbs)
130A(5sec)
Approx. 12.5m
Discharge: -15 ~50 ( 5 ~122 )
Charge: -15 ~40 ( 5 ~104 )
Storage: -15 ~40 ( 5 ~104 )
25
3 (77
5 )
13.5 to 13.8 VDC/unit Average at 25
3.76A
UPS12580
(77
)
TUV Asia Pacific Ltd.
Taiwan Branch
Nominal Operating Temperature Range
Float Charging Voltage
Recommended Maximum Charging
Current Limit
Equalization and Cycle Service
Self Discharge
(77
)
TUV Asia Pacific Ltd.
Taiwan Branch
Terminal
Container Material
14.4 to 15.0 VDC/unit Average at 25 (77 )
CSB Batteries can be stored for more than 6 months at
25 (77 ). Please charge batteries before using. For
higher temperatures the time interval will be shorter.
F2-Faston Tab 250
ABS(UL 94-HB) & Flammability resistance of
(UL 94-V0) can be available upon request.
CSB-manufactured
VRLA
(Absorbent
Glass Mat
type)
batteries are UL-recognized
components under UL1989.
CSB is also certified by
ISO 9001 and ISO 14001.
Dimensions :
Unit: mm (inch)
Overall Height (H)
98.3±1.0(3.87±0.04)
Container height (h)
94.0±1.0 (3.70±0.04)
Length (L)
151.0±2.0 (5.95±0.08)
Width (W)
65.0±1.0 (2.56±0.04)
(http://www.csb-battery.com)
The system of manufacturer was certified
by TUV CERT according to ISO 9001,ISO 14001.
Constant Current Discharge Characteristics
F.V/Time
1.60V
1.67V
1.70V
1.75V
1.80V
1.85V
2MIN
95.1
85.3
81.1
73.6
66.1
59.4
3MIN
75.5
71.0
68.3
62.6
56.8
49.7
4MIN
63.4
60.2
58.4
53.7
48.8
43.5
5MIN
54.1
51.7
50.4
47.2
43.2
39.3
6MIN
47.2
45.6
44.6
42.2
39.3
36.3
7MIN
42.3
41.2
40.4
38.5
36.3
32.9
8MIN
38.5
37.6
37.1
35.6
33.2
30.3
10MIN
32.3
31.7
31.3
30.1
28.4
26.1
Unit:A (25
20MIN
18.3
18.1
18.0
17.5
16.9
15.8
23.0
22.7
22.7
22.1
21.1
19.6
,77
30MIN
13.2
13.0
12.9
12.7
12.4
11.7
)
60MIN
7.42
7.33
7.24
7.11
6.92
6.61
90MIN
5.31
5.20
5.17
5.03
4.91
4.70
15MIN
Constant Power Discharge Characteristics
F.V/Time
1.60V
1.67V
1.70V
1.75V
1.80V
1.85V
2MIN
908
877
859
808
750
674
3MIN
774
748
730
688
640
586
4MIN
663
643
630
601
568
514
5MIN
580
565
556
538
505
463
6MIN
516
504
499
481
458
424
7MIN
469
462
453
441
419
384
8MIN
427
420
414
402
383
352
10MIN
361
356
353
343
329
305
Unit:W (25
15MIN
261
261
258
254
245
229
20MIN
208
206
206
203
197
186
,77
30MIN
150
149
149
148
145
138
)
60MIN
84.2
84.0
83.6
83.1
81.7
78.9
90MIN
59.3
58.9
58.8
58.4
57.6
55.6
Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.

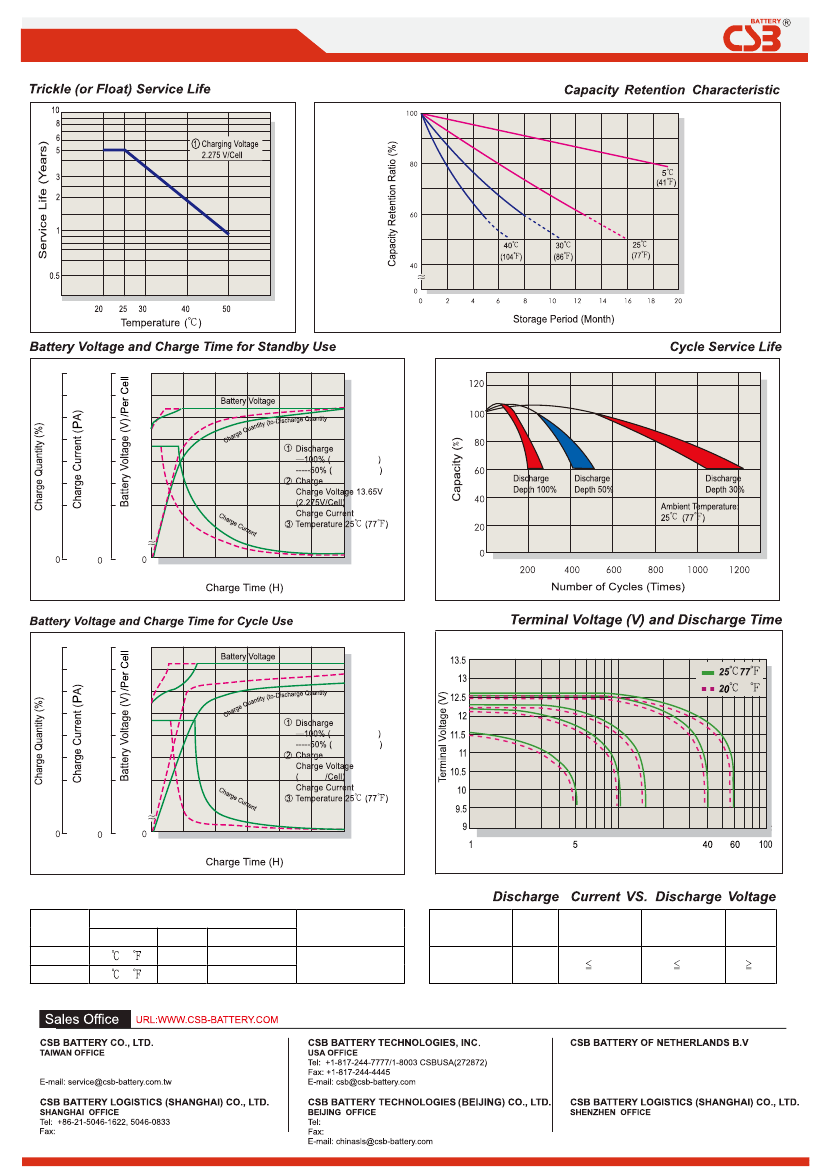

RA1406
UPS 12580
140
120
100
80
60
40
20
0.049
0.042
0.035
0.028
0.021
0.014
0.007
2.60
2.40
2.20
2.00
1.80
1.60
1.40
0.025PA
1PWx15Min
1PWx7.5Min
)Ratio
0
3
6
9
12
15
18
140
120
100
80
60
40
20
0.049
0.042
0.035
0.028
0.021
0.014
0.007
2.60
2.40
2.20
2.00
1.80
1.60
1.40
2.45V
1PWx15Min
1PWx7.5Min
14.70V
0.025PA
1PW
0.62PW
0.47PW
0.25PW 0.16PW
)Ratio
68
0
3
6
9
12
15
18
Charging Procedures
Application
Cycle Use
Standby
Charge Voltage(V/Cell)
Temperature
25 (77 )
25 (77 )
Set Point
2.45
2.275
Allowable Range
2.40~2.50
2.25~2.30
Max.Charge Current
0.1PA
Final Discharge
Voltage V/Cell
Discharge
Power(W)
1.75
0.1P>(W)
1.70
0.1P (W)<0.25P
1.60
0.25P (W)<1.0P
1.30
(W) 1.0P
P: For single cell wattage at 15 minute rate to 1.67V per cell.
