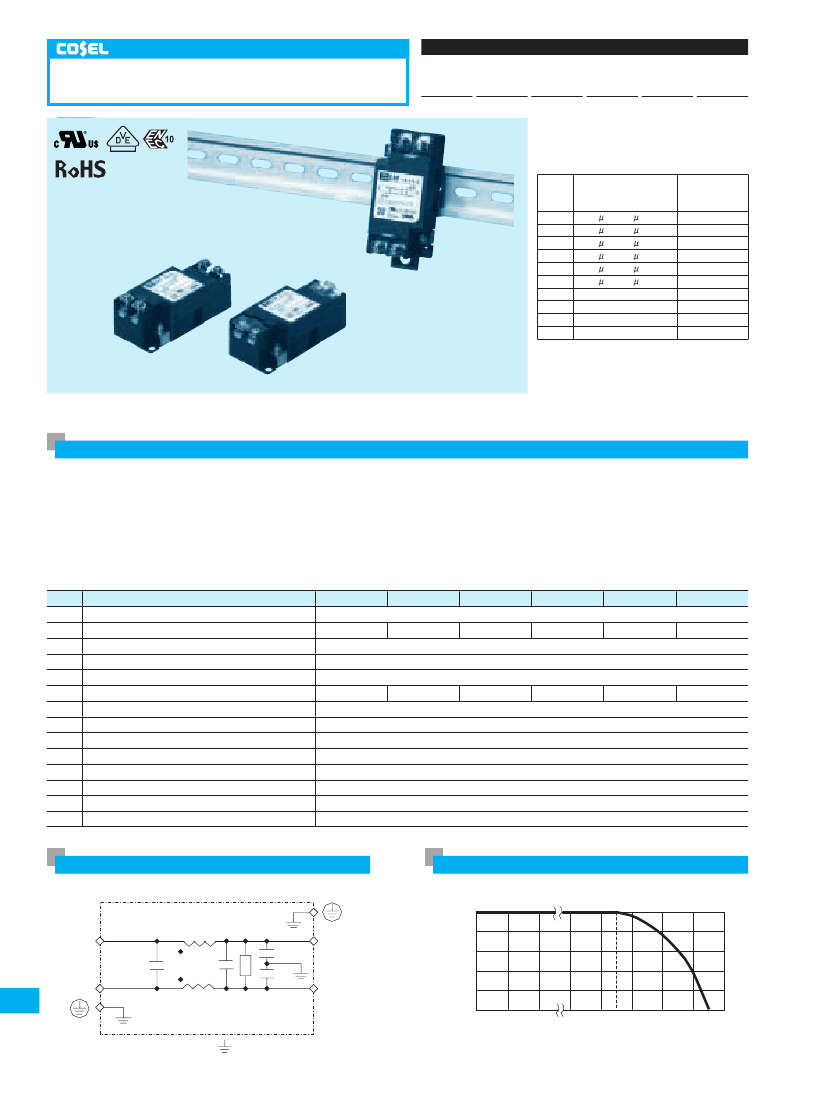

Small,High-voltage pulses common mode noise filters (1-Stage filter)
Ordering information
EAP series
EAP -10 -472
1
2
3
4
-O
1Model
Name
2Rated
Current
3Line
to ground capacitor code:See table 1.1.
table1.1 Line to ground capacitor code
Code
000
101
221
331
471
681
102
222
332
472
*
Line to ground
Leakage Current
capacitor
(Input 125/250V 60Hz)
(nominal value)
5
A/ 10 A max
Not Provided
100pF
12.5 A/ 25 A max
A/ 50 A max
220pF
25
330pF
37.5 A/ 75 A max
A/100 A max
470pF
50
75.5 A/150 A max
680pF
0.13mA/0.25mA max
1000pF
0.25mA/0.5 mA max
2200pF
0.38mA/0.75mA max
3300pF
0.5 mA/1.0 mA max
4700pF
When the line to ground capacitor code is
different, the attenuation characteristic is
different.
The terminal cover is retracted inside the unit
DIN rail installation type is option
4Options
D :DIN rail installation type
*
The dimensions change when the option is set.
Refer to External view.
Features of EAP series
Small,High-voltage pulses common mode noise filters(1-Stage filter)
-
Single Phase 250 VAC
-Small-size
-Quick
and easy push-down terminal
Just connect the wires,push-down and tighten
the screws with a screwdriver
EAP-03-472
3
EAP-06-472
6
EAP-10-472
10
EAP-16-472
16
EAP-20-472
20
EAP-30-472
30
Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Items
Rated Voltage[V]
Rated Current[A]
Test Voltage (Terminal-Mounting Plate)
Isolation Resistance (Terminal-Mounting Plate)
Leakage current 125/250V 60Hz
DC registance
Safety agency approval temperatures
Operating temperature
Operating humidity
Storage temperature/humidity
Vibration
Impact
Safety agency approvals
Case size (without projection) /Mass
AC 1f 250 / DC250
2,500 VAC (Cutoff Current = 20mA), 1minute at room temperature and humidity
500 VDC 500MW min at room temperature and humidity
0.5mA/1.0mA max
180mW max
110mW max
40mW max
20mW max
10mW max
6mW max
-25 to +85C (Refer to Derating Curve)
-40 to +85C (Refer to Derating Curve)
20 to 95%RH (Non condensing)
-40 to +85C/20 to 95%RH (Non condensing)
10 to 55Hz, 19.6m/s
2
(2G), 3min. Period, 1hour each X, Y and Z axis
196.1m/s
2
(20G), 11ms Once each X, Y and Z axis
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
39X30X85 mm (WXHXD) /170g max (Option : -D refer to external view)
Circuit Diagram
Case
Derating Curve
100
1
3
Load Factor [%]
80
60
40
20
0
-40
CY : Line to ground capacitor
: Mounting Plate
-30
-20
40
50 55 60
70
80
90
CY
LINE
LOAD
CY
Noise
Filter
2
4
Ambient Temperature [C]
I-6
EAC,EAM,EAP series
External view

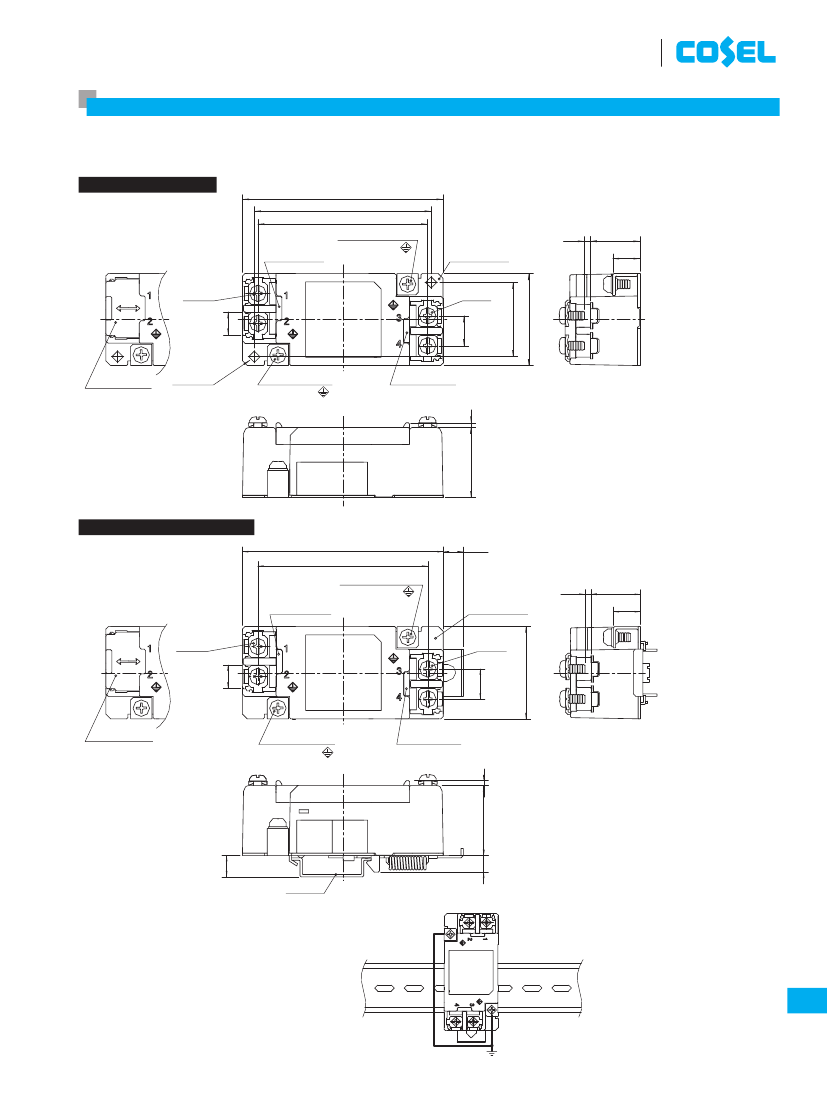

This product is shipped in the following condition,because it is equipped with push-down terminals.
1The
terminal cover is retracted inside the unit.
2The
screws for connecting the terminals are held in the up right position.
Standard Type
85
75
±0.5
72
M4
Protection Earth
Terminal cover
Mounting Plate
2.5
21
11.5
2-M4
9.7
Input
Terminal
31.5
±0.5
Name Plate
12.7
Terminal cover
2-f4.8
Mounting Hole
M4
Protection Earth
Terminal cover
¶
Closed the terminal cover
2
¶
Tolerance :
±1
¶
Mass : 170g or less
¶
Mounting Plate : Iron (surface finishing:nickel plating) =1.0
¶
Case PBT
¶
Dimensions in mm
¶
Terminal block screw tightening torque M4 1.6N m(16.9kgf
30
39
2-M4
Output
Terminal
cm)max
DIN rail installation Type
85
72
M4
Protection Earth
Terminal cover
Mounting Plate
2.5
21
11.5
8.5
+2
-1
9.7
Terminal cover
¶
Closed the terminal cover
M4
Protection Earth
Terminal cover
2
12.7
¶
Tolerance :
±1
¶
Mass : 170g or less
¶
Mounting Plate : Iron (surface finishing:nickel plating) =1.0
¶
Case PBT
¶
Dimensions in mm
¶
Terminal block screw tightening torque M4 1.6N m(16.9kgf
30
39
2-M4
Input
Terminal
Name Plate
2-M4
Output
Terminal
cm)max
(9)
DIN rail
¡
Note when installing the noise
filter on a DIN rail.
When the noise filter is grounded through the
DIN rail, the proper noise attenuation may not be
achieved.
Be sure to connect the protection earth (PE) of
the noise filter body to the earth.
DIN rail
Name Plate
7
Noise
Filter
I-7
