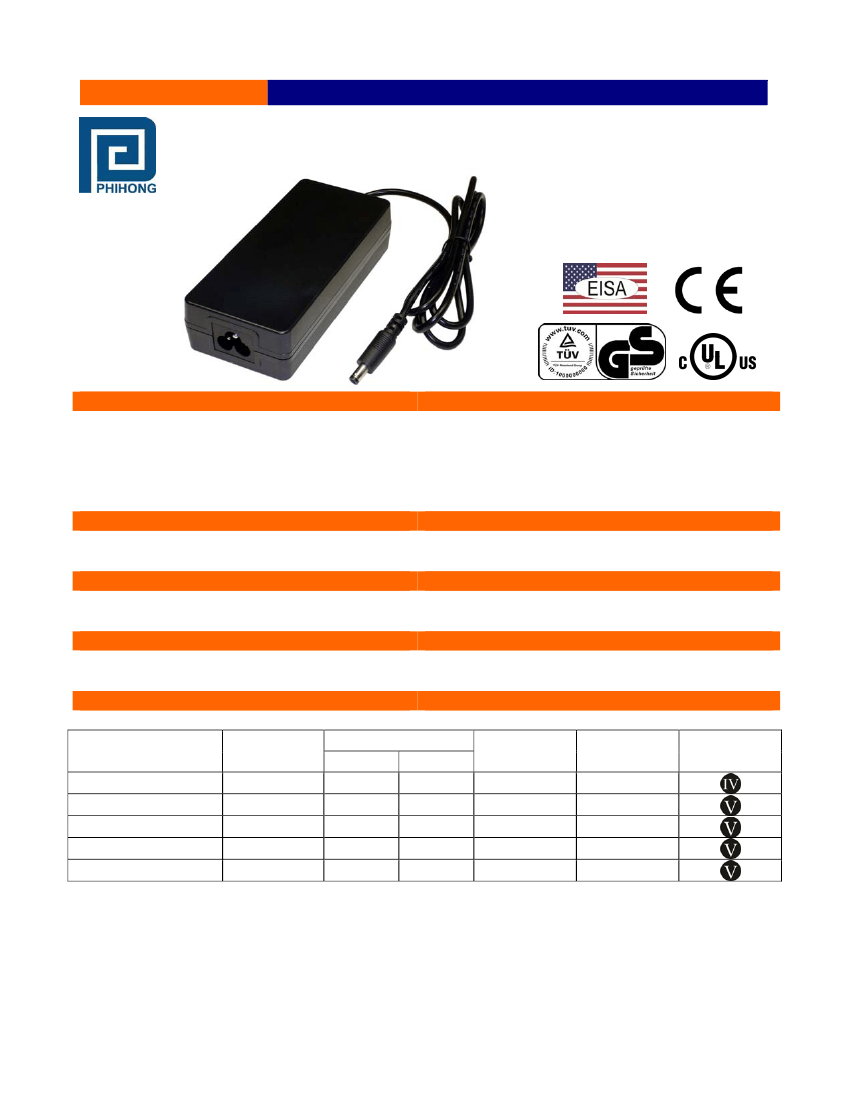

60 Watt Universal 3-Wire Input Adapter
PSAA60M Power Supply Meets EISA & Ecodesign Requirements
Features
Low Cost
Efficiency Level V Compliance
(1)
Class B EMI
Ecodesign ErP Directive 2009/125/EC
level 2 annex 1b Compliant
(1)
Applications
Portable Equipment
Peripherals
Safety Approvals
CE
TUV
Mechanical Characteristics
Length: 130mm (5.12in)
Width: 60mm (2.36in)
Output Specifications
Model
PSAA60M-120
PSAA60M-150
PSAA60M-180
PSAA60M-240
PSAA60M-480
DC Output
Voltage
+12V
+15V
+18V
+24V
+48V
Load
Min.
0A
0A
0A
0A
0A
Non-vented/Spill Proof Case
No Load Power Consumption < 0.5W
Low Profile Design
EISA Compliant
Networking
Gaming Machines
cUL/UL
Height: 32mm (1.30in)
Weight: 300g (10.58oz)
Ripple
(2)
P-P (max.)
120mV
150mV
180mV
240mV
480mV
Max.
5.0A
4.0A
3.3A
2.5A
1.25A
Regulation
Line & Load
±5%
±5%
±5%
±5%
±5%
Efficiency
Level
(3)
(1) Excludes 12V model which remains Level IV. Products not meeting requirements for Ecodesign Directive may not longer be
shipped to the European Union for commercial or consumer purposes.
(2) Measured after 10 minutes warm up at 25°C with 12-inch twisted pair terminated with a 10uF capacitor and 0.1uF ceramic in
parallel.
(3) 15V-48V models may be marked as Level IV despite Level V compliance. If Level V marking is required, please contact
Phihong directly to ensure stock is marked accordingly.
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the
most up-to-date specifications and contact information.
Revision 1/31/2012
PSAA60M Characteristics
Input:
AC Input Voltage Rating
100 to 240V AC
WWW.PHIHONG.COM
Emissions
FCC Part 15 Class B
EN55022 Class B
VCCI Class B
AC Input Frequency
47 to 63Hz
Immunity
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
EN61000-3-2
Input Current
1.6A at 100V AC
0.7A at 240V AC
Inrush Current
90A maximum at 100V AC
150A maximum at 240V AC
(Cold Start at ambient 25°C)
Over-Voltage Protection
Circuit will latch the auto-restart.
Leakage Current
3.5mA maximum at 254V AC and 60Hz
Over-Current Protection
Output current over 5.5-7.5A then circuit will latch
Input Power Saving
< 0.5W at no load
Short-Circuit Protection
If output shorts then circuit will auto-restart
Output:
Output Power
60W maximum
Isolation
Primary to Secondary: 500V DC >100M OHM
Efficiency
Meets Level V efficiency requirements
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 3000V AC for 1 min., 10mA
Primary to F.G.: 1500V AC for 1 min., 10mA
Environmental:
Temperature
Operation
Non-operation
Humidity
0 to +40°C
-20 to +80°C
10 to 90%
DC Output Connector
2.1 x 5.5 x 9.5mm Center Positive Barrel

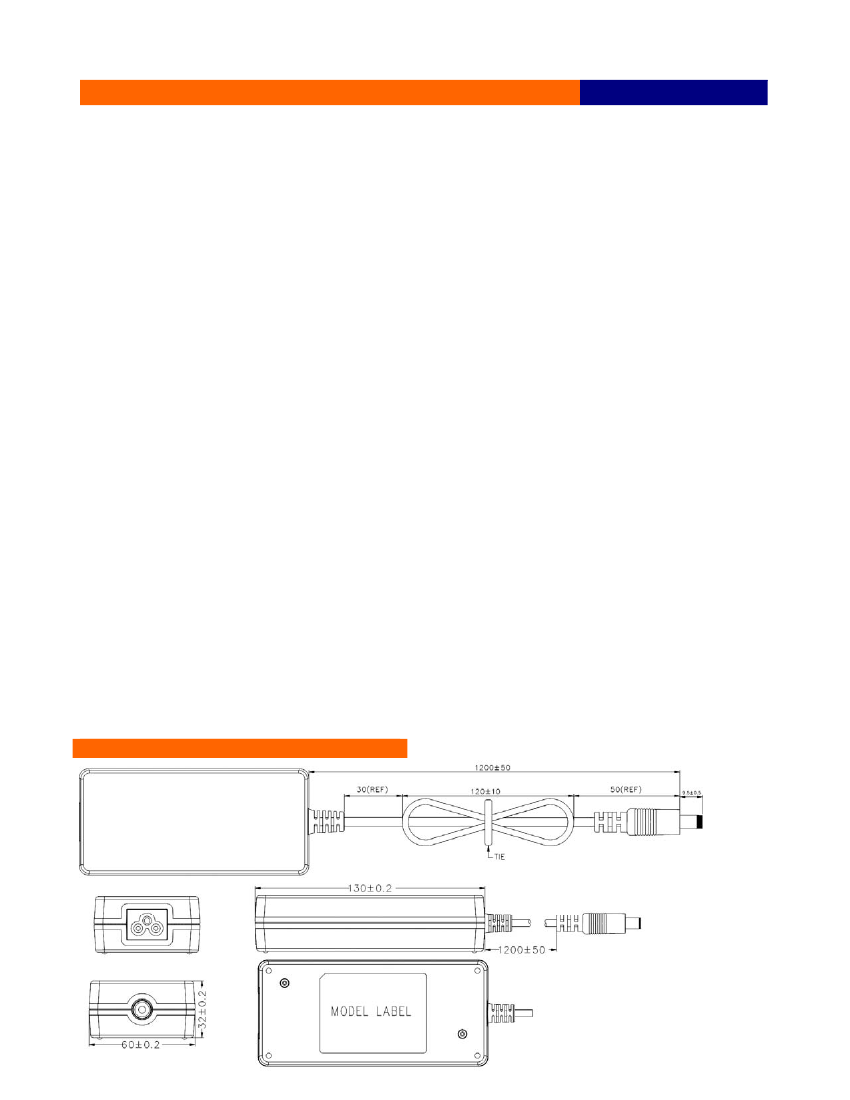

Dimension Diagram Unit: mm (inch)
