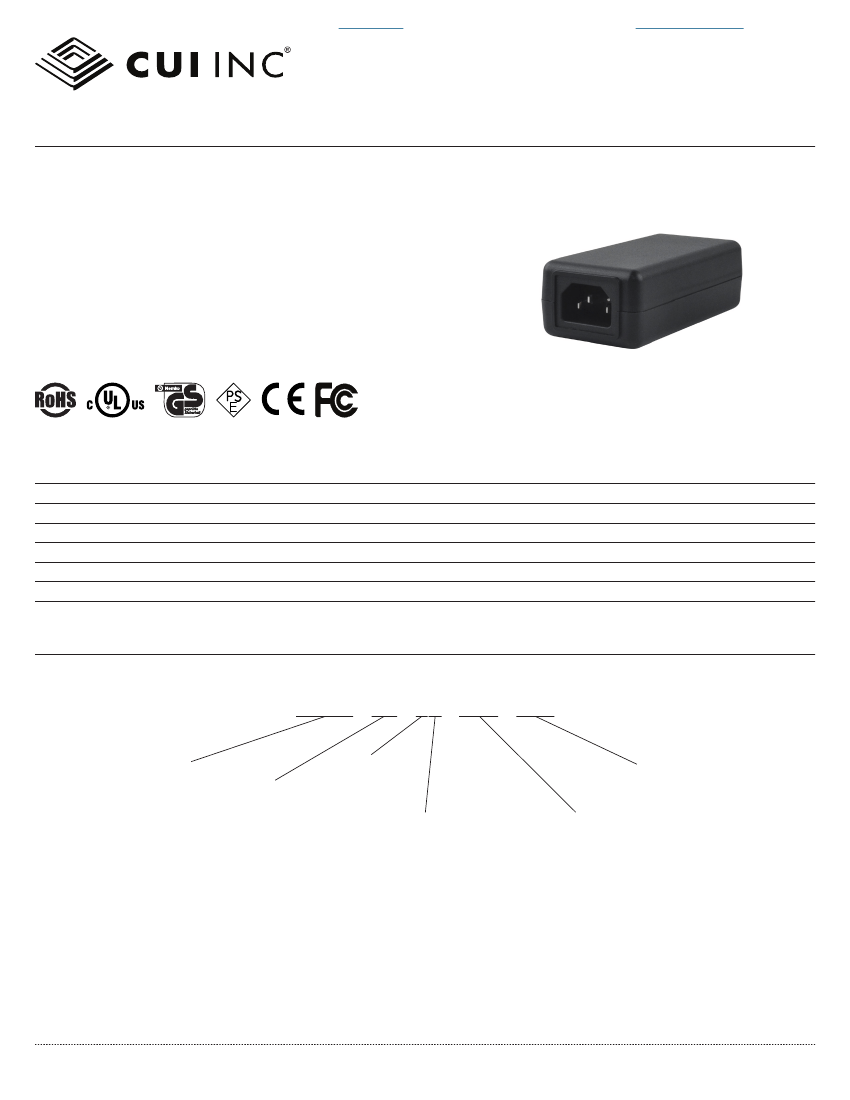

SERIES:
SDI18-U
│
DESCRIPTION:
AC-DC POWER SUPPLY
FEATURES
• up to 18 W continuous power
• DoE Level VI, CoC Tier 2 efficiency
• no load power consumption < 0.075 W
• compact size
• universal input voltage range
• over voltage, over current, and short circuit protections
• UL/cUL, GS, CE, PSE safety approvals
• certified to 60950-1 and 62368-1 standards
MODEL
SDI18-5-U
SDI18-5.9-U
SDI18-9-U
SDI18-12-U
SDI18-15-U
SDI18-24-U
Notes:
output
voltage
(Vdc)
output
current
max
(A)
output
power
max
(W)
ripple
and noise
1
max
(mVp-p)
efficiency
level
2
5
5.9
9
12
15
24
3
3
2.2
1.6
1.3
0.8
15
17.7
19.8
19.2
19.5
19.2
100
100
100
120
150
240
VI
VI
VI
VI
VI
VI
1. At full load, nominal input, 20 MHz bandwidth oscilloscope, each output terminated with 0.1 μF multilayer ceramic and 10 μF low ESR electrolytic capacitors.
2. CoC Tier 2 compliant
PART NUMBER KEY
SDI18
-
XX
- UX
-
XXX
-
CXX
Base Number
Output Voltage
AC Inlet Type:
IEC320/C14
Reserved for Custom
Configurations
DC Plug Type:
XXX = See output plug options
on page 5 for more details
Input Cable:
“Blank” = No Cable
C = North America input cable
2 = Europe input cable
3 = United Kingdom input cable
4 = Australia input cable
5 = China input cable
6 = South Korea input cable
7 = Brazil input cable
8 = South Africa input cable
9 = Japan input cable
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SDI18-U
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
2 of 6
INPUT
parameter
voltage
frequency
current
inrush current
leakage current
no load power consumption
at 230 Vac
at full load
at 100 Vac, full load, 25°C, cold start
at 230 Vac, full load, 25°C, cold start
conditions/description
min
90
47
typ
max
264
63
0.48
50
60
3.5
0.075
units
Vac
Hz
A
A
A
mA
W
OUTPUT
parameter
regulation
hold-up time
conditions/description
5 Vdc output model
all other models
at full load
10
min
typ
±6
±5
max
units
%
%
ms
PROTECTIONS
parameter
conditions/description
output shut down
5 Vdc output model
5.9 Vdc output model
9 Vdc output model
12 Vdc output model
15 Vdc output model
24 Vdc output model
output shut down, auto recovery
5 Vdc output model
5.9 Vdc output model
9 Vdc output model
12 Vdc output model
15 Vdc output model
24 Vdc output model
output shut down, auto recovery
min
typ
max
12
12
16
22
32
45
7
6
5
5
4
2.5
units
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
A
A
A
A
A
A
over voltage protection
over current protection
short circuit protection
SAFETY & COMPLIANCE
parameter
isolation voltage
isolation resistance
safety approvals
EMI/EMC
MTBF
RoHS
conditions/description
input to output at 10 mA for 1 minute
input to frame ground at 10 mA for 1 minute
input to output at 500 Vdc
input to frame ground at 500 Vdc
UL/cUL (60950-1, 62368-1), GS, PSE
FCC Part 15B Class B, CE
as per Telcordia SR-332, 25°C
yes
300,000
hours
10
10
min
typ
3,000
1,500
max
units
Vac
Vac
MΩ
MΩ
ENVIRONMENTAL
parameter
operating temperature
storage temperature
operating humidity
storage humidity
non-condensing
non-condensing
conditions/description
min
0
-20
20
10
typ
max
40
80
80
90
units
°C
°C
%
%
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SDI18-U
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
3 of 6
MECHANICAL
parameter
dimensions
inlet plug
weight
conditions/description
100 x 50 x 33
IEC320/C14
without ac cord
170
g
min
typ
max
units
mm

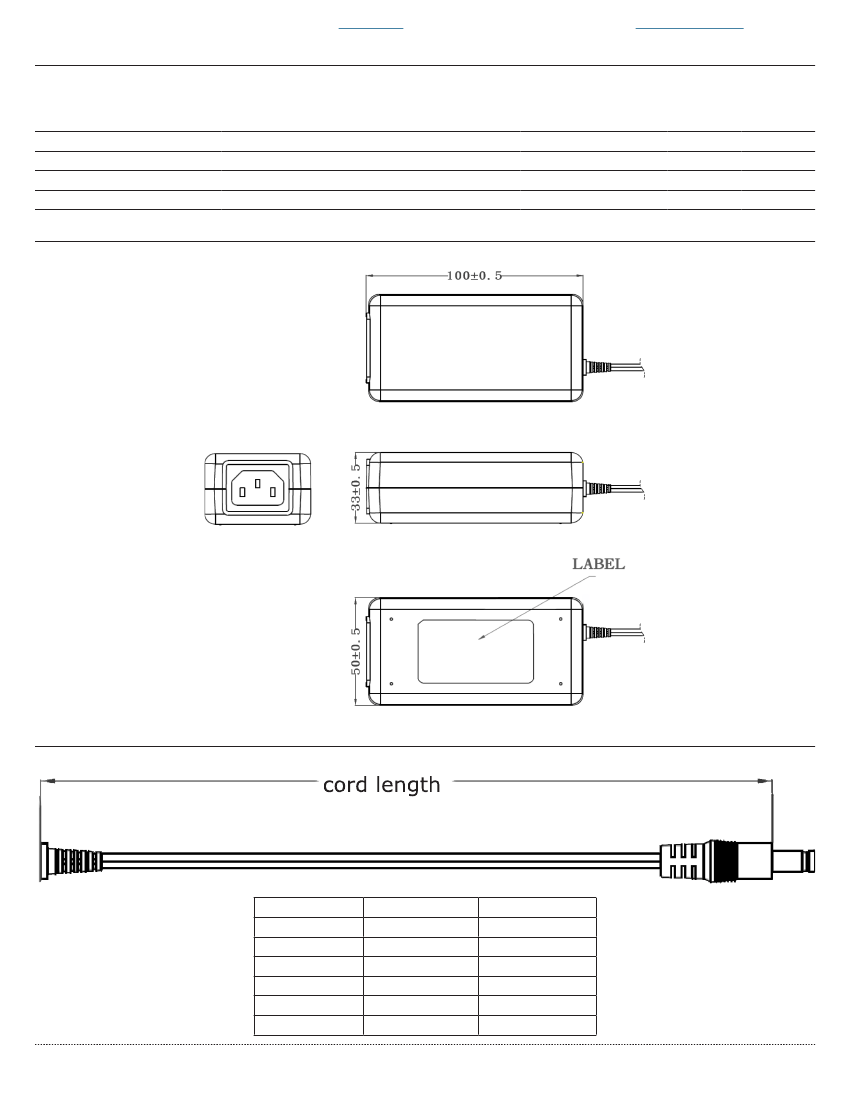

MECHANICAL DRAWING
units: mm
tolerance: ±1.0 mm
DC CORD
units: mm
Table 1
MODEL NO.
SDI18-5-U
SDI18-5.9-U
SDI18-9-U
SDI18-12-U
SDI18-15-U
SDI18-24-U
CABLE
UL2468, 16 AWG
UL2468, 16 AWG
UL2468, 18 AWG
UL2468, 20 AWG
UL2468, 22 AWG
UL2468, 22 AWG
cui.com
CORD LENGTH
1,500 mm ±30
1,200 mm ±30
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SDI18-U
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
4 of 6

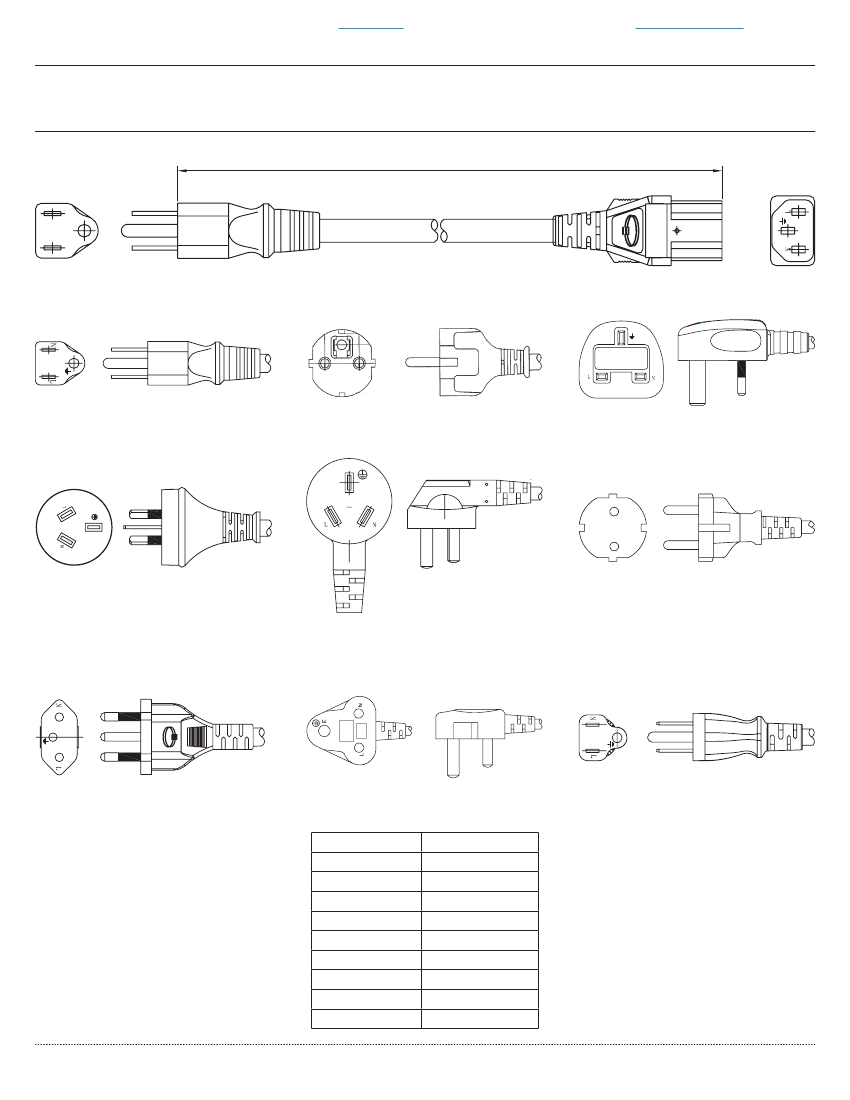

AC CORD
units: mm
cord length
NORTH AMERICA
EUROPE
UNITED KINGDOM
AUSTRALIA
CHINA
SOUTH KOREA
BRAZIL
SOUTH AFRICA
JAPAN
Table 2
AC INPUT
North America
Europe
United Kingdom
Australia
China
South Korea
Brazil
South Africa
Japan
CORD LENGTH
1,830 mm ±30
1,830 mm ±30
1,830 mm ±30
1,830 mm ±30
1,830 mm ±30
1,830 mm ±50
1,830 mm ±30
1,830 mm ±50
1,830 mm ±30
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SDI18-U
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
5 of 6
DC PLUG TYPE PART NUMBER KEY
XXX
Plug Polarity:
P = Center Positive
N = Center Negative
Plug Code:
X = Choose a code from the
options below
Plug Angle:
“blank” = Straight
R = Right Angle
Plug Polarity
Center Pos.
●
●
●
●
●
●
●
●
●
●
N/A
Center Neg.
●
●
●
●
●
●
●
●
●
●
N/A
Code
Option
5
6
7
8
9
10
11
12
13
14
ST
Type
Standard
Standard
Standard
Standard
Standard
Locking
Locking
EIAJ-1
EIAJ-2
EIAJ-3
A
Dimensions (mm)
B
2.1
2.5
1.35
1.35
1.05
2.1
2.5
0.7
1.7
1.7
C
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
5.5
5.5
3.5
3.8
3.8
5.5
5.5
2.35
4.0
4.75
Plug Angle
Straight
●
●
●
●
●
●
●
●
●
●
N/A
Right
●
●
●
●
●
N/A
N/A
●
●
●
N/A
Stripped & Tinned
Note: 1. Contact CUI for additional plug options
Standard
C
EIAJ
C
B
A
A
B
C
B
A
A
C
B
Straight
Right Angle (R)
Straight
Right Angle (R)
Locking
C
Stripped & Tinned
25±5
5±5
10±2
A
B
cui.com
