Features
Unregulated
Converters
Description
●
●
●
●
●
●
●
2W Single and Dual Outputs in DIP 14
3kVDC or 4kVDC Isolation
Optional Continuous Short Circuit Protected
Custom Solutions Available
UL94V-0 Package Material
Efficiency up to 85 %
Suitable for IGBT Applications
ECONOLINE
DC/DC-Converter
with 3 year Warranty
The RJZ and RGZ series converters are available in DIP14 packages, so can be used for
applications where component height is restricted. The wide selection of input voltage and
output voltage options plus an I/O-Isolation of 3kVDC or 4kVDC as standard makes these
converters suitable for many industrial, medical and IGBT applications.
Selection Guide
Part
Number
DIP 14
RJZ-xx3.3S*
RJZ-xx05S*
RJZ-xx09S*
RJZ-xx12S*
RJZ-xx15S*
RJZ-xx24S*
RGZ-xx3.3D*
RGZ-xx05D*
RGZ-xx09D*
RGZ-xx12D*
RGZ-xx15D*
RGZ-xx24D*
Input
Voltage
(VDC)
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
3.3,5,9,12,15,24
5, 12, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
24
±3.3
±5
±9
±12
±15
±24
+15/-9
Output
Current
(mA)
606
400
222
166
133
83
±303
±200
±111
±84
±66
±42
+67/-111
Efficiency
(%)
70-75
78-85
78-84
80-85
82-85
80-85
75
75-82
75-80
78-82
80-84
82-84
70-81
Max
Capacitive
Load
(1)
3300µF
1200µF
1200µF
680µF
680µF
220µF
±1500µF
±470µF
±470µF
±220µF
±220µF
±100µF
±330µF
4kV
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
2 Watt
DIP14
Single
&
Dual
Output
2011/65/EU
6/6
RoHS
RGZ-xx1509D* (H)
EN-60950-1 Certified
IEC/EN-60601-1 Certified*
* +15/-9 Version excluded
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g. RGZ-0524D/P, RJZ-0505S/HP
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Temperature Coefficient
Operating Frequency
RGZ-xx1509D
Efficiency at Full Load
Minimum Load = 0%
Isolation Voltage
Isolation Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection, without derating)
Case Temperature
H-Suffix
H-Suffix)
(tested for 1 second)
(rated for 1 minute)
(tested for 1 second)
(rated for 1 minute)
3.3V Types
5V Types
All other Types, RGZ-xx1509D
±10%
±5%
1.2%/1% of Vin typ.
±20% max.
±15% max.
±10% max.
±150mVp-p max.
0.02%/°C max.
20kHz min. / 50kHz typ. / 90kHz max.
20kHz min. / 45kHz typ.
70% min. / 80% typ.
Specifications valid for 10% minimum load only.
3000VDC
1500VAC / 60Hz
4000VDC min.
2000VAC / 60Hz
120pF max.
15GΩ min.
1 Second
Continuous
-40°C to +90°C (see Graph)
110°C max.
continued on next page
E-106
REV: 0/2015
RJZ_RGZ
Derating-Graph
(Ambient Temperature)
100
80
Output Power (%)
60
40
20
0
Safe Operating Area
90 100
95
Operating Temperature °C
-40
0
50
150
**Any data referred to in this datasheet are of indicative nature
and based on our practical experience only. For further details,
please refer to our Application Notes.
Refer to Application Notes
www.recom-power.com
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Storage Temperature Range
Relative Humidity
Thermal Impedance
Package Weight
Packing Quantity
MTBF (+25°C)
(+85°C)
Certifications
EN General Safety
EN Medical Safety
Notes
Note 1
Report: SPCLVD1109103
Report: SPCMDD120598-4
RJZ_RGZ
Series
-55°C to +125°C
95% RH
56.66°C / W
2.8g
using MIL-HDBK 217F
RJZ types
RGZtypes
RJZ types
RGZ types
24 pcs per Tube
893 x 10
3
hours
810 x 10
3
hours
208 x 10
3
hours
151 x 10
3
hours
EN60950-1:2006 + A12:2011
IEC/EN 60601-1:2006, 3rd Edition
}
Detailed Information see
Application Notes chapter "MTBF"
using MIL-HDBK 217F
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.
IGBT
Driver
Rg
IGBT
Control Signal
IGBT Application Circuit
-Vin
C1 +
+Vout
1
7
C2 +
Isolated
DC/DC
Converter
2
6
C3 +
5
-Vout

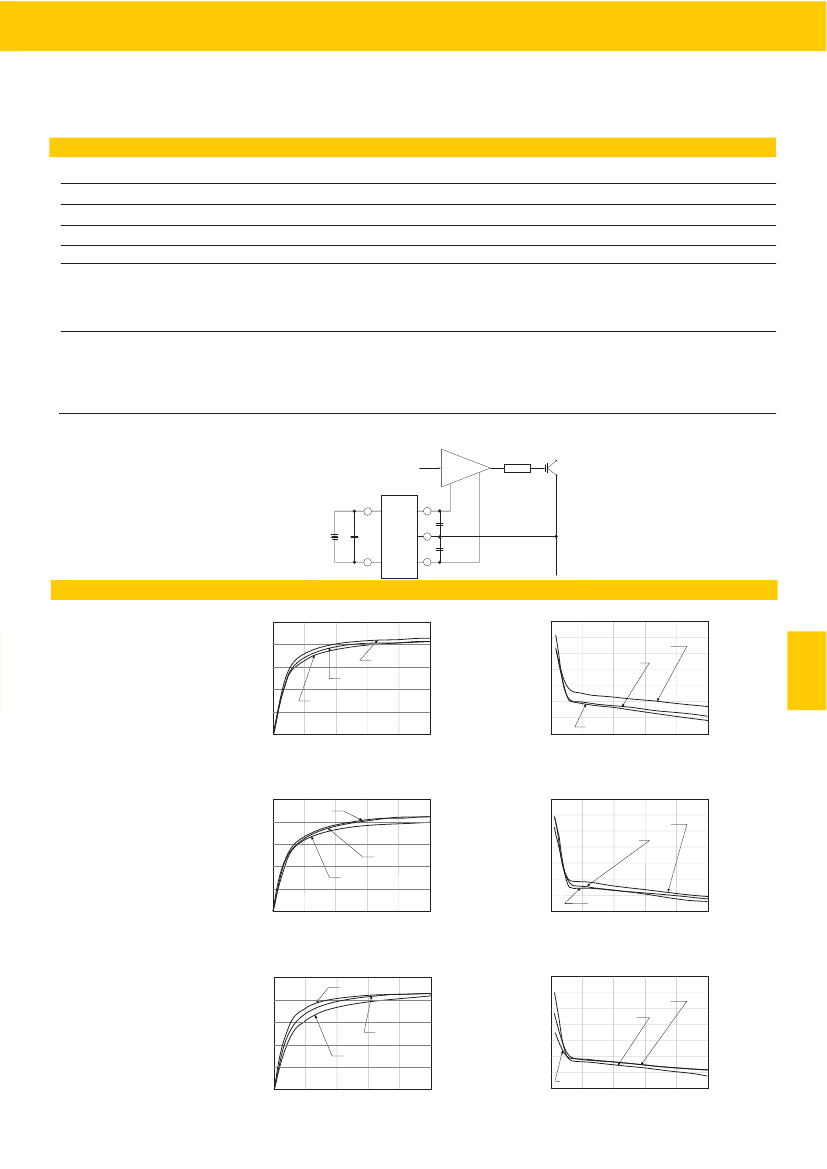

Typical Characteristics
Efficiency / Load
100
30.000
25.000
Deviation / Load
RJZ_RGZ
Deviation from Nominal (%)
80
60
2405
0505
1205
20.000
15.000
10.000
5.000
0.000
-5.000
2405
1205
Efficiency %
RJZ-xx05S
40
20
0
0505
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
Efficiency / Load
100
30.000
0509
Deviation / Load
25.000
Deviation from Nominal (%)
80
60
20.000
15.000
10.000
5.000
0.000
-5.000
2409
0509
Efficiency %
RJZ-xx09S
40
20
0
2409
1209
1209
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
Efficiency / Load
100
80
60
2412
Deviation / Load
30.000
25.000
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
1212
0512
Efficiency %
RJZ-xx12S
www.recom-power.com
40
20
0
1212
0512
2412
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
REV: 0/2015
E-107
ECONOLINE
DC/DC-Converter
Typical Characteristics
Efficiency / Load
100
80
60
1215
0515
RJZ_RGZ
Series
Deviation / Load
30.000
25.000
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
2415
0515
Efficiency %
RJZ-xx15S
RGZ-xx05D
Efficiency / Load
100
80
60
40
1205
0505
40
20
0
2415
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
RGZ-xx12D
Efficiency / Load
100
80
60
40
2412
RGZ-xx15D
Efficiency / Load
100
80
60
40
1215
2415
0515
0512
1212
Efficiency %
Efficiency %
20
0
2405
20
0
Efficiency %
80%
100%
20
0
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%
Deviation / Load
30.000
25.000
30.000
25.000
Deviation / Load
30.000
25.000
Deviation / Load
Deviation from Nominal (%)
Deviation from Nominal (%)
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
2405
0505
20.000
15.000
10.000
5.000
0.000
-5.000
1212
0512
20.000
15.000
10.000
5.000
0.000
-5.000
2415
0515
RJZ_RGZ
1205
0% 20%
40%
60%
Total Output current (%)
80%
100%
2412
0% 20%
40%
60%
Total Output current (%)
80%
100%
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%

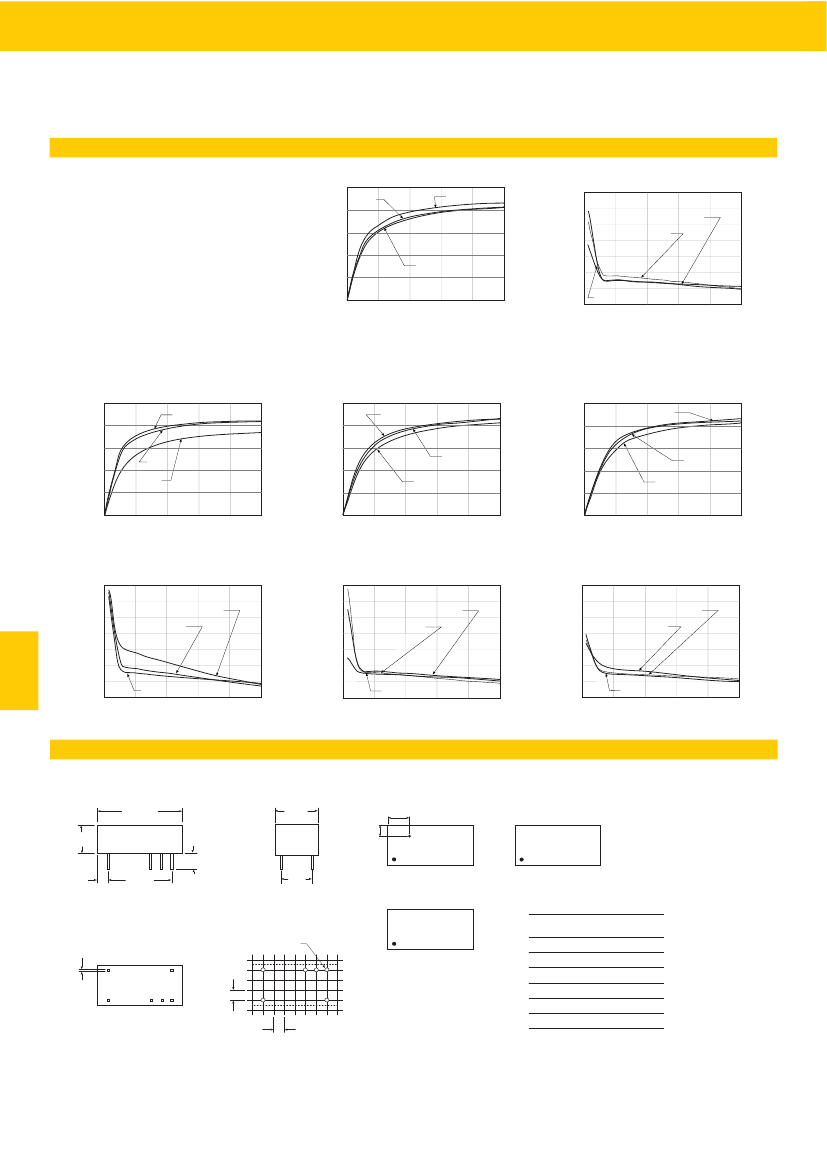

Package Style and Pinning (mm)
14 PIN DIP Package
19.90
7.10
3.25
2.0
15.24
7.70
+15/-9 Output
10.00
2.5
6.30
Single Output
tc
Dual Output
RECOM
RGZ-0505D
****
RECOM
RJZ-0505S
****
Pin Connections
Pin #
1
7
8
9
10
RJZ
–Vin
NC
+Vout
No Pin
–Vout
+Vin
RGZ
–Vin
NC
+Vout
Com
–Vout
+Vin
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
Recommended Footprint Details
0.25
1
14
1.00 ø+0.15/0
7
RECOM
RGZ-xx1509D
****
Bottom View
2.54
10 9 8
Top View
2.54
14
NC = No Connection
