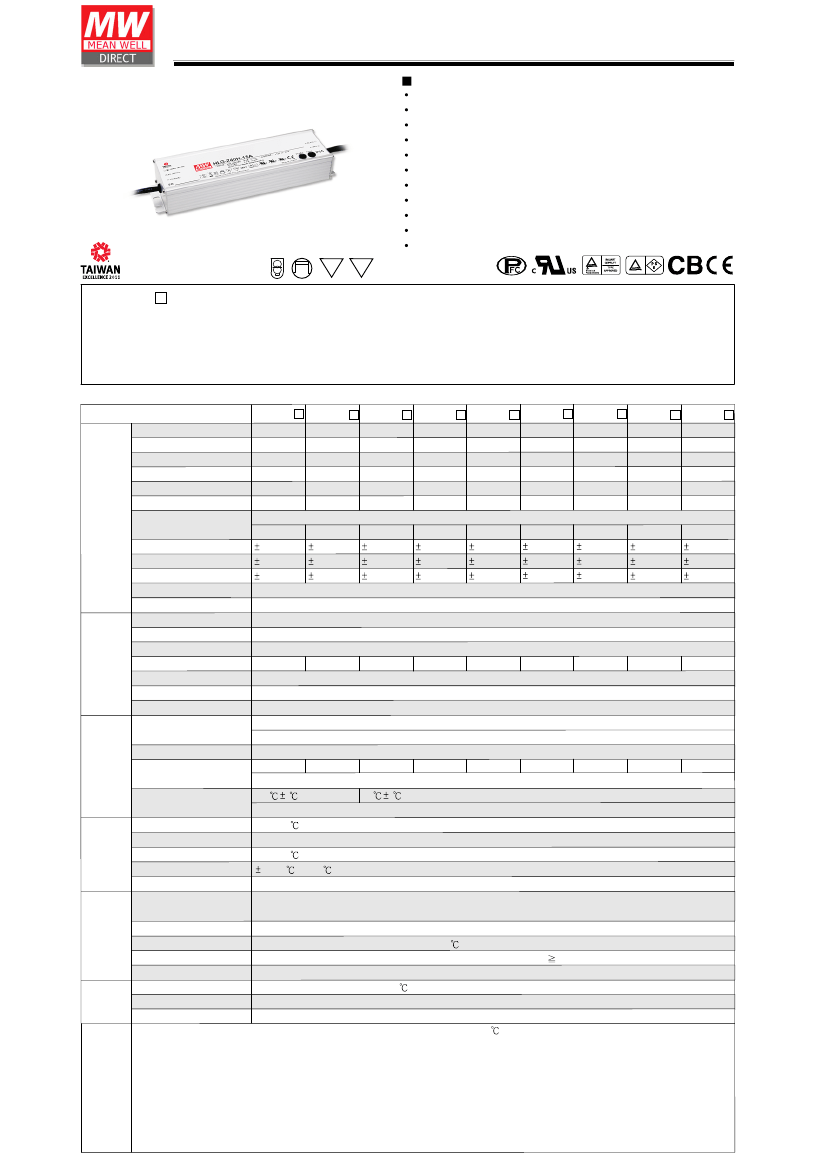

240W Single Output Switching Power Supply
Features :
HLG-240H
series
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
5 years warranty (Note.10)
F
110
SELV
IP65 IP67
HLG-240H-12 A
Blank : IP67 rated. Cable for I/O connection.
A : IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.
C : Terminal block for I/O connection. Output voltage and constant current level can be adjusted through internal
potentiometer.
D (option) : IP67 rated. Timer dimming function, contact MEAN WELL for details.
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLG-240H-12
12V
16A
192W
CONSTANT CURRENT REGION
Note.4
6 ~12V
HLG-240H-15
15V
7.5 ~ 15V
15A
225W
150mVp-p
HLG-240H-20
20V
10 ~ 20V
12A
240W
150mVp-p
HLG-240H-24
24V
12 ~ 24V
10A
240W
150mVp-p
HLG-240H-30
30V
15 ~ 30V
8A
240W
200mVp-p
HLG-240H-36
36V
18 ~ 36V
6.7A
241.2W
250mVp-p
HLG-240H-42
42V
21 ~ 42V
5.72A
240.24W
250mVp-p
HLG-240H-48
48V
24 ~ 48V
5A
240W
250mVp-p
HLG-240H-54
54V
27 ~ 54V
4.45A
240.3W
350mVp-p
RIPPLE & NOISE (max.)
Note.2
150mVp-p
OUTPUT
VOLTAGE ADJ. RANGE
Note.6
11.2 ~ 12.8V 14 ~ 16V
CURRENT ADJ. RANGE
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER CURRENT
SHORT CIRCUIT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
Note.7
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
Note.4
Note.8
18.6 ~ 21.4V 22.4 ~ 25.6V 28 ~ 32V
6 ~ 12A
1.0%
0.5%
1.0%
5 ~ 10A
1.0%
0.5%
0.5%
4 ~ 8A
1.0%
0.5%
0.5%
33.5 ~ 38.5V 39 ~ 45V
3.3 ~ 6.7A
1.0%
0.5%
0.5%
44.8 ~ 51.2V 50 ~ 57V
2.23 ~ 4.45A
1.0%
0.5%
0.5%
Can be adjusted by internal
potentiometer
or through output cable
8 ~ 16A
2.5%
0.5%
7.5 ~ 15A
2.0%
0.5%
2.86 ~ 5.72A 2.5 ~ 5A
1.0%
1.0%
0.5%
0.5%
0.5%
0.5%
1.5%
2.0%
Note.9
2500ms, 80ms at full load
15ms at full load
Note.5
90 ~ 305VAC
230VAC /115VAC
230VAC /115VAC
127 ~ 431VDC
47 ~ 63Hz
PF>0.98/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
92%
90%
4A / 115VAC
2A / 230VAC
COLD START 75A/230VAC
<0.75mA / 277VAC
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
33 ~ 39V
13.5 ~ 18V
17.5 ~ 21.5V 23.5 ~ 27.5V 27 ~ 34V
43 ~ 49V
48 ~ 54V
55 ~ 63V
60 ~ 67V
90%
93%
1.2A / 277VAC
93%
93%
93%
93.5%
94%
Protection type : Shut down and latch off o/p voltage, re-power on to recover
95
5 (TSW1)
105
5 (TSW1)
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
-40 ~ +70
-40 ~ +80
0.03%/

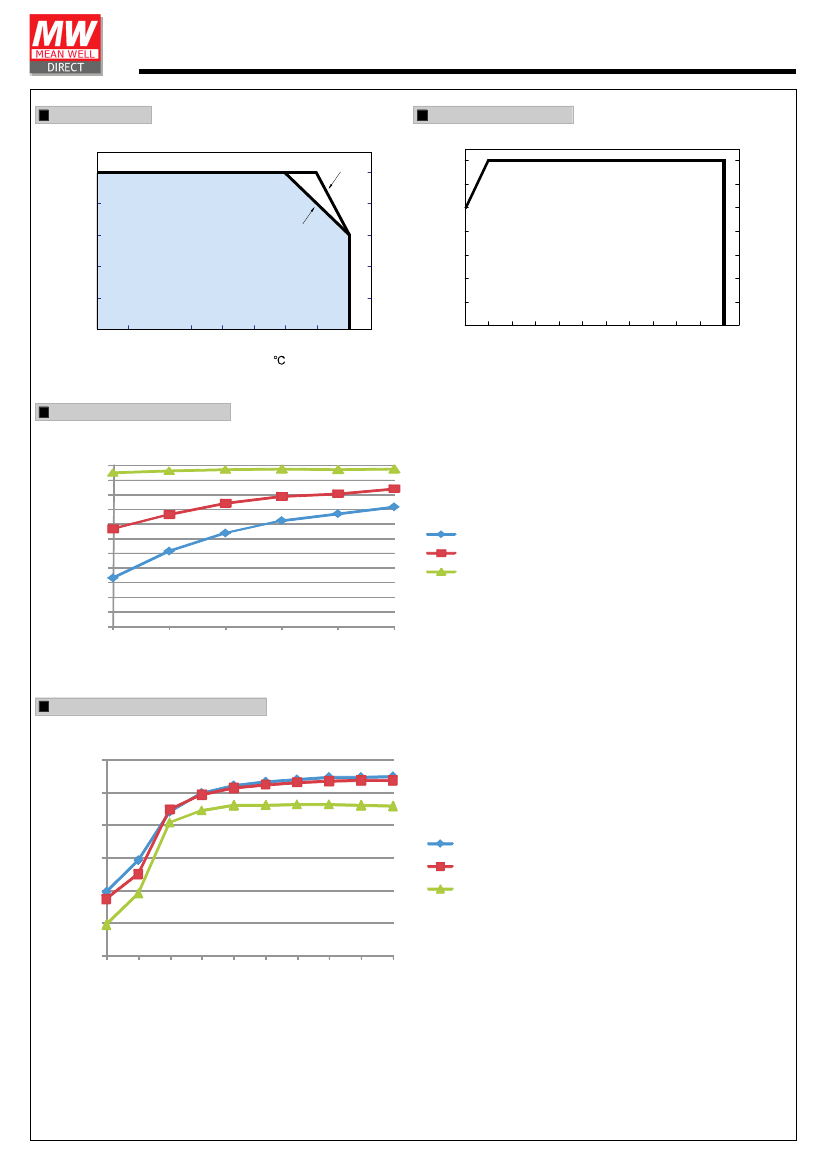

(Refer to "Derating Curve")
, 10 ~ 95% RH
(0 ~ 50
)
20 ~ 95% RH non-condensing
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13 independent
(except for HLG-240H C type), UL60950-1, UL8750, TUV EN60950-1, IP65 or IP67 approved, J61347-1, J61347-2-13
I/P-O/P:3.75KVAC
I/P-FG:1.88KVAC
O/P-FG:0.5KVAC
50% load) ; EN61000-3-3
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS

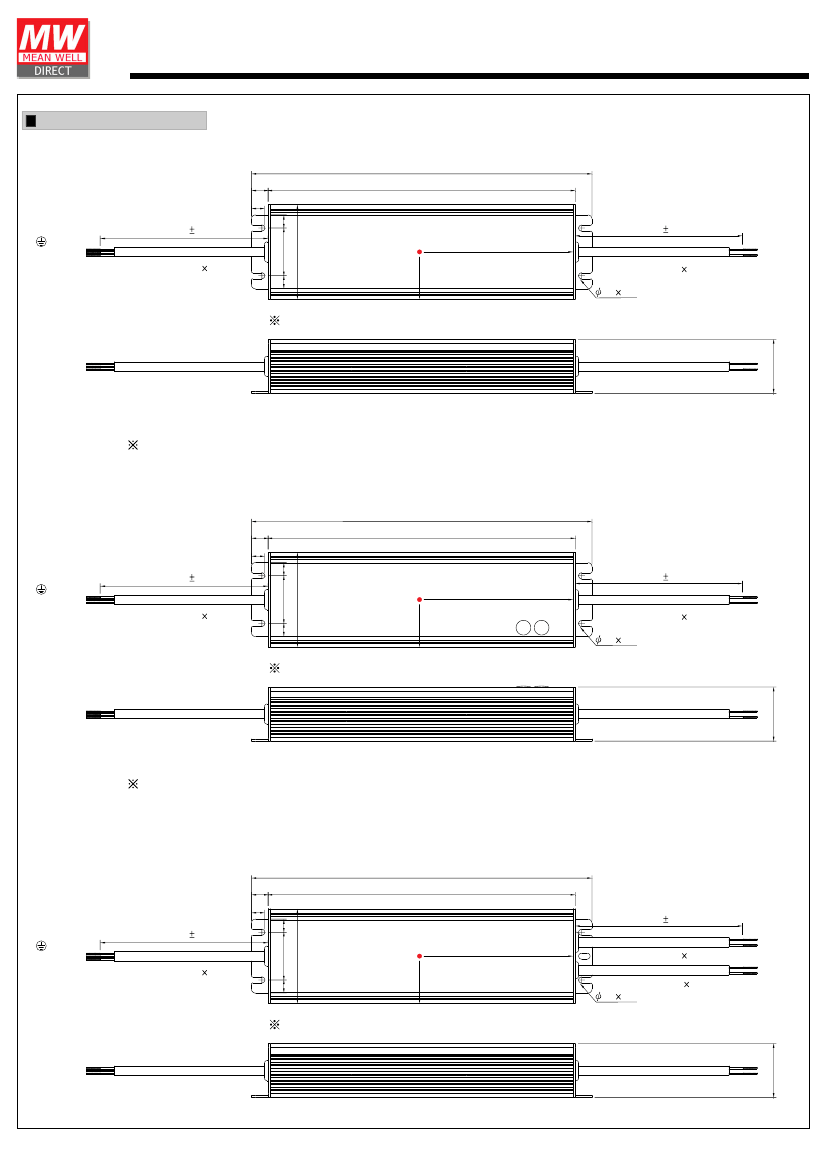

DIMENSION
PACKING
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
207.9Khrs min. MIL-HDBK-217F (25 )

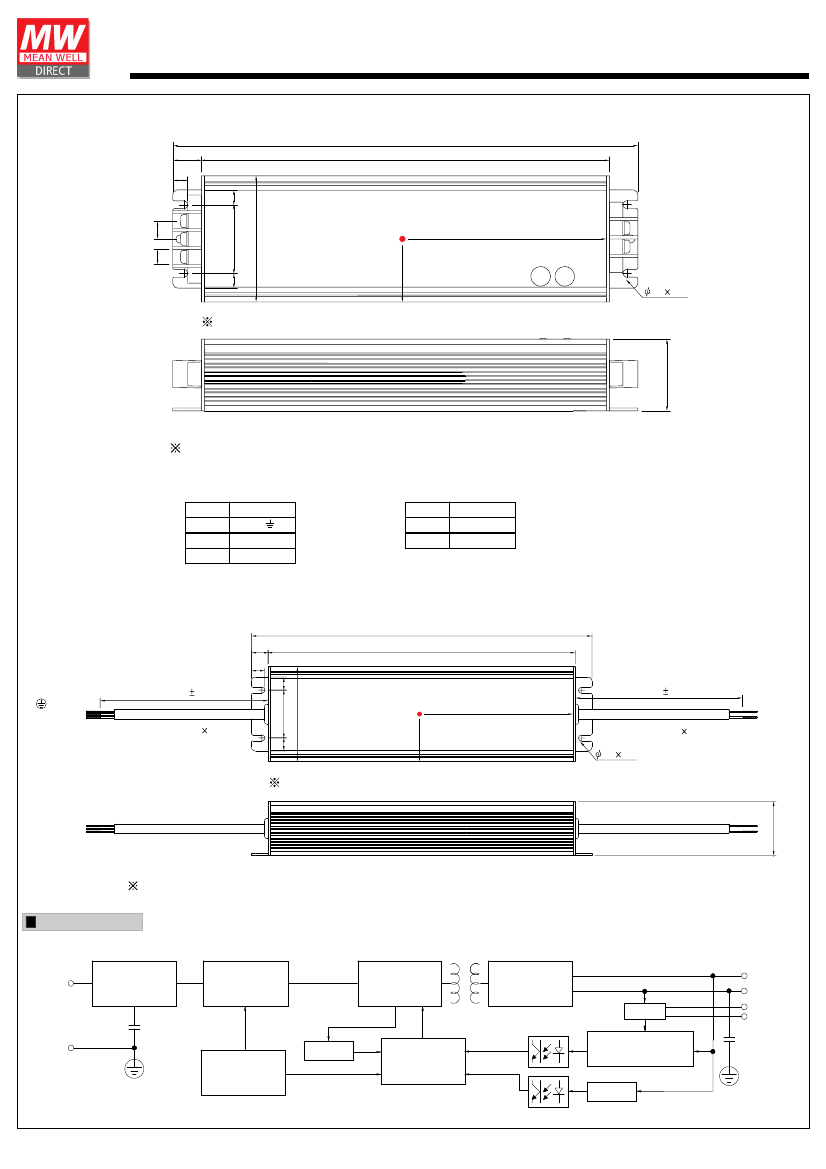

244.2*68*38.8mm (L*W*H)(HLG-240H-Blank/A/B)
251*68*38.8mm (L*W*H)(HLG-240H-C)
1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B)
1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240-C)
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please
reconfirm special electrical requirements for some specific system design.
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. Type A and type C only.
7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.
MeanWell Direct Tel: +44 (0)118 970 3858 E-mail: sales@meanwelldirect.co.uk
240W Single Output Switching Power Supply
DRIVING METHODS OF LED MODULE
HLG-240H
series
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B).
100
(B)
Constant
Current area
(A) Constant
Voltage area
50
(max.)
(C)
Hiccup
Protection
50
95
Io (%)
Vo(%)
Typical LED power supply I-V curve

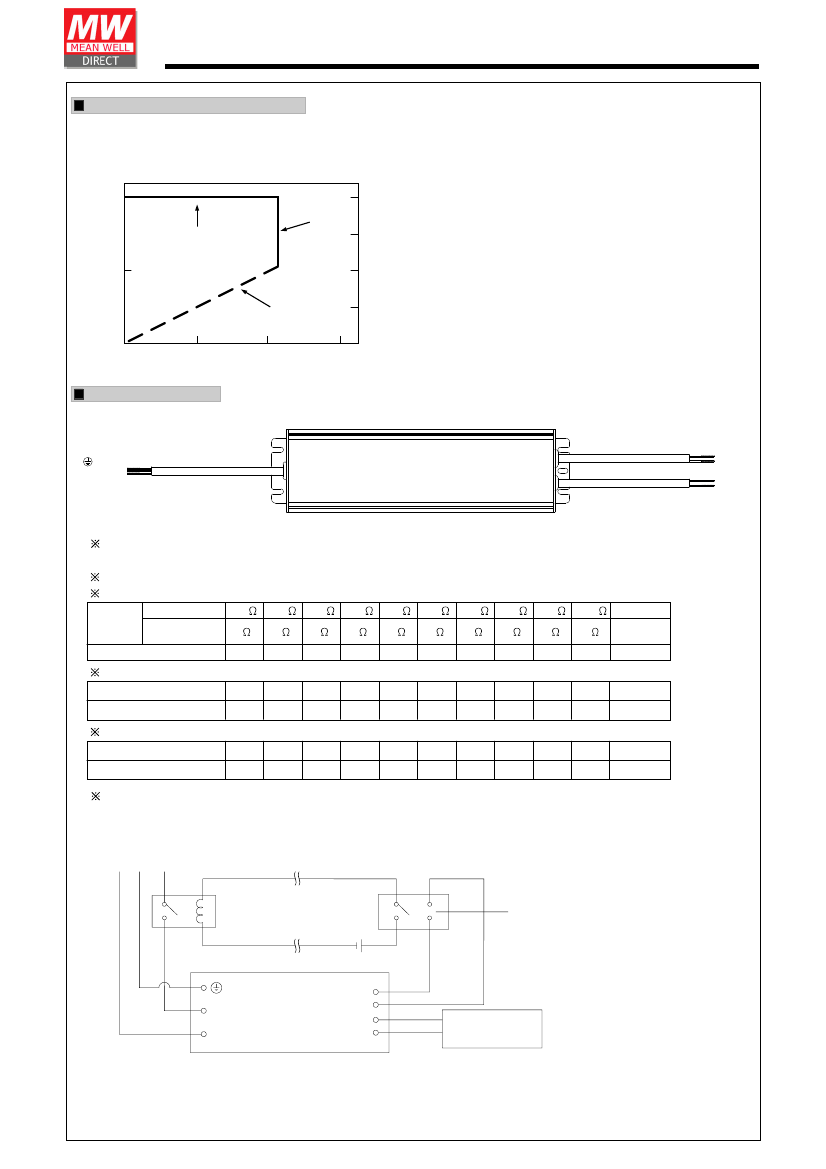

DIMMING OPERATION
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
HLG-240H
-V(Black)
+V(Red)
DIM+(Blue)
DIM-(White)
Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
Please DO NOT connect "DIM-" to "-V".
Reference resistance value for output current adjustment (Typical)
Single driver
20K
60K
100K
10K
30K
40K
50K
70K
80K
90K
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
/N 20K /N 30K /N 40K /N 50K /N 60K /N 70K /N 80K /N 90K /N 100K /N
dimming operation)
OPEN
-----
95%~105%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
95%~105%
10V PWM signal for output current adjustment (Typical): Frequency range :100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
95%~105%
Using the built-in dimming function on B-type model can't turn the lighting fixture totally dark. Please refer to the connection method below to
achieve 0% brightness of the lighting fixture connecting to the LED power supply unit.
Dimming connection diagram for turning the lighting fixture ON/OFF :
N
FG
L
Relay
Switch
Adjuster
0~100K Ohms resistance
1~10V DC Voltage
10V PWM Signal
Green/
Yellow
Brown
Blue
AC/L
AC/N
HLG-240H
B Type
DIM+
DIM-
V(-)
V(+)
Blue
White
Black
Red
LED Lighting Fixture
Using a switch and relay can turn ON/OFF the lighting fixture.
1.Output constant current level can be adjusted through output cable by connecting a resistance or 1~10Vdc or 10V PWM signal between DIM+ and DIM-.
2.The LED lighting fixture can be turned ON/OFF by the switch.
MeanWell Direct Tel: +44 (0)118 970 3858 E-mail: sales@meanwelldirect.co.uk
File Name:HLG-240H-SPEC 2012-02-21
