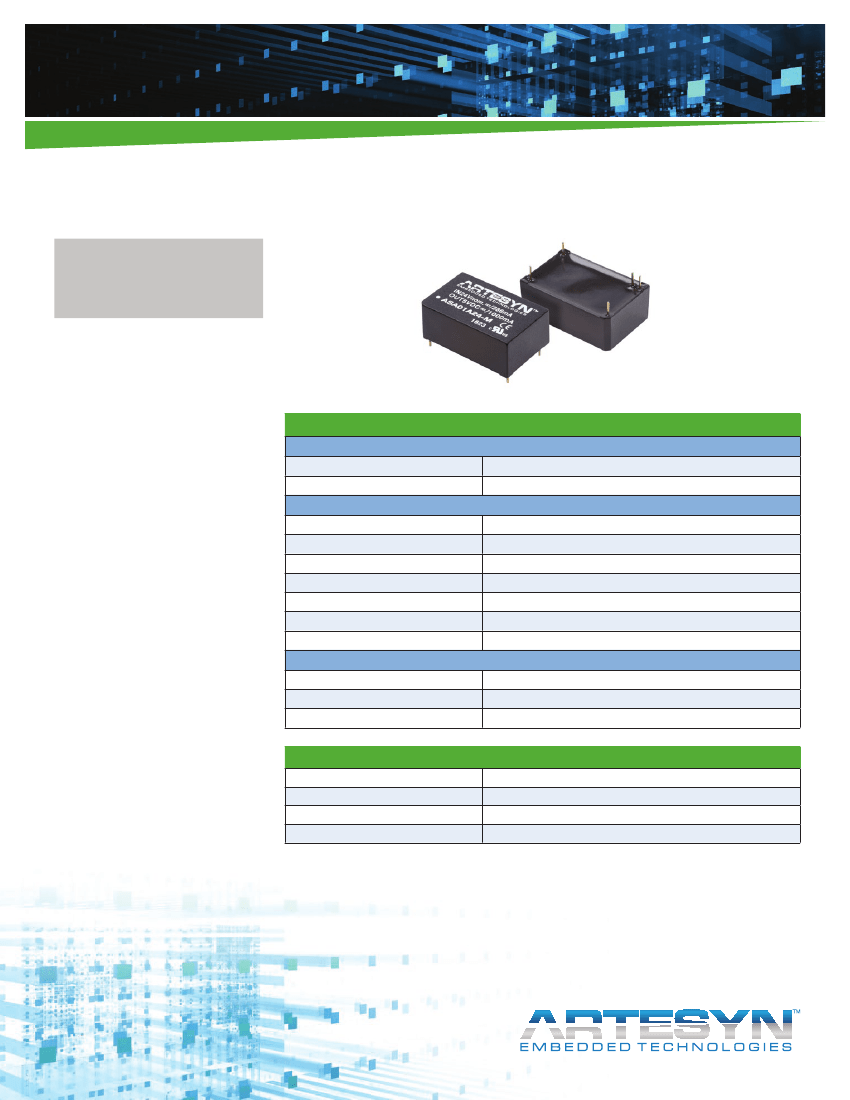

POWER
Data Sheet
Total Power:
6 Watts
Input Voltage:
12 V, 24 V or 48 V
# of Outputs:
Single, Dual
SPECIAL FEATURES
4000 Vac reinforced insulation
Medical safety to UL/cUL/EN/
IEC 60601-1 3rd Edition
2 MOOP rated
Wide 2:1 input voltage range
Fully regulated output voltage
Low leakage current
Operating temperture range
–40 °C to +75 °C (with derating)
Input filter meets EN 55022,
class A and FCC, level A
Overload protection
1.25” x 0.8” package
RoHS compliant
Three-year product warranty
ASA 6W-M Series
6 Watts
Electrical Specifications
Input
Input range
Efficiency
9 - 18 Vdc; 18 - 36 Vdc; 36 - 75 Vdc
80%
Output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
OCP and S/C protection
Switching frequency
Temperature coefficient
±1.0%
±0.5%
1.0%
180 mV
Foldback, auto-cover
150 KHz
±0.05 /°C
SAFETY
cUL/UL60950-1, CSA C22.2
No. 60950-1-03
UL60601-1, CSA C22.2 No.601-1
IEC/EN 60950-1, IEC/EN 60601-1
3rd Edition, 2 MOOP
cUL/UL60950-1 certificate
UL60601-1 UL certificate
Isolation
I/O isolation
Insulation resistance
Insulation capacitance
4000 Vac rms
10 Gohm
13 pF
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
MTBF
-40 °C to +75 °C
-50 °C to +125 °C
5% to 95% (non-condensing)
1,000,000 hours
ASA 6W-M Series Data Sheet

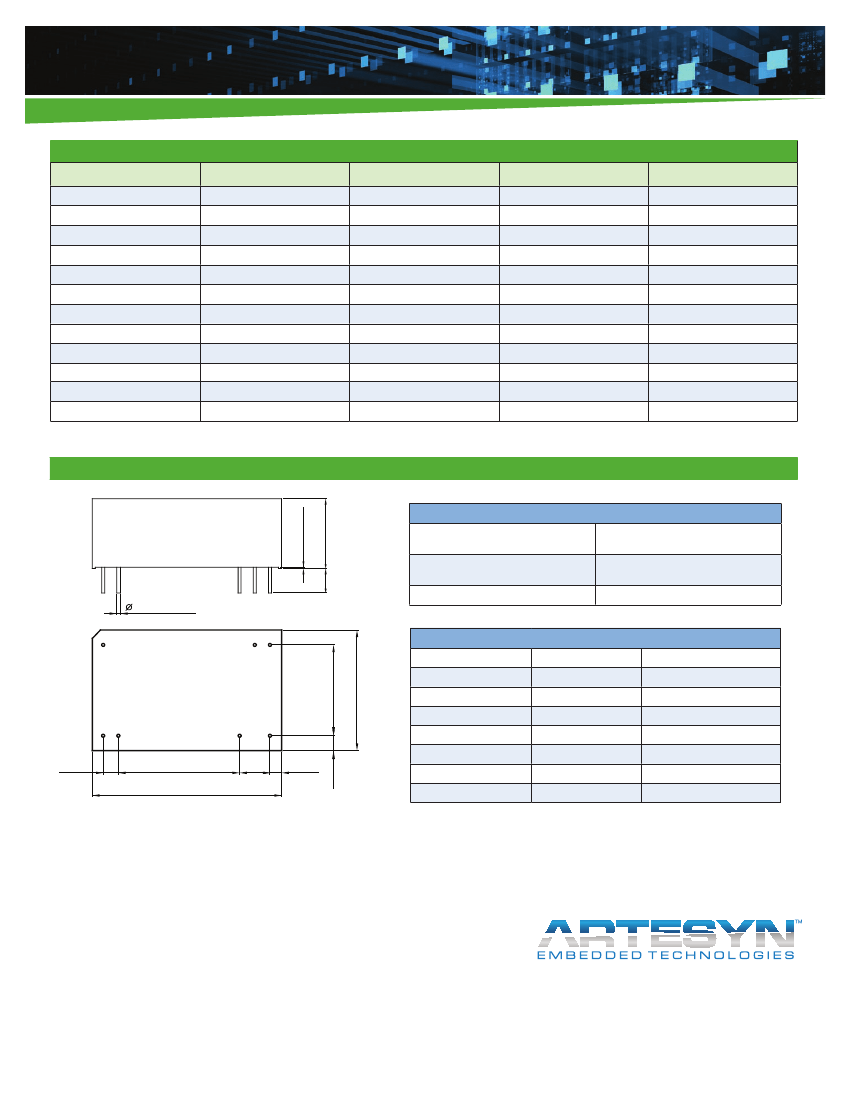

Ordering Information
Model Number
Input Voltage
Output 1 Voltage
Output 2 Voltage
Maximum Power
ASA01A12-M
ASA01B12-M
ASA01BB12-M
ASA01CC12-M
ASA01A24-M
ASA01B24-M
ASA01BB24-M
ASA01CC24-M
ASA01A48-M
ASA01B48-M
ASA01BB48-M
ASA01CC48-M
9 - 18 V
9 - 18 V
9 - 18 V
9 - 18 V
18 - 36 V
18 - 36 V
18 - 36 V
18 - 36 V
36 - 75 V
36 - 75 V
36 - 75 V
36 - 75V
5V@1A
12 V @ 0.5 A
12 V @ 0.25 A
15 V @ 0.2 A
5V@1A
12 V @ 0.5 A
12 V @ 0.25 A
15 V @ 0.2 A
5V@1A
12 V @ 0.5 A
12 V @ 0.25 A
15 V @ 0.2 A
-12 V @ 0.25 A
-15 V @ 0.2 A
-12 V @ 0.25 A
-15 V @ 0.2 A
-12 V @ 0.25 A
-15 V @ 0.2 A
5W
6W
6W
6W
5W
6W
6W
6W
5W
6W
6W
6W
Please contact Artesyn Embedded Technologies for information on other output voltages, power ranges and configurations.
Mechanical Drawing
3.9 10.5 [0.41]
[0.15]
0.2 [0.008]
Physical Characteristics
Case Size
Case Material
Weight
31.8 x 20.3 x 12 mm
(1.25 x 0.8 x 0.47 inches
Non-Conductive Black Plastic
(flammability to UL 94V-0 rated)
18 g
0.60 [0.024]
Pin Connectors
1
11
12
15.22 [0.60]
20.3 [0.80]
Pin Number
1
11
12
13
Single Output
+Vin
No Pin
-Vout
+Vout
No Pin
-Vin
-Vin
Dual Output
+Vin
Common
No Pin
-Vout
+Vout
-Vin
-Vin
Bottom View
24
23
15
13
2.54
[0.10]
20.32 [0.80]
31.8 [1.25]
5.08
[0.20]
2.0
[0.08]
2.54
[0.10]
15
23
24
All dimensions in mm (inches)
Tolerance: X.X±0.25 (X.XX±0.01)
X.XX±0.13 (X.XXX±0.005)
Pin pitch tolerance: ±0.25 (±0.01)
Pin dimension tolerance: ±0.1 (±0.004)
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
ASA6W-M DS 15Jul2016
Artesyn Embedded Technologies, Artesyn and the Artesyn Embedded Technologies logo are trademarks and
service marks of Artesyn Embedded Technologies, Inc. All other names and logos referred to are trade names,
trademarks, or registered trademarks of their respective owners. © 2016 Artesyn Embedded Technologies, Inc.
All rights reserved. For full legal terms and conditions, please visit www.artesyn.com/legal.
