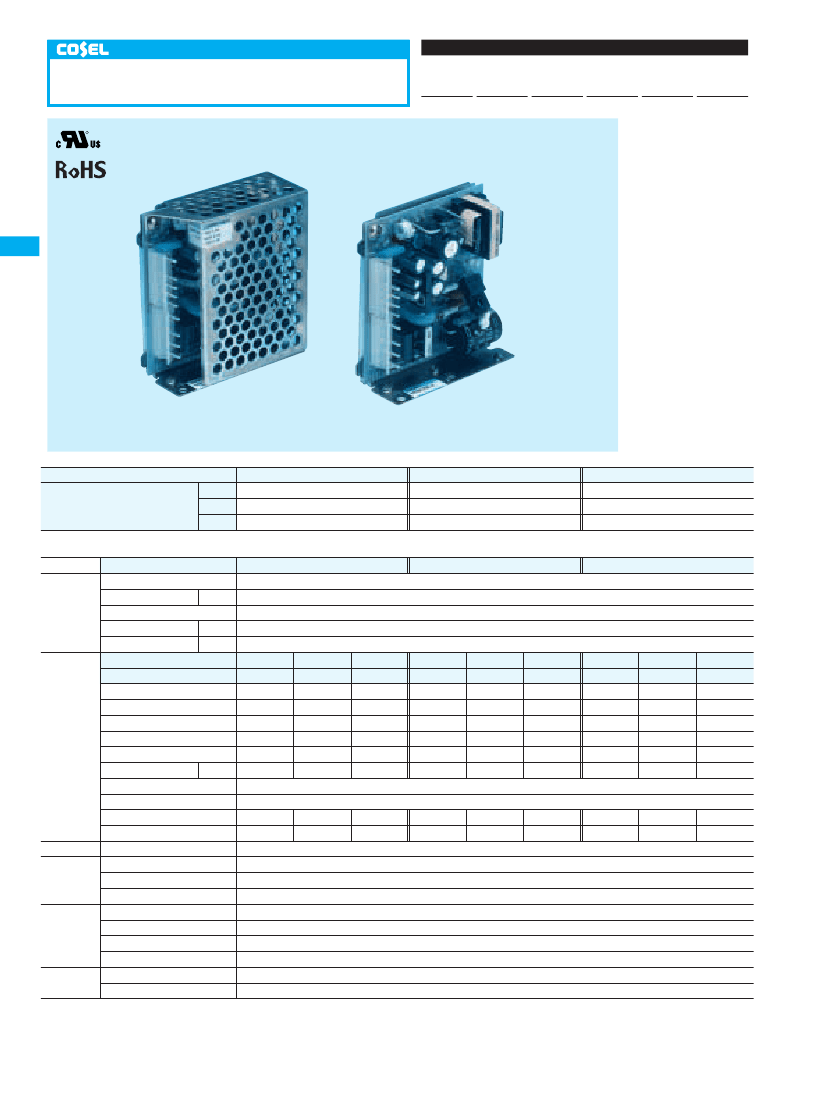

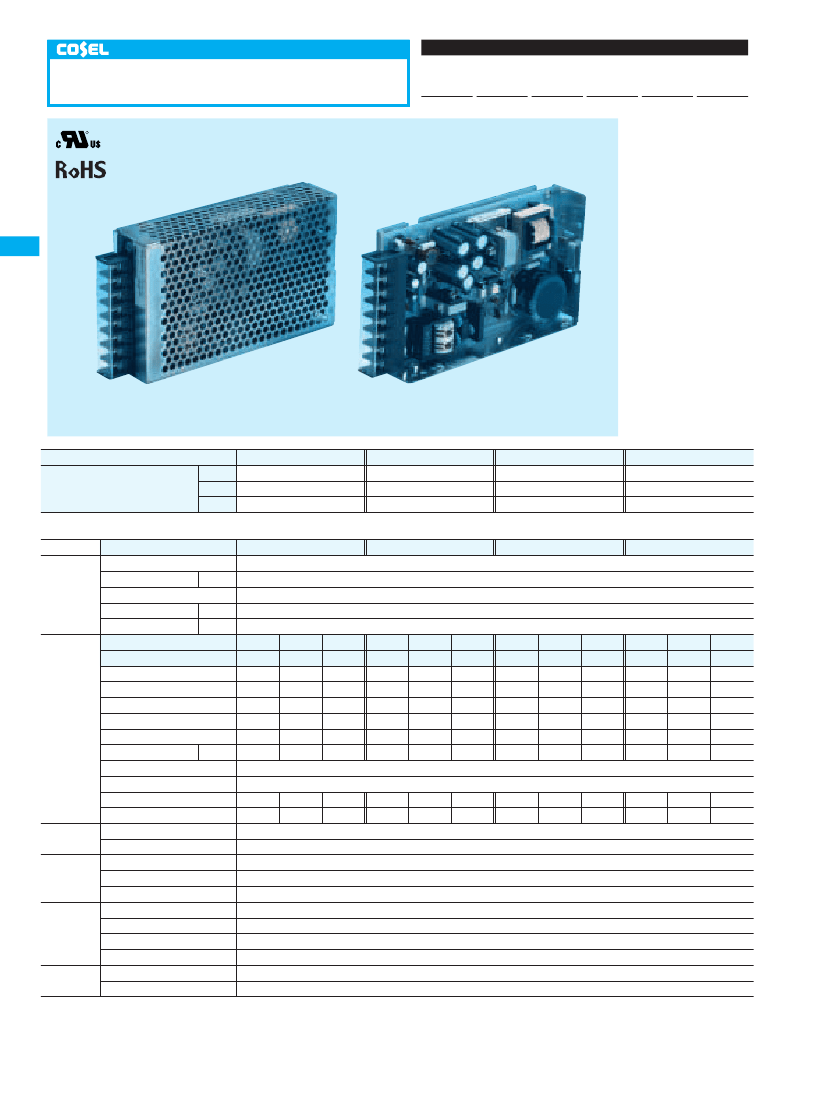

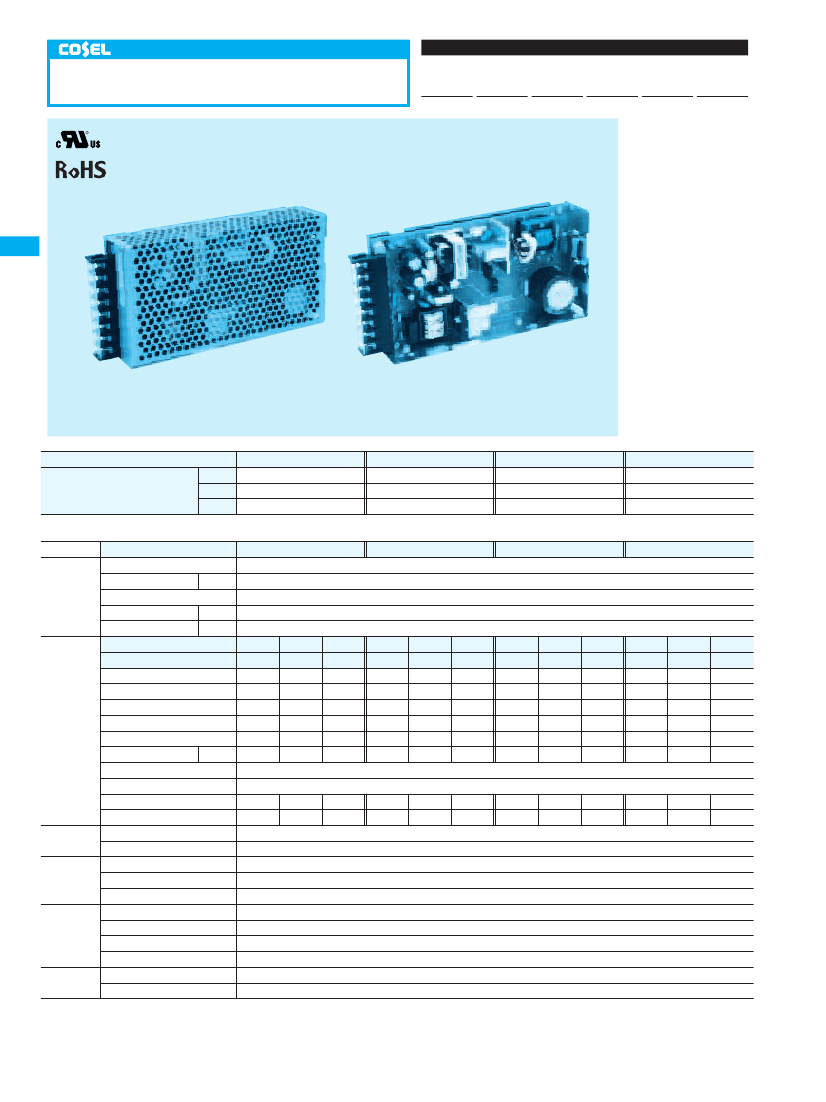

AC-DC Power Supplies Enclosed type
Ordering information
MMC8A
R
MMC 8A
1
2
3
-1
4
-O
1Series
name
2Output
wattage
3Output
voltage combina-
tion
4Optional
*2
G :Low leakage current
N :with Cover
MMC
MODEL
DC OUTPUT
V1
V2
V3
MMC8A-1
+5V 1.2A
+12V 0.1A
-12V 0.1A
MMC8A-2
+5V 1.1A
+15V 0.1A
-15V 0.1A
MMC8A-3
+5V 1.2A
+12V 0.1A
-5V 0.1A
SPECIFICATIONS
MODEL
VOLTAGE[V]
ACIN 100V
CURRENT[A]
FREQUENCY[Hz]
EFFICIENCY[%] ACIN 100V
INRUSH CURRENT[A] ACIN 100V
VOLTAGE[V]
CURRENT[A]
MINIMUM CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
*
1
RIPPLE[mVp-p]
RIPPLE NOISE[mVp-p]
*
1
TEMPERATURE REGULATION[mV] 0 to +50
C
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
INPUT-CASE, OUTPUT
OUTPUT-CASE
OUTPUT-OUTPUT(V1-V2,V3)
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
MMC8A-1
AC85 - 132 1
f
or DC110 - 170
0.3typ (Io=100%)
47 - 440 or DC
68typ (Io=100%)
20typ (Io=100%)
+5
+12
-12
1.2
0.1
0.1
0
0
0
20max
48max
48max
60max
120max
120max
80max
120max
120max
120max
150max
150max
50max
350max
350max
100max (ACIN 85V, Io=100%)
15typ (ACIN 85V, Io=100%)
MMC8A-2
MMC8A-3
INPUT
OUTPUT
+5
1.1
0
20max
60max
80max
120max
50max
+15
0.1
0
60max
150max
120max
150max
350max
-15
0.1
0
60max
150max
120max
150max
350max
+5
1.2
0
20max
60max
80max
120max
50max
+12
0.1
0
48max
120max
120max
150max
350max
-5
0.1
0
20max
100max
120max
150max
350max
PROTECTION
CIRCUIT
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
*1
*2
*
*
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
11.40 to 12.60 -11.40 to -12.60
xx
14.25 to 15.75 -14.25 to -15.75
xx
11.40 to 12.60 -4.75 to -5.25
xx
Works over 105% of rating and recovers automatically
AC2,000V 1minute, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, DC500V 50M
W
min (At Room Temperature)
AC100V 1minute, DC100V 10M
W
min (At Room Temperature)
0 to +65
C
, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 30minutes each along X, Y and Z axis
98.0m/s
2
(10G), 20ms, once each X, Y and Z axis
UL60950-1, C-UL Complies with DEN-AN
Complies with FCC-B
Measured by 20MHz oscilloscope or Ripple-Noise meter(equivalent to KEISOKU-GIKEN : RM101).
Please contact us about safety approvals for the model with option.
When units are operated with chassis and cover, derating is required.
Avoid prolonged use under over-load.

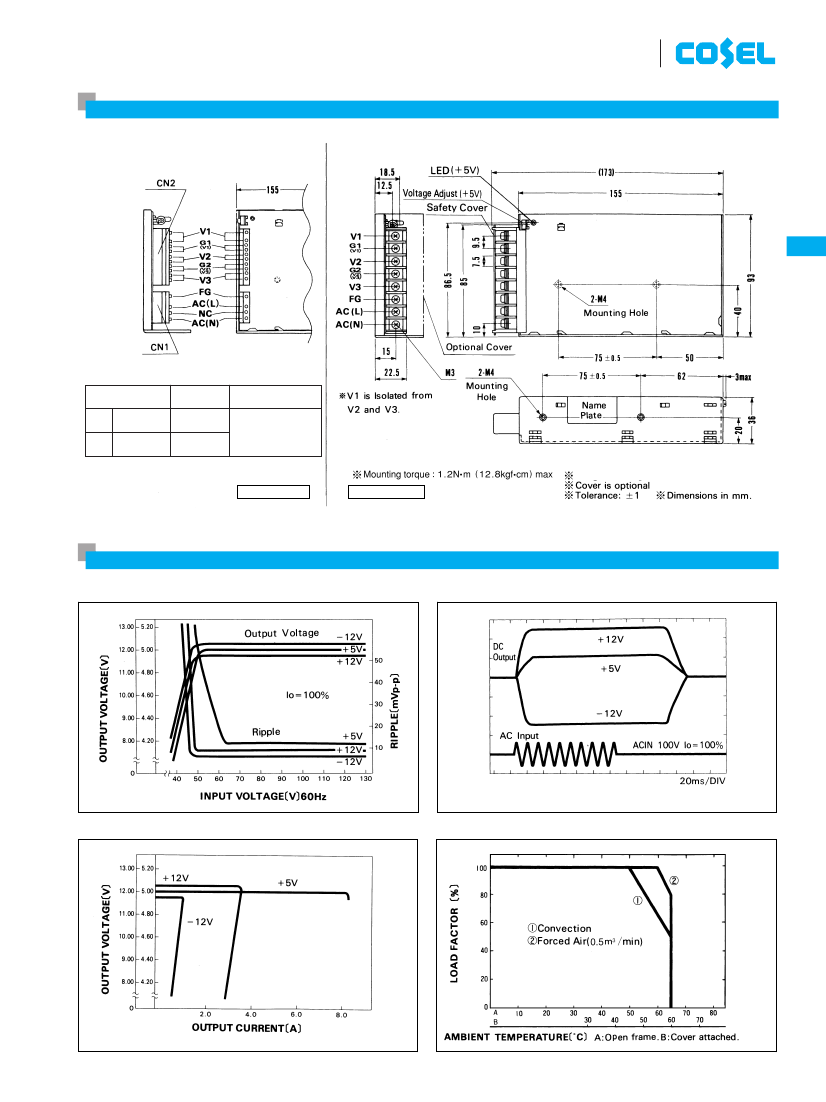

MMC-2
MMC8A
External view
MMC
I/O Connector
Mating
Connector
Terminal
CN1
10-31-1048 10-63-3044 Chain : 08-70-1031
CN2
09-65-2059 09-50-1053 Loose : 08-70-1030
Weight : 150g max
(
Mfr : Molex
)
Performance data
¡
STATIC CHARACTERISTICS (MMC8A-1)
¡
RISE TIME & FALL TIME (MMC8A-1)
¡
OVERCURRENT CHARACTERISTICS (MMC8A-1)
¡
DERATING CURVE
MMC-3
AC-DC Power Supplies Enclosed type
Ordering information
MMC50A
R
MMC 50A
1
2
3
-1
4
-O
1Series
name
2Output
wattage
3Output
voltage combina-
tion
4Optional
*3
C :with Coating
G :Low leakage current
J :Connector type
N :with Cover
MMC
MODEL
DC OUTPUT
V1
V2
V3
MMC50A-1
+5V 5.0A
+12V 1.5(Peak 2.0)A
-12V 0.5A
MMC50A-2
+5V 5.0A
+15V 1.2A
-15V 0.5A
MMC50A-3
+5V 5.0A
+12V 1.5(Peak 2.0)A
-5V 0.5A
MMC50A-4
+5V 7.0A
+12V 1.0(Peak 1.5)A
-12V 0.3A
SPECIFICATIONS
MODEL
VOLTAGE[V]
ACIN 100V
CURRENT[A]
FREQUENCY[Hz]
INPUT
EFFICIENCY[%] ACIN 100V
INRUSH CURRENT[A] ACIN 100V
VOLTAGE[V]
*
1
CURRENT[A]
MINIMUM CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
*
2
RIPPLE[mVp-p]
OUTPUT
RIPPLE NOISE[mVp-p]
*
2
TEMPERATURE REGULATION[mV] 0 to +50
C
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
PROTECTION OVERCURRENT PROTECTION
CIRCUIT
OVERVOLTAGE PROTECTION
INPUT-CASE, OUTPUT
ISOLATION OUTPUT-CASE
OUTPUT-OUTPUT(V1-V2,V3)
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
ENVIRONMENT
VIBRATION
IMPACT
SAFETY AND
AGENCY APPROVALS
NOISE
REGULATIONS
CONDUCTED NOISE
*1
*2
*3
*
*
MMC50A-1
MMC50A-2
AC85 - 132 1
f
or DC110 - 170
1.5typ (Io=100%)
47 - 440 or DC
70typ (Io=100%)
30typ (Io=100%) (At cold start)
MMC50A-3
MMC50A-4
+5
+12
-12
+5
+15
-15
+5
+12
-5
+5
+12
-12
5
1.5 (Peak2) 0.5
5
1.2
0.5
5
1.5 (Peak2) 0.5
7
1 (Peak1.5) 0.3
0.75
0
0
0.75
0
0
0.75
0
0
0.75
0
0
20max 48max 100max 20max 60max 60max 20max 48max 20max 20max 48max 48max
40max 150max 150max 40max 150max 150max 40max 150max 100max 40max 150max 150max
80max 120max 120max 80max 120max 120max 80max 120max 120max 80max 120max 120max
120max 150max 150max 120max 150max 150max 120max 150max 150max 120max 150max 150max
50max 350max 350max 50max 350max 350max 50max 350max 350max 50max 350max 350max
100max (ACIN 85V, Io=100%)
15typ (ACIN 85V, Io=100%)
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
11.40 to 12.60 -11.40 to -12.60
xx
14.25 to 15.75 -14.25 to -15.75
xx
11.40 to 12.60 -4.75 to -5.25
xx
11.40 to 12.60 -11.40 to -12.60
xx
Works over 105% of rating (V2 works at peak current) and recovers automatically
Works at 115 - 140% of rating (+5V)
AC2,000V 1minute, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, DC500V 50M
W
min (At Room Temperature)
AC100V 1minute, DC100V 10M
W
min (At Room Temperature)
0 to +65
C
, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 30minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL Complies with DEN-AN
Complies with FCC-A
Peak current for 30 seconds.
Measured by 20MHz oscilloscope or Ripple-Noise meter(equivalent to KEISOKU-GIKEN : RM101).
Please contact us about safety approvals for the model with option.
When units are operated with chassis and cover, derating is required.
Avoid prolonged use under over-load.

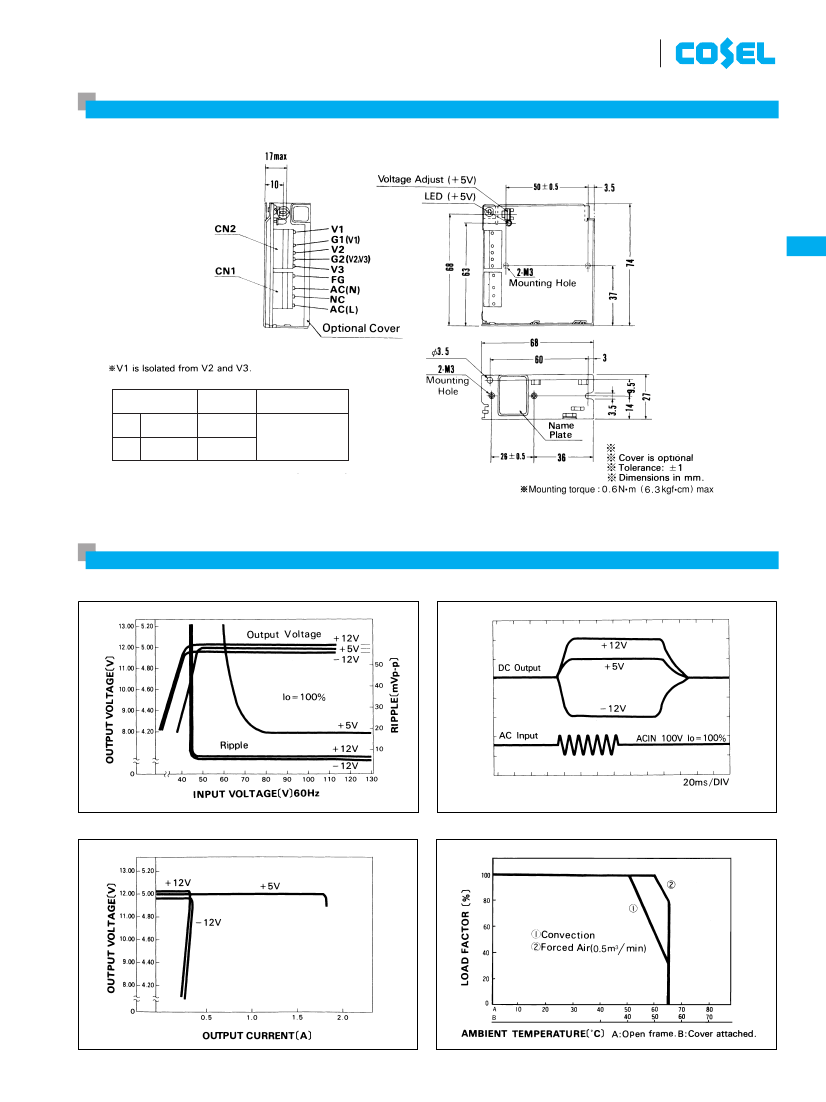

MMC-4
MMC50A
External view
MMC
I/O Connector
Mating
Connector
Terminal
CN1
10-31-1048 10-63-3044 Chain : 08-70-1031
CN2
09-65-2109 09-50-1103 Loose : 08-70-1030
(
Mfr : Molex
)
¶Use J cover for connector type.
Connector type
Barrier strip type
Weight : 400g max
Performance data
¡
STATIC CHARACTERISTICS (MMC50A-1)
¡
RISE TIME & FALL TIME (MMC50A-1)
¡
OVERCURRENT CHARACTERISTICS (MMC50A-1)
¡
DERATING CURVE
MMC-5
AC-DC Power Supplies Enclosed type
Ordering information
MMC75B
R
MMC 75B
1
2
3
-1
4
-O
1Series
name
2Output
wattage
3Output
voltage combina-
tion
4Optional
*2
C :with Coating
G :Low leakage current
J :Connector type
N :with Cover
MMC
MODEL
DC OUTPUT
V1
V2
V3
MMC75B-1
+5V 8.0A
+12V 2.5A
-12V 0.5A
MMC75B-2
+5V 8.0A
+15V 1.8A
-15V 0.5A
MMC75B-3
+5V 8.0A
+12V 2.5A
-5V 0.5A
MMC75B-4
+5V 6.0A
+12V 3.2A
-12V 0.5A
SPECIFICATIONS
MODEL
VOLTAGE[V]
ACIN 100V
CURRENT[A]
FREQUENCY[Hz]
EFFICIENCY[%] ACIN 100V
INRUSH CURRENT[A] ACIN 100V
VOLTAGE[V]
CURRENT[A]
MINIMUM CURRENT[A]
LINE REGULATION[mV]
LOAD REGULATION[mV]
*
1
RIPPLE[mVp-p]
RIPPLE NOISE[mVp-p]
*
1
TEMPERATURE REGULATION[mV] 0 to +50
C
START-UP TIME[ms]
HOLD-UP TIME[ms]
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
OVERCURRENT PROTECTION
OVERVOLTAGE PROTECTION
INPUT-CASE, OUTPUT
OUTPUT-CASE
OUTPUT-OUTPUT(V1-V2,V3)
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
MMC75B-1
MMC75B-2
AC85 - 132 1
f
or DC110 - 170
2.1typ (Io=100%)
47 - 440 or DC
75typ (Io=100%)
20typ (Io=100%)
+5
+12
-12
+5
+15
8
2.5
0.5
8
1.8
1.5
0
0
1.5
0
20max 48max 48max 20max 60max
40max 100max 150max 40max 120max
80max 120max 120max 80max 120max
120max 150max 150max 120max 150max
50max 120max 350max 50max 150max
200max (ACIN 85V, Io=100%)
15typ (ACIN 85V, Io=100%)
MMC75B-3
MMC75B-4
INPUT
OUTPUT
-15
0.5
0
60max
150max
120max
150max
350max
+5
8
1.5
20max
40max
80max
120max
50max
+12
2.5
0
48max
100max
120max
150max
120max
-5
0.5
0
20max
100max
120max
150max
350max
+5
6
1.5
20max
40max
80max
120max
50max
+12
3.2
0
48max
100max
120max
150max
120max
-12
0.5
0
100max
150max
120max
150max
350max
PROTECTION
CIRCUIT
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
*1
*2
*
*
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
5.00 - 5.25 Fixed
Fixed
11.40 to 12.60 -11.40 to -12.60
xx
14.25 to 15.75 -14.25 to -15.75
xx
11.40 to 12.60 -4.75 to -5.25
xx
11.40 to 12.60 -11.40 to -12.60
xx
Works over 105% of rating and recovers automatically
Works at 115 - 140% of rating (+5V)
AC2,000V 1minute, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, DC500V 50M
W
min (At Room Temperature)
AC100V 1minute, DC100V 10M
W
min (At Room Temperature)
0 to +65
C
, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 30minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL Complies with DEN-AN
Complies with FCC-A
Measured by 20MHz oscilloscope or Ripple-Noise meter(equivalent to KEISOKU-GIKEN : RM101).
Please contact us about safety approvals for the model with option.
When units are operated with chassis and cover, derating is required.
Avoid prolonged use under over-load.
MMC-6
