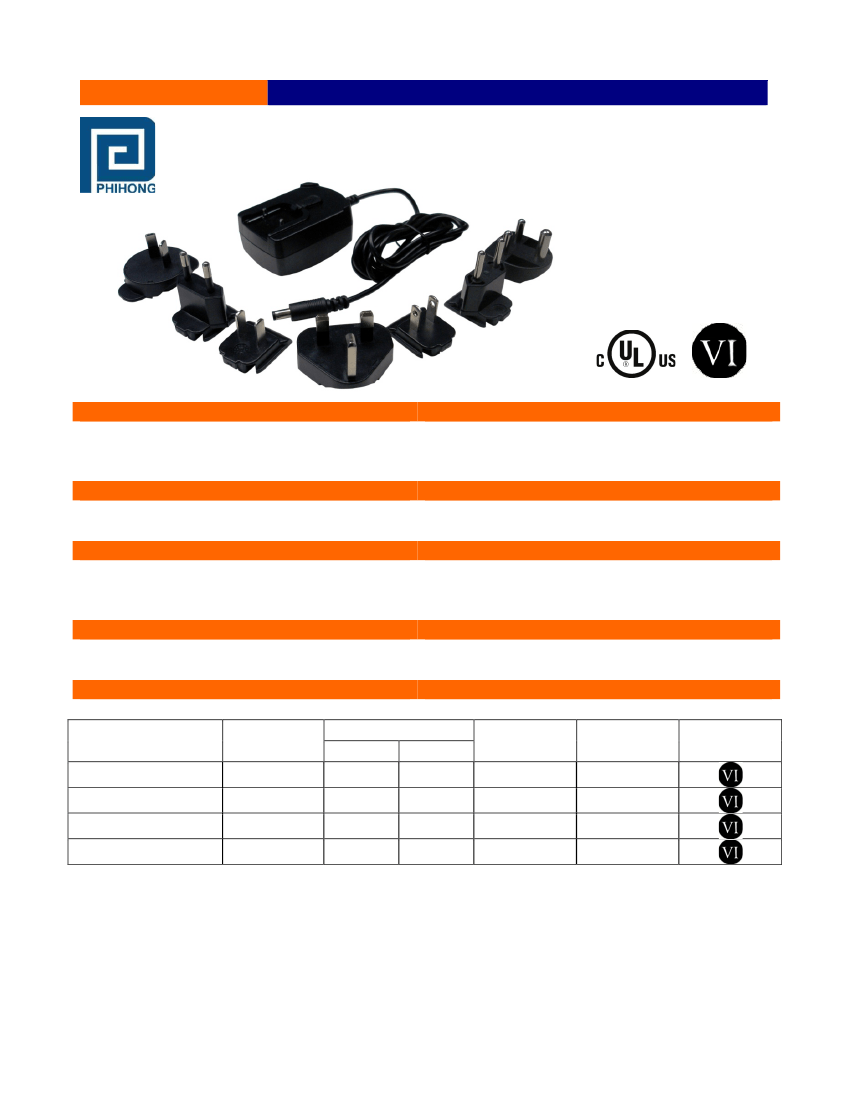

15 Watt Interchangeable Plug Series
PSA15R Wall Plug Adapter Meets Level VI Requirements
*clips sold separately
Features
•
Limited Power Source
•
Class B EMI
Applications
•
Wireless Communications
•
Peripherals
Safety Approvals
•
cUL/UL 60950-1
•
CB
Mechanical Characteristics
•
Length: 71.7mm (2.82in)
•
Width: 50mm (1.91in)
Output Specifications
Model
PSA15R-120P6
PSA15R-150P6
PSA15R-240P6
PSA15R-480P6
DC Output
Voltage
12V
15V
24V
48V
Load
Min.
0A
0A
0A
0A
•
•
Class II Double Insulated
High Efficiency
Portable Equipment
PDA
CE
•
•
•
•
•
Height: 33.2mm (1.31in)
Weight: 145g (5.12oz)
Ripple
(1)
P-P (max.)
100mV
100mV
200mV
400mV
Regulation
Line & Load
±5%
±5%
±5%
±5%
Efficiency
Level
Max.
1.25A
1.0A
0.625A
0.31A
(1) Measured after 30 minutes with by-pass capacitors 0.1uF/10uF at output connector terminal and oscilloscope set at 20MHz.
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website at www.phihong.com for the
most up-to-date specifications and contact information.
Revision 1/12/2016
PSA15R Characteristics
Input:
AC Input Voltage Rating
100 to 240V AC
WWW.PHIHONG.COM
Emissions
EN55022 Class B
FCC Part 15 Class B
AC Input Voltage Range
90 to 264V AC
EMC
EN 61000-3-2
IEC61000-4-2
IEC61000-4-4
IEC61000-4-5
IEC61000-4-11
EN55024
AC Input Frequency
47 to 63Hz
Input Current
0.5A (RMS) maximum at 120V AC
0.25A (RMS) maximum at 230V AC
Over-Voltage Protection
Output should be <20Vdc for 12V; <22Vdc for 15V;
<35Vdc for 24V; <65Vdc for 48V
Leakage Current
0.25mA maximum at all line conditions
Over-Current Protection
Output equipped with short circuit protection – auto
restart above 1.35A for 12V; >1.2A for 15V; >0.7A for
24V; >0.4A for 48V
Inrush Current
<30A for 120V AC at maximum load
<60A for 240V AC at maximum load
(cold start at ambient 25°C)
Short-Circuit Protection
Output can be shorted without damage
Output:
Efficiency
DOE Level VI
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 3000V AC for 1 min., 10mA
Hold-up Time
8mS minimum at 120V Ac and maximum load
DC Output Connector
2.1 x 5.5mm Center Positive Barrel
Environmental:
Temperature
Operation
Non-operation
Humidity
0 to +40°C
-40 to +85°C
90%RH max
AC Input Clips (sold separately)
RPA: US
RPB: Brazil
RPC: China
RPE: Europe
RPH: Korea
RPI: India
RPK: UK
RPN: Argentina
RPS: Australia
RPX: IEC320 C8

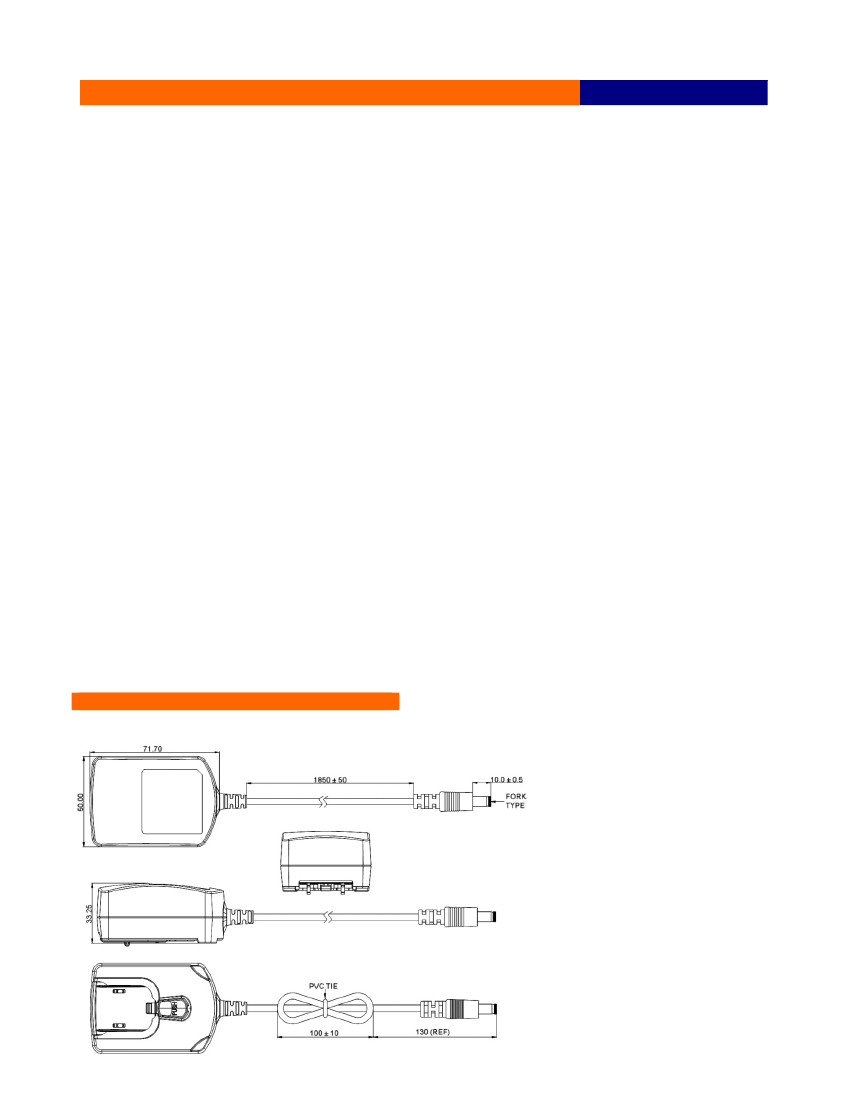

Dimension Diagram Unit: mm (inch)
