56F8357/56F8157 General Description
Note:
Features in italics are NOT available in the 56F8157 device.
• Up to 60 MIPS at 60MHz core frequency
• DSP and MCU functionality in a unified,
C-efficient architecture
• Access up to 4MB of off-chip program and 32MB of
data memory
• Chip Select Logic for glueless interface to ROM and
SRAM
• 256KB of Program Flash
• 4KB of Program RAM
• 8KB of Data Flash
• 16KB of Data RAM
• 16KB Boot Flash
• Up to two 6-channel PWM modules
• Four 4-channel, 12-bit ADCs
RSTO
EMI_MODE
EXTBOOT
5
JTAG/
EOnCE
Port
OCR_DIS
V
DD
V
SS
7
6
Digital Reg
* Configuration
shown for on-chip
2.5V regulator
• Temperature Sensor
• Up to two Quadrature Decoders
• Optional on-chip regulator
• FlexCAN module
• Two Serial Communication Interfaces (SCIs)
• Up to two Serial Peripheral Interfaces (SPIs)
• Up to four general-purpose Quad Timers
• Computer Operating Properly (COP) / Watchdog
• JTAG/Enhanced On-Chip Emulation (OnCE™) for
unobtrusive, real-time debugging
• Up to 76 GPIO lines
• 160-pin LQFP Package
V
PP
2
V
CAP
4
V
DDA
2
V
SSA
RESET
6
3
4
6
3
4
4
4
5
4
4
PWM Outputs
PWMA
Analog Reg
Current Sense Inputs or
GPIOC
Fault Inputs
PWM Outputs
16-Bit
56800E Core
Low Voltage
Supervisor
Bit
Manipulation
Unit
PWMB
Current Sense Inputs or GPIOD
Fault Inputs
AD0
AD1
VREF
AD0
AD1
TEMP_SENSE
Quadrature
Decoder 0 or
Quad
Timer or /
GPIOC
Quadrature
Decoder 1 or
Quad
Timer B or
SPI1 or GPIOC
Quad
Timer C or
GPIOE
Quad
Timer D or
GPIOE
FlexCAN
SPI0 or
GPIOE
4
Program Controller
and
Hardware Looping Unit
Address
Generation Unit
Data ALU
16 x 16 + 36 -> 36-Bit MAC
Three 16-bit Input Registers
Four 36-bit Accumulators
ADCA
PAB
PDB
CDBR
CDBW
Memory
ADCB
Program Memory
128K x 16 Flash
2K x 16 RAM
8K x 16
Boot Flash
XDB2
XAB1
XAB2
PAB
PDB
CDBR
CDBW
R/W Control
External
Address Bus
Switch
6
2
8
4
1
A0-5 or GPIOA8-13
A6-7 or GPIOE2-3
A8-15 or GPIOA0-7
GPIOB0-3 (A16-19)
GPIOB4 (A20,
prescaler_clock)
GPIOB5-7 (A21-23,
clk0-3**)
D0-6 or GPIOF9-15
D7-15 or GPIOF0-8
WR
RD
GPIOD0-5 or CS2-7
PS (CS0) or GPIOD8
DS (CS1) or GPIOD9
**See Table 2-2
for explanation
External Bus
Interface Unit
System Bus
Control
3
7
9
4
Data Memory
4K x 16 Flash
8K x 16 RAM
External Data
Bus Switch
4
IPBus Bridge (IPBB)
Peripheral
Device Selects
RW
Control
IPAB
IPWDB
IPRDB
Bus Control
6
2
Decoding
Peripherals
Clock
resets
PLL
4
2
SCI1 or
GPIOD
2
SCI0 or
GPIOE
2
COP/
Watchdog
Interrupt
Controller
P
System
O
Integration
R
Module
O
Clock
S
Generator
C
XTAL
EXTAL
IRQA
IRQB
CLKO
CLKMODE

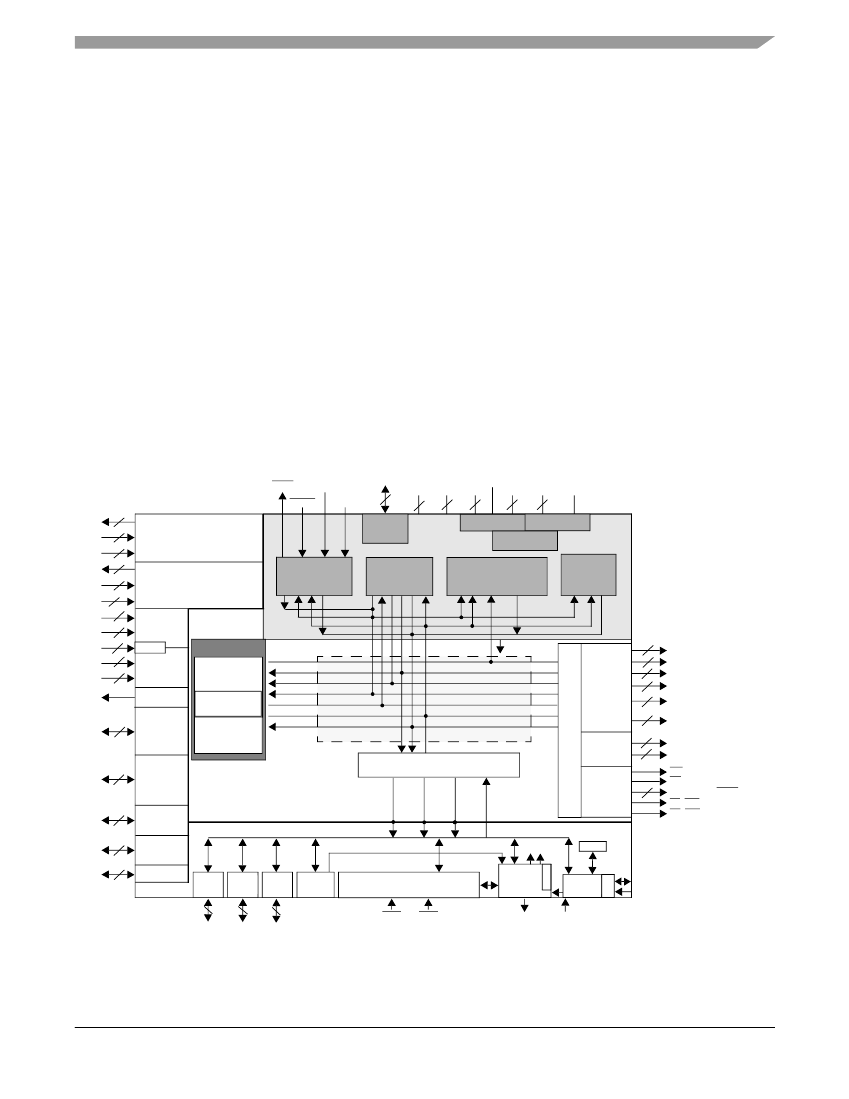

56F8357/56F8157 Block Diagram
56F8357 Technical Data, Rev. 8.0
Freescale Semiconductor
Preliminary
3
Table of Contents
Part 1: Overview . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.
1.2.
1.3.
1.4.
1.5.
1.6.
56F8357/56F8157 Features . . . . . . . . . . . . . 5
Device Description . . . . . . . . . . . . . . . . . . . . 7
Award-Winning Development Environment . 9
Architecture Block Diagram . . . . . . . . . . . . 10
Product Documentation . . . . . . . . . . . . . . . 14
Data Sheet Conventions . . . . . . . . . . . . . . 14
Part 8: General Purpose Input/Output
(GPIO) . . . . . . . . . . . . . . . . . . . . . . . 126
8.1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . 126
8.2. Memory Maps . . . . . . . . . . . . . . . . . . . . . . 127
8.3. Configuration . . . . . . . . . . . . . . . . . . . . . . . 127
Part 9: Joint Test Action Group (JTAG) . 132
9.1. JTAG Information . . . . . . . . . . . . . . . . . . . .132
Part 2: Signal/Connection Descriptions . . . 15
2.1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2. Signal Pins . . . . . . . . . . . . . . . . . . . . . . . . . 18
Part 10: Specifications . . . . . . . . . . . . . . . 132
10.1. General Characteristics . . . . . . . . . . . . . .132
10.2. DC Electrical Characteristics . . . . . . . . . . 136
10.3. AC Electrical Characteristics . . . . . . . . . . 140
10.4. Flash Memory Characteristics . . . . . . . . . 140
10.5. External Clock Operation Timing . . . . . . . 141
10.6. Phase Locked Loop Timing . . . . . . . . . . .141
10.7. Crystal Oscillator Timing . . . . . . . . . . . . . 142
10.8. External Memory Interface Timing . . . . . .142
10.9. Reset, Stop, Wait, Mode Select, and
Interrupt Timing . . . . . . . . . . . . . . 145
10.10. Serial Peripheral Interface (SPI) Timing . 147
10.11. Quad Timer Timing . . . . . . . . . . . . . . . . 151
10.12. Quadrature Decoder Timing . . . . . . . . . . 151
10.13. Serial Communication Interface (SCI)
Timing . . . . . . . . . . . . . . . . . . . . . 152
10.14. Controller Area Network (CAN) Timing . 153
10.15. JTAG Timing . . . . . . . . . . . . . . . . . . . . . 153
10.16. Analog-to-Digital Converter (ADC)
Parameters . . . . . . . . . . . . . . . . . 155
10.17. Equivalent Circuit for ADC Inputs . . . . . .158
10.18. Power Consumption . . . . . . . . . . . . . . . . 158
Part 3: On-Chip Clock Synthesis (OCCS) . . 38
3.1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 38
3.2. External Clock Operation . . . . . . . . . . . . . . 38
3.3. Registers . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Part 4: Memory Map . . . . . . . . . . . . . . . . . . . 40
4.1.
4.2.
4.3.
4.4.
4.5.
4.6.
4.7.
4.8.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . .
Program Map . . . . . . . . . . . . . . . . . . . . . . .
Interrupt Vector Table . . . . . . . . . . . . . . . . .
Data Map . . . . . . . . . . . . . . . . . . . . . . . . . .
Flash Memory Map . . . . . . . . . . . . . . . . . . .
EOnCE Memory Map . . . . . . . . . . . . . . . . .
Peripheral Memory Mapped Registers . . . .
Factory Programmed Memory . . . . . . . . . .
40
41
43
46
46
48
49
75
Part 5: Interrupt Controller (ITCN) . . . . . . . . 76
5.1.
5.2.
5.3.
5.4.
5.5.
5.6.
5.7.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 76
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Functional Description . . . . . . . . . . . . . . . . 76
Block Diagram . . . . . . . . . . . . . . . . . . . . . . 78
Operating Modes . . . . . . . . . . . . . . . . . . . . 78
Register Descriptions . . . . . . . . . . . . . . . . . 79
Resets . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Part 11: Packaging . . . . . . . . . . . . . . . . . . 160
11.1. 56F8357 Package and Pin-Out
Information . . . . . . . . . . . . . . . . . . 160
11.2. 56F8157 Package and Pin-Out
Information . . . . . . . . . . . . . . . . . . 163
Part 6: System Integration Module (SIM) . 106
6.1.
6.2.
6.3.
6.4.
6.5.
6.6.
6.7.
6.8.
6.9.
Overview . . . . . . . . . . . . . . . . . . . . . . . . .
Features . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Modes . . . . . . . . . . . . . . . . . . .
Operation Mode Register . . . . . . . . . . . . .
Register Descriptions . . . . . . . . . . . . . . . .
Clock Generation Overview . . . . . . . . . . .
Power Down Modes Overview . . . . . . . . .
Stop and Wait Mode Disable Function . . .
Resets . . . . . . . . . . . . . . . . . . . . . . . . . . .
106
107
107
108
108
121
122
122
123
Part 12: Design Considerations . . . . . . . . 167
12.1. Thermal Design Considerations . . . . . . . . 167
12.2. Electrical Design Considerations . . . . . . . 168
12.3. Power Distribution and I/O Ring
Implementation . . . . . . . . . . . . . .169
Part 13: Ordering Information . . . . . . . . . 170
Part 7: Security Features . . . . . . . . . . . . . . 123
7.1. Operation with Security Enabled . . . . . . . 123
7.2. Flash Access Blocking Mechanisms . . . . 124
56F8357 Technical Data, Rev. 8.0
4
Freescale Semiconductor
Preliminary
56F8357/56F8157 Features
Part 1 Overview
1.1 56F8357/56F8157 Features
1.1.1
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Hybrid Controller Core
Efficient 16-bit 56800E family hybrid controller engine with dual Harvard architecture
Up to 60 Million Instructions Per Second (MIPS) at 60 MHz core frequency
Single-cycle 16
×
16-bit parallel Multiplier-Accumulator (MAC)
Four 36-bit accumulators, including extension bits
Arithmetic and logic multi-bit shifter
Parallel instruction set with unique DSP addressing modes
Hardware DO and REP loops
Three internal address buses
Four internal data buses
Instruction set supports both DSP and controller functions
Controller-style addressing modes and instructions for compact code
Efficient C compiler and local variable support
Software subroutine and interrupt stack with depth limited only by memory
JTAG/EOnCE debug programming interface
1.1.2
Differences Between Devices
Table 1-1
outlines the key differences between the 56F8357 and 56F8157 devices.
Table 1-1 Device Differences
Feature
Guaranteed Speed
Program RAM
Data Flash
PWM
CAN
Quad Timer
Quadrature Decoder
Temperature Sensor
Dedicated GPIO
56F8357
60MHz/60 MIPS
4KB
8KB
2x6
1
4
2x4
1
—
56F8157
40MHz/40 MIPS
Not Available
Not Available
1x6
Not Available
2
1x4
Not Available
7
56F8357 Technical Data, Rev. 8.0
Freescale Semiconductor
Preliminary
5
京公网安备 11010802033920号
EEWORLD
