DIN 41612 Connectors C FL1/2 48P CL2 AU ST4.5

36501-0026 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.417 inch
subject depth	0.457 inch
body length	2.16 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Insulation resistance	10000000000000 Ω
Insulator color	GRAY
Manufacturer's serial number	36501
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

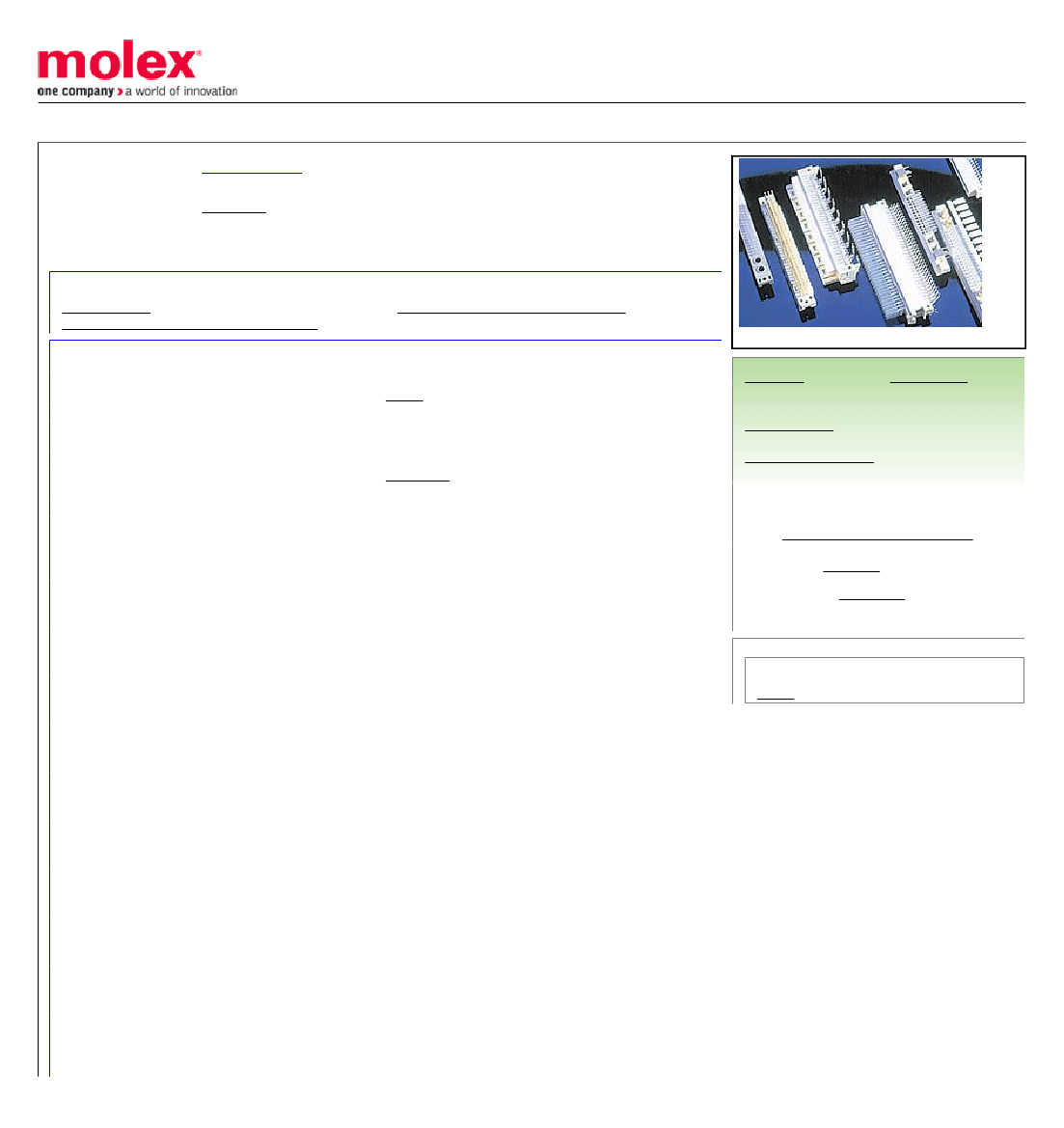

Preview

Download Datasheet

View All

This document was generated on 08/30/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

36501-0026

Active

DIN 41612

2.54mm Pitch DIN 41612 C/2 Style Female Receptacle, Vertical, Through Hole,

0.60µm Selective Gold (Au) Plating, 48 Circuits, Solder Tail Length 4.50mm, without

Mounting Clips, No Flux Proof, Lead-Free

Documents:

Drawing (PDF)

Product Specification PS-36500-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

UPC

Backplane Connectors

36501

Daughtercard

No Mounting Clips, Secured with Tubular Rivets/

Cheesehead Screws. No Flux Proof

PCB Receptacle

DIN 41612

IEC 603-2/DIN 41612

C/2

822350951111

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

1,2,3,...16; A+B+C

Gray

400

Yes

Phosphor Bronze

Gold

Tin

Polyester

Open Pin Field

Vertical

4.50mm

Yes

1.60mm

Carton

2.54mm

0.610µm

Yes

-55°C to +125°C

Through Hole
